FSU-14

< REMOVAL AND INSTALLATION >

TRANSVERSE LINK

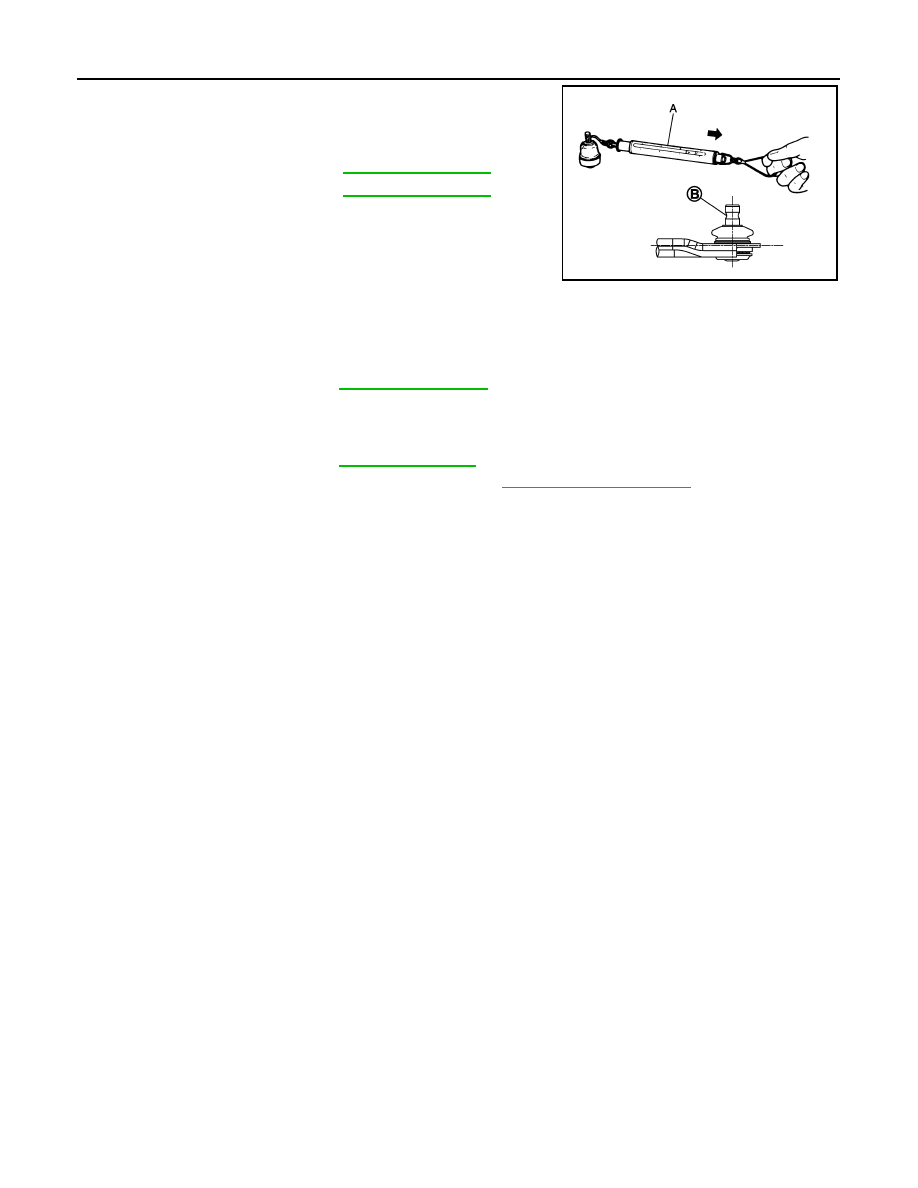

3. Hook a spring balance (A) at cutout on ball stud (B). Confirm

spring balance measurement value is within specifications when

ball stud begins moving.

• If swing torque exceeds standard range, replace transverse link

assembly.

Axial End Play

1. Move ball stud at least ten times by hand to check for smooth movement.
2. Move tip of ball stud in axial direction to check for looseness.

• If axial end play exceeds the standard value, replace transverse link assembly.

INSPECTION AFTER INSTALLATION

1. Check wheel alignment. Refer to

FSU-7, "Inspection"

.

2. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

Swing torque

: Refer to

FSU-19, "Ball Joint"

.

Measurement on
spring balance

: Refer to

FSU-19, "Ball Joint"

.

JPEIA0138ZZ

Axial end play

: Refer to

FSU-19, "Ball Joint"

.

FRONT STABILIZER

FSU-15

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

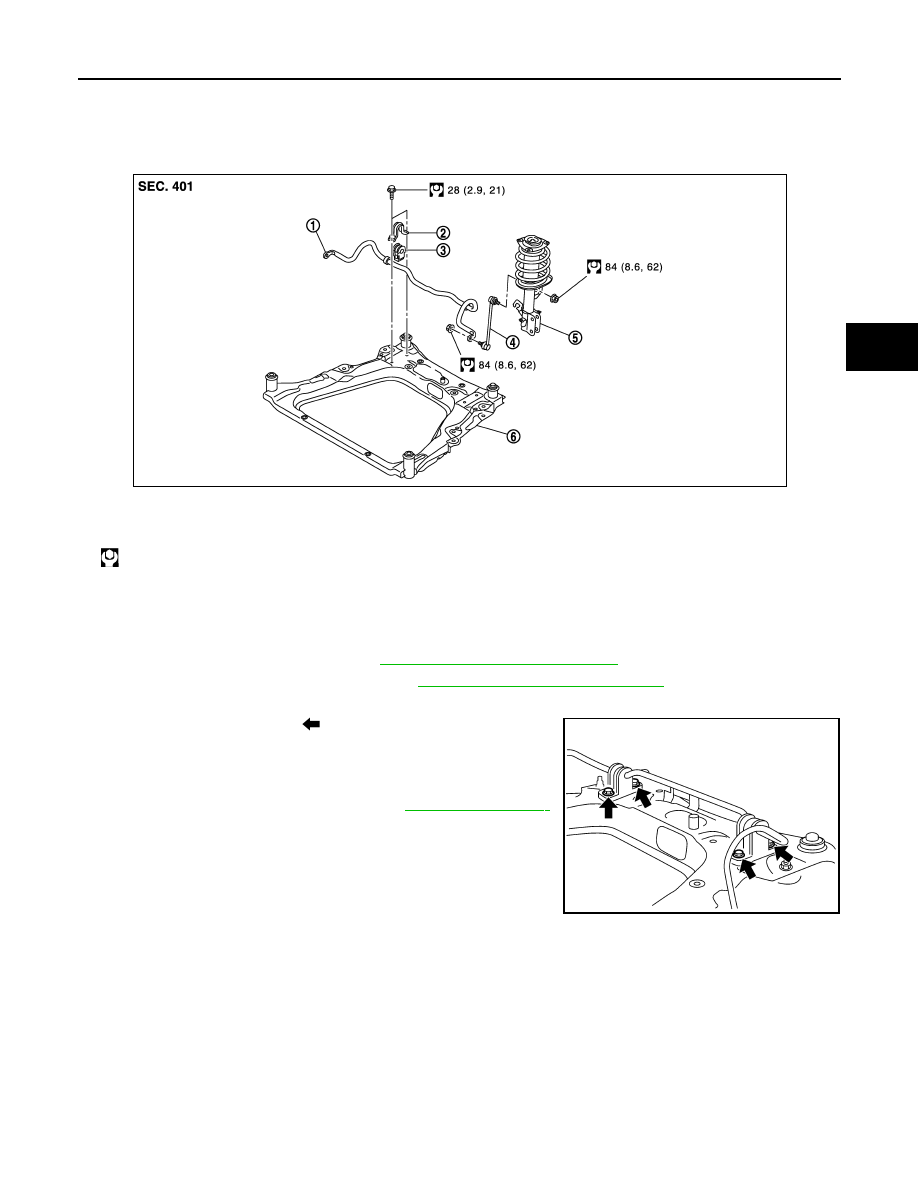

FRONT STABILIZER

Exploded View

INFOID:0000000012199124

Removal and Installation

INFOID:0000000012199125

REMOVAL

1. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

2. Remove front suspension member. Refer to

FSU-17, "Removal and Installation"

.

3. Remove stabilizer connecting rod.
4. Remove mounting bolts (

) of stabilizer clamp, and then

remove stabilizer clamp and stabilizer bushing from front sus-

pension member.

5. Remove stabilizer bar.
6. Perform inspection after removal. Refer to

FSU-16, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Stabilizer bar

2.

Stabilizer clamp

3.

Stabilizer bushing

4.

Stabilizer connecting rod

5.

Strut assembly

6.

Front suspension member

: N·m (kg-m, ft-lb)

JPEIA0243GB

WEIA0182E

FSU-16

< REMOVAL AND INSTALLATION >

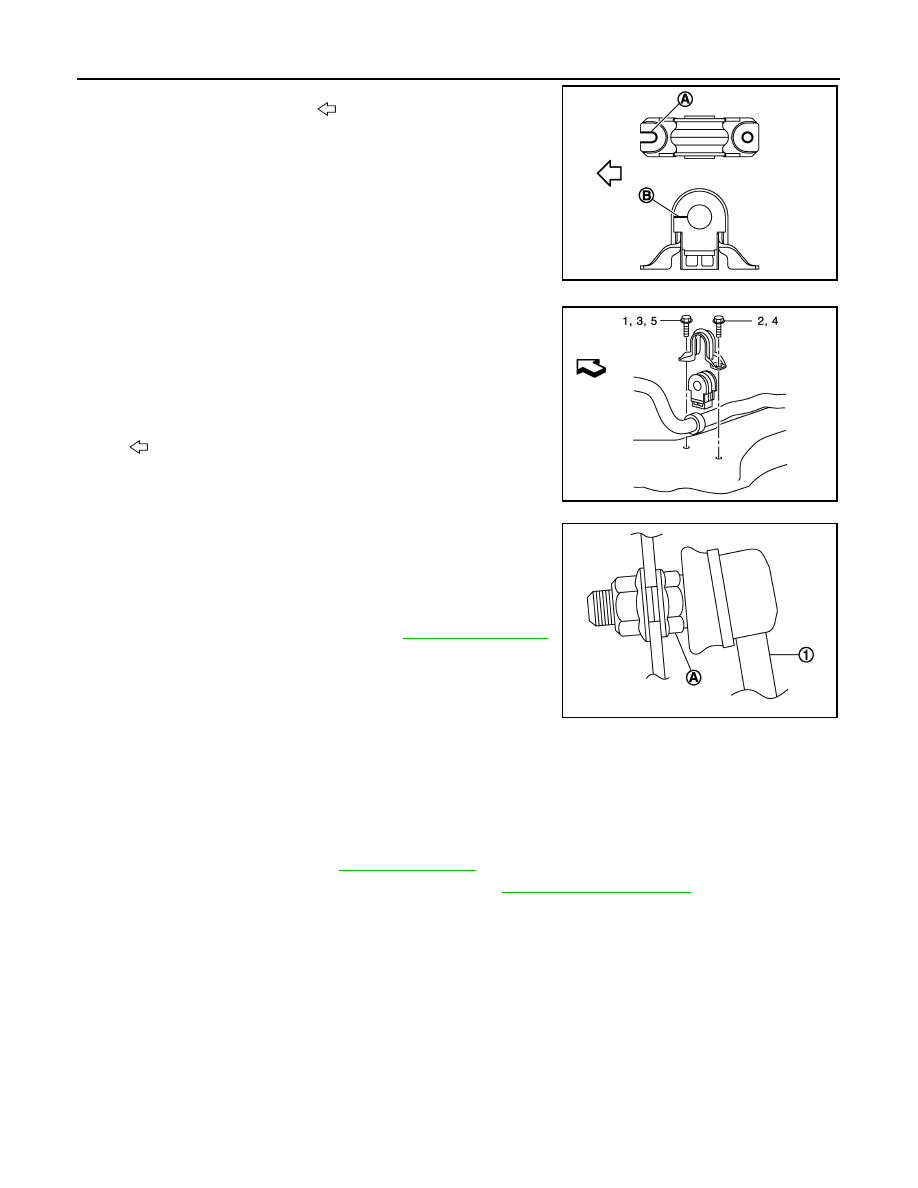

FRONT STABILIZER

• Install stabilizer clamp and stabilizer bush with notch (A) and slit

(B) faced forward of the vehicle (

).

• To install stabilizer clamp mounting bolt, follow the tightening

method and the numerical order shown below:

• To install stabilizer connecting rod (1), tighten the mounting nut

with the hexagonal part (A) on the stabilizer connecting rod side

fixed.

• Perform final tightening of bolts and nuts at the vehicle installation

position (rubber bushing), under unladen conditions with tires on

level ground.

• Perform inspection after installation. Refer to

FSU-13, "Inspection"

.

Inspection

INFOID:0000000012199126

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks

or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel alignment. Refer to

FSU-7, "Inspection"

.

2. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

JPEIA0058ZZ

Manual tightening

: 1

Temporary tightening

: 2

→ 3

Final tightening (Specified torque)

: 4

→ 5

: Vehicle front

JPEIA0245GB

JPEIA0252ZZ

FRONT SUSPENSION MEMBER

FSU-17

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

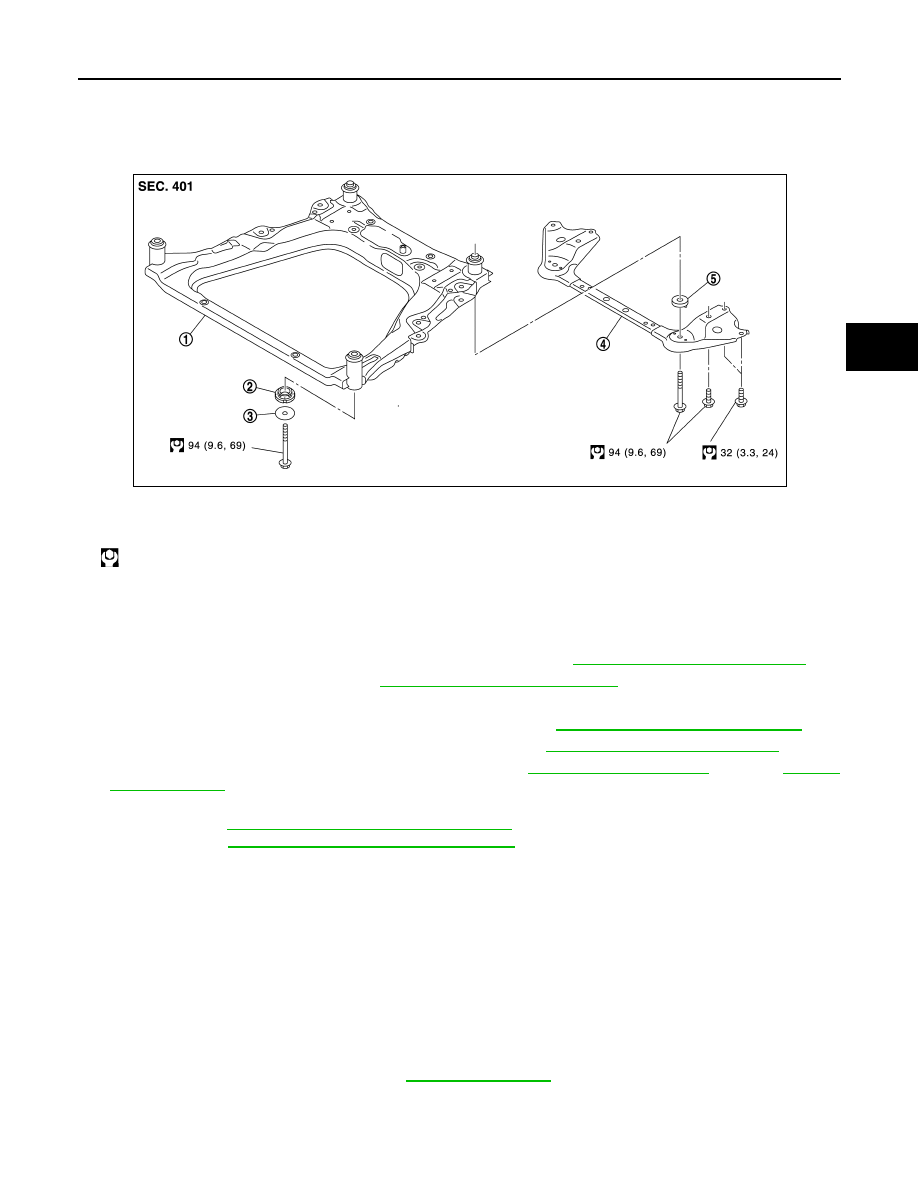

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000012199127

Removal and Installation

INFOID:0000000012199128

REMOVAL

1. Separate intermediate shaft from steering gear assembly. Refer to

ST-14, "Removal and Installation"

.

2. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

3. Remove front under cover.
4. Separate stabilizer connecting rod from strut assembly. Refer to

FSU-15, "Removal and Installation"

.

5. Separate steering outer socket from steering knuckle. Refer to

ST-17, "Removal and Installation"

.

6. Separate transverse link from steering knuckle. Refer to

FAX-11, "Exploded View"

(NISMO),

FAX-66,

"Exploded View"

(EXCEPT NISMO).

7. Remove rear torque rod.

• 2WD: Refer to

EM-64, "2WD : Removal and Installation"

.

• AWD: Refer to

EM-68, "AWD : Removal and Installation"

.

8. Set suitable jack under front suspension member.

CAUTION:

Check the stable condition when using a jack.

9. Remove member stay and rebound stopper.
10. Remove suspension member mounting bolts, insulator, and rebound stopper rubber.
11. Gradually lower the jack to remove front suspension member from vehicle body.

CAUTION:

Operate while checking that jack supporting status is stable.

NOTE:

Remove it with each component parts.

12. Remove component parts from front suspension member.
13. Perform inspection after removal. Refer to

FSU-13, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Front suspension member

2.

Rebound stopper rubber

3.

Insulator

4.

Member stay

5.

Rebound stopper

: N·m (kg-m, ft-lb)

JPEIA0271GB
