FL-26

< REMOVAL AND INSTALLATION >

[MR16DDT ]

EVAP CANISTER

EVAP CANISTER

2WD
2WD : Hydraulic Layout

INFOID:0000000012197597

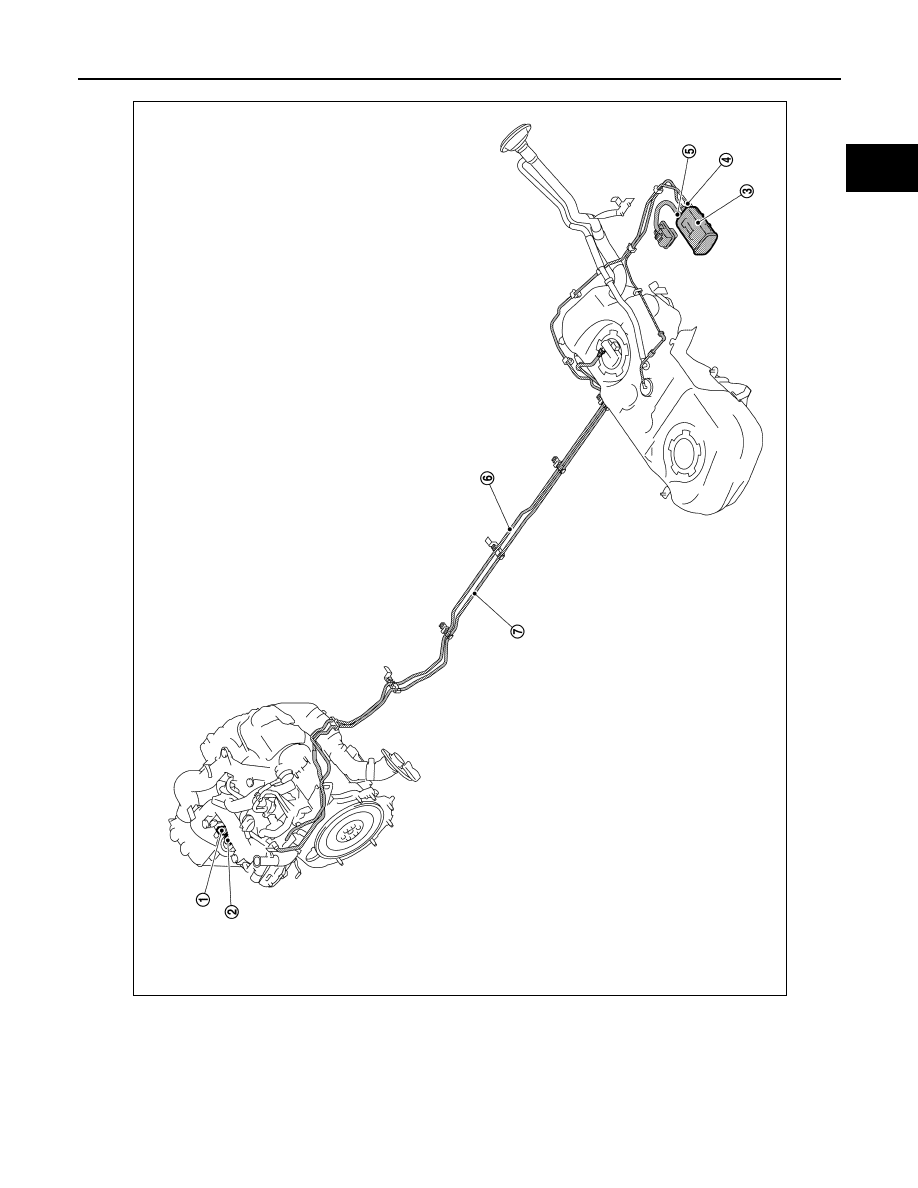

EVAPORATIVE EMISSION LINE DRAWING

JPBIA4890ZZ

EVAP CANISTER

FL-27

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

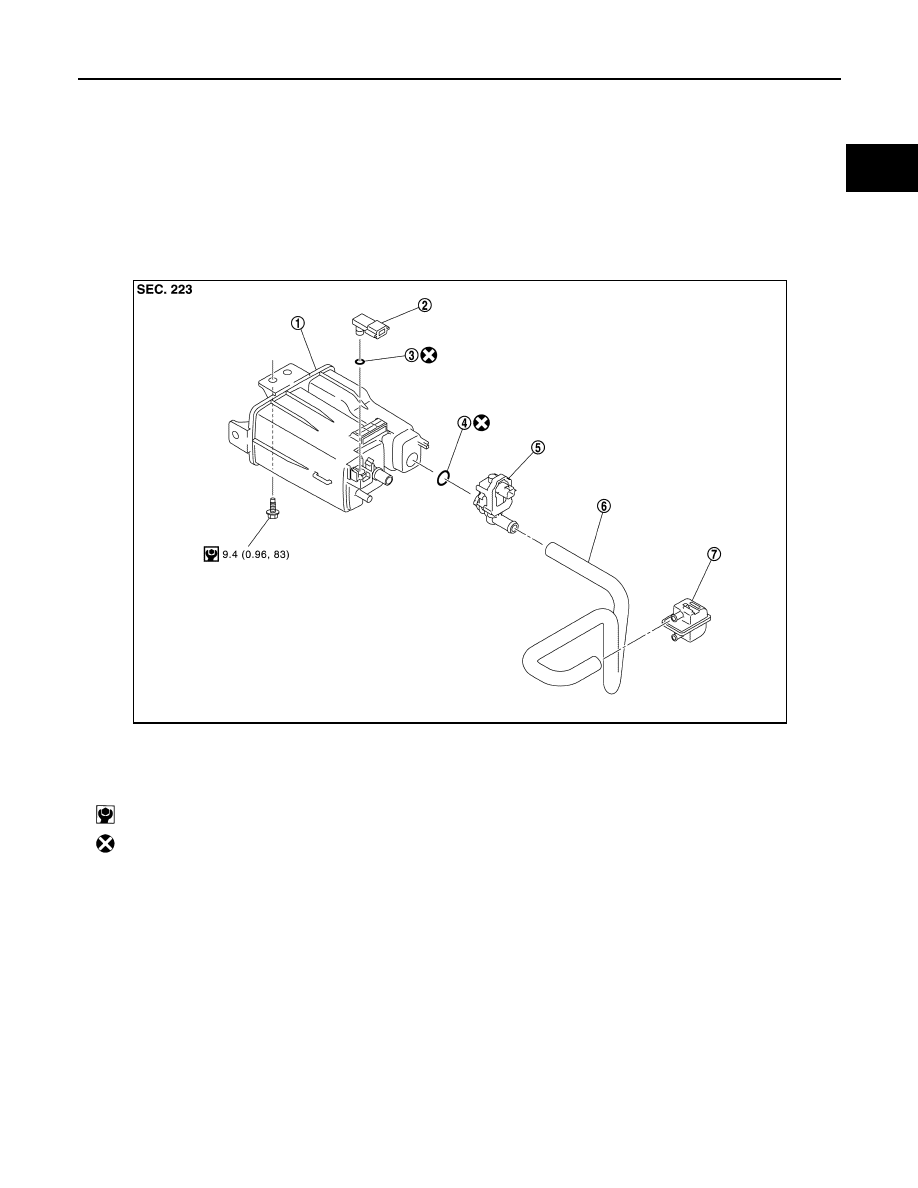

2WD : Exploded View

INFOID:0000000012197598

2WD : Removal and Installation

INFOID:0000000012197599

REMOVAL

1. Disconnect harness connectors (EVAP control pressure sensor and EVAP canister vent control valve) and

EVAP canister hoses.

2. Remove EVAP canister fixing bolt.
3. Remove EVAP canister.

NOTE:

EVAP canister vent control valve and EVAP control pressure sensor can be removed without removing

the EVAP canister.

INSTALLATION

CAUTION:

Do not reuse O-rings.

Install in the reverse order of removal.

1.

EVAP canister purge volume control
solenoid valve

2.

EVAP service port

3.

EVAP canister

4.

EVAP control pressure sensor

5.

EVAP canister vent control valve

6.

EAVP line

7.

Fuel line

1.

EVAP canister

2.

EVAP control pressure sensor

3.

O-ring

4.

O-ring

5.

EVAP canister vent control valve

6.

EVAP canister hose

7.

Canister filter

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

JPBIA4877GB

FL-28

< REMOVAL AND INSTALLATION >

[MR16DDT ]

EVAP CANISTER

NOTE:

Tighten EVAP canister fixing bolt to the specified torque.

2WD : Disassembly and Assembly

INFOID:0000000012197600

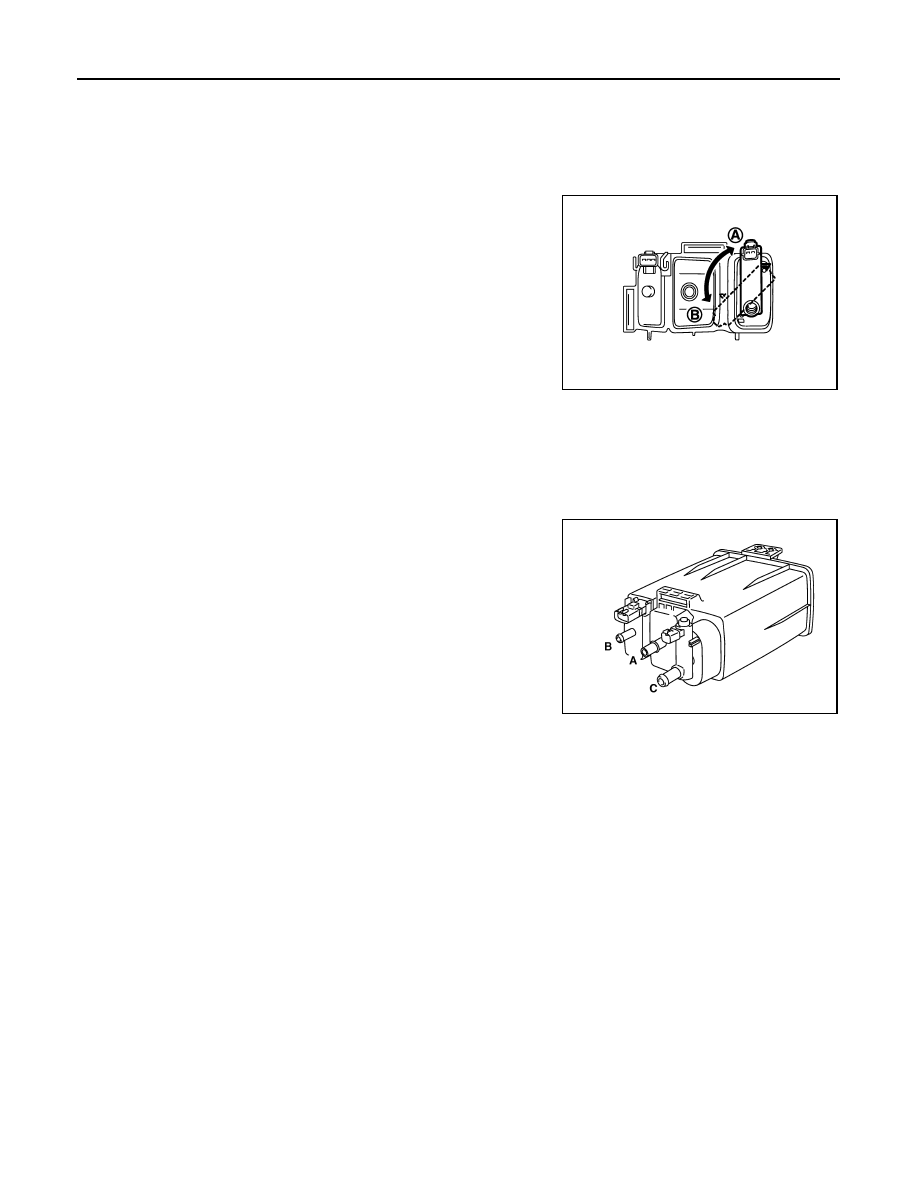

DISASSEMBLY

1. Disengage the pawl and turn EVAP canister vent control valve

counterclockwise.

• Lock (A)

• Unlock  (B)

2. Remove the EVAP canister vent control valve.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

Always replace O-ring with a new one.

2WD : Inspection

INFOID:0000000012197601

Check EVAP canister as per the following:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.

AWD
AWD : Hydraulic Layout

INFOID:0000000012197602

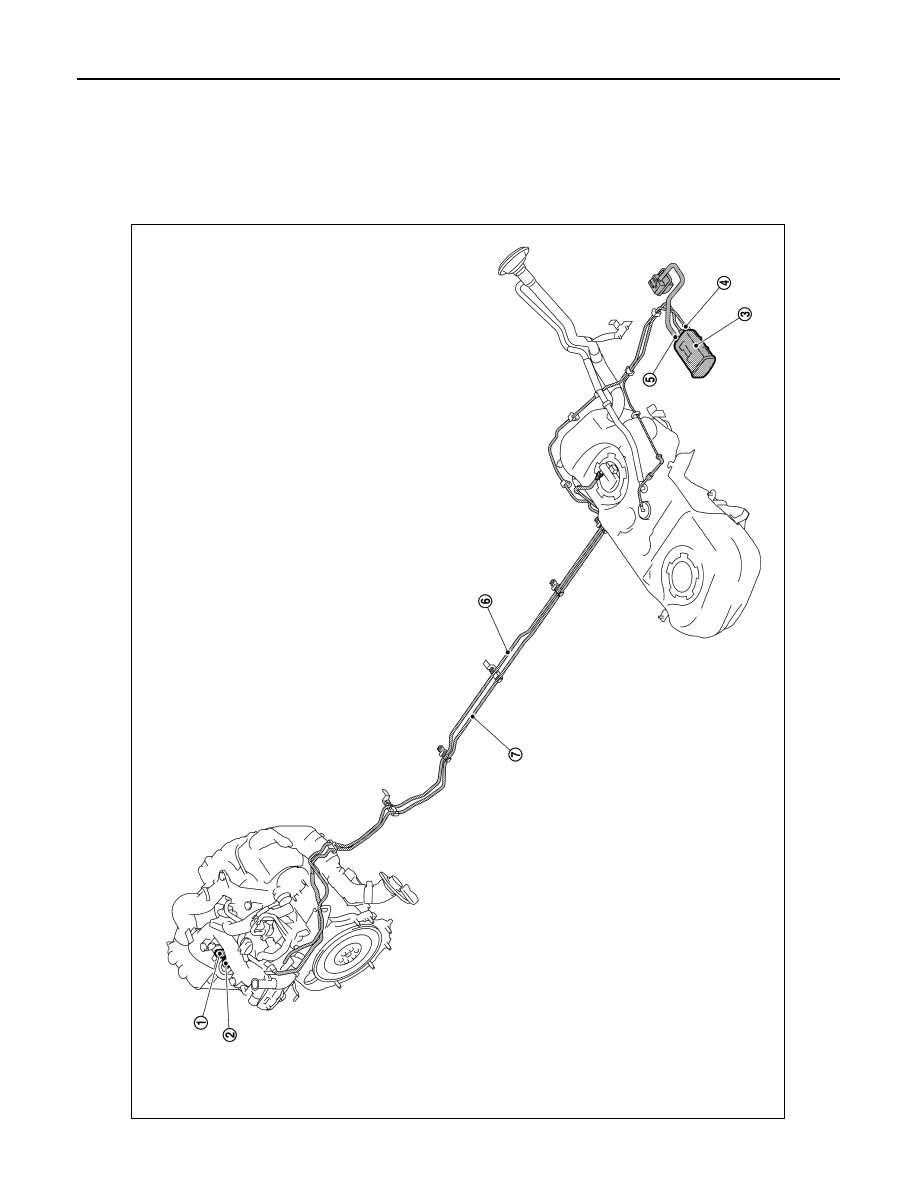

EVAPORATIVE EMISSION LINE DRAWING

PBIB3091E

PBIB1212E

EVAP CANISTER

FL-29

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

1.

EVAP canister purge volume control
solenoid valve

2.

EVAP service port

3.

EVAP canister

4.

EVAP control pressure sensor

5.

EVAP canister vent control valve

6.

EAVP line

7.

Fuel line

JPBIA4891ZZ
