Nissan Juke F15. Manual - part 762





ROOF SIDE MOLDING

EXT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

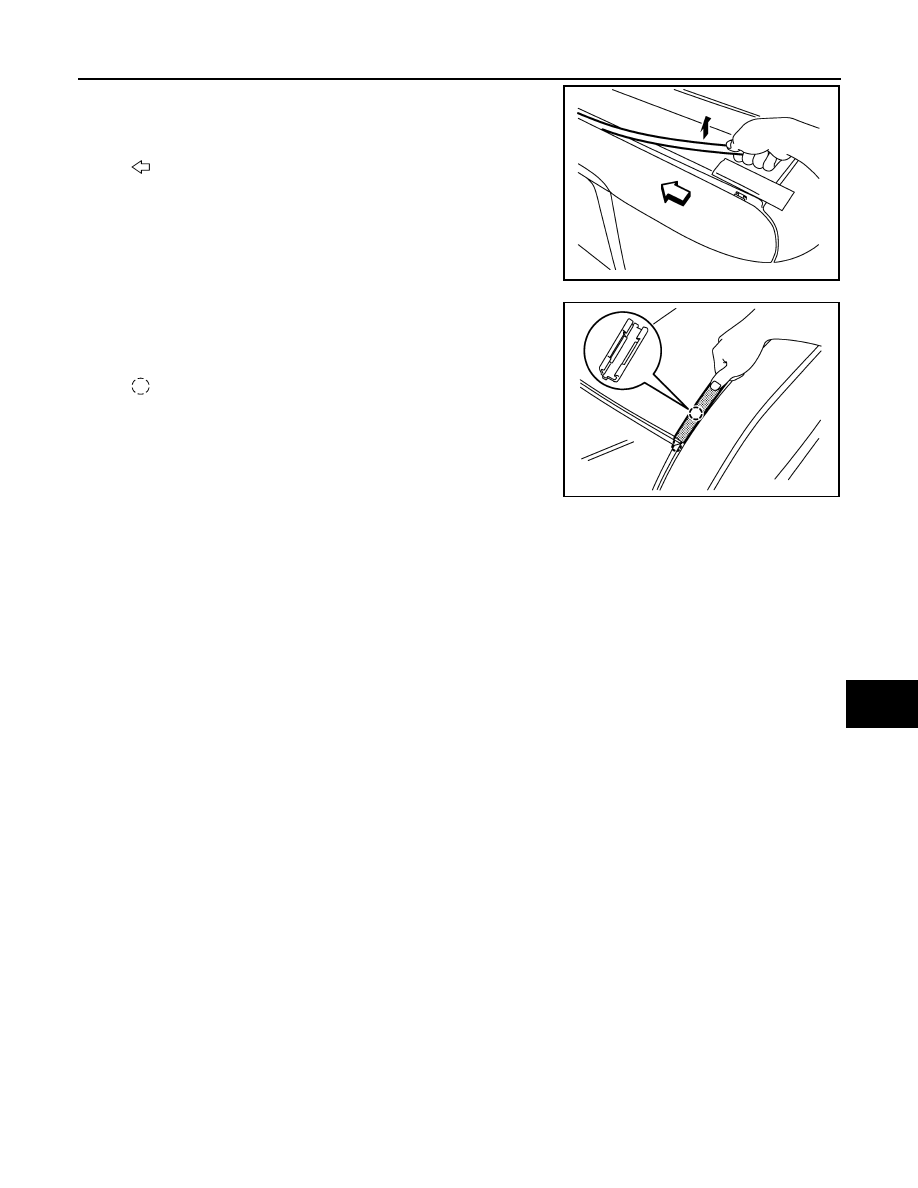

2. Pull up roof side molding from rear end to front end.

CAUTION:

Never pull the roof side molding strongly.

3. Disengage windshield molding and clip at the front end of roof

side molding, and then remove while pulling out toward vehicle

rear.

Roof Side Molding Clip

1. Remove roof side molding.
2. Heat adhesive tape interface using a dryer, and then peel roof side molding clips (body side) using long-

nose pliers.

CAUTION:

Never damage the body.

INSTALLATION

Roof Side Molding

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing roof side molding, check that roof side molding are securely in roof side molding

clip, and press them in.

• Replace the double-sided tape on the back surface with new double-sided tape when reusing the

roof side molding.

• Remove double-sided tape remaining on roof panel and back of roof side molding with a double-

sided tape remover, after removing roof side molding.

• When installing, visually check the roof side molding and roof side molding clip, then replace them

with new parts if they are damaged.

Roof Side Molding Clip

1. Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.
2. Use two-part epoxy adhesive.

3. Apply adhesive evenly to clip tape surface.

4. Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to

tape side.

: Vehicle front

JMKIA3884ZZ

: Clip

JMKIA5650ZZ

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)

Press-fit limit

: 19.6 N

× 2 seconds

EXT-40

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

5. Tape roof side molding clips after press fit, and temporarily hold it for specified time based on the follow-

ing.

CAUTION:

• Use double-sided tape after hardening for roof side molding clips.

• Securely insert molding rear end cap onto roof rear end cutout (installation standard).

• When installing roof side molding of windshield glass portion, check that body side molding fas-

tener is securely inserted and then press in.

• Never wash the vehicle within 24 hours so as to keep adhesive.

5 to 10

°C (41 to 50°F)

: 1 hour or more

11 to 23

°C (52 to 73°F)

: 30 minutes or more

24

°C or more (75°F or more)

: 15 minutes or more

DOOR OUTSIDE MOLDING

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

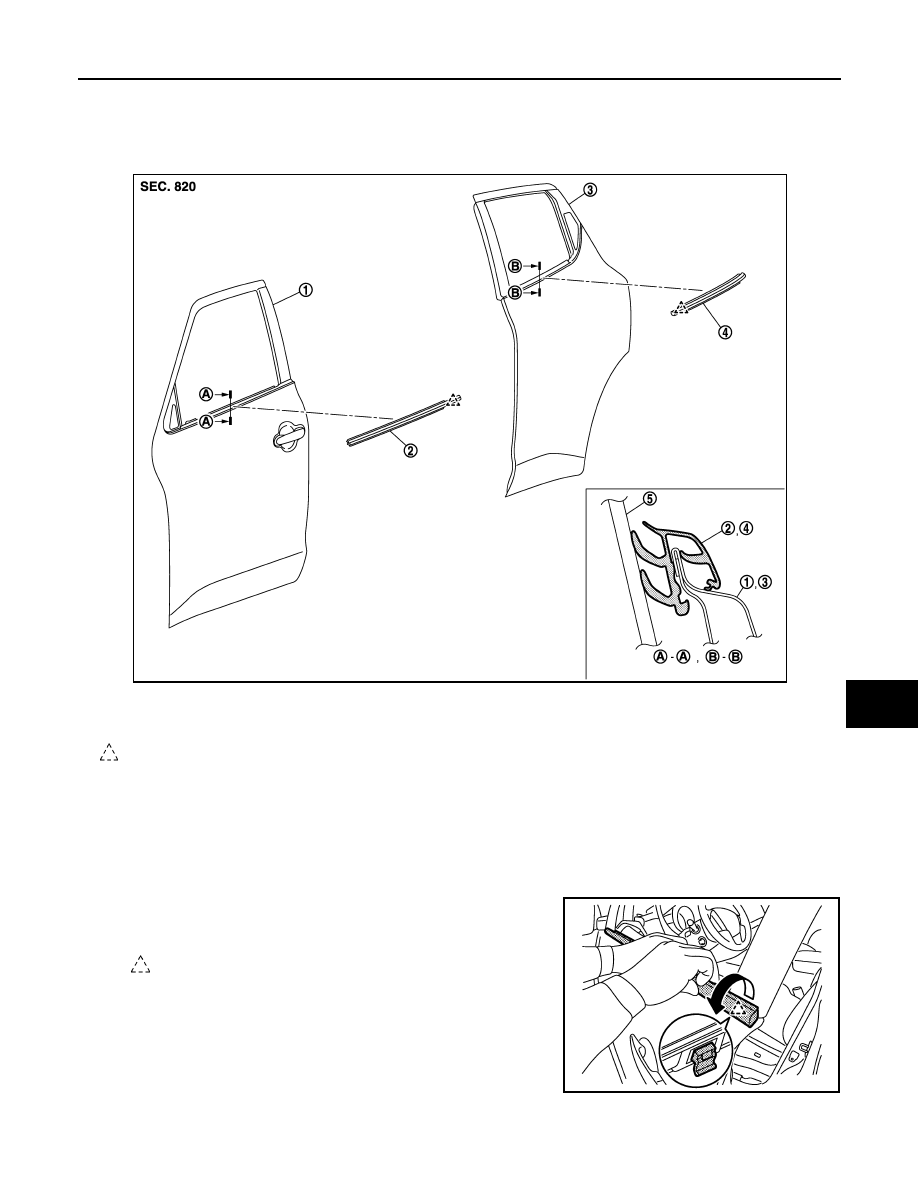

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000012199329

FRONT DOOR OUTSIDE MOLDING
FRONT DOOR OUTSIDE MOLDING : Removal and Installation

INFOID:0000000012199330

REMOVAL

1. Fully open front door glass.
2. Twist door outside molding toward the outside of the vehicle,

and then lift up and remove it while disengaging the pawls.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

1.

Front door panel

2.

Front door outside molding

3.

Rear door panel

4.

Rear door outside molding

5.

Door glass

: Pawl

JMKIA5664GB

: Pawl

JMKIA5801ZZ

EXT-42

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

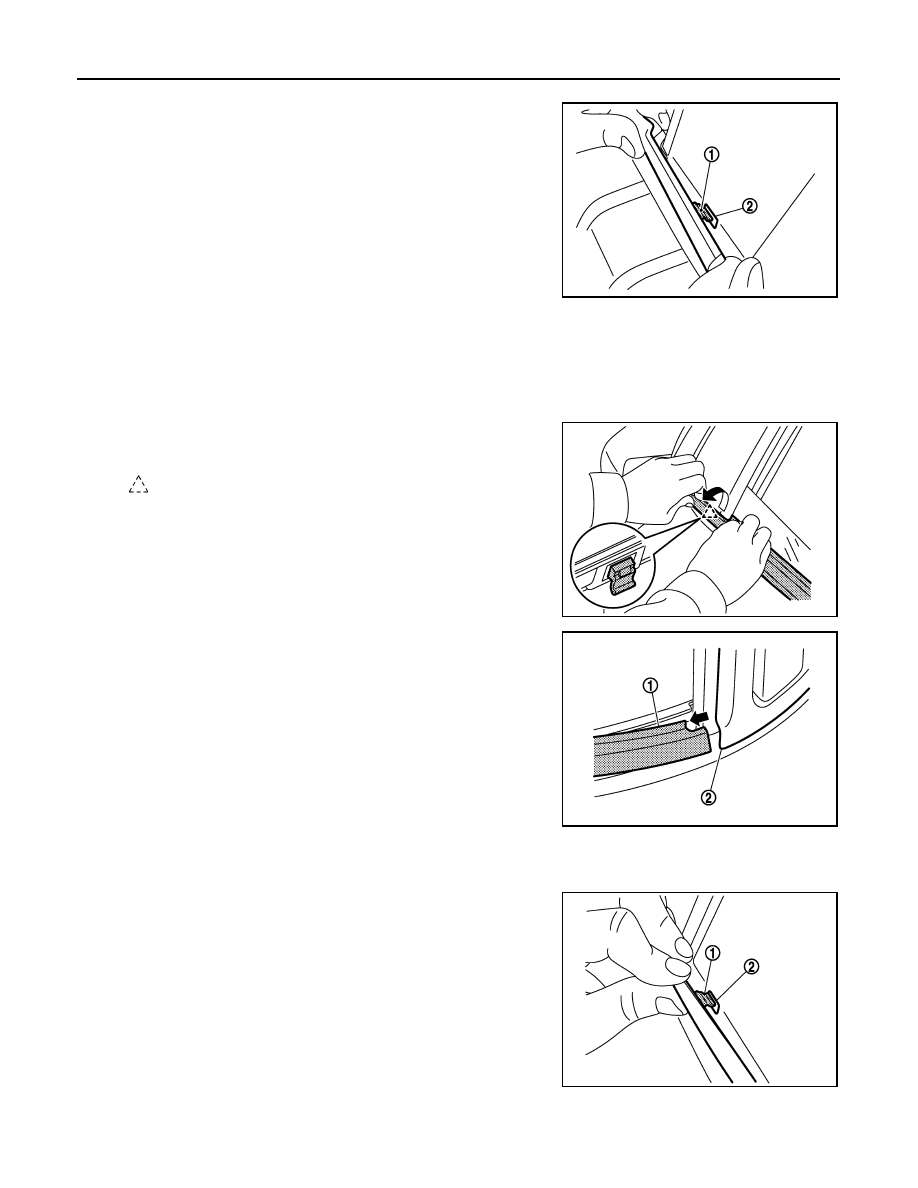

CAUTION:

When installing front door outside molding, check that pawl (1)

is accurately aligned with mounting hole (2), then press in.

REAR DOOR OUTSIDE MOLDING
REAR DOOR OUTSIDE MOLDING : Removal and Installation

INFOID:0000000012199331

REMOVAL

1. Fully open rear door glass.
2. Twist rear door outside molding toward vehicle outside and

remove molding while disengaging it from door panel.

3. Slide rear door outside molding (1) toward vehicle front, and

then pull molding out from rear door handle (2).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing rear door outside molding, check that pawl (1)

is accurately aligned with mounting hole (2), then press in.

JMKIA5669ZZ

: Pawl

JMKIA5696ZZ

JMKIA5697ZZ

JMKIA5698ZZ
