FENDER PROTECTOR

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

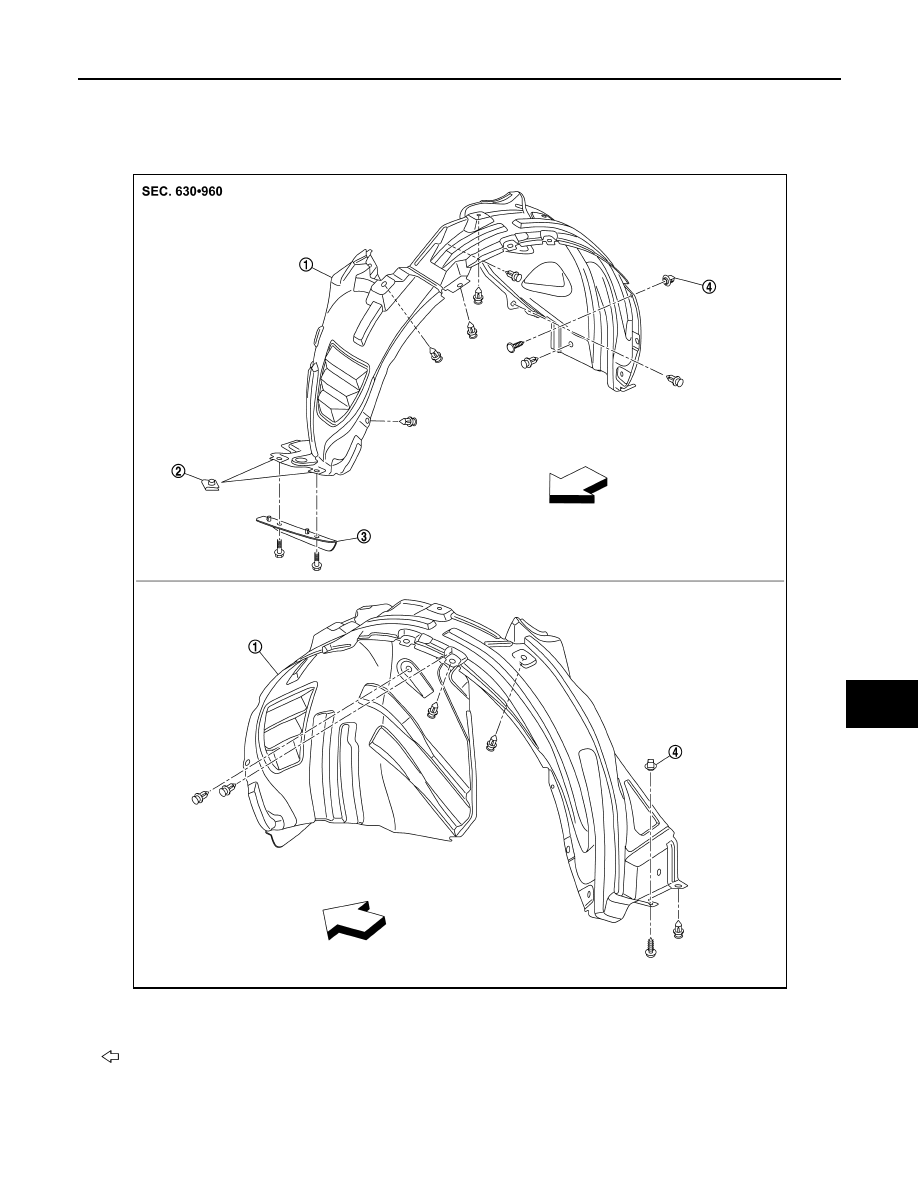

Exploded View

INFOID:0000000012199318

Removal and Installation

INFOID:0000000012199319

REMOVAL

1.

Fender protector

2.

U nut

3.

Air guide

4.

Screw grommet

: Vehicle front

JMKIB4235ZZ

EXT-32

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

1. Remove front fillet molding. Refer to

EXT-36, "FRONT FILLET MOLDING : Removal and Installation"

.

2. Remove air guide mounting bolts, and then remove air guide.
3. Remove front fender protector fixing screws and clips.
4. Remove front fender protector from wheel house.

INSTALLATION

Install in the reverse order of removal.

SILL COVER

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SILL COVER

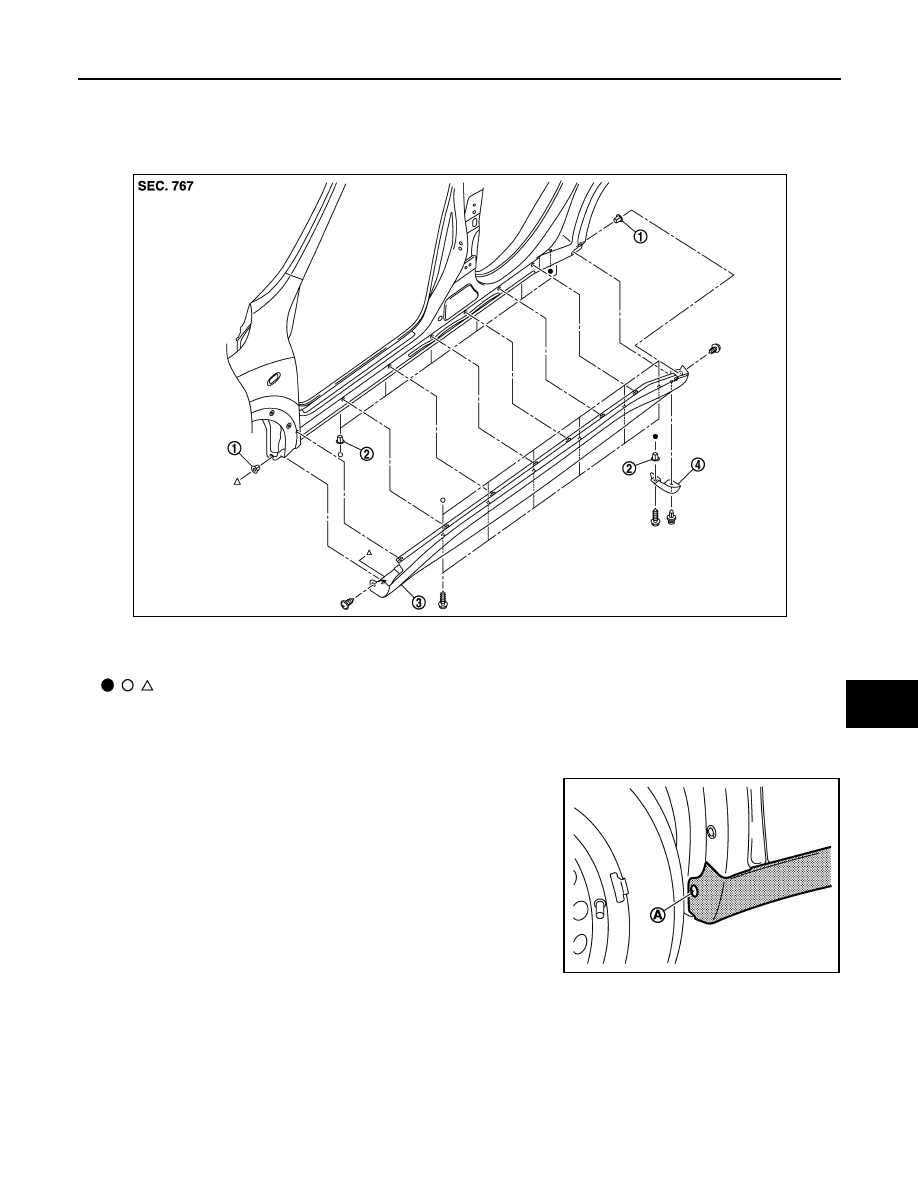

Exploded View

INFOID:0000000012199320

Removal and Installation

INFOID:0000000012199321

REMOVAL

1. Remove sill cover front end fixing screw (A).

1.

Screw grommet

2.

Screw grommet

3.

Sill cover

4.

Wind deflector

,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA5581ZZ

JMKIA5565ZZ

EXT-34

< REMOVAL AND INSTALLATION >

SILL COVER

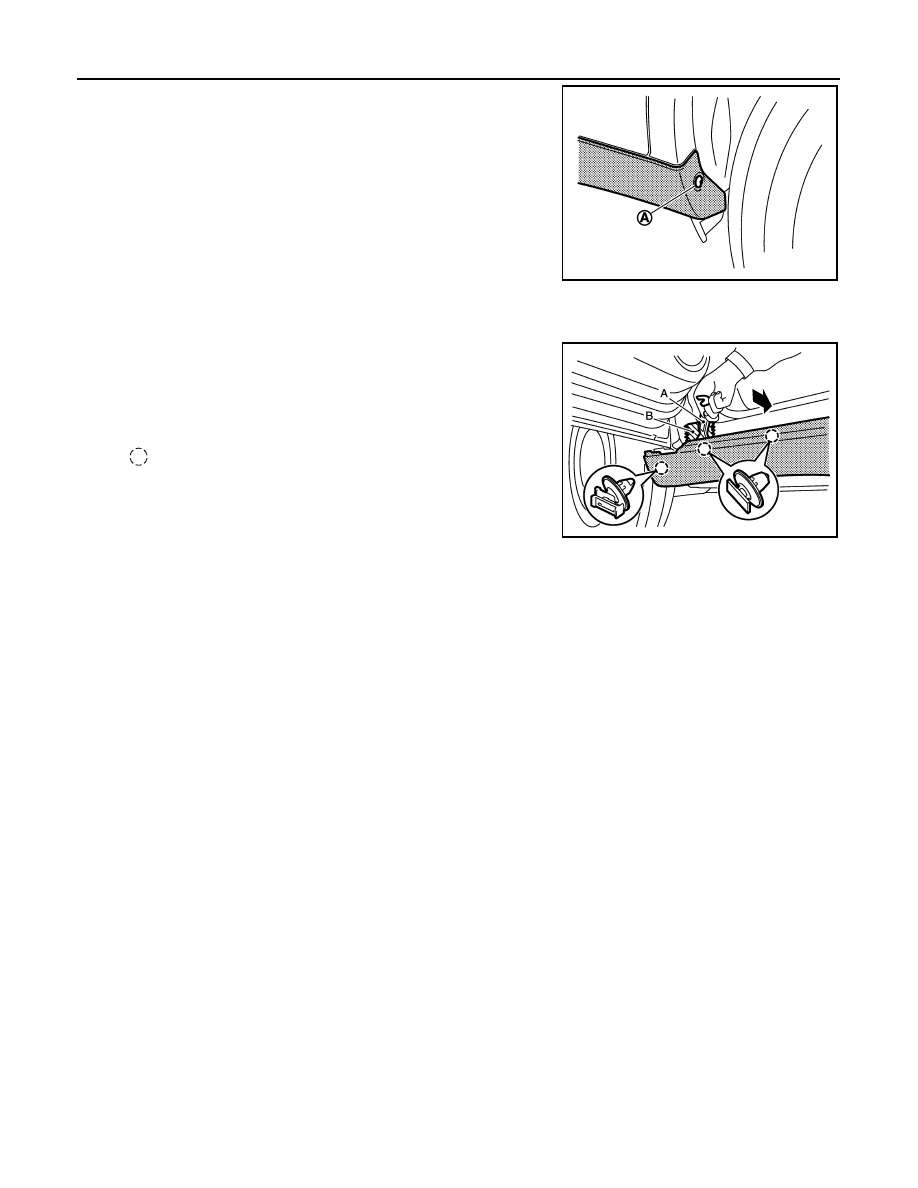

2. Remove sill cover rear end fixing screw (A).

3. Remove sill cover lower side fixing screws.
4. Fully open front door and rear door.
5. Remove fixing clips from sill cover back side with a remover tool

(A).

CAUTION:

Apply protective tape (B) on the body to protect the painted

surface from damage.

6. Remove sill cover form body side.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing sill cover, check that clips are securely fitted in body panel holes, and then press clips

in.

JMKIA5566ZZ

: Clip
