REAR BUMPER

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

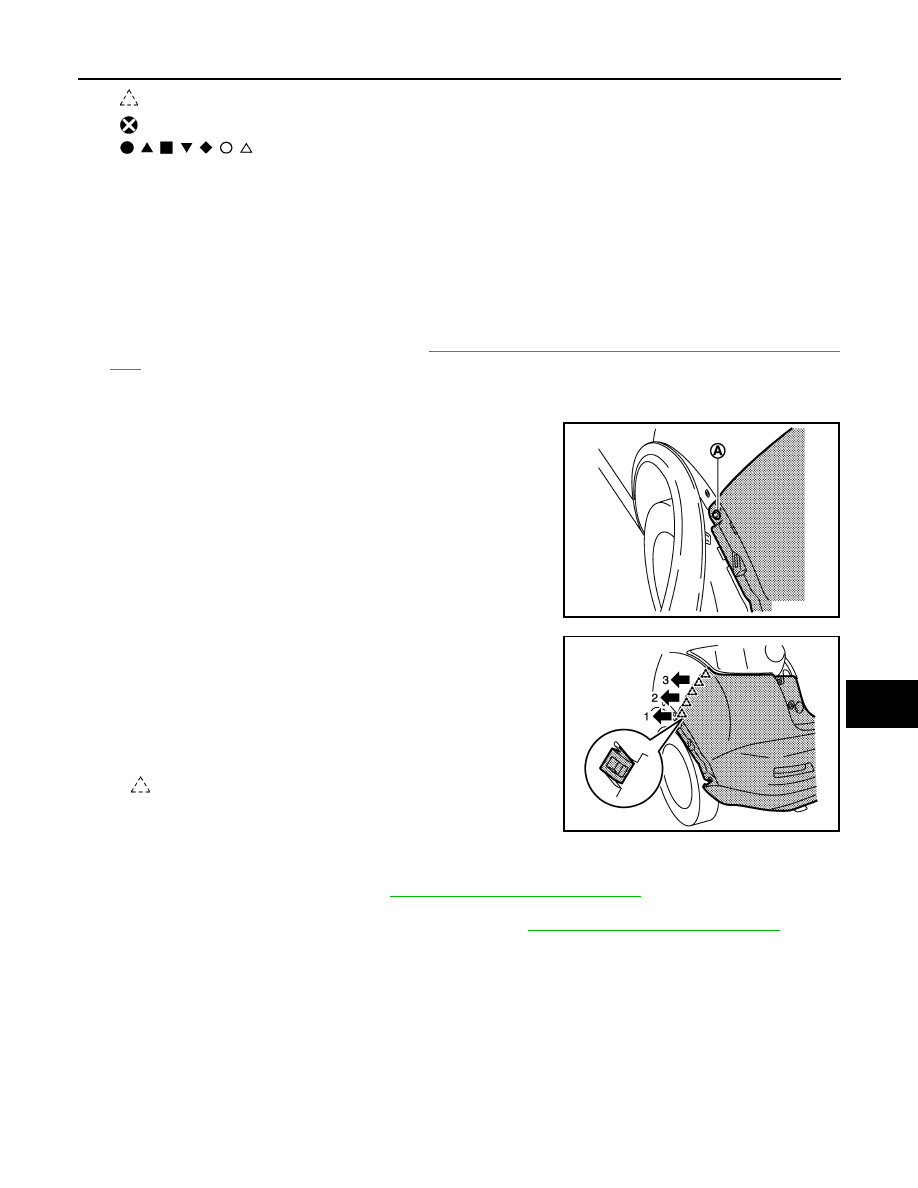

Removal and Installation

INFOID:0000000012199313

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with

oil.

REMOVAL

1. Fully open back door.
2. Remove bumper fascia fixing screws of rear combination lamp lower side (LH and RH).
3. Remove rear fillet molding rear side. Refer to

EXT-37, "REAR FILLET MOLDING : Removal and Installa-

tion"

.

4. Remove bumper closing (LH and RH).
5. Remove fixing clips of bumper lower side.
6. Remove bumper fascia fixing screws (A) (LH and RH).

7. Pull bumper fascia side toward the vehicle side to disengage the

fitting of bumper side bracket and bumper fascia side according

to the numerical order 1

→3 as shown by the arrows in the fig-

ure.

CAUTION:

When removing bumper fascia, 2 workers are required so

as to prevent it from dropping.

8. Remove bumper fascia.
9. Remove the following parts after removing bumper fascia.

• Reflex reflector (LH and RH). Refer to

EXL-116, "Removal and Installation"

.

• Bumper fascia lower

• Rear fog lamp housing (NISMO and NISMO RS). Refer to

EXL-115, "Removal and Installation"

.

10. Remove bumper energy absorber.
11. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.
12. Remove rear panel lower.
13. Remove bumper side bracket fixing screws, and then remove bumper side bracket (LH and RH).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

: Pawl

: Always replace after every disassembly.

, , , , , , :

Indicates

that

the

part

is

connected

at points with same symbol in actual vehicle.

JMKIA5561ZZ

: Pawl

JMKIA5564ZZ

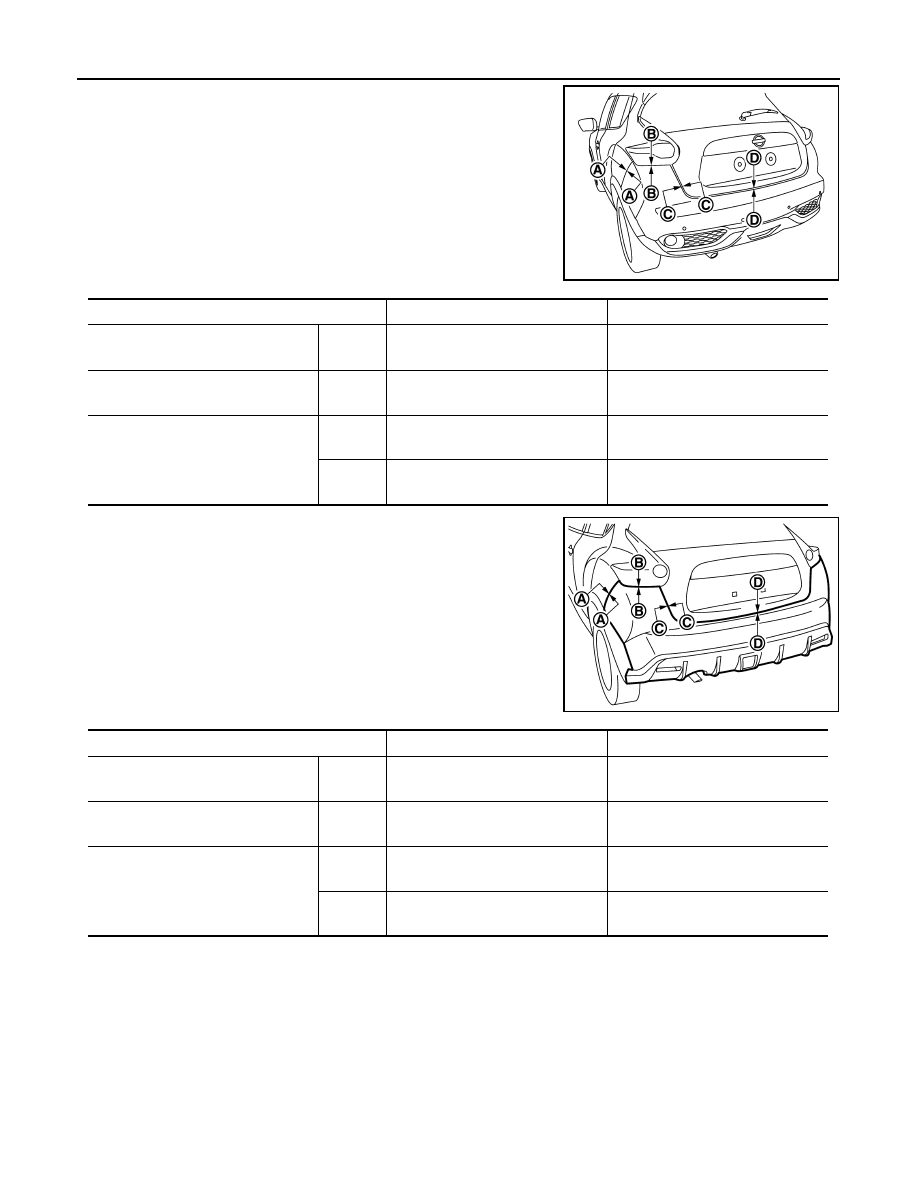

EXT-24

< REMOVAL AND INSTALLATION >

REAR BUMPER

Except for NISMO and NISMO RS

NISMO and NISMO RS

JMKIB4687ZZ

Portion

Clearance

Surface height difference

Bumper fascia assembly –
Rear fender

A – A

0.3 – 1.1 mm

(0.012 – 0.043 in)

(

−0.3) – (+1.7) mm

[(

−0.012) – (+0.067) in]

Bumper fascia assembly –
Rear combination lamp

B – B

0.2 – 2.8 mm

(0.008 – 0.110 in)

—

Bumper fascia assembly –
Back door

C – C

3.0 – 7.0 mm

(0.118 – 0.276 in)

0.0 – 4.0 mm

(0.000 – 0.157 in)

D – D

6.0 – 10.0 mm

(0.236 – 0.394 in)

—

JMKIB4688ZZ

Portion

Clearance

Surface height difference

Bumper fascia assembly –
Rear fender

A – A

0.0 – 1.0 mm

(0.000 – 0.039 in)

(

−0.3) – (+1.7) mm

[(

−0.012) – (+0.067) in]

Bumper fascia assembly –
Rear combination lamp

B – B

0.2 – 3.0 mm

(0.008 – 0.118 in)

—

Bumper fascia assembly –
Back door

C – C

3.0 – 7.0 mm

(0.118 – 0.276 in)

0.0 – 4.0 mm

(0.000 – 0.157 in)

D – D

6.0 – 10.0 mm

(0.236 – 0.394 in)

0.0 – 4.0 mm

(0.000 – 0.157 in)

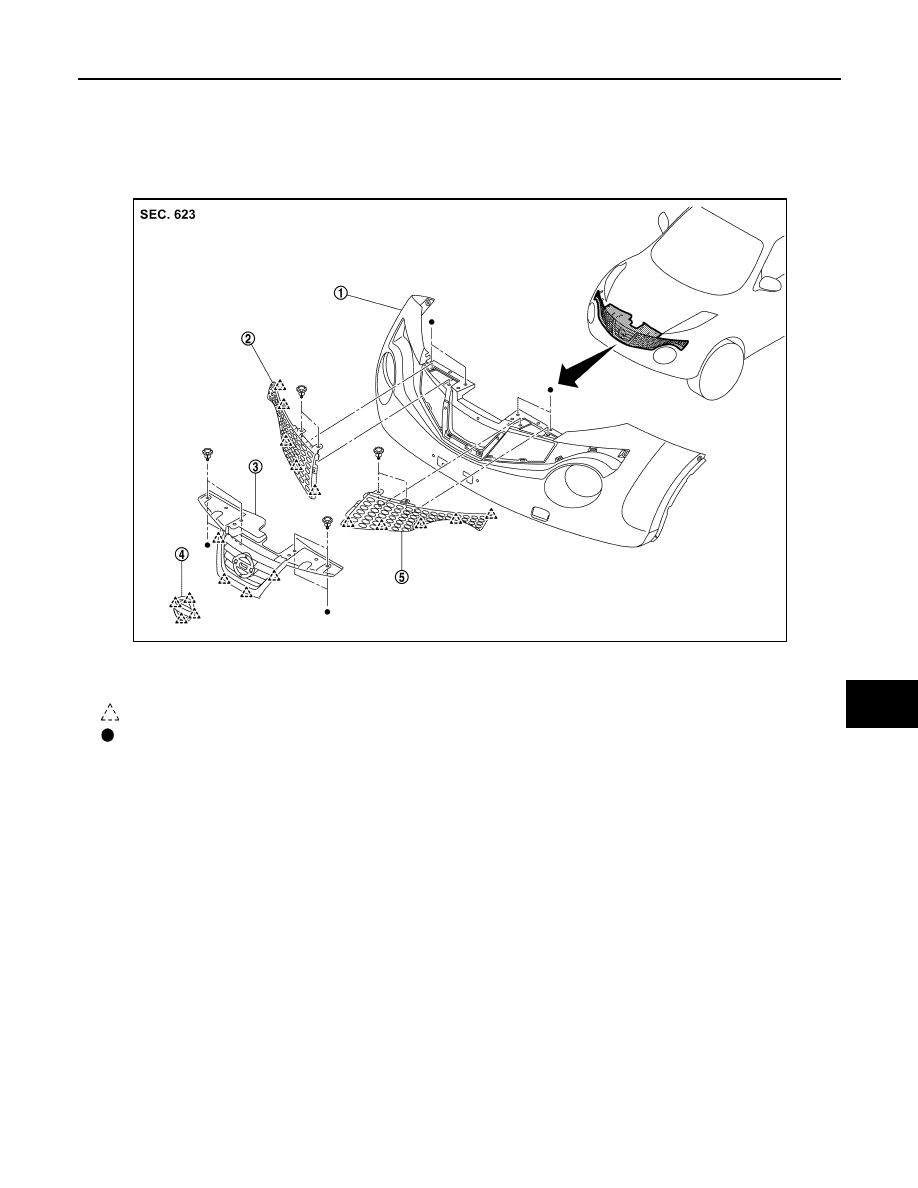

FRONT GRILLE

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FRONT GRILLE

Exploded View

INFOID:0000000012199314

EXCEPT FOR NISMO AND NISMO RS

NISMO AND NISMO RS

1.

Bumper fascia

2.

Front side grille RH

3.

Front center grille

4.

Emblem

5.

Front side grille LH

: Pawl

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB4175ZZ

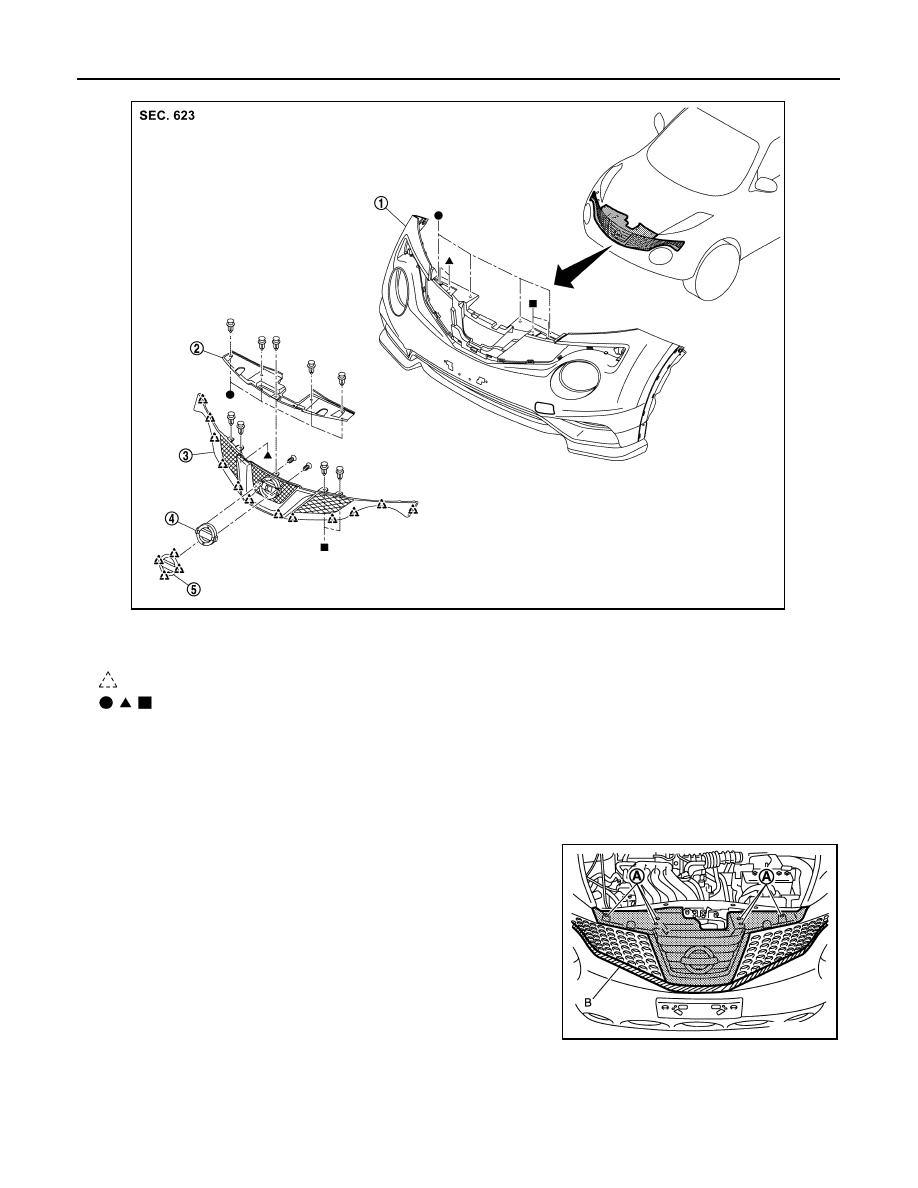

EXT-26

< REMOVAL AND INSTALLATION >

FRONT GRILLE

Removal and Installation

INFOID:0000000012199315

REMOVAL

Except for NISMO and NISMO RS

1. Fully open hood assembly.
2. Remove front center grille upper fixing clips (A).

CAUTION:

Apply protective tape (B) around bumper fascia.

1.

Bumper fascia

2.

Front upper grille

3.

Front grille

4.

Front grille emblem

5.

Emblem

: Pawl

,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB4689ZZ

JMKIA5623ZZ
