FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

NISMO RS

19. Bumper side bracket LH

20. Screw grommet

21. Double-sided tape

[t: 1.2 mm (0.047 in)]

22. U nut

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

,  ,  ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

EXT-16

< REMOVAL AND INSTALLATION >

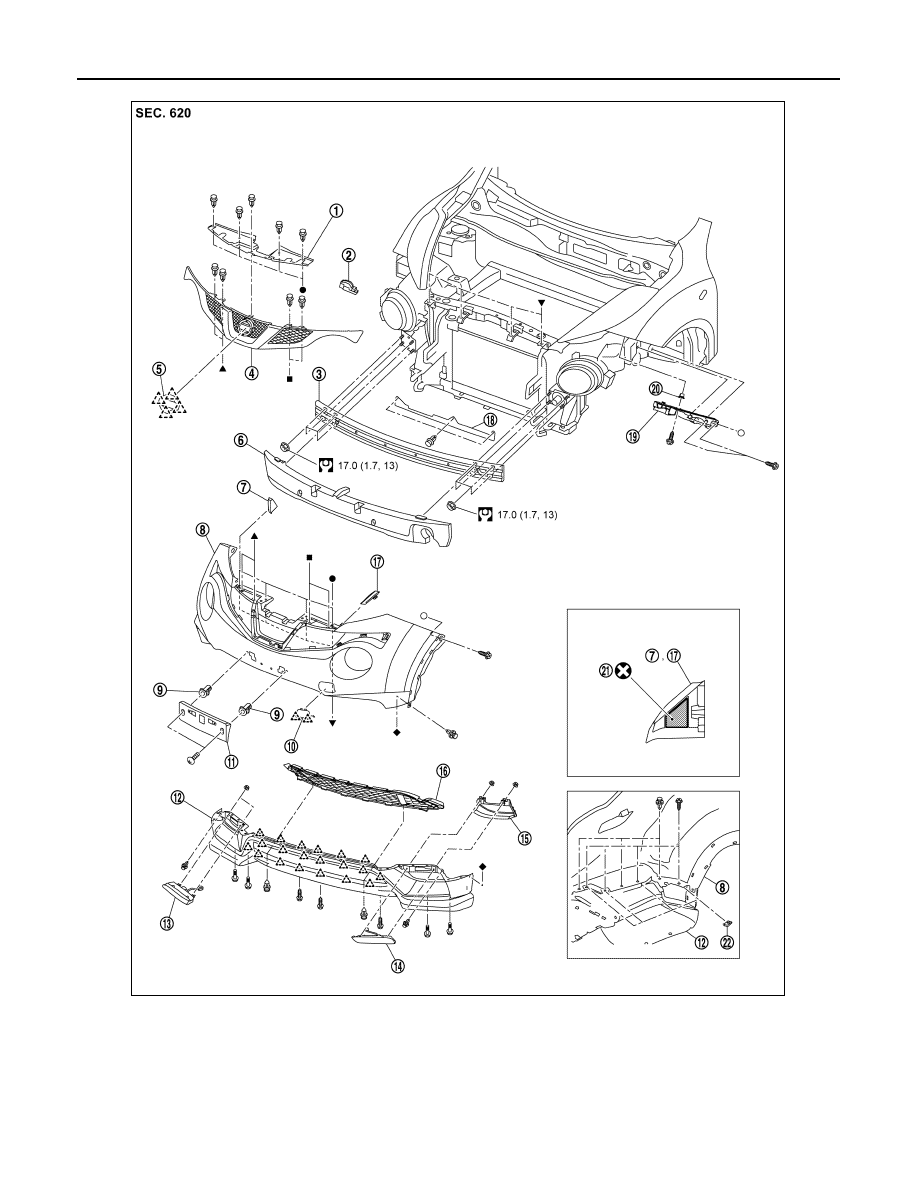

FRONT BUMPER

1.

Front upper grille

2.

Bumper side bracket RH

3.

Bumper reinforcement

4.

Front grille

5.

Emblem

6.

Bumper energy absorber

7.

Bumper end rubber RH

8.

Bumper fascia

9.

Screw grommet

10. Bumper bracket cover

11. License plate bracket

12. Bumper fascia lower

13. Daytime running light RH

14. Daytime running light LH

15. Front bumper finisher

16. Front bumper grille

17. Bumper end rubber LH

18. Bumper retainer lower

JMKIB4701GB

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

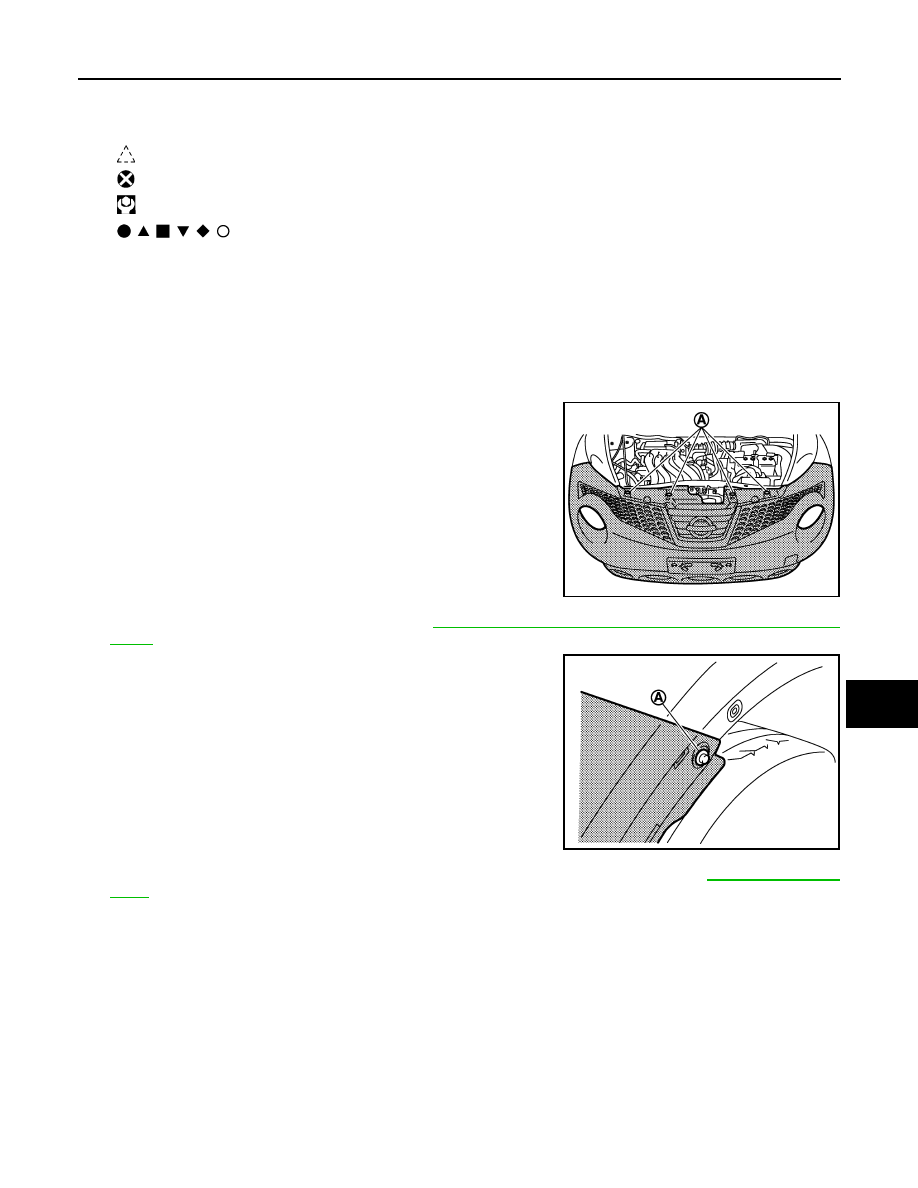

Removal and Installation

INFOID:0000000012199311

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with

oil.

REMOVAL

1. Fully open hood assembly.
2. Remove fixing clips (A) of bumper upper side.

3. Remove front fillet molding front side. Refer to

EXT-36, "FRONT FILLET MOLDING : Removal and Instal-

lation"

.

4. Remove bumper fascia fixing screws (A) (LH and RH).

5. Remove air guide mounting bolts, and then remove air guide (LH and RH). Refer to

EXT-31, "Exploded

View"

.

6. Remove fixing clips of bumper lower side. (except for NISMO and NISMO RS)
7. Remove fixing screws of bumper lower side. (NISMO and NISMO RS)
8. Pull bumper fascia side toward the vehicle side to disengage the fitting of bumper side bracket and

bumper fascia side according to the numerical order 1

→3 as shown by the arrows in the figure.

19. Bumper side bracket LH

20. Screw grommet

21. Double-sided tape

[t: 1.2 mm (0.047 in)]

22. U nut

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

,  ,  ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA5593ZZ

JMKIA5559ZZ

EXT-18

< REMOVAL AND INSTALLATION >

FRONT BUMPER

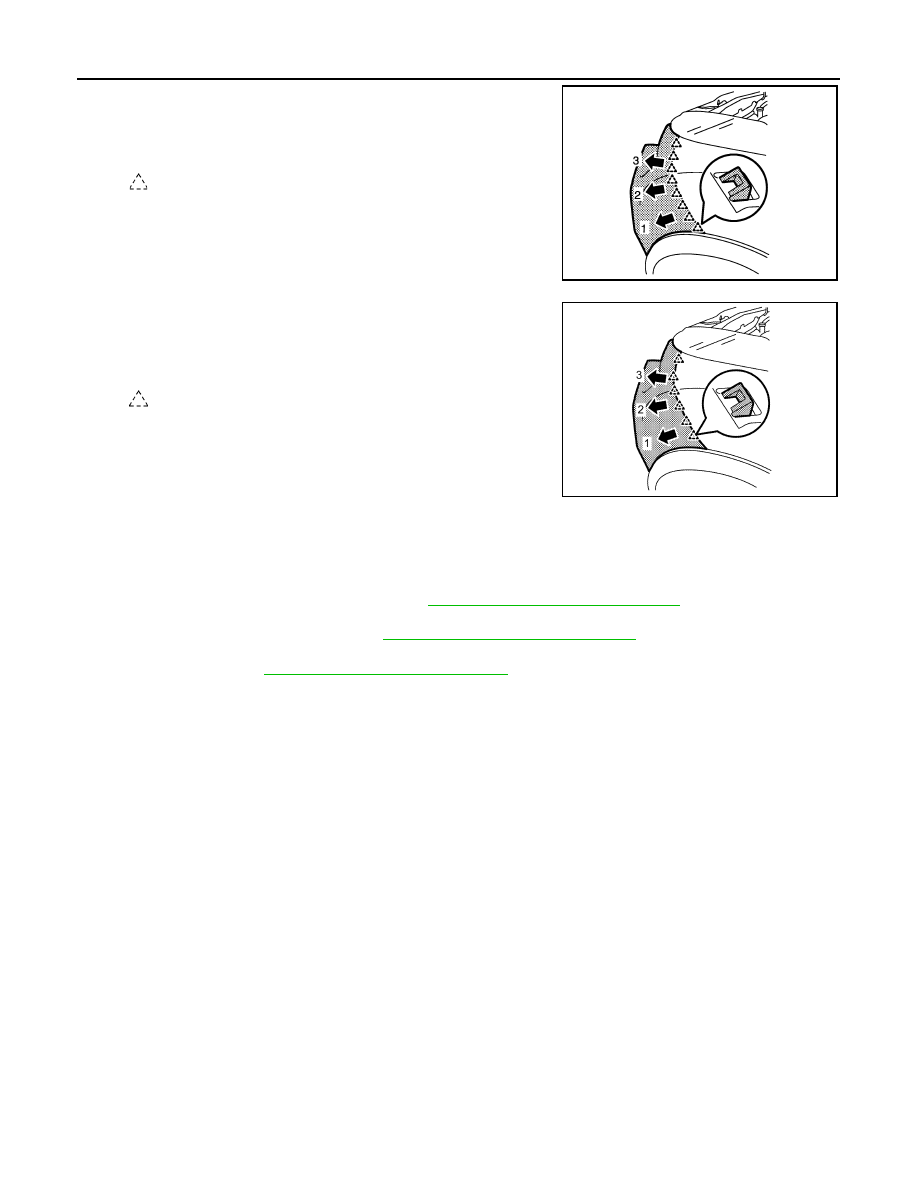

• Except for NISMO and NISMO RS

CAUTION:

When removing bumper fascia assembly, 2 workers are

required so as to prevent it from dropping.

• NISMO and NISMO RS

CAUTION:

When removing bumper fascia assembly, 2 workers are

required so as to prevent it from dropping.

9. Disconnect front fog lamp harness connectors. (with front fog lamp)
10. Disconnect daytime running light harness connectors. (with daytime running light)
11. Remove bumper fascia assembly.
12. Remove the following parts after removing bumper fascia assembly.

• Daytime running light (LH and RH). Refer to

EXL-101, "Removal and Installation"

. (with daytime running

light)

• Front fog lamp (LH and RH). Refer to

EXL-102, "Removal and Installation"

. (with front fog lamp)

• Bumper finisher (LH and RH). (without front fog lamp)

• Front grille. Refer to

EXT-26, "Removal and Installation"

.

• Bumper fascia lower.

• Bumper end rubber (LH and RH).

• Bumper bracket cover.

• License plate bracket.

• Front bumper finisher. (NISMO and NISMO RS)

• Front bumper grille. (NISMO and NISMO RS)

13. Remove bumper energy absorber.
14. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.
15. Remove bumper retainer lower fixing clips, and then remove bumper retainer lower.
16. Remove bumper side bracket fixing screws, and then remove bumper side bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

: Pawl

JMKIA5592ZZ

: Pawl

JMKIB4684ZZ
