SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PIIB8742E

EXT-12

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

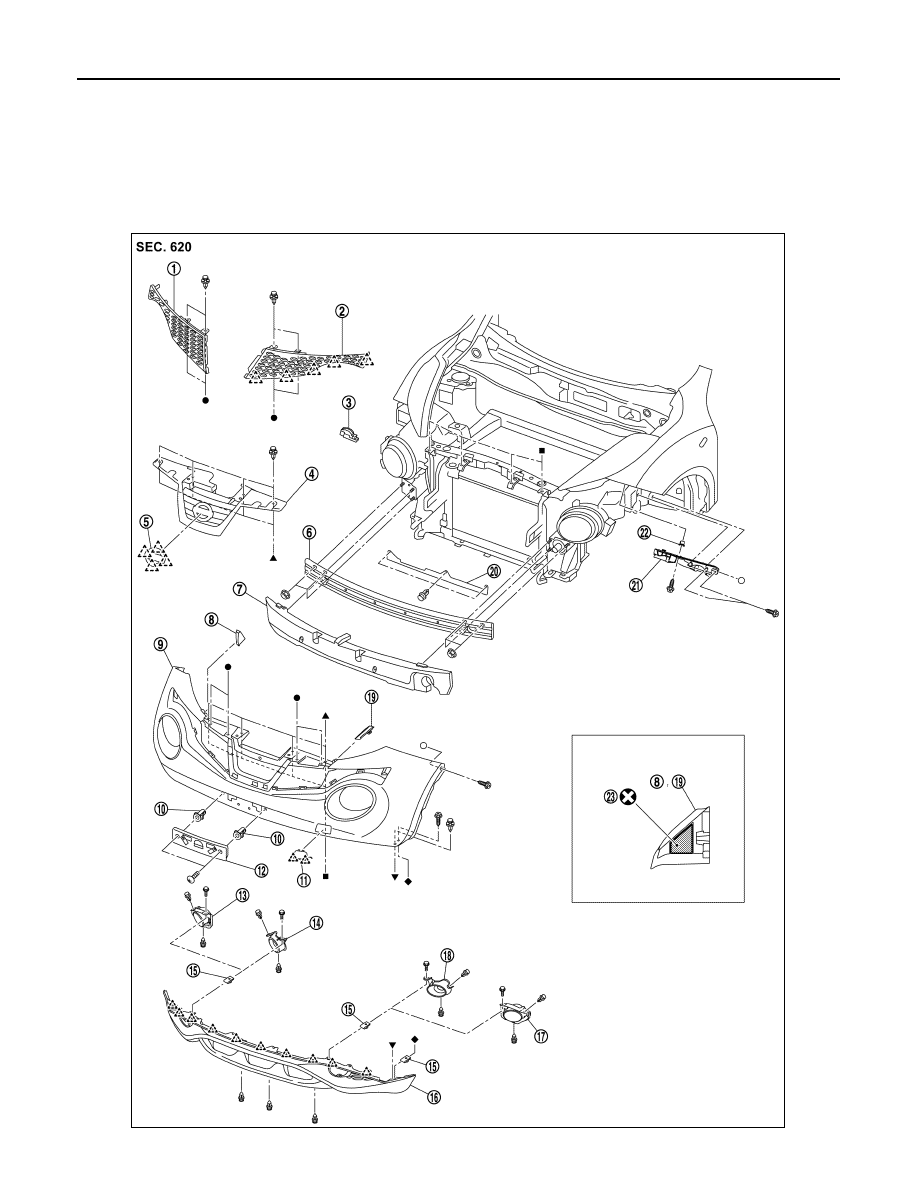

FRONT BUMPER

Exploded View

INFOID:0000000012199310

EXCEPT FOR NISMO AND NISMO RS

JMKIB4700GB

FRONT BUMPER

EXT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

NISMO

1.

Front side grille RH

2.

Front side grille LH

3.

Bumper side bracket RH

4.

Front center grille

5.

Emblem

6.

Bumper reinforcement

7.

Bumper energy absorber

8.

Bumper end rubber RH

9.

Bumper fascia

10. Screw grommet

11. Bumper bracket cover

12. License plate bracket

13. Front fog lamp bracket RH

(with front fog lamp)

14. Bumper finisher RH

(without front fog lamp)

15. U nut

16. Bumper fascia lower

17. Front fog lamp bracket LH

(with front fog lamp)

18. Bumper finisher LH

(without front fog lamp)

19. Bumper end rubber LH

20. Bumper retainer lower

21. Bumper side bracket LH

22. Screw grommet

23. Double-sided tape

[t: 1.2 mm (0.047 in)]

: Pawl

: Always replace after every disassembly.

,  ,  ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

EXT-14

< REMOVAL AND INSTALLATION >

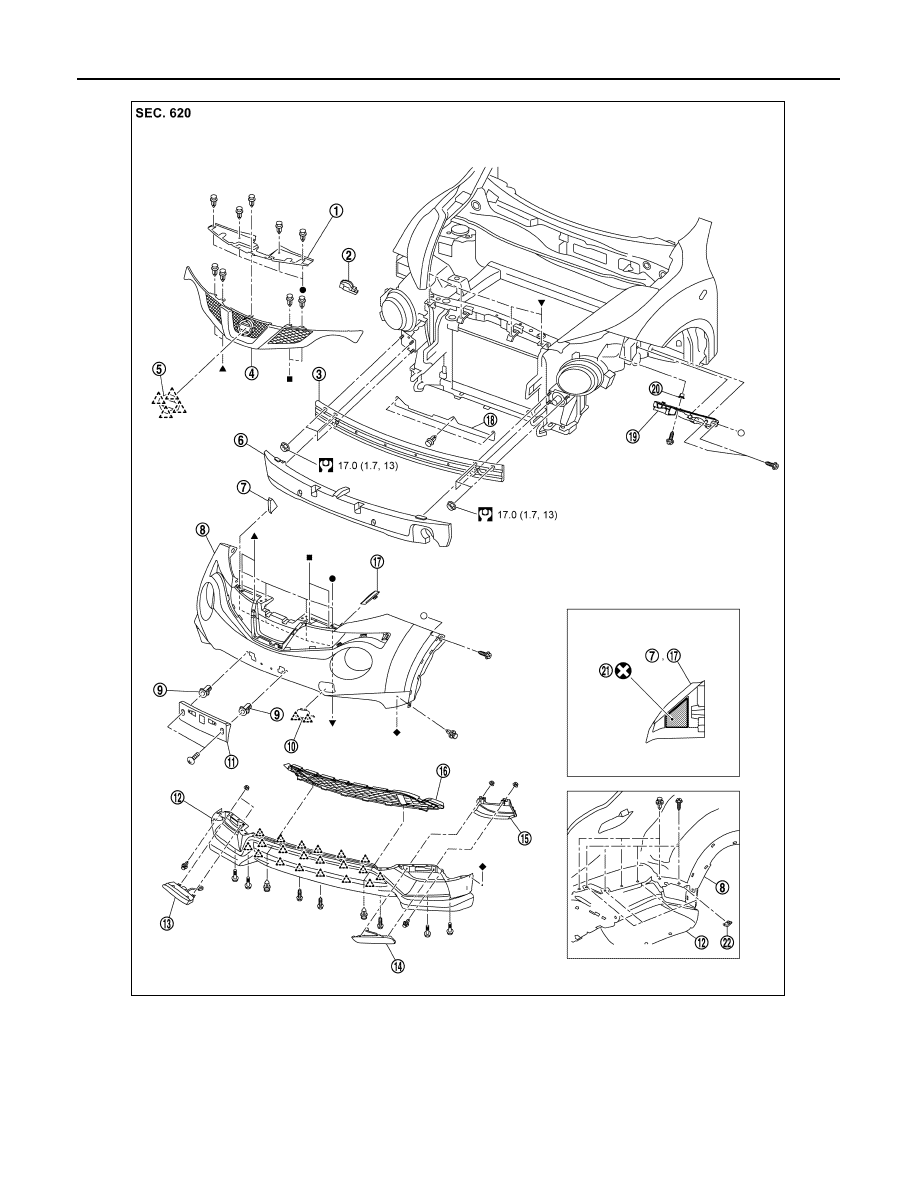

FRONT BUMPER

1.

Front upper grille

2.

Bumper side bracket RH

3.

Bumper reinforcement

4.

Front grille

5.

Emblem

6.

Bumper energy absorber

7.

Bumper end rubber RH

8.

Bumper fascia

9.

Screw grommet

10. Bumper bracket cover

11. License plate bracket

12. Bumper fascia lower

13. Daytime running light RH

14. Daytime running light LH

15. Front bumper finisher

16. Front bumper grille

17. Bumper end rubber LH

18. Bumper retainer lower

JMKIB4702GB
