FLOOR SIDE FAIRING

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

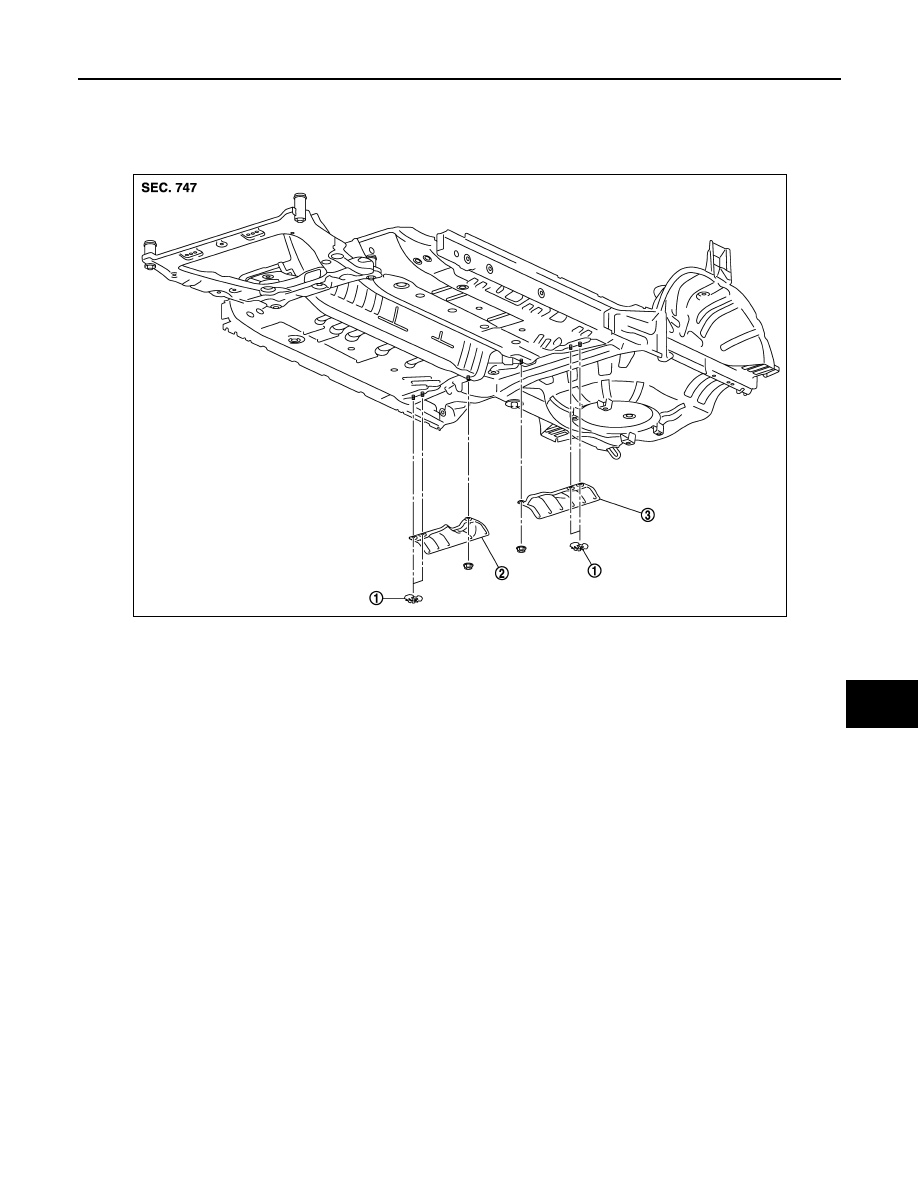

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000012199322

Removal and Installation

INFOID:0000000012199323

REMOVAL

FLOOR UNDER COVER

Remove floor under cover mounting nut and push spring nuts, and then remove floor under cover.

INSTALLATION

Install in the reverse order of removal.

1.

Push spring nut

2.

Floor under cover RH

3.

Floor under cover LH

JMKIA5648ZZ

EXT-36

< REMOVAL AND INSTALLATION >

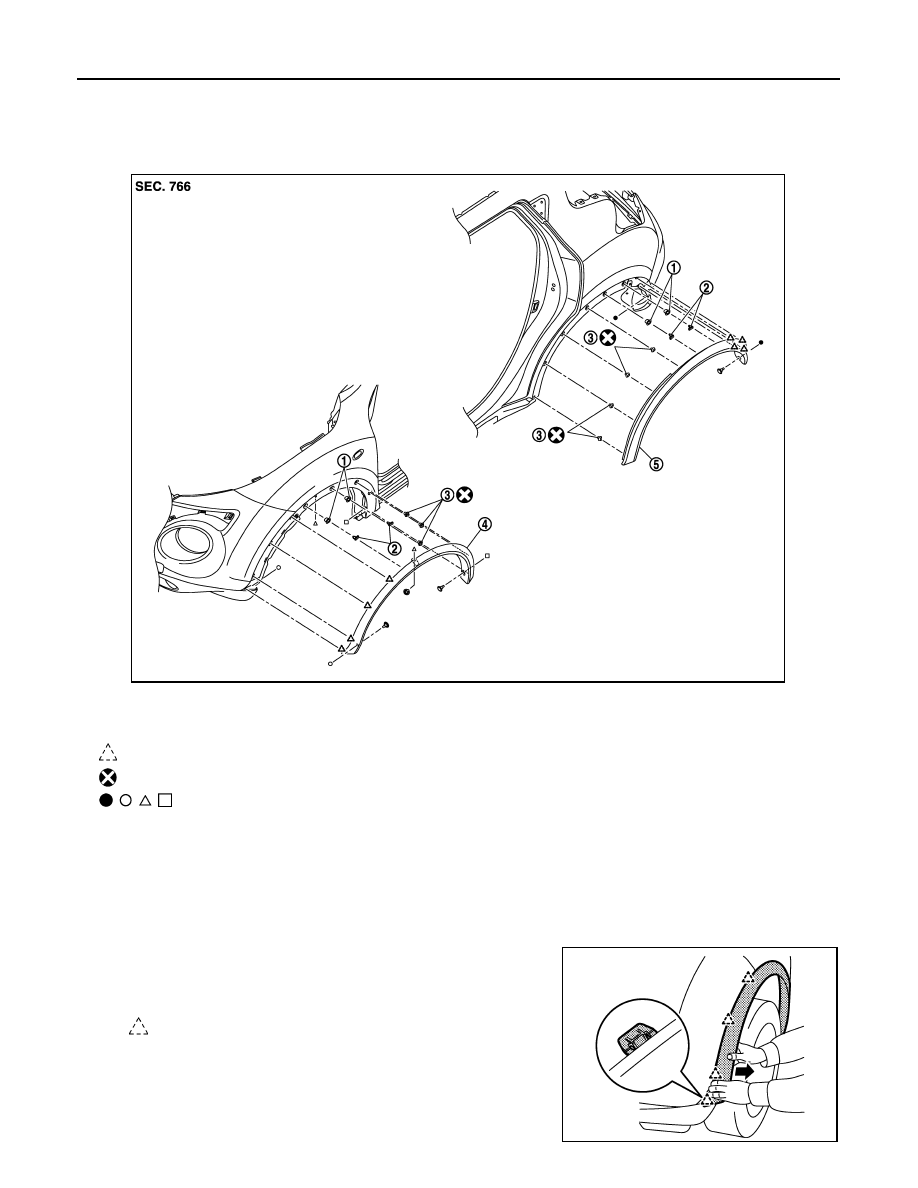

FILLET MOLDING

FILLET MOLDING

Exploded View

INFOID:0000000012199324

FRONT FILLET MOLDING
FRONT FILLET MOLDING : Removal and Installation

INFOID:0000000012199325

REMOVAL

1. Remove front fillet molding fixing clips.
2. Remove front fillet molding front side fixing pawls.

CAUTION:

Never pull the front fillet molding strongly.

1.

Grommet

2.

Clip

3.

Clip

4.

Front fillet molding

5.

Rear fillet molding

: Pawl

: Always replace after every disassembly.

,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA5582ZZ

: Pawl

JMKIA5583ZZ

FILLET MOLDING

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

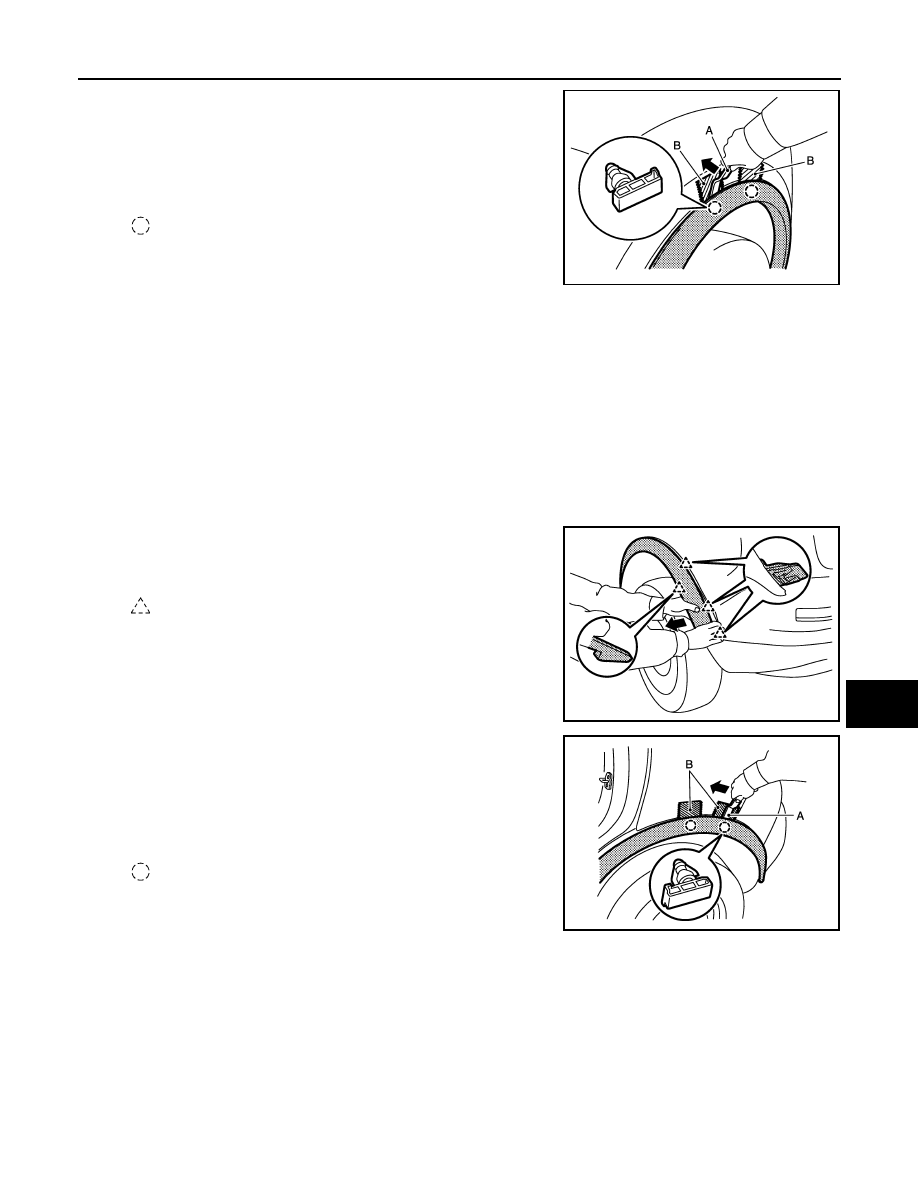

3. Using remover tool (A), disengage the clips from front fillet mold-

ing by starting from front side.

CAUTION:

• Apply a protective tape (B) on the body to protect the

painted surface from damage.

• Never pull the front fillet molding strongly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Always replace fillet molding fixing clips.

• When installing front fillet molding, check that blind clips and pawls are securely fitted in panel holes

on body, and then press them in.

REAR FILLET MOLDING
REAR FILLET MOLDING : Removal and Installation

INFOID:0000000012199326

REMOVAL

1. Remove rear filet molding fixing clip from end of sill cover.
2. Remove rear fillet molding rear side fixing pawls.

CAUTION:

Never pull the rear fillet molding strongly.

3. Using remover tool (A), disengage the clips from rear fillet mold-

ing by starting from rear side.

CAUTION:

• Apply a protective tape (B) on the body to protect the

painted surface from damage.

• Never pull the rear fillet molding strongly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Always replace fillet molding fixing clips.

• When installing rear fillet molding, check that blind clips and pawls are securely fitted in panel holes

on body, and then press them in.

: Clip

JMKIA5584ZZ

: Pawl

JMKIA5585ZZ

: Clip

JMKIA5586ZZ

EXT-38

< REMOVAL AND INSTALLATION >

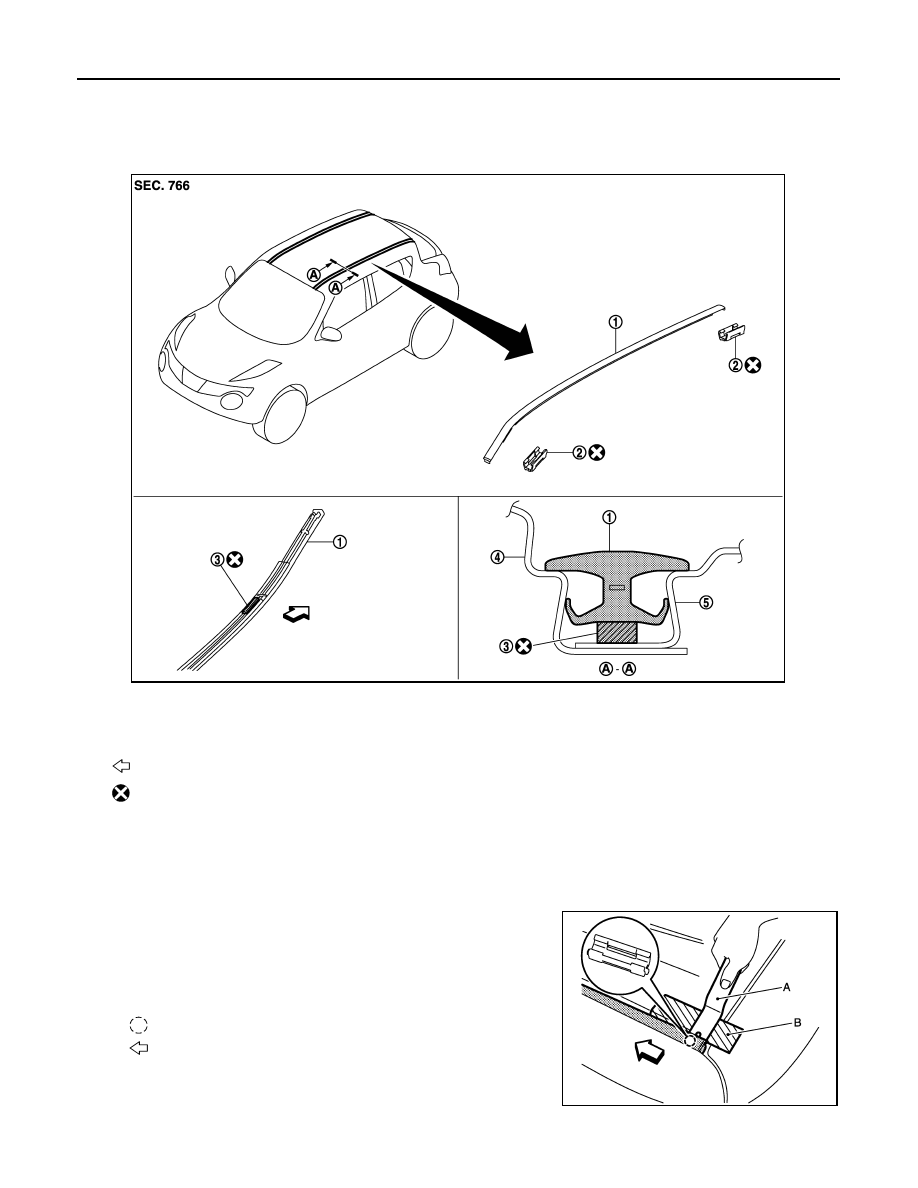

ROOF SIDE MOLDING

ROOF SIDE MOLDING

Exploded View

INFOID:0000000012199327

Removal and Installation

INFOID:0000000012199328

REMOVAL

Roof Side Molding

1. Disengage roof side molding rear side fixing clip, using a

remover tool (A).

CAUTION:

Apply protective tape (B) on body to protect the painted

surface from damage.

1.

Roof side molding

2. Roof side molding clip

3.

Double-sided tape
[t: 2.5 mm (0.098 in)]

4.

Body side outer panel

5. Roof panel

: Vehicle front

: Always replace after every disassembly.

JMKIA5649ZZ

: Clip

: Vehicle front

JMKIA5770ZZ
