OPTICAL SENSOR

OPTICAL SENSOR

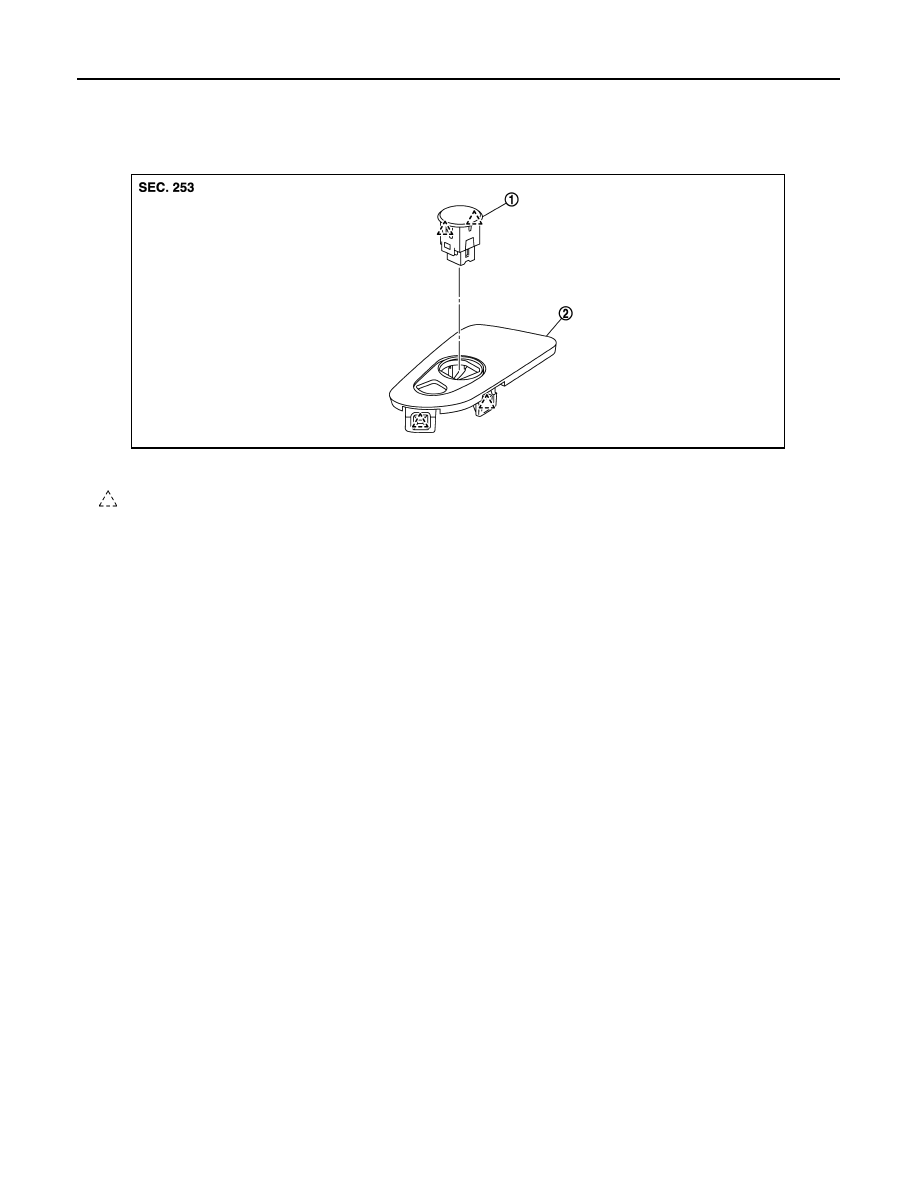

Exploded View

INFOID:0000000012201798

Removal and Installation

INFOID:0000000012201799

REMOVAL

1. Insert an appropriate tool between the switch panel and the instrument upper panel. Pull out the optical

sensor upward.

2. Disconnect the optical sensor connector.
3. Remove optical sensor from switch panel.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

2.

Switch panel

: Pawl

JMLIA1245ZZ

LIGHTING & TURN SIGNAL SWITCH

EXL-217

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000012201800

REMOVAL

Remove light & turn signal switch. Refer to

BCS-95, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

EXL-218

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

HAZARD SWITCH

HAZARD SWITCH

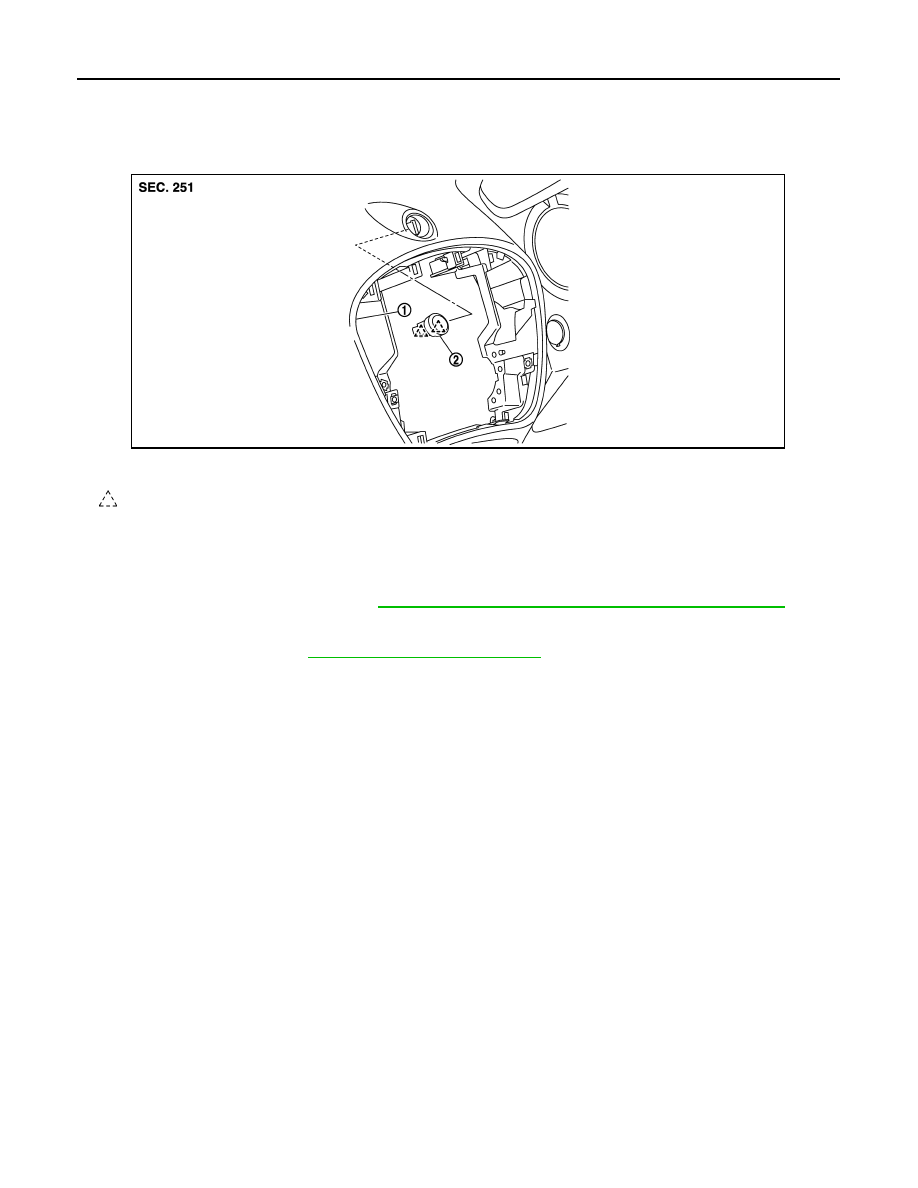

Exploded View

INFOID:0000000012201801

Removal and Installation

INFOID:0000000012201802

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove audio unit. Refer to

AV-50, "Removal and Installation"

.

2. Disengage fixing pawls, and then remove hazard switch from instrument panel inside to outside.

INSTALLATION

Install in the reverse order of removal.

1.

Instrument panel assembly

2.

Hazard switch

: Pawl

JMLIA1246ZZ

REAR COMBINATION LAMP

EXL-219

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP

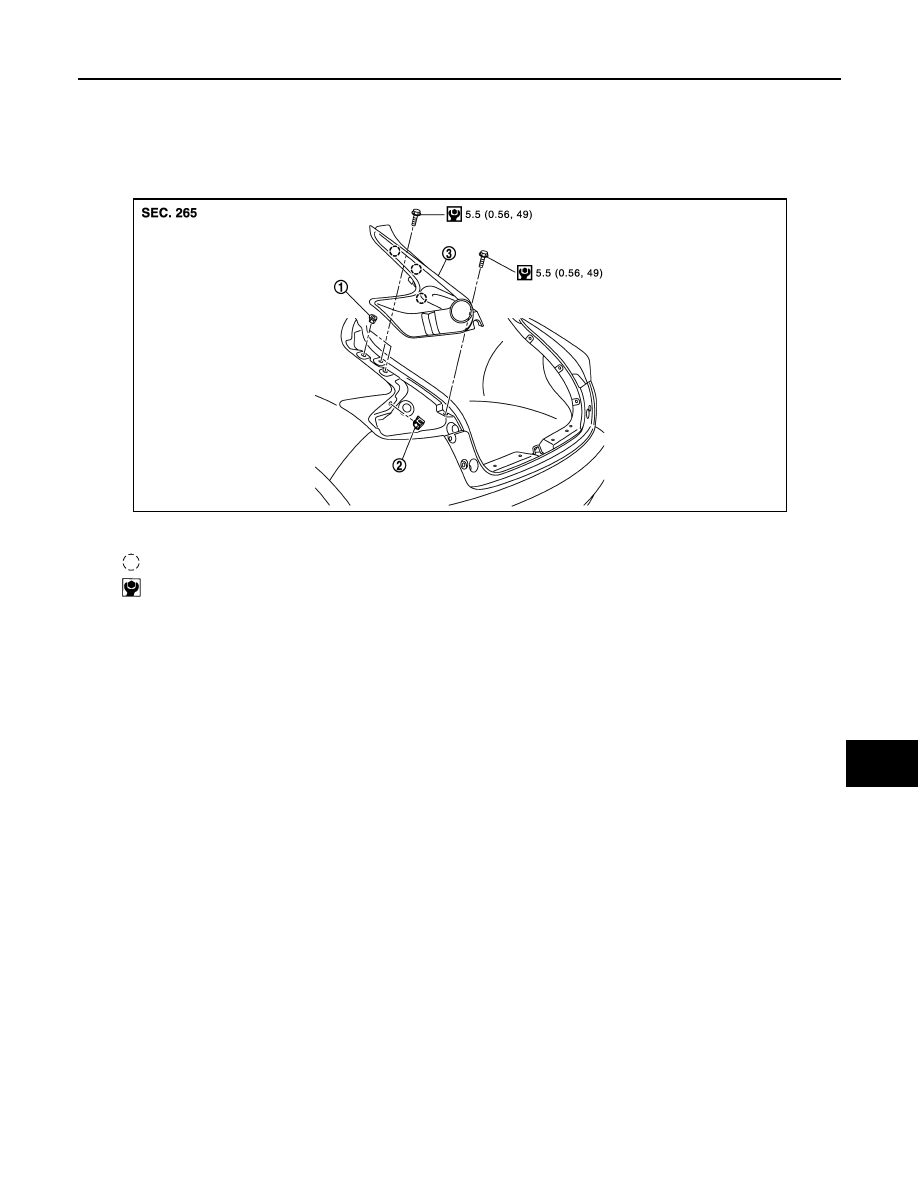

Exploded View

INFOID:0000000012201803

REMOVAL

DISASSEMBLY

1.

Grommet

2.

Grommet

3.

Rear combination lamp

: Clip

: N·m (kg-m, in-lb)

JMLIA1217GB
