EXL-208

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

HEADLAMP

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HALOGEN BULB (LO)

Left Side of The Vehicle

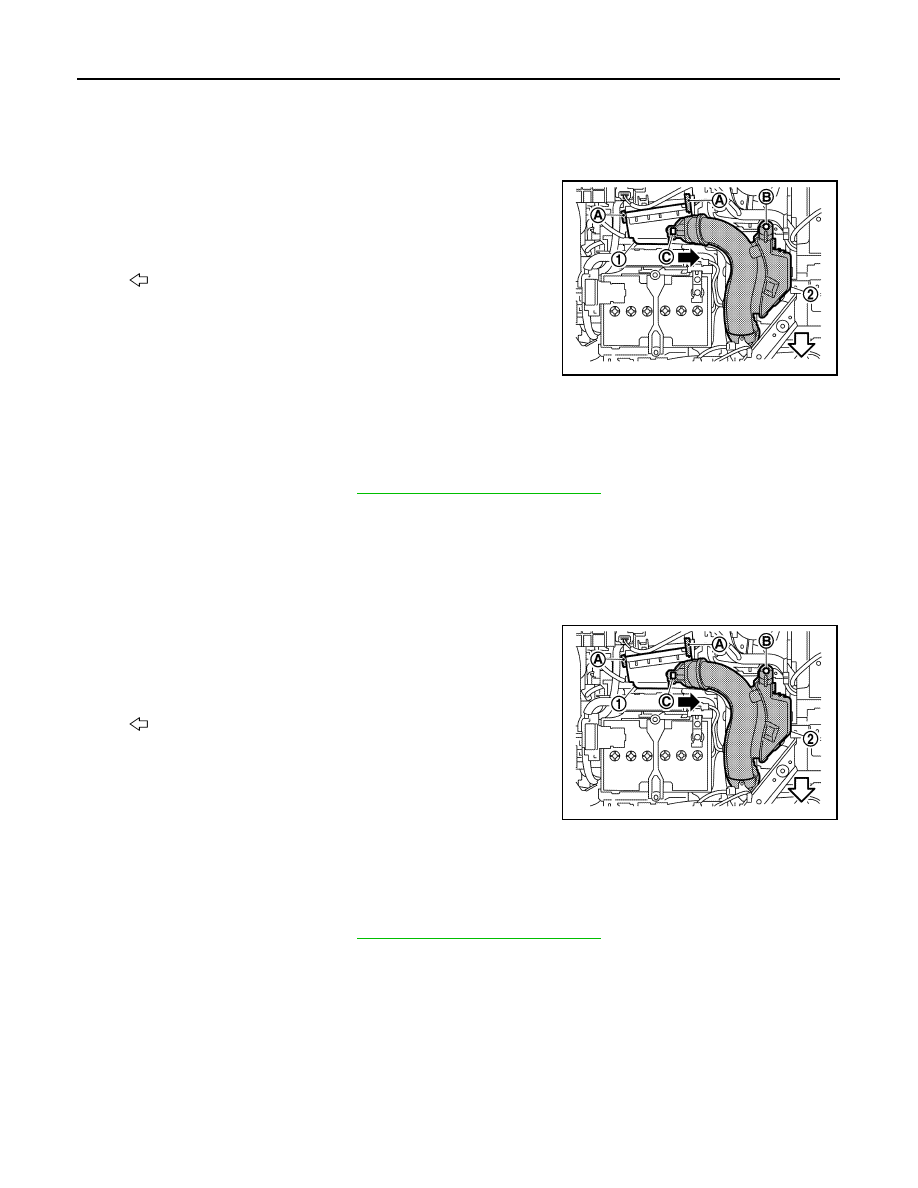

1. Remove fixing clips (A) of air cleaner assembly (1).
2. While pulling up on the (B) portion of the air duct inlet (upper)

(2), disengage of the portion (C), and then remove air duct inlet

(upper) as shown by the arrow in the figure.

3. Remove back cover A.
4. Disconnect halogen bulb harness connector.
5. Rotate halogen bulb (LO) counterclockwise and lock it, and then remove halogen bulb.

Right Side of The Vehicle

1. Remove washer tank inlet. Refer to

WW-43, "Removal and Installation"

.

2. Remove back cover A.
3. Disconnect halogen bulb harness connector.
4. Rotate halogen bulb (LO) counterclockwise and lock it, and then remove halogen bulb.

HALOGEN BULB (HI)

Left Side of The Vehicle

1. Remove fixing clips (A) of air cleaner assembly (1).
2. While pulling up on the (B) portion of the air duct inlet (upper)

(2), disengage of the portion (C), and then remove air duct inlet

(upper) as shown by the arrow in the figure.

3. Remove back cover B.
4. Disconnect halogen bulb harness connector.
5. Rotate halogen bulb clockwise and unlock it, and then remove halogen bulb from headlamp assembly.

Right Side of The Vehicle

1. Remove washer tank inlet. Refer to

WW-43, "Removal and Installation"

.

2. Remove back cover B.
3. Disconnect halogen bulb harness connector.
4. Rotate halogen bulb counterclockwise and unlock it, and then remove halogen bulb from headlamp

assembly.

Disassembly and Assembly

INFOID:0000000012201784

DISASSEMBLY

1. Remove back cover A.
2. Disconnect halogen bulb harness connector.

: Vehicle front

JMLIA5700ZZ

: Vehicle front

JMLIA5700ZZ

HEADLAMP

EXL-209

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3. Rotate halogen bulb (LO) counterclockwise and lock it, and then remove halogen bulb.
4. Remove back cover B.
5. Disconnect halogen bulb harness connector.
6. Remove halogen bulb (HI).

Left side of the vehicle

• Rotate halogen bulb (HI) clockwise and lock it, and then remove halogen bulb.

Right side of the vehicle

• Rotate halogen bulb (HI) counterclockwise and lock it, and then remove halogen bulb.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

After installing the bulb, install the back cover and the bulb socket securely for watertightness.

EXL-210

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

FRONT COMBINATION LAMP

FRONT COMBINATION LAMP

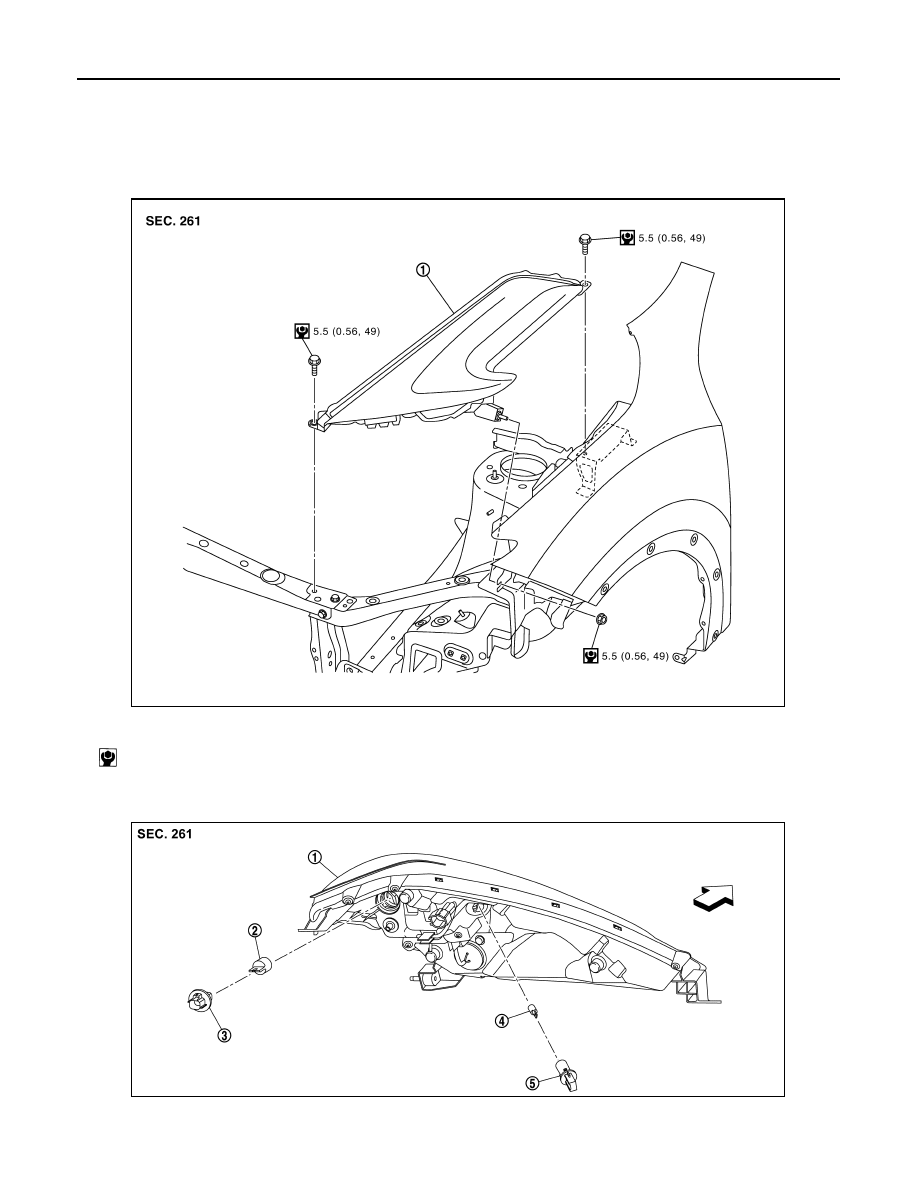

Exploded View

INFOID:0000000012201785

REMOVAL

DISASSEMBLY

1.

Front combination lamp

: N·m (kg-m, in-lb)

JMLIA5399GB

JMLIA6148ZZ

FRONT COMBINATION LAMP

EXL-211

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal and Installation

INFOID:0000000012201786

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove front combination lamp mounting bolts and nut.
3. Pull out front combination lamp forward the vehicle, and then disconnect connector before removing the

front combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Interference of front combination lamp lens with front fender may cause intrusion of water into front

combination lamp or rusting of fender due to damage of painted surface. Be careful to operate without

allowing parts to interfere with each other.

Replacement

INFOID:0000000012201787

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

PARKING LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace

front combination lamp as a set. Refer to

EXL-211, "Removal and Installation"

.

FRONT TURN SIGNAL LAMP BULB

1. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
2. Remove front turn signal lamp bulb from the front turn signal lamp bulb socket.

FRONT SIDE MARKER LAMP BULB

1. Rotate the front side marker lamp bulb socket counterclockwise and unlock it.
2. Remove front side marker lamp bulb from the front side marker lamp bulb socket.

Disassembly and Assembly

INFOID:0000000012201788

DISASSEMBLY

1. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
2. Remove front turn signal lamp bulb from the front turn signal lamp bulb socket.
3. Rotate the front side marker lamp bulb socket counterclockwise and unlock it.
4. Remove front side marker lamp bulb from the front side marker lamp bulb socket.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

1.

Front combination lamp

2.

Front turn signal lamp bulb

3.

Front turn signal lamp bulb socket

4.

Front side marker lamp bulb

5.

Front side marker lamp bulb socket

: Vehicle front
