Nissan Juke F15. Manual - part 748





EXL-212

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

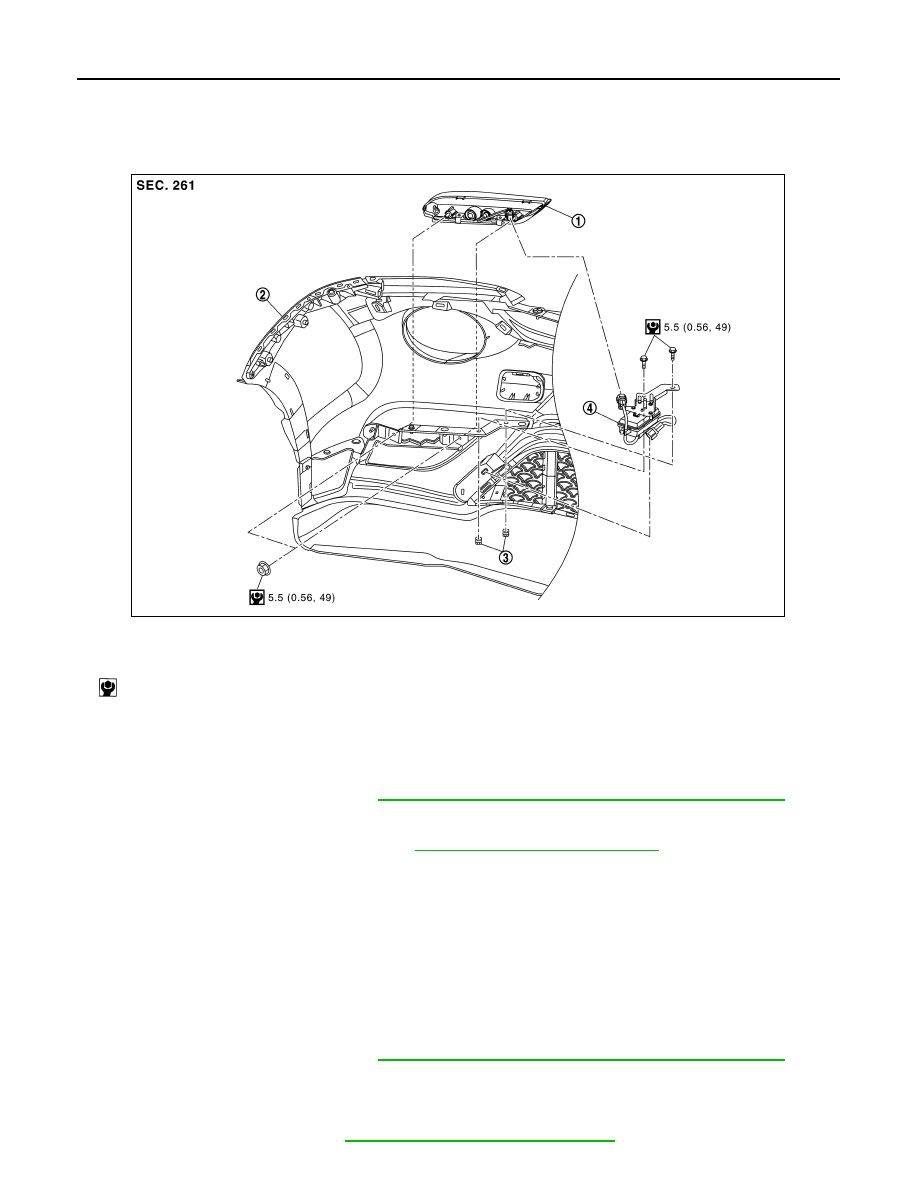

DAYTIME RUNNING LIGHT

DAYTIME RUNNING LIGHT

Exploded View

INFOID:0000000012201789

Removal and Installation

INFOID:0000000012201790

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front bumper fascia lower. Refer to

EXT-17, "Removal and Installation"

.

2. Disconnect daytime running light harness connector.
3. Remove daytime running light mounting nuts.
4. Remove daytime running light from front bumper fascia lower.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000012201791

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

DAYTIME RUNNING LIGHT

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace day-

time running light as a set. Refer to

EXL-212, "Removal and Installation"

.

1.

Daytime running light

2.

Front bumper fascia assembly

3.

U nut

4

Harness connector assembly

N·m (kg-m, in-lb)

JMLIA3676GB

FRONT FOG LAMP

EXL-213

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

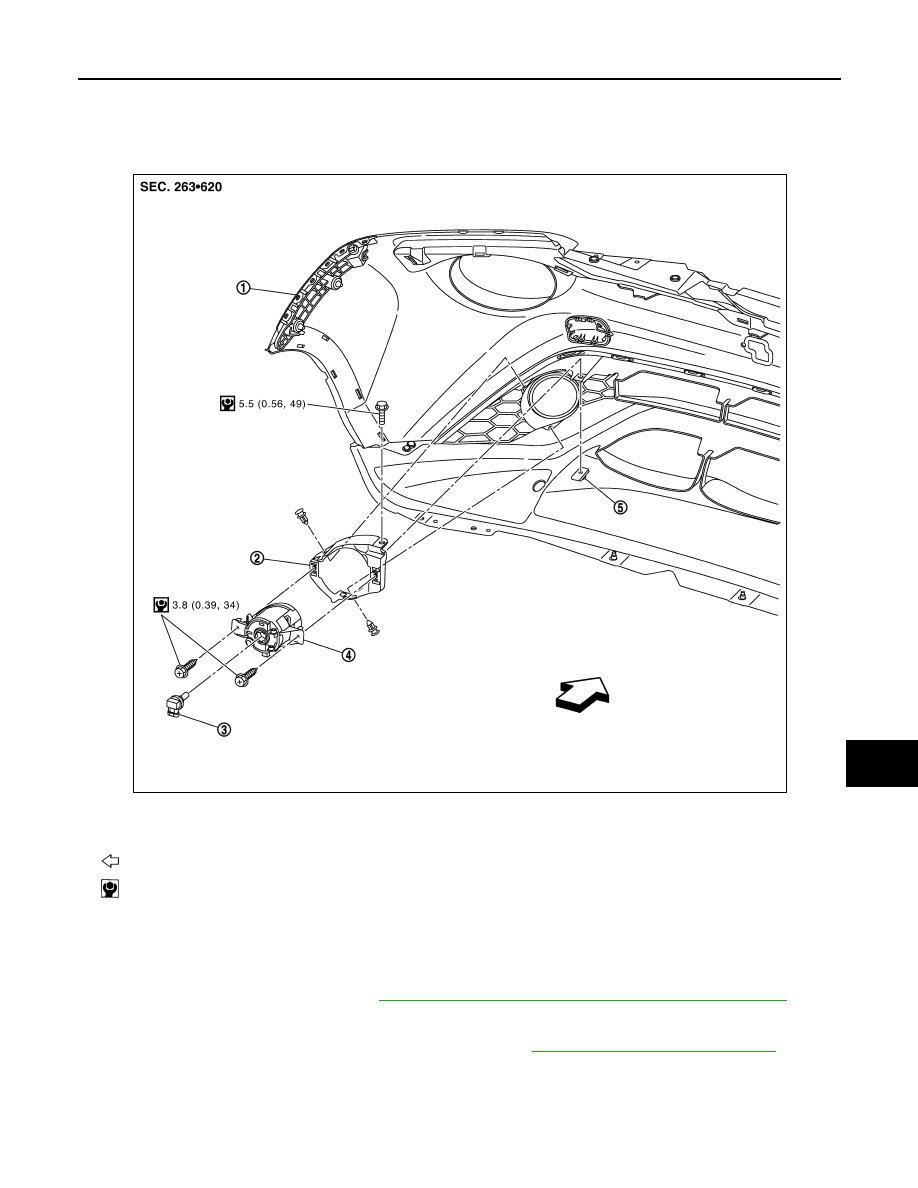

FRONT FOG LAMP

Exploded View

INFOID:0000000012201792

Removal and Installation

INFOID:0000000012201793

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove front fender protector to make work space. Refer to

EXT-31, "Removal and Installation"

.

2. Disconnect front fog lamp harness connector.
3. Remove front fog lamp fixing screws, and then remove front fog lamp from front fog lamp bracket.
4. Remove front fog lamp bracket mounting bolt and fixing clips, and then remove front fog lamp bracket.

1.

Front bumper fascia assembly

2.

Front fog lamp bracket

3.

Front fog lamp bulb

4.

Front fog lamp

5.

U nut

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA5401GB

EXL-214

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

FRONT FOG LAMP

INSTALLATION

Note the following item, and then install in the reverse order of removal.

NOTE:

After installation, perform aiming adjustment. Refer to

EXL-204, "Description"

.

Replacement

INFOID:0000000012201794

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

• Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

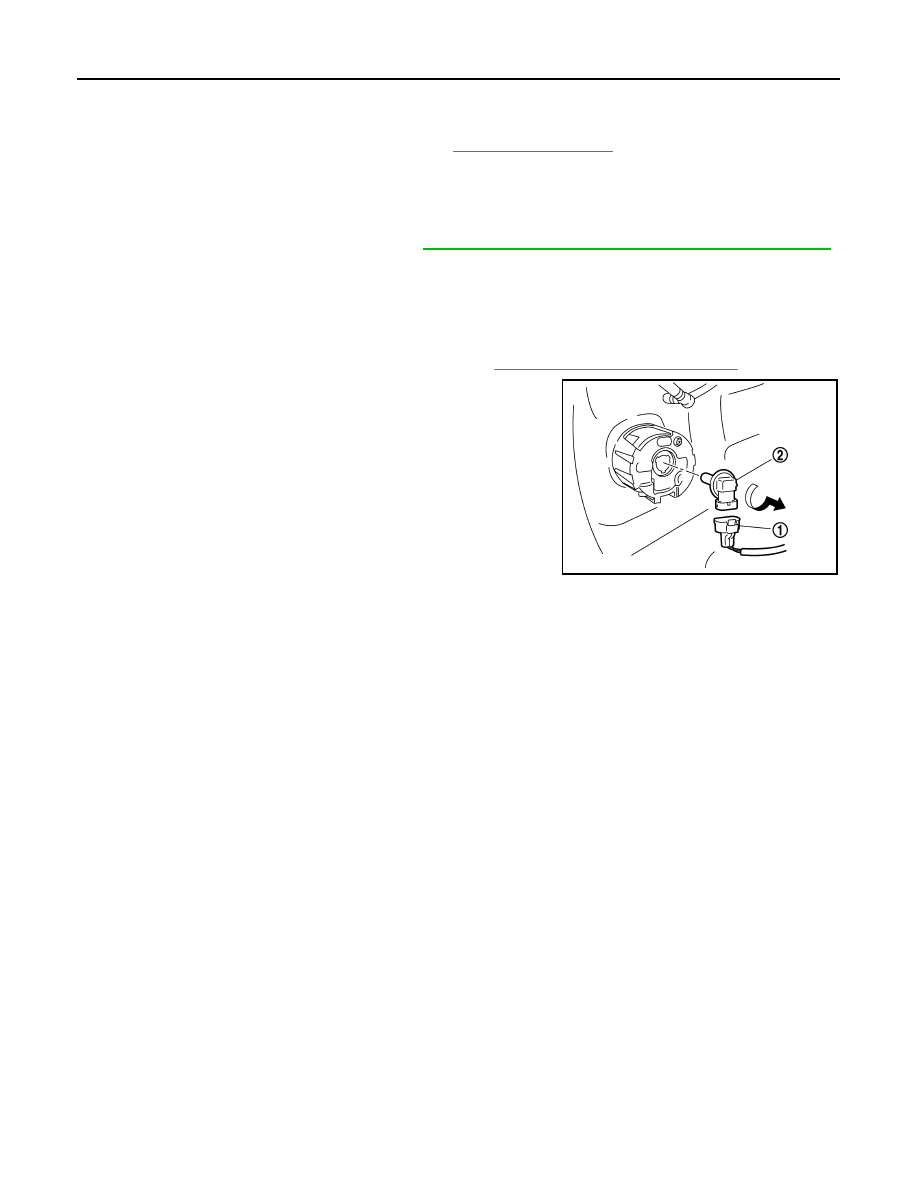

FRONT FOG LAMP BULB

1. Remove fender protector to make work space. Refer to

EXT-31, "Removal and Installation"

.

2. Remove front fog lamp bulb connector (1).
3. Rotate front fog lamp bulb (2) counterclockwise and unlock it.

JPLIA0345ZZ

SIDE TURN SIGNAL LAMP

EXL-215

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000012201795

Refer to

MIR-17, "Exploded View"

.

Removal and Installation

INFOID:0000000012201796

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

REMOVAL

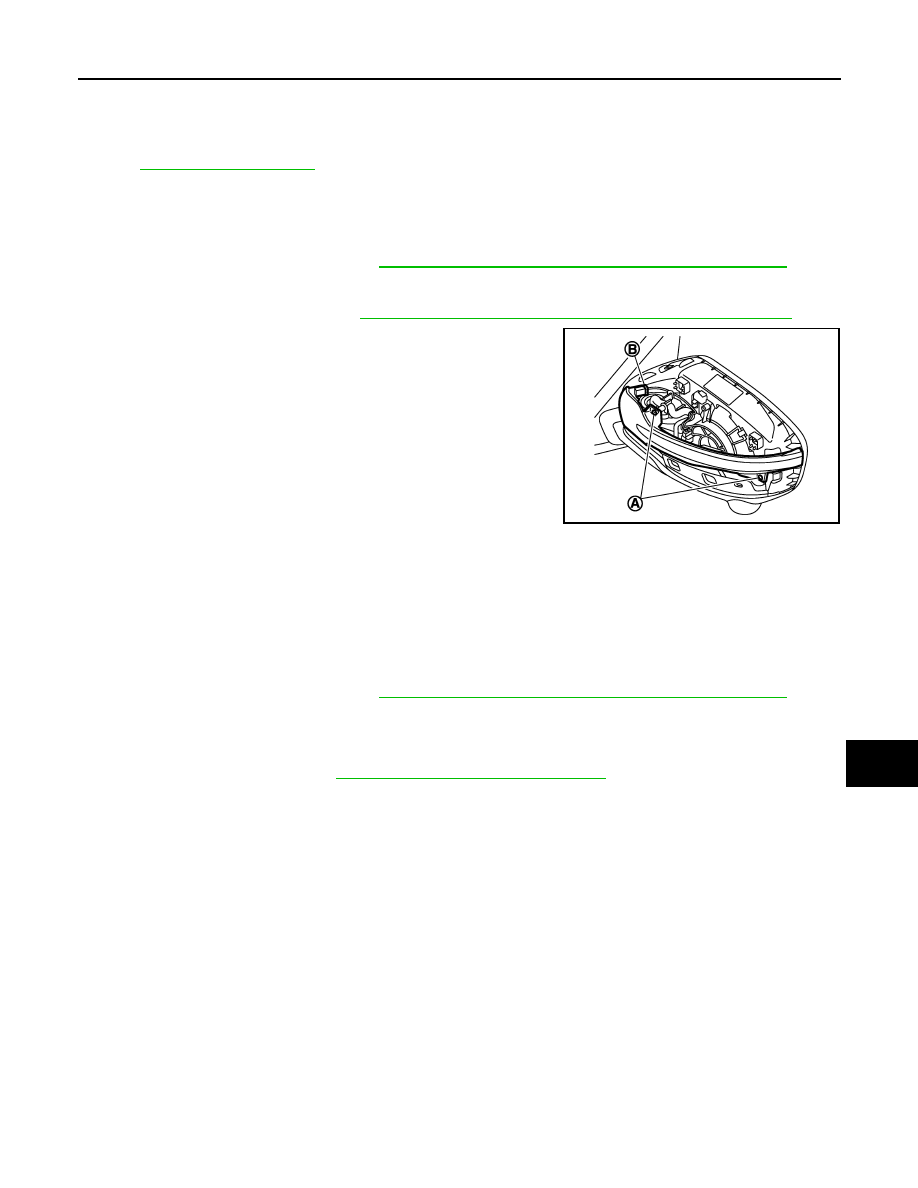

1. Remove door mirror cover. Refer to

MIR-20, "DOOR MIRROR COVER : Removal and Installation"

.

2. Remove side turn signal lamp fixing screws (A), and then dis-

connect side turn signal lamp harness connector (B).

3. Remove side turn signal lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000012201797

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-119, "Precautions for Removing Battery Terminal"

.

SIDE TURN SIGMNAL LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace side

turn signal lamp as a set. Refer to

EXL-215, "Removal and Installation"

.

JMLIA5402ZZ
