BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

INFOID:0000000012201667

Both side headlamps (LO) are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000012201668

1.

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

BCS-92, "Symptom Table"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK LOW BEAM REQUEST SIGNAL

With CONSULT

1. Turn ignition switch ON.

2. Select “HL LO REQ” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

3. With operating the lighting switch, check the monitor status.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-37, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

Monitor item

Condition

Monitor status

HL LO REQ

Lighting switch

2ND

On

OFF

Off

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS ARE NOT

TURNED ON

EXL-89

< SYMPTOM DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS ARE NOT
TURNED ON

Description

INFOID:0000000012201669

The parking, license plate, side marker and tail lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000012201670

1.

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

BCS-92, "Symptom Table"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK POSITION LIGHT REQUEST SIGNAL

With CONSULT

1. Turn ignition switch ON.

2. Select “TAIL & CLR REQ” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

3. With operating the lighting switch, check the monitor status.

Is the inspection result normal?

YES

>> Perform the tail lamp diagnosis. Refer to

EXL-60, "Component Function Check"

.

NO

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

Monitor item

Condition

Monitor status

TAIL & CLR REQ Lighting switch

1ST

On

OFF

Off

EXL-90

< SYMPTOM DIAGNOSIS >

[XENON TYPE]

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000012201671

Both side front fog lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000012201672

1.

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

BCS-92, "Symptom Table"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LIGHT REQUEST SIGNAL

With CONSULT

1. Turn ignition switch ON.

2. Select “FR FOG REQ” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

3. With operating the front fog lamp switch, check the monitor status.

Is the inspection result normal?

YES

>> Perform the front fog lamp diagnosis. Refer to

EXL-69, "Component Function Check"

.

NO

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(With lighting switch 1ST)

ON

On

OFF

Off

HEADLAMP AIMING ADJUSTMENT

EXL-91

< PERIODIC MAINTENANCE >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Description

INFOID:0000000012201673

PREPARATION BEFORE ADJUSTING

NOTE:

• For details, refer to the regulations in your own country.

• Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been

replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.

• Fill with fuel, engine coolant and each oil.

• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the trunk

room.)

NOTE:

Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.).

• Ride alone on the driver seat.

AIMING ADJUSTMENT SCREW

Aiming Adjustment Procedure

INFOID:0000000012201674

1. Place the screen.

NOTE:

• Stop the vehicle facing the wall.

• Place the board on a plain road vertically.

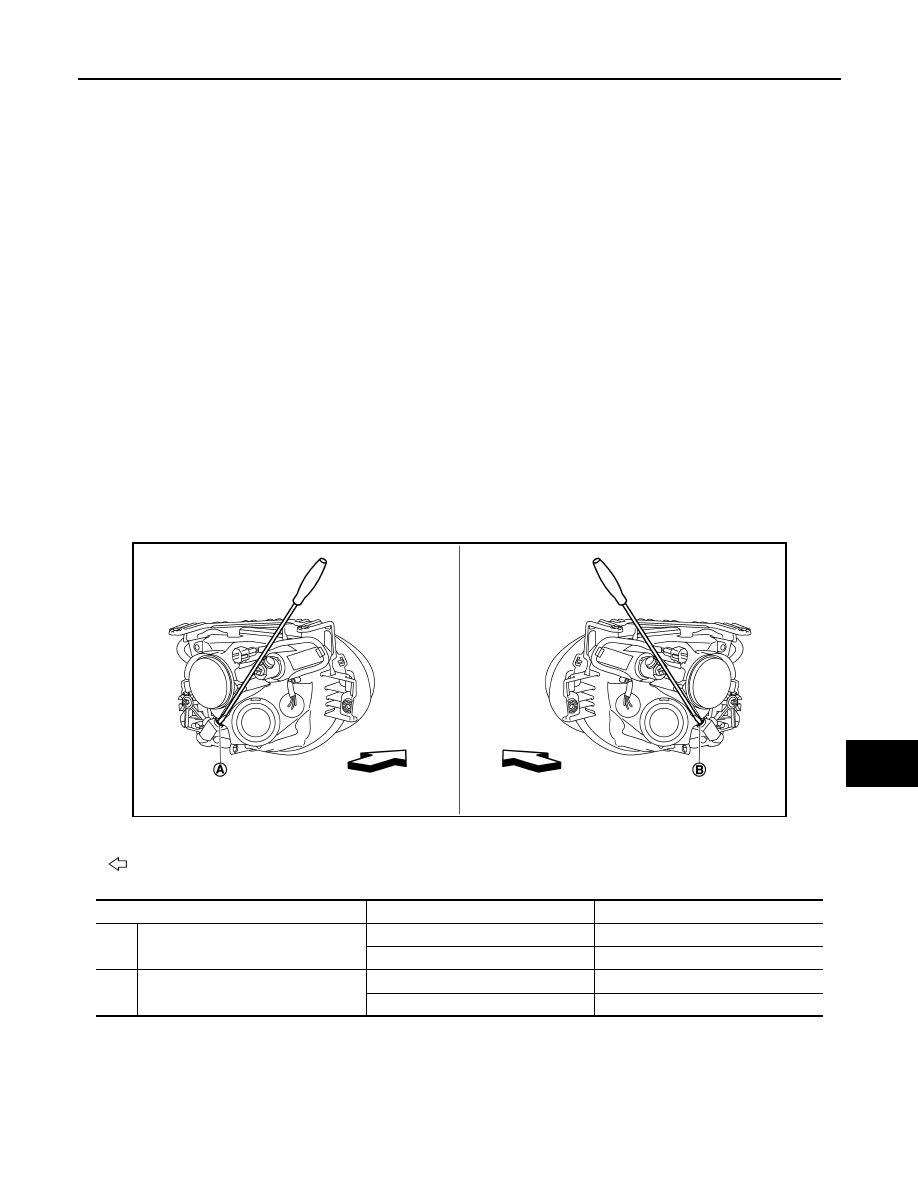

JMLIA6147ZZ

A. Headlamp RH (UP/DOWN) adjustment screw B.

Headlamp LH (UP/DOWN) adjustment screw

: Vehicle front

Adjustment screw

Screw driver rotation

Facing direction

A

Headlamp LH (UP/DOWN)

Clockwise

DOWN

Counterclockwise

UP

B

Headlamp RH (UP/DOWN)

Clockwise

DOWN

Counterclockwise

UP
