ENGINE UNIT

ENGINE UNIT

Disassembly and Assembly

INFOID:0000000012197408

DISASSEMBLY

1. Remove intake manifold. Refer to

EM-197, "Exploded View"

.

2. Remove oil pan (lower). Refer to

EM-282, "Exploded View"

.

3. Remove ignition coil, spark plug, and rocker cover. Refer to

EM-189, "Exploded View"

.

4. Remove fuel injector and fuel tube. Refer to

EM-208, "Exploded View"

.

5. Remove timing chain. Refer to

EM-248, "Exploded View"

.

6. Remove camshaft. Refer to

EM-260, "Exploded View"

.

7. Remove water pump housing. Refer to

CO-52, "Exploded View"

.

8. Remove Multi-way control valve. Refer to

CO-54, "Exploded View"

.

9. Remove cylinder head. Refer to

EM-272, "Exploded View"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

FLYWHEEL

EM-227

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FLYWHEEL

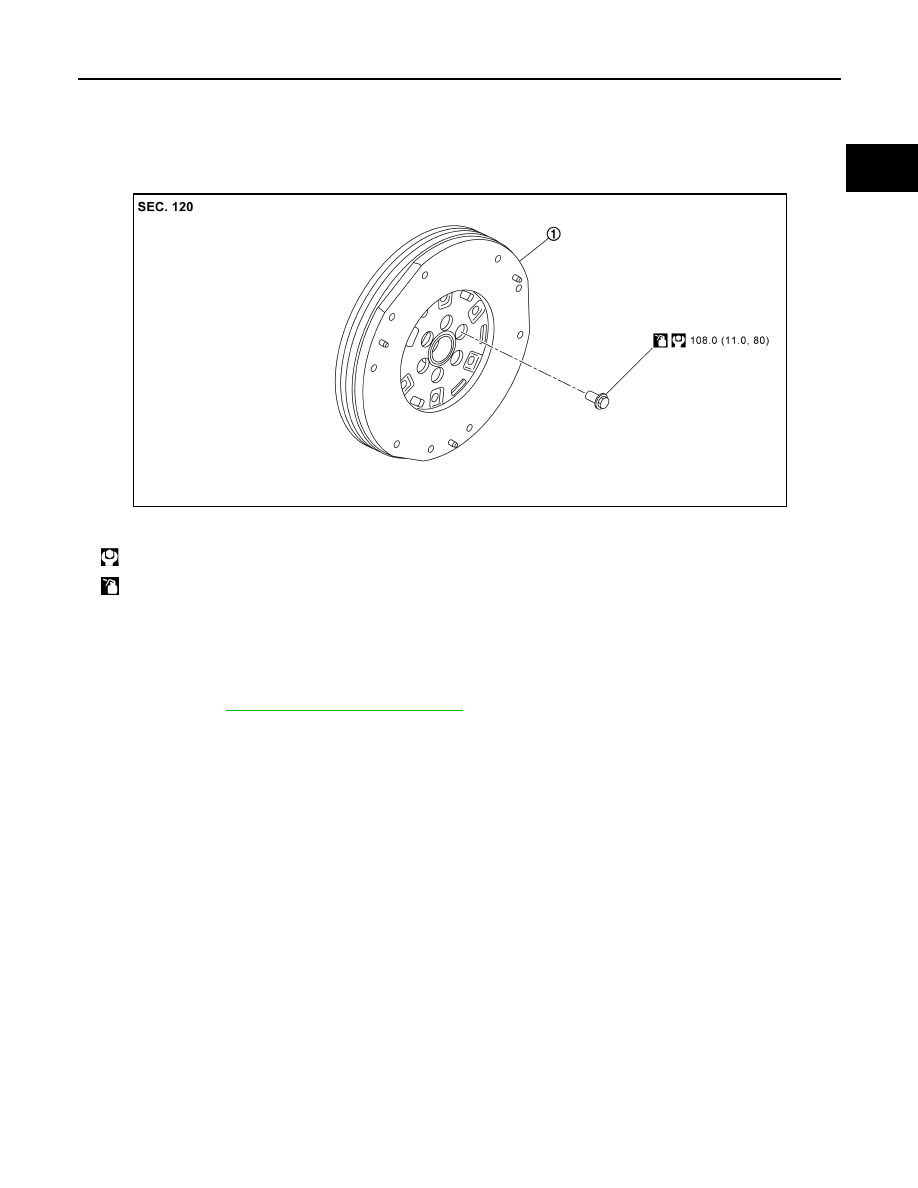

Exploded View

INFOID:0000000012197409

Removal and Installation

INFOID:0000000012197410

REMOVAL

1. Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the

engine. Refer to

TM-30, "Removal and Installation"

.

2. Remove flywheel with power tool. Fix crankshaft with a stopper plate [SST:  KV11105210 (J-44716)], and

remove mounting bolts.

• Loosen mounting bolts in diagonal order.

• Check for deformation or damage of flywheel.

CAUTION:

• Any dropped flywheel shall not be used.

• Never touch flywheel with bare hands. Always use urethane coating gloves or skin gloves

when removing these parts.

• Never use torn glove.

• Never disassemble.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never damage or scratch and contact surface for clutch disc of flywheel.

Inspection

INFOID:0000000012197411

FLYWHEEL DEFLECTION

1.

Flywheel

 : N·m (kg-m, ft-lb)

 : Should be lubricated with oil.

JPBIA7024ZZ

EM-228

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

FLYWHEEL

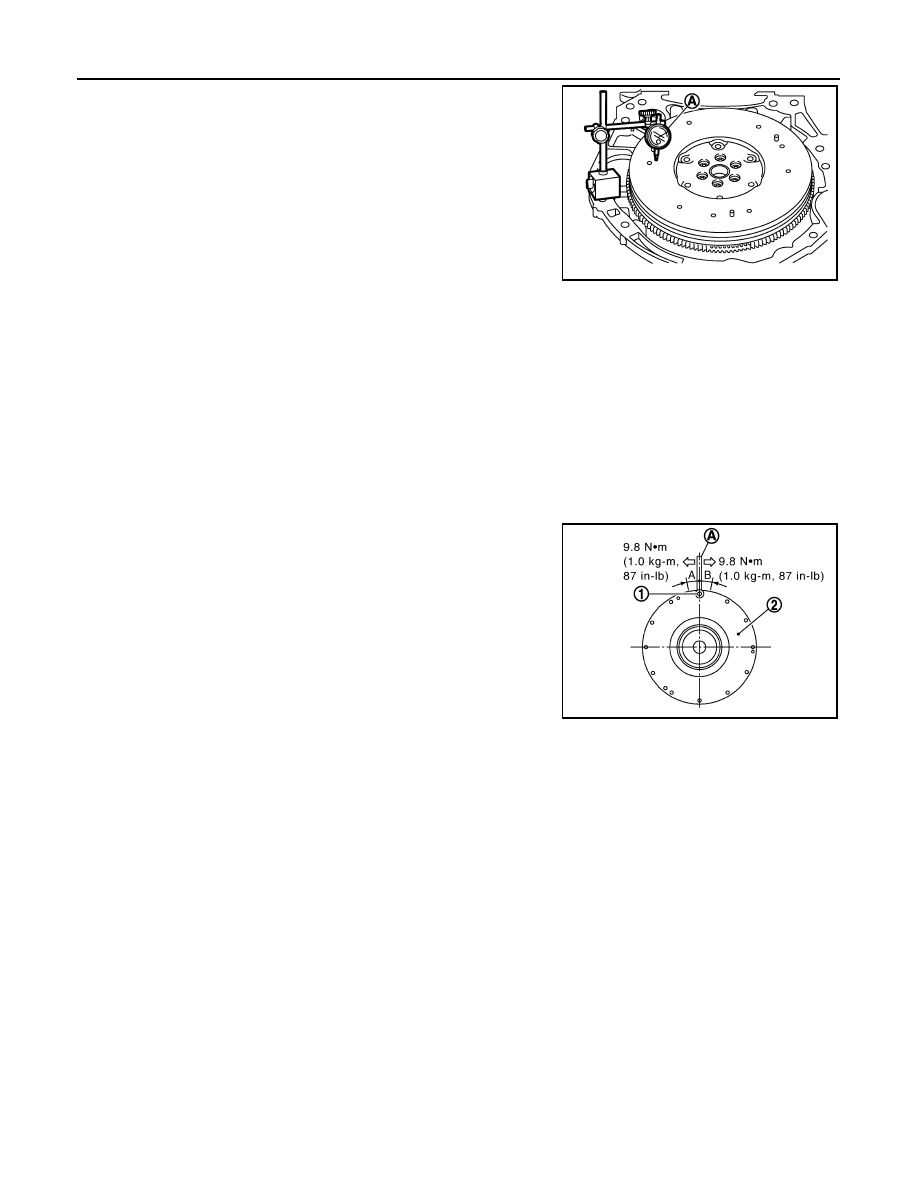

• Measure the deflection of flywheel contact surface to torque with a

dial indicator (A).

• Measure the deflection at 210 mm (8.27 in) diameter.

• If measured value is out of the standard, replace flywheel.

• If a trace of burn or discoloration is found on the surface, repair it

with sandpaper.

CAUTION:

When measuring, keep magnetic fields (such as dial indicator

stand) away from signal plate of the rear end of crankshaft.

MOVEMENT AMOUNT OF FLYWHEEL

CAUTION:

Never disassemble double mass flywheel.

Movement Amount of Thrust (Fore-and-Aft) Direction

• Measure the movement amount of thrust (fore-and-aft) direction when 100 N (10.2 kg, 22 lb) force is added

at the portion of 125 mm (4.92 in) radius from the center of flywheel.

• If measured value is out of the standard, replace flywheel.

Movement Amount in Radial (Rotation) Direction

Check the movement amount of radial (rotation) direction according to the following procedure:
1. Install clutch cover mounting bolt (1) to clutch cover mounting

hole, and place a torque wrench (A) on the extended line of the

flywheel (2) center line.

• Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it

from loosening.

2. Put a mating mark on circumferences of the two flywheel

masses without applying any load (Measurement standard

points).

3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,

and mark the movement amount on the mass on the transaxle

side.

4. Measure the dimensions of movement amounts “A” and “B” on

circumference of the flywheel on the transaxle side.

• If measured value is out of the standard, replace flywheel.

Limit  : 0.45 mm (0.0177 in) or less.

PBIC4006E

Standard

: 1.8 mm (0.071 in) or less

Limit : 66.7 mm (2.626 in) or less.

PBIC4007E

DRIVE PLATE

EM-229

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

DRIVE PLATE

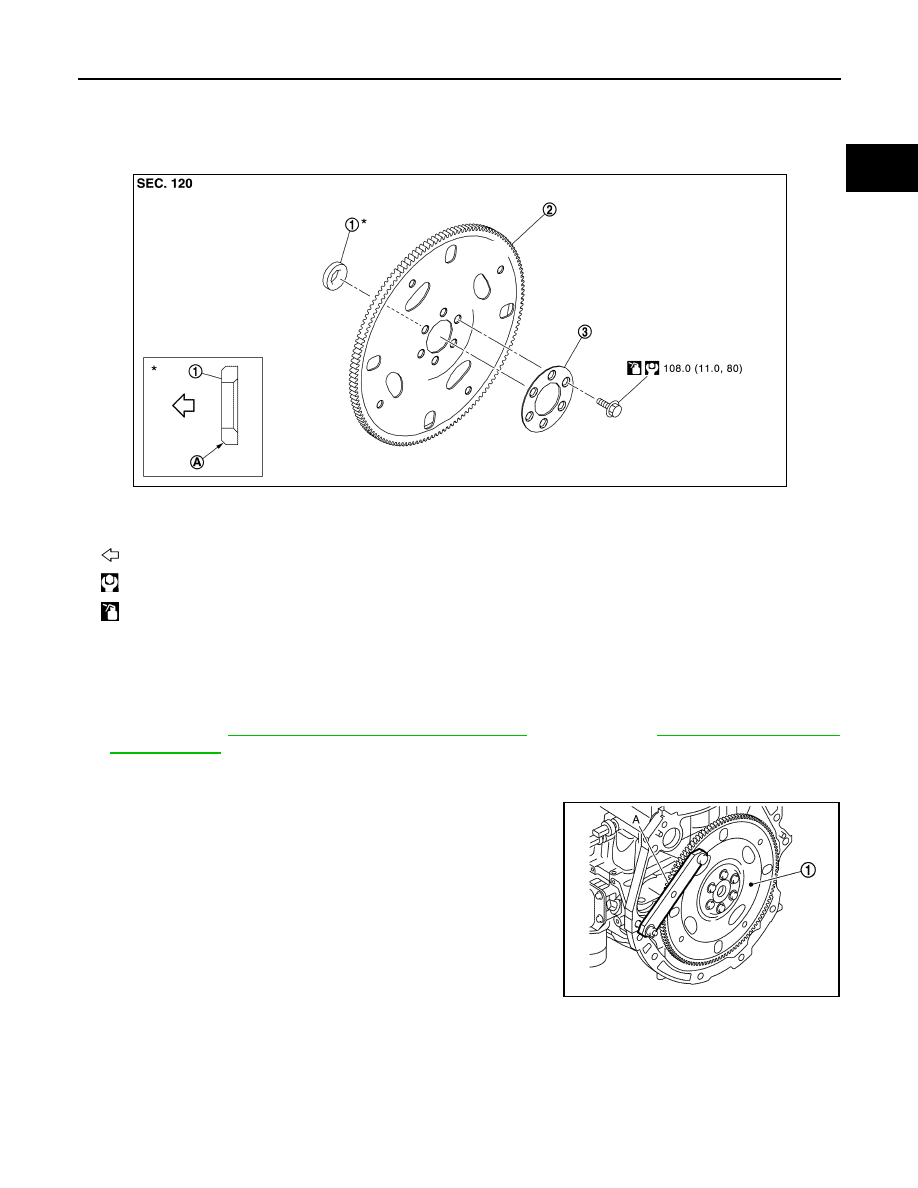

Exploded View

INFOID:0000000012197412

Removal and Installation

INFOID:0000000012197413

REMOVAL

1. Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the

engine. Refer to

EM-217, "2WD : Removal and Installation"

 (2WD models) or

EM-221, "AWD : Removal

and Installation"

 (AWD models).

2. Remove drive plate the following procedure:
a. Remove drive plate.

• Secure drive plate(1) with a stopper plate [SST:  KV11105210

(J-44716)] (A), and remove mounting bolts.

1.

Pilot converter

2.

Drive plate

3.

Reinforcement plate

A. Chamfered

: Crankshaft side

 : N·m (kg-m, ft-lb)

 : Should be lubricated with oil.

JPBIA5037GB

JPBIA4425ZZ
