Nissan Juke F15. Manual - part 614

EM-10

< PREPARATION >

[MR FOR NISMO RS MODELS]

PREPARATION

PREPARATION

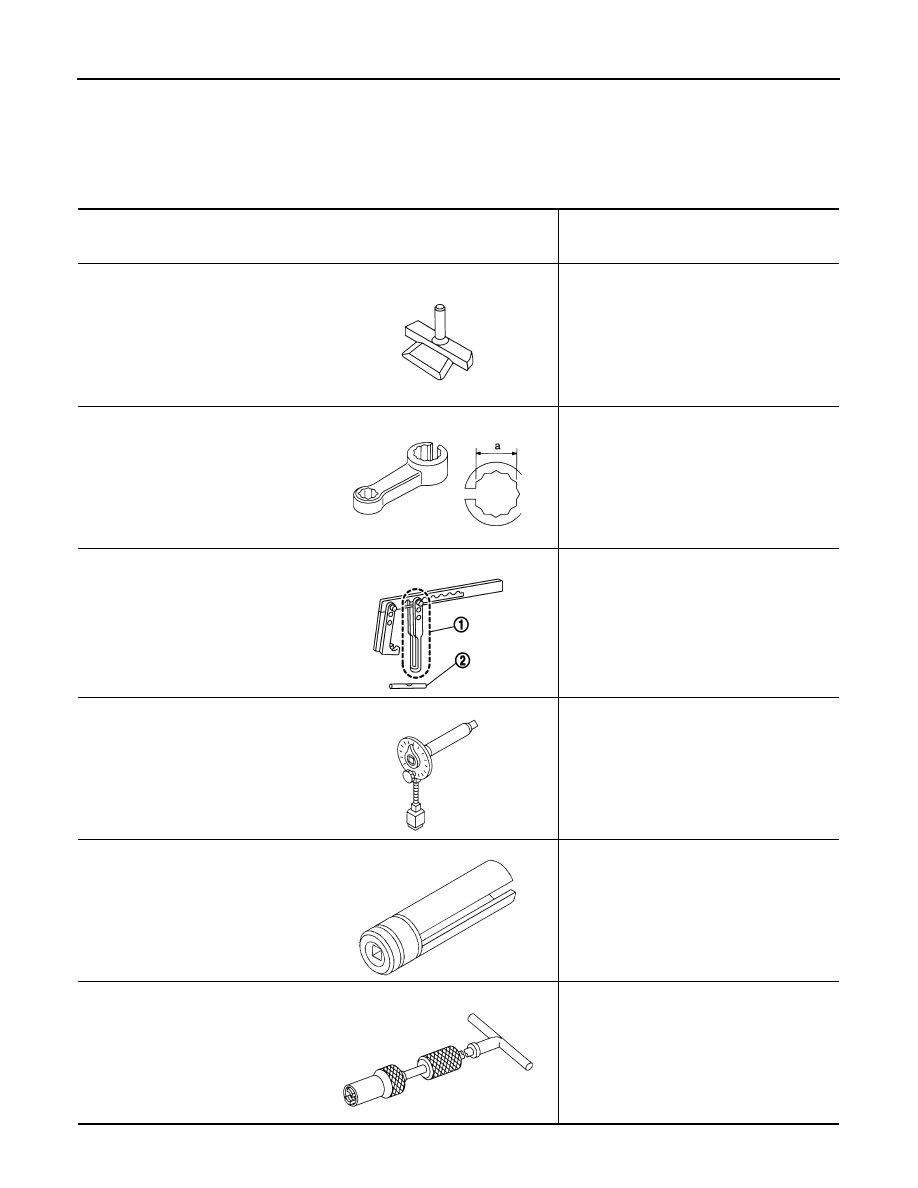

Special Service Tools

INFOID:0000000012197235

The actual shapes oh TechMate tools may differ from those of special service tools illustrated here.

Tool number
(TechMate No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing oil pan (upper and lower) etc.

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2 (AWD models)
a: For 22 mm (0.87 in) width hexagon nut

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
( — )
Adapter

Disassembling and assembling valve mecha-
nism
Part (1) is a component of KV10116200 (J-
26336-A), but Part (2) is not so.

KV10112100
(BT8653-A)
Angle wrench

Tightening bolts for main bearing cap, cylinder
head, etc.

KV10117100
(J-3647-A)
Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor 1
For 22 mm (0.87 in) width hexagon nut

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

S-NT046

S-NT636

PBIC1650E

S-NT014

NT379

NT011

PREPARATION

EM-11

< PREPARATION >

[MR FOR NISMO RS MODELS]

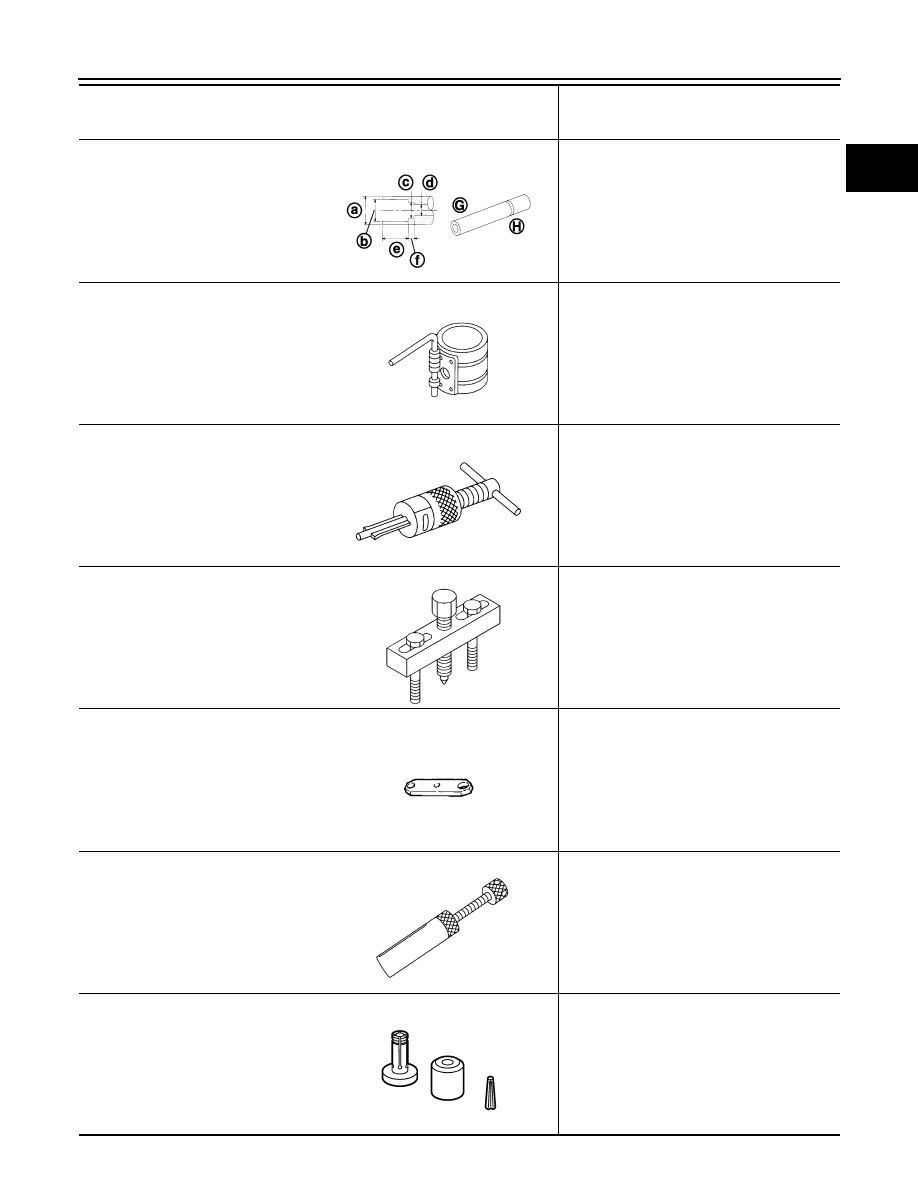

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A (G).
a: 20 (0.79) dia.          d: 8 (0.31) dia.
b: 13 (0.51) dia.           e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
H: Side B
                                              Unit: mm (in)

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter

KV11103000
( — )
Pulley puller

Removing crankshaft pulley

KV11105210
(J-44716)
Stopper plate

Fixing drive plate

KV10119600
( — )
Injector remover

Removing fuel injector

KV101197S0
( — )
Injector seal drift set

Installing fuel injector seal ring

Tool number
(TechMate No.)
Tool name

Description

JPBIA0396ZZ

S-NT044

S-NT045

NT676

ZZA0009D

JPBIA3746ZZ

JPBIA3281ZZ

EM-12

< PREPARATION >

[MR FOR NISMO RS MODELS]

PREPARATION

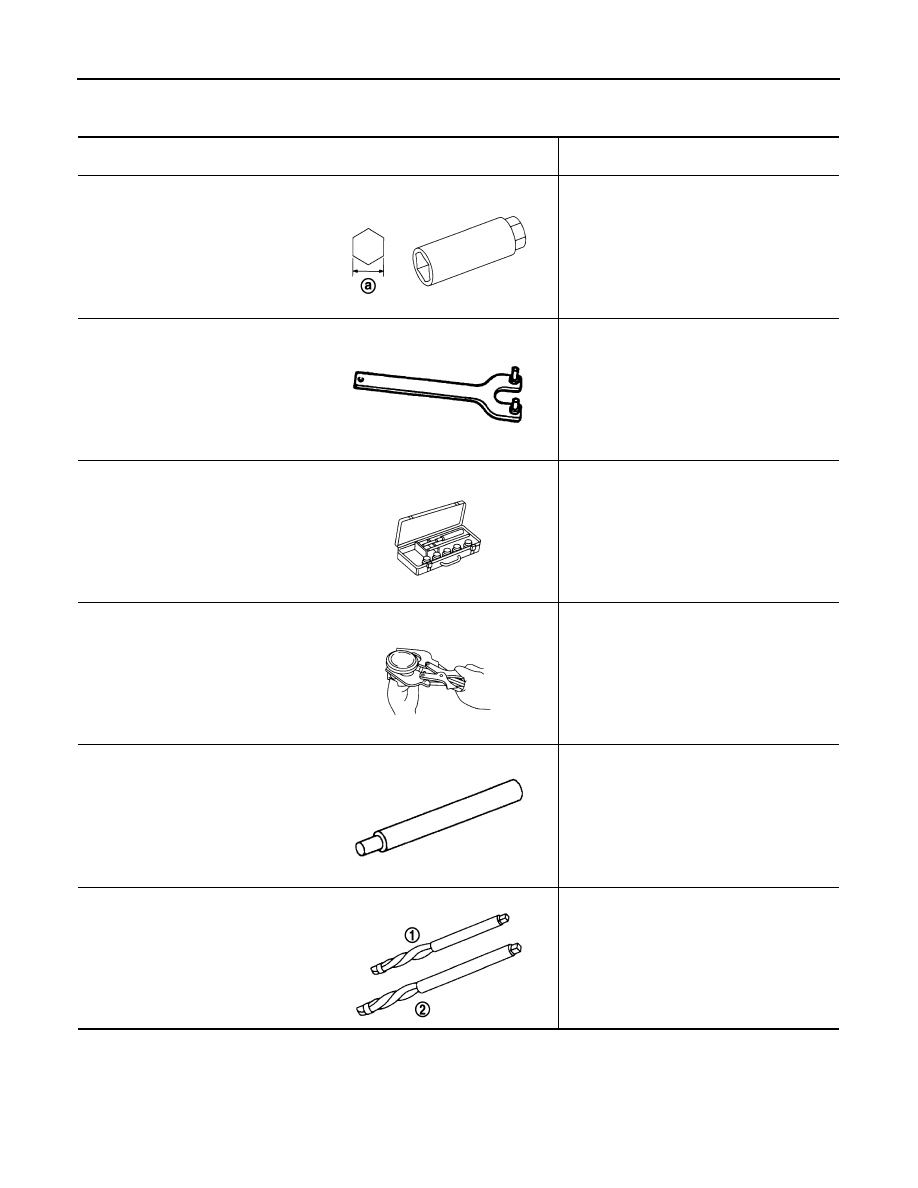

Commercial Service Tools

INFOID:0000000012197236

(TechMate No.)
Tool name

Description

( — )
Spark plug wrench

Removing and installing spark plug
a: 14 mm (0.55 in)

( — )
Pulley holder

Crankshaft pulley removing and installing

( — )
Valve seat cutter set

Finishing valve seat dimensions

( — )
Piston ring expander

Removing and installing piston ring

( — )
Valve guide drift

Removing and installing valve guide

( — )
Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide

JPBIA0399ZZ

ZZA1010D

S-NT048

S-NT030

PBIC4012E

PBIC4013E

PREPARATION

EM-13

< PREPARATION >

[MR FOR NISMO RS MODELS]

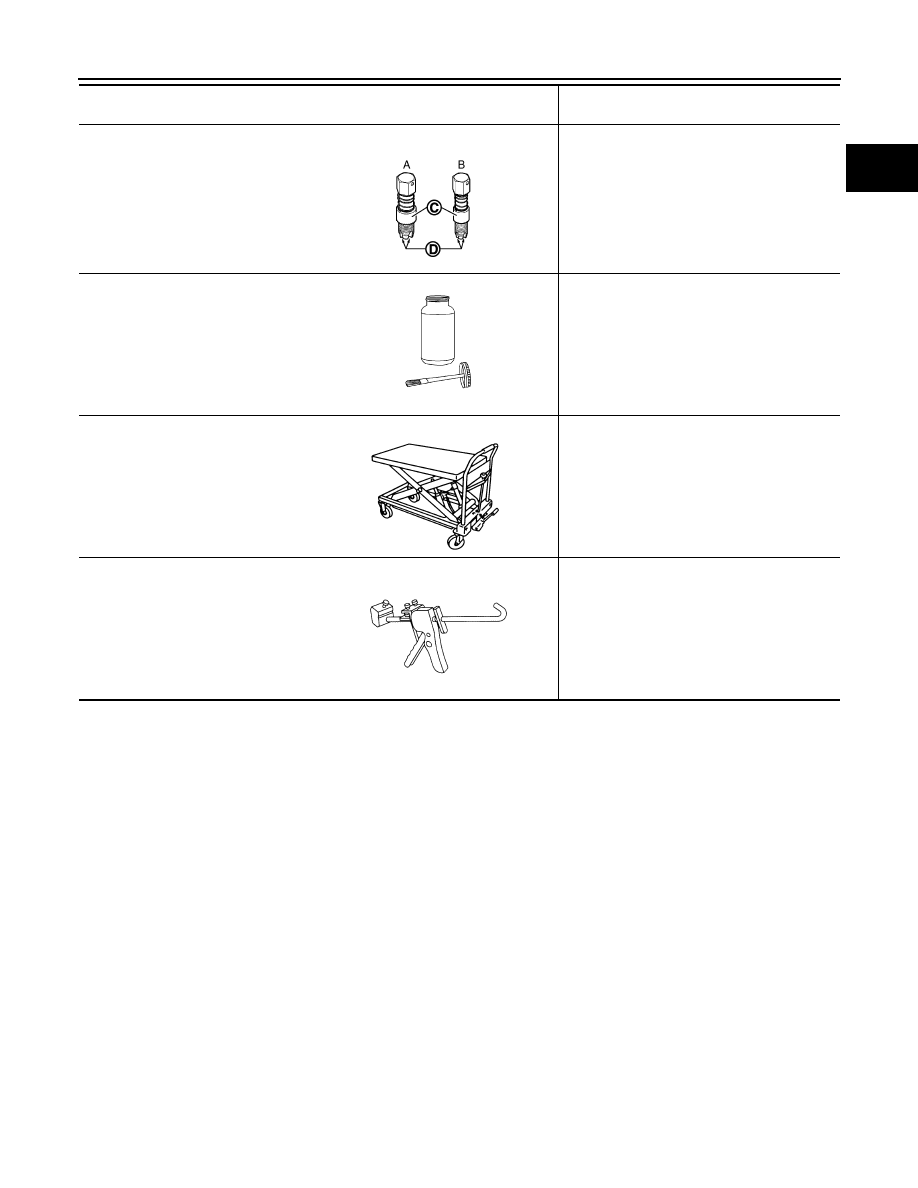

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor
(Use with anti-seize lubricant shown below.)
A: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
B: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor
C: Mating surface shave cylinder
D: Flutes

( — )
Anti-seize lubricant
(Permatex 133AR or equivalent meet-
ing MIL specification MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

( — )
Manual lift table caddy

Removing and installing engine

( — )
Tube presser

Pressing the tube of liquid gasket

(TechMate No.)
Tool name

Description

JPBIA0238ZZ

AEM489

ZZA1210D

S-NT052
