Nissan Juke F15. Manual

EM-3

Precautions for Removing Battery Terminal .........

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

150

Precaution for Procedure without Cowl Top Cover

151

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect .................................

151

Special Cautions to Ensure the Safe Disposal of
Sodium-filled Exhaust Valves ................................

152

Precaution for Handling High Pressure Fuel Sys-
tem ........................................................................

153

Precautions For Engine Service ............................

153

Parts Requiring Angle Tightening .........................

154

Liquid Gasket ........................................................

154

PREPARATION .........................................

156

PREPARATION ................................................

156

Special Service Tools ............................................

156

Commercial Service Tools ....................................

158

Service Parts .........................................................

159

SYSTEM DESCRIPTION ...........................

160

COMPONENT PARTS .....................................

160

Engine Cover ........................................................

160

Air Cleaner and Air Duct .......................................

160

Electric Throttle Control Actuator ..........................

160

Intake Manifold ......................................................

161

Fuel Injector ..........................................................

161

Exhaust Manifold and Turbocharger Assembly ....

161

Charge air cooler ...................................................

161

Catalyst Converter ................................................

161

Drive Belt ...............................................................

162

High-pressure Fuel Pump .....................................

163

Rocker Cover ........................................................

163

Camshaft Sprocket ................................................

163

Camshaft ...............................................................

163

Valve .....................................................................

165

Cylinder Head .......................................................

166

Front Cover ...........................................................

167

Timing Chain .........................................................

167

Crankshaft Pulley ..................................................

168

Crankshaft .............................................................

169

Piston ....................................................................

169

Connecting Rod ....................................................

169

Cylinder Block .......................................................

170

Front Oil Seal ........................................................

171

Rear Oil Seal .........................................................

171

Oil Pan ..................................................................

171

Engine Mount ........................................................

171

STRUCTURE AND OPERATION .....................

174

Main Motor System ...............................................

174

Valves ...................................................................

176

Intake/Exhaust System .........................................

177

BASIC INSPECTION .................................

179

CAMSHAFT VALVE CLEARANCE .................

179

Inspection and Adjustment ....................................

179

COMPRESSION PRESSURE .........................

182

Inspection ..............................................................

182

SYMPTOM DIAGNOSIS ............................

183

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .........................

183

Diagnosis Chart By Symptom ................................

183

PERIODIC MAINTENANCE ......................

185

DRIVE BELT ...................................................

185

Exploded View .......................................................

185

Removal and Installation .......................................

185

Inspection ..............................................................

186

Adjustment .............................................................

186

AIR CLEANER FILTER ...................................

187

Exploded View .......................................................

187

Removal and Installation .......................................

187

Inspection (Viscous Paper Type) ...........................

188

SPARK PLUG .................................................

189

Exploded View .......................................................

189

Removal and Installation .......................................

189

Inspection ..............................................................

190

REMOVAL AND INSTALLATION .............

191

ENGINE COVER .............................................

191

Exploded View .......................................................

191

Removal and Installation .......................................

191

AIR CLEANER AND AIR DUCT .....................

192

Exploded View .......................................................

192

Removal and Installation .......................................

192

Inspection ..............................................................

193

CHARGE AIR COOLER ..................................

194

Exploded View .......................................................

194

Removal and Installation .......................................

194

Inspection ..............................................................

195

INTAKE MANIFOLD .......................................

197

Exploded View .......................................................

197

Removal and Installation .......................................

197

Inspection ..............................................................

199

OIL PAN (LOWER) .........................................

200

Exploded View .......................................................

200

Removal and Installation .......................................

200

Inspection ..............................................................

202

HIGH PRESSURE FUEL PUMP AND FUEL
HOSE ...............................................................

203

Exploded View .......................................................

203

Removal and Installation .......................................

203

Inspection ..............................................................

207

FUEL INJECTOR ............................................

208

PRECAUTIONS

EM-5

< PRECAUTION >

[MR FOR NISMO RS MODELS]

PRECAUTION

PRECAUTIONS

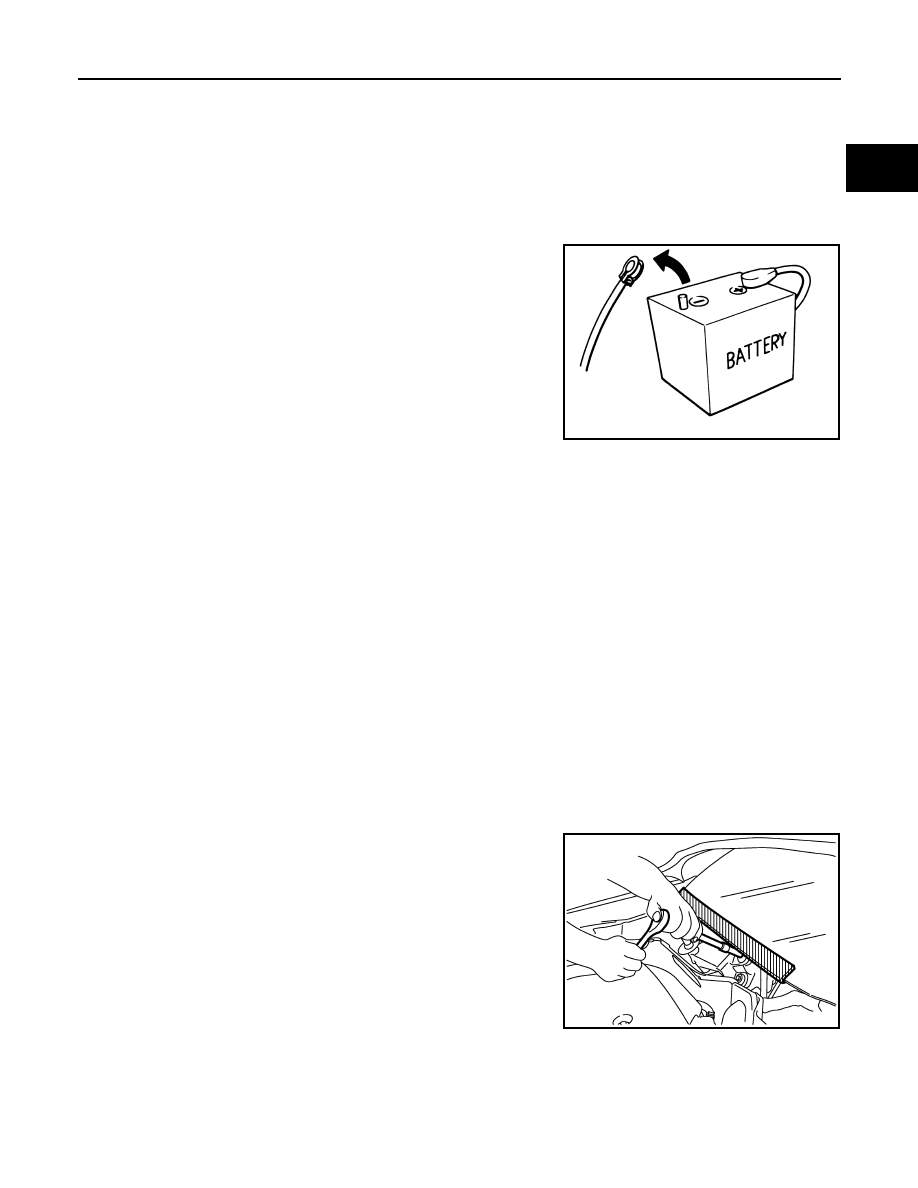

Precautions for Removing Battery Terminal

INFOID:0000000012958640

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012197228

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012197229

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

PIIB3706J
