G SENSOR

EC-1257

< REMOVAL AND INSTALLATION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

G SENSOR

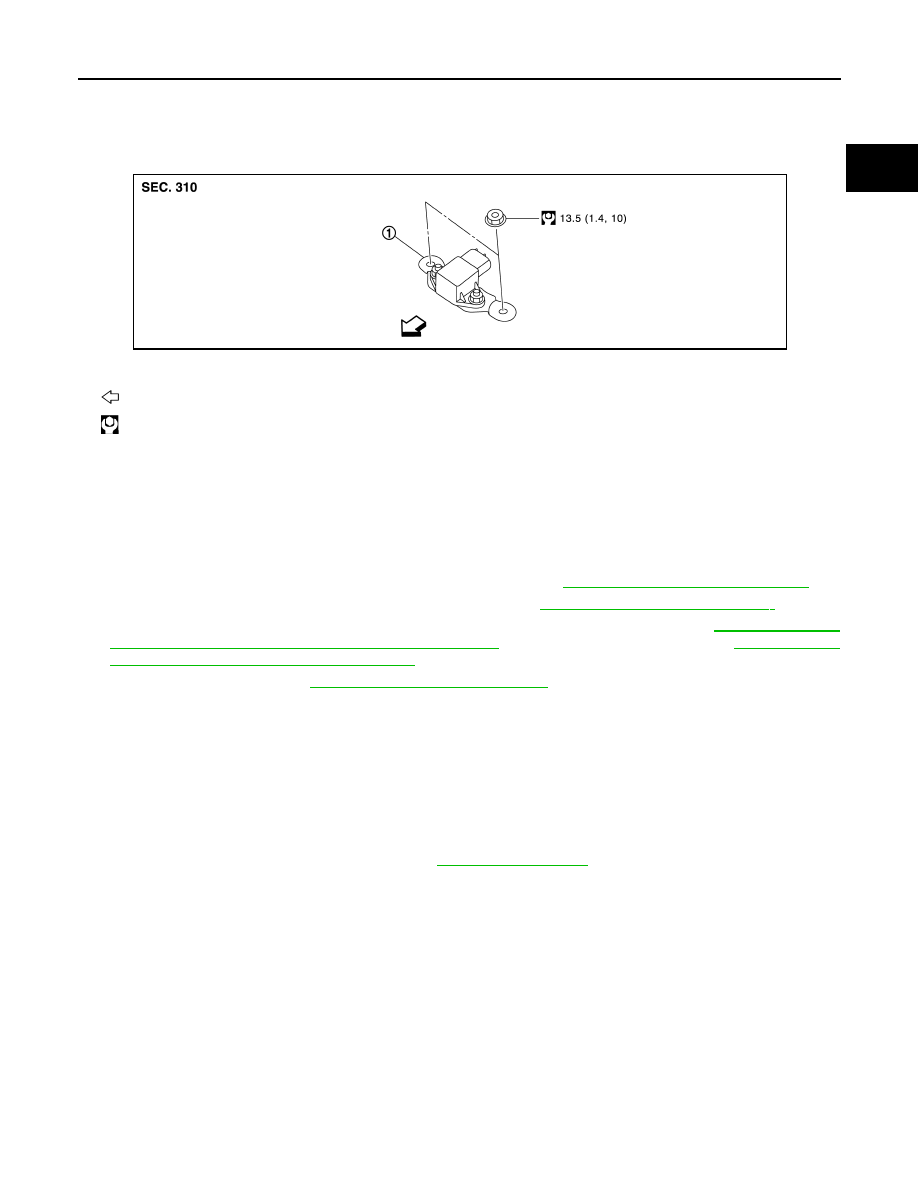

Exploded View

INFOID:0000000012198782

Removal and Installation

INFOID:0000000012198783

CAUTION:

• Never drop or strike G sensor, because it has little tolerance for impact.

• Never use a power tool to avoid impact.

REMOVAL

1. Disconnect the battery cable from the negative terminal. Refer to

PG-106, "Removal and Installation"

.

2. Remove driver seat (LHD) or passenger seat (RHD). Refer to

SE-21, "Removal and Installation"

.

3. Remove center pillar lower garnish (left side) and dash side finisher (left side). Refer to

INT-22, "CENTER

PILLAR LOWER GARNISH : Removal and Installation"

 (center pillar lower garnish) and

INT-21, "DASH

SIDE FINISHER : Removal and Installation"

 (dash side finisher).

4. Pull up floor carpet. Refer to

INT-24, "Removal and Installation"

.

5. Disconnect G sensor harness connector.
6. Remove G sensor.

INSTALLATION

Installation is the reverse order of removal.

Adjustment

INFOID:0000000012198784

ADJUSTMENT AFTER INSTALLATION

Perform “CALIBRATION OF G SENSOR”. Refer to

EC-763, "Description"

.

1.

G sensor
: Vehicle front

: N·m (kg-m, ft-lb)

JSDIA2139GB

EC-1258

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR EXCEPT FOR NISMO RS MODELS]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000012198785

*: Under the following conditions
• A/C switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000012198786

*: Under the following conditions
• A/C switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000012198787

Mass Air Flow Sensor

INFOID:0000000012198788

*: Engine is warmed up to normal operating temperature and running under no load.

Transmission

Condition

Specification

CVT

No load* (in P or N position)

650

± 50 rpm

M/T

No load* (in Neutral position)

600

± 50 rpm

Transmission

Condition

Specification

CVT

No load* (in P or N position)

± 2° BTDC

M/T

No load* (in Neutral position)

± 2° BTDC

Condition

Specification (Using CONSULT)

At idle

CVT (in N position)

Approx. 21 %

M/T (in Neutral position)

Approx. 17%

At 2,500 rpm

Approx. 15 %

Condition

Specification (Using CONSULT)

At idle*

Approx. 1.6 g/sec

At 2,500 rpm*

Approx. 5.0 g/sec
