P0097, P0098 IAT SENSOR 2

EC-833

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Repair or replace error-detected parts.

7.

CHECK SENSOR POWER SUPPLY 2 CIRCUIT

Perform

EC-1240, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

Component Inspection

INFOID:0000000012198337

1.

CHECK INTAKE AIR TEMPERATURE SENSOR 2

1. Turn ignition switch OFF.

2. Disconnect turbocharger boost sensor harness connector.

3. Check resistance between turbocharger boost sensor terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace turbocharger boost sensor (with intake air temperature sensor 2). Refer to

EM-194,

"Exploded View"

.

ECM

Ground

Continuity

Connector

Terminal

F23

9

Ground

Existed

10

50

F24

60

110

E19

147

149

152

Turbocharger boost sensor

Condition

Resistance (k

Ω)

+

−

Terminals

3

4

Temperature [

°C (°F)]

25 (77)

1.80 – 2.20

EC-834

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P00B3, P00B4 ENGINE COOLANT TEMPERATURE SENSOR 2

P00B3, P00B4 ENGINE COOLANT TEMPERATURE SENSOR 2

DTC Logic

INFOID:0000000012198338

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TEST CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V at ignition switch

ON.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON and wait at least 5 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-834, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198339

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 2 POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect engine coolant temperature (ECT) sensor 2 harness connector.

3. Turn ignition switch ON.

4. Check the voltage between ECT sensor 2 harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 2 GROUND CIRCUIT

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible Cause

P00B3

RADIATOR COOLANT TEMP
SEN
(Radiator coolant temperature
sensor circuit low)

ECM detects the following status continu-
ously for 5 seconds or more:
A voltage signal transmitted from the en-
gine coolant temperature sensor 2 is 0.04 V
or less.

• Harness or connectors

(Engine coolant temperature sensor 2
circuit is open or shorted.)

• Engine coolant temperature sensor 2

P00B4

RADIATOR COOLANT TEMP
SEN
(Radiator coolant temperature
sensor circuit high)

ECM detects the following status continu-
ously for 5 seconds or more:
A voltage signal transmitted from the en-
gine coolant temperature sensor 2 is 4.84 V
or more.

+

−

Voltage

(Approx.)

ECT sensor 2

Connector

Terminal

E205

1

Ground

5 V

P00B3, P00B4 ENGINE COOLANT TEMPERATURE SENSOR 2

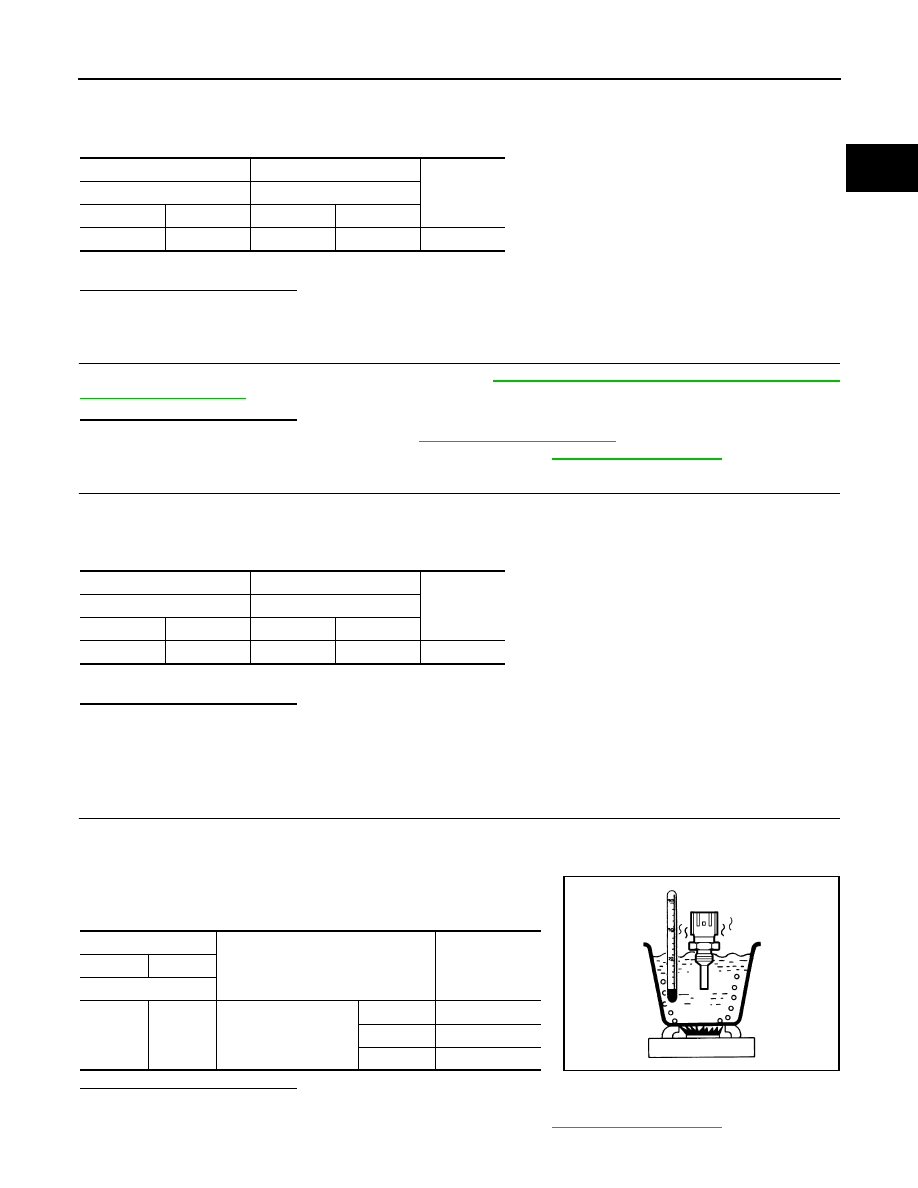

EC-835

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between ECT sensor 2 harness connector and ECM harness connector.

4. Also check harness for short to ground to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 2

Check the engine coolant temperature sensor 2. Refer to

EC-835, "Component Inspection (Engine Coolant

Temperature Sensor 2)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace engine coolant temperature sensor 2. Refer to

CO-46, "Exploded View"

.

4.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 2 POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between ECT sensor 2 harness connector and ECM harness connector.

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

Component Inspection (Engine Coolant Temperature Sensor 2)

INFOID:0000000012198340

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 2

1. Turn ignition switch OFF.

2. Disconnect engine coolant temperature sensor 2 harness connector.

3. Remove engine coolant temperature sensor 2.

4. Check resistance between engine coolant temperature sensor 2

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor 2. Refer to

CO-46, "Exploded View"

.

+

−

Continuity

ECT sensor 2

ECM

Connector

Terminal

Connector

Terminal

E205

2

F23

45

Existed

+

−

Continuity

ECT sensor 2

ECM

Connector

Terminal

Connector

Terminal

E205

1

F23

40

Existed

ECT sensor 2

Condition

Resistance

+

−

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.37 - 2.63 k

Ω

50 (122)

0.68 - 1.00 k

Ω

90 (194)

0.236 - 0.260 k

Ω

JMBIA0080ZZ

EC-836

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P00C1, P00C2 TURBOCHARGER BYPASS CONTROL VALVE

P00C1, P00C2 TURBOCHARGER BYPASS CONTROL VALVE

DTC Logic

INFOID:0000000012198341

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TEST CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V at ignition switch

ON.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON and wait at least 5 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-836, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198342

1.

TURBOCHARGER BYPASS CONTROL VALVE POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect turbocharger bypass control valve harness connector.

3. Turn ignition switch ON.

4. Check the voltage between turbocharger bypass control valve harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform the trouble diagnosis for power supply circuit.

2.

CHECK TURBOCHARGER BYPASS CONTROL VALVE INPUT SIGNAL CIRCUIT

1. Turn ignition switch OFF.

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible Cause

P00C1

TC/SC BYPASS VALVE B
(Turbocharger/supercharger
bypass valve B control circuit
low)

An excessively low voltage from the turbo-
charger bypass control valve is sent to
ECM.

• Harness or connectors

(Turbocharger bypass control valve cir-
cuit is open or shorted.)

• Turbocharger bypass control valve

P00C2

TC/SC BYPASS VALVE B
(Turbocharger/supercharger
bypass valve B control circuit
high)

An excessively high voltage from the turbo-
charger bypass control valve is sent to
ECM.

+

−

Voltage

Turbocharger bypass control

valve

Connector

Terminal

F64

1

Ground

Battery voltage
