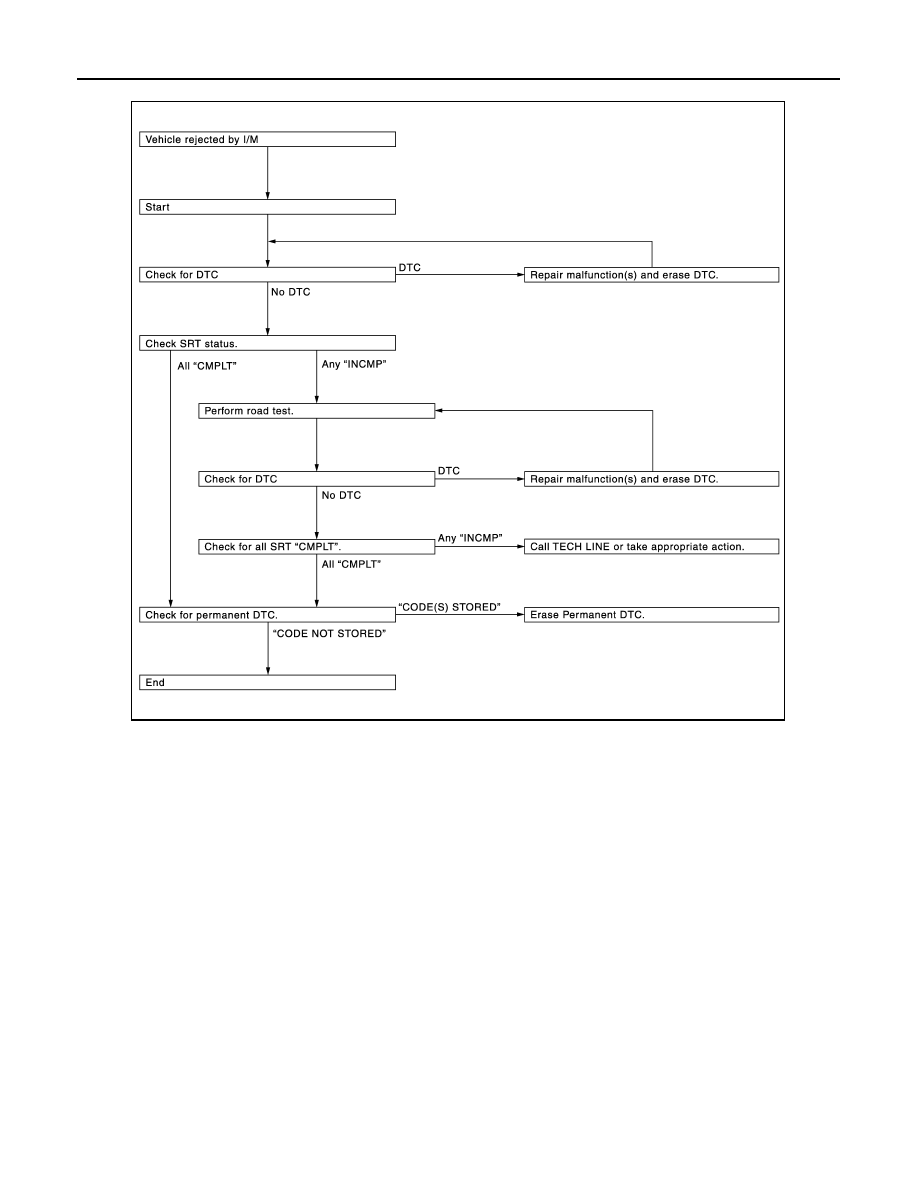

HOW TO SET SRT CODE EC-773 < BASIC INSPECTION > [MR EXCEPT FOR NISMO RS MODELS] C D E F G H I J K L M A EC N P O HOW TO SET SRT CODE Description INFOID:0000000012198282 OUTLINE In order to set all SRTs, the self-diagnoses as in the “SRT ITEM” table must have been performed at least once. Each diagnosis may require actual driving for a long period of time under various conditions. SRT ITEM The table below shows required self-diagnostic items to set the SRT to “CMPLT”. *1: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item. *2: If completion of several SRTs is required, perform driving patterns (DTC confirmation procedure), one by one based on the priority for models with CONSULT. SRT SERVICE PROCEDURE If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review the flowchart diagnostic sequence, referring to the following flowchart. SRT item *1 (CONSULT indication) Performance Priority* 2 Required self-diagnostic items to set the SRT to “CMPLT” Corresponding DTC No. CATALYST 1 Three way catalyst function P0420 EVAP SYSTEM 1 EVAP control system purge flow monitoring P0441 1 EVAP control system P0443, P0456 HO2S 1 Air fuel ratio (A/F) sensor 1 P0130, P014C, 1 Heated oxygen sensor 2 P0137 1 Heated oxygen sensor 2 P0138 1 Heated oxygen sensor 2 P0139 EGR/VVT SYSTEM 2 Intake value timing control function P0011 |
