Nissan Juke F15. Manual - part 377





P0197, P0198 EOT SENSOR

EC-321

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK EOT SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EOT sensor harness connector and ECM harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK ENGINE OIL TEMPERATURE SENSOR

Check the engine oil temperature sensor. Refer to

EC-318, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace engine oil temperature sensor. Refer to

EM-114, "Exploded View"

.

Component Inspection

INFOID:0000000012197866

1.

CHECK ENGINE OIL TEMPERATURE SENSOR

1. Turn ignition switch OFF.

2. Disconnect engine oil temperature sensor harness connector.

3. Remove engine oil temperature sensor.

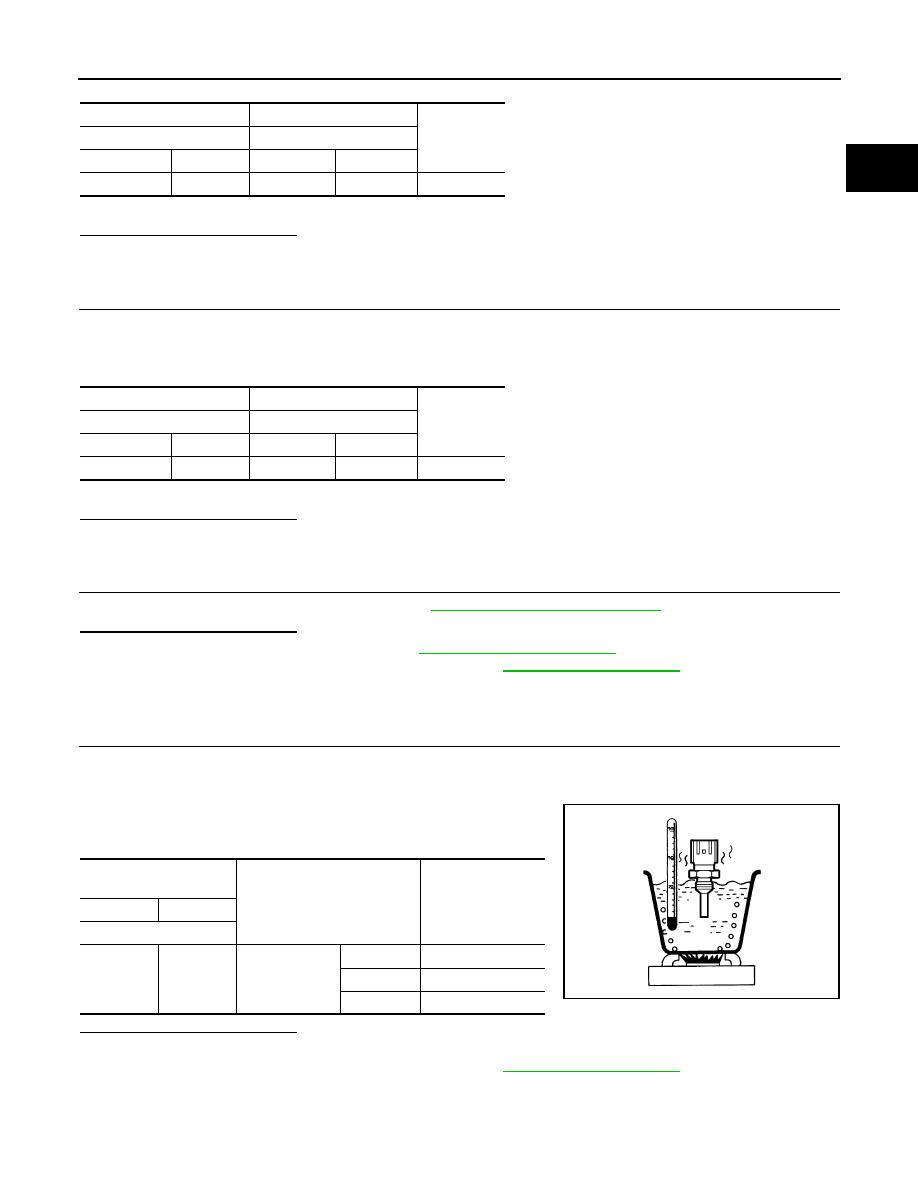

4. Check resistance between engine oil temperature sensor termi-

nals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine oil temperature sensor. Refer to

EM-114, "Exploded View"

.

+

Continuity

EOT sensor

ECM

Connector

Terminal

Connector

Terminal

F43

3

F25

39

Existed

+

Continuity

EOT sensor

ECM

Connector

Terminal

Connector

Terminal

F43

1

F25

44

Existed

Engine oil temperature

sensor

Condition

Resistance (k

Ω)

+

Terminal

1

2

Temperature
[

°C (°F)]

20 (68)

2.37 - 2.63

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

JMBIA0080ZZ

EC-322

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0201, P0202, P0203, P0204 FUEL INJECTOR

P0201, P0202, P0203, P0204 FUEL INJECTOR

DTC Logic

INFOID:0000000012197867

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, conform that battery voltage is 11 V or more at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Start the engine and let it idle at least 30 seconds.

3. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-322, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012197868

1.

PERFORM TROUBLE DIAGNOSIS FOR INJECTOR

Perform trouble diagnosis for injector. Refer to

EC-541, "Component Function Check"

.

Is inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Repair or replace error-detected parts.

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0201

INJECTOR CIRC-CYL1
(No.1 fuel injector circuit)

ECM detects No. 1 injector circuit
is open or shorted.

• The fuel injector circuit is open or shorted
• Fuel injector
• ECM

P0202

INJECTOR CIRC-CYL2
(No. 2 fuel injector circuit)

ECM detects No. 2 injector circuit
is open or shorted.

P0203

INJECTOR CIRC-CYL3
(No. 3 fuel injector circuit)

ECM detects No. 3 injector circuit
is open or shorted.

P0204

INJECTOR CIRC-CYL4
(No. 4 fuel injector circuit)

ECM detects No. 4 injector circuit
is open or shorted.

P0222, P0223 TP SENSOR

EC-323

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0222, P0223 TP SENSOR

DTC Logic

INFOID:0000000012197869

DTC DETECTION LOGIC

NOTE:

If DTC P0222 or P0223 is displayed with DTC P0643 ,first perform the trouble diagnosis for DTC P0643.

Refer to

EC-346, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for 1 second.

2. Check DTC.
Is DTC detected?

YES

>> Proceed to

EC-323, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012197870

1.

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect electric throttle control actuator harness connector.

3. Turn ignition switch ON.

4. Check the voltage between electric throttle control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT

DTC No.

Trouble diagnosis name

(Trouble diagnosis con-

tent)

DTC detecting condition

Possible cause

P0222

TP SEN 1/CIRC-B1
(Throttle position sensor
1 circuit low input)

An excessively low voltage from the TP sensor
1 is sent to ECM.

• Harness or connectors

(TP sensor 1 circuit is open or shorted.)

• Electric throttle control actuator

(TP sensor 1)

P0223

TP SEN 1/CIRC-B1
(Throttle position sensor
1 circuit high input)

An excessively high voltage from the TP sensor
1 is sent to ECM.

+

Voltage

(Approx.)

Electric throttle control actuator

Connector

Terminal

F29

1

Ground

5 V

EC-324

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0222, P0223 TP SENSOR

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT

1. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR

Check the throttle position sensor. Refer to

EC-325, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace electric throttle control actuator. Refer to

EM-29, "Exploded View"

.

+

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F29

1

F26

62

Existed

+

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F29

4

F26

74

Existed

+

Continuity

Electric throttle control actu-

ator

ECM

Connector

Terminal

Connector

Terminal

F29

2

F26

75

Existed
