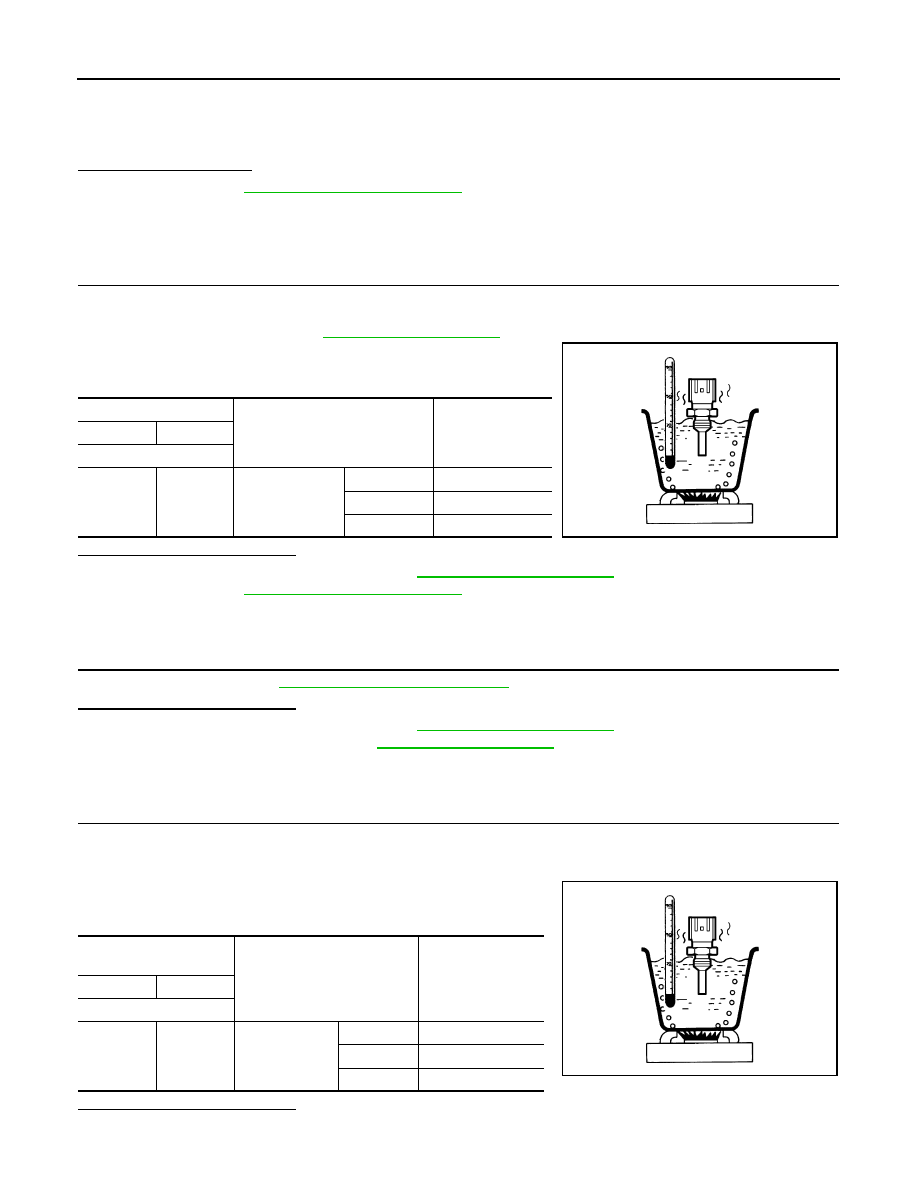

P0196 EOT SENSOR
EC-317
< DTC/CIRCUIT DIAGNOSIS >
[MR FOR NISMO RS MODELS]
C
D
E
F
G
H
I
J
K
L
M
A
EC
N
P
O
If it is below 80
°C (176°F), warm engine up until “COOLAN TEMP/S” indicates more than 80°C (176°F).
Then perform the following steps.
3. Turn ignition switch OFF and soak the vehicle in a cool place.
4. Turn ignition switch ON.
NOTE:
Do not turn ignition switch OFF until step 8.
5. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
6. Check the following.
If they are within the specified range, perform the following steps.
If they are out of the specified range, soak the vehicle to meet the above conditions. Then perform the fol-
lowing steps.
NOTE:
• Do not turn ignition switch OFF.
• If it is supposed to need a long period of time, do not deplete the battery.
7. Start engine and let it idle for 5 minutes.
8. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES
>> Proceed to
.
NO
>> GO TO 5.
5.
PERFORM COMPONENT FUNCTION CHECK (FOR MALFUNCTION B)
Perform component function check. Refer to
EC-318, "Component Function Check"
.
NOTE:
Use the component function check to check the overall function of the EOT sensor circuit. During this check, a
1st trip DTC might not be confirmed.
Is the inspection result normal?
YES
>> INSPECTION END
NO
>> Proceed to
.
6.
PRECONDITIONING
If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-
dure before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
• Before performing the following procedure, do not add fuel.
• Before performing the following procedure, check that fuel level is between 1/4 and 4/4.
• Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
>> GO TO 7.
7.
PERFORM DTC CONFIRMATION PROCEDURE B
1. Start engine and let it idle for 60 minutes.
2. Move the vehicle to a cool place.
NOTE:
Cool the vehicle in an environment of ambient air temperature between
−10°C (14°F) and 35°C (95°F).
3. Turn ignition switch OFF and soak the vehicle for 12 hours.
CAUTION:
Never turn ignition switch ON during soaking.
NOTE:
The vehicle must be cooled with the hood open.
COOLAN TEMP/S
Below 40
°C (104°F)
INT/A TEMP SE
Below 40
°C (104°F)
Difference between “COOLAN TEMP/S” and “INT/A TEMP SE”
Within 6
°C (11°F)
