Nissan Juke F15. Manual - part 346





P0011 IVT CONTROL

EC-197

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CAUTION:

Always drive at a safe speed.

2. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-197, "Diagnosis Procedure"

.

NO

>> INSPECTION END

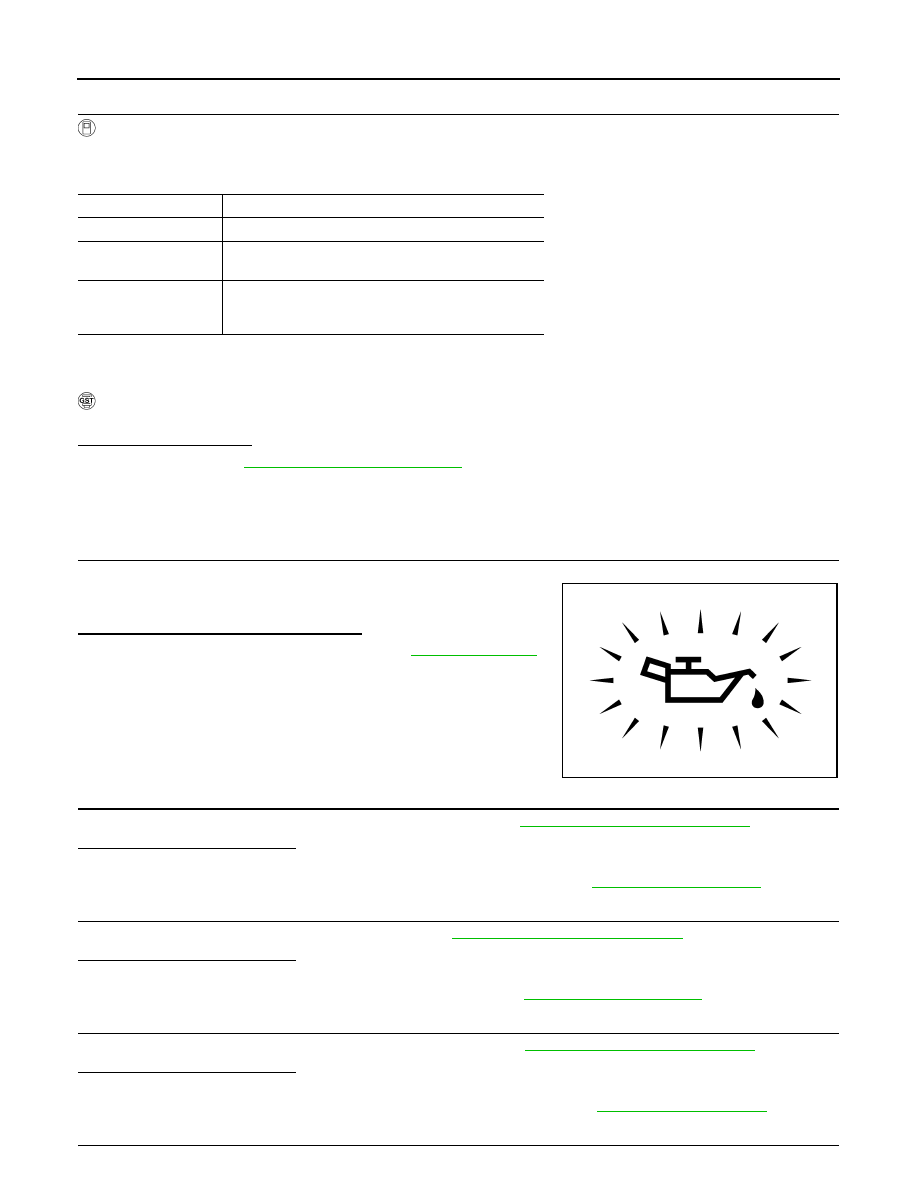

Diagnosis Procedure

INFOID:0000000012197753

1.

CHECK OIL PRESSURE WARNING LAMP

1. Start engine.

2. Check oil pressure warning lamp and confirm it is not illumi-

nated.

Is oil pressure warning lamp illuminated?

YES

>> Check the engine oil level. Refer to

LU-9, "Inspection"

.

NO

>> GO TO 2.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Check the intake valve timing control solenoid valve. Refer to

EC-198, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-76, "Exploded View"

.

3.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Check the crankshaft position sensor (POS). Refer to

EC-345, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-114, "Exploded View"

.

4.

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Check the camshaft position sensor (PHASE). Refer to

EC-348, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace camshaft position sensor (PHASE). Refer to

EM-88, "Exploded View"

.

5.

CHECK CAMSHAFT (INT)

Check the following.

ENG SPEED

1,200 - 3,175 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 60

°C (140°F)

Selector lever

D position (CVT)
1st or 2nd position (M/T)

Driving location

Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

PBIA8559J

EC-198

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0011 IVT CONTROL

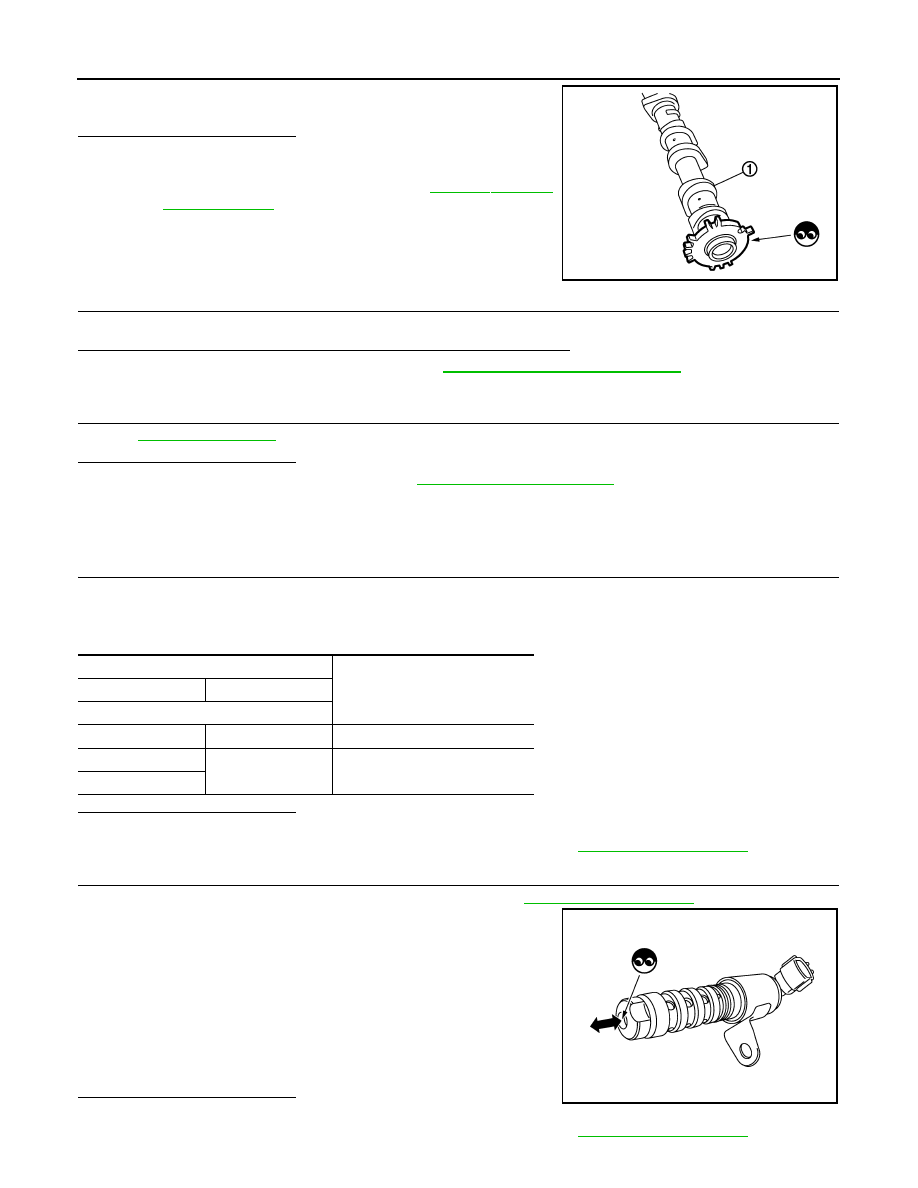

• Accumulation of debris to the signal plate of camshaft (1) rear end

• Chipping signal plate of camshaft rear end
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft. Refer to

EM-89, "Removal

and Installation"

.

6.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?

YES

>> Check timing chain installation. Refer to

EM-77, "Removal and Installation"

.

NO

>> GO TO 7.

7.

CHECK LUBRICATION CIRCUIT

Refer to

EM-92, "Inspection"

, “INSPECTION AFTER INSTALLATION”.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Clean lubrication line.

Component Inspection

INFOID:0000000012197754

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I

1. Turn ignition switch OFF.

2. Disconnect intake valve timing control solenoid valve harness connector.

3. Check resistance between intake valve timing control solenoid valve terminals as per the following.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-76, "Exploded View"

.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II

1. Remove intake valve timing control solenoid valve. Refer to

EM-76, "Exploded View"

.

2. Provide 12 V DC between intake valve timing control solenoid

valve terminals 1 and 2, and then interrupt it. Make sure that the

plunger moves as shown in the figure.

CAUTION:

Do not apply 12 V DC continuously for 5 seconds or more.

Doing so may result in damage to the coil in intake valve

timing control solenoid valve.

NOTE:

Always replace O-ring when intake valve timing control

solenoid valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-76, "Exploded View"

.

PBIA9557J

Intake valve timing control solenoid valve

Resistance

+

Terminal

1

 2

6.7 - 7.7

Ω [at 20°C (68°F)]

1

Ground

∞ Ω

(Continuity should not exist)

2

JMBIA2107ZZ

P0014 EVT CONTROL

EC-199

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0014 EVT CONTROL

DTC Logic

INFOID:0000000012197755

DTC DETECTION LOGIC

NOTE:

• If DTC P0014 is displayed with DTC P0078, first perform trouble diagnosis for DTC P0078. Refer to

EC-214, "DTC Logic"

.

• If DTC P0014 is displayed with P1078, first perform trouble diagnosis for P1078. Refer to

EC-430,

"DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at

idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

With CONSULT

1. Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Start engine and warm it up to the normal operating temperature.

3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady

as possible.

4. Let engine idle for 10 seconds.

5. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-200, "Diagnosis Procedure"

NO

>> GO TO 3.

DTC No.

Trouble diagnosis

name

(Trouble diagnosis

content)

DTC detecting condition

Possible cause

P0014

EXH/V TIM CONT-B1
(Exhaust valve timing
control performance)

There is a gap between angle of target and
phase-control angle degree.

• Crankshaft position sensor (POS)
• Camshaft position sensor (PHASE)
• Exhaust valve timing control position sensor
• Exhaust valve control solenoid valve
• Accumulation of debris to the signal pick-up

portion of the camshaft

• Timing chain installation
• Foreign matter caught in the oil groove for ex-

haust valve timing control

ENG SPEED

1,200 - 2,000 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 60

°C (140°F)

Selector lever

P or N position (CVT)
Neutral position (M/T)

EC-200

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0014 EVT CONTROL

3.

PERFORM DTC CONFIRMATION PROCEDURE-II

With CONSULT

1. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Maintain the following conditions for at least 20 consecutive seconds.

CAUTION:

Always drive at a safe speed.

3. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-200, "Diagnosis Procedure"

NO

>> INSPECTION END

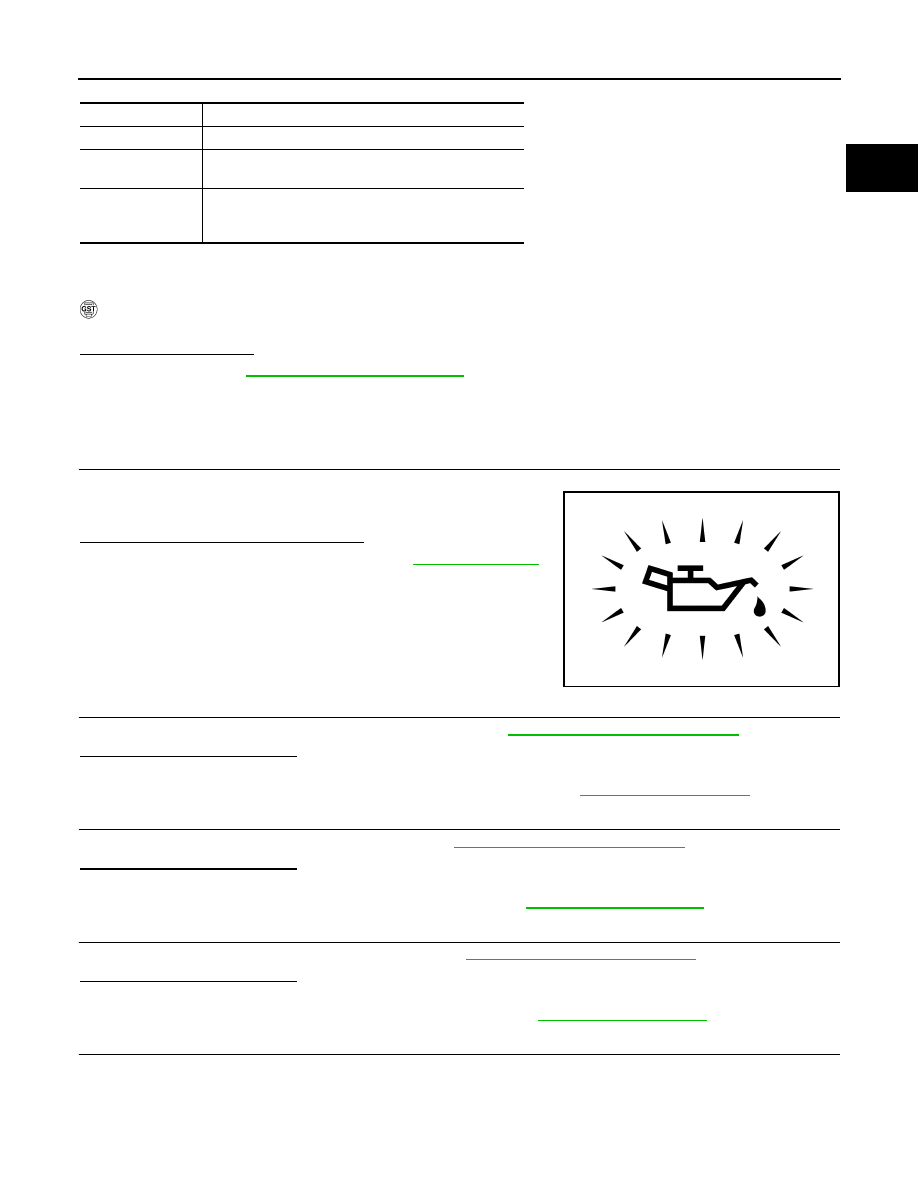

Diagnosis Procedure

INFOID:0000000012197756

1.

CHECK OIL PRESSURE WARNING LAMP

1. Start engine.

2. Check oil pressure warning lamp and confirm it is not illumi-

nated.

Is oil pressure warning lamp illuminated?

YES

>> Check the engine oil level. Refer to

LU-9, "Inspection"

.

NO

>> GO TO 2.

2.

CHECK EXHAUST VALVE TIMING CONTROL SOLENOID VALVE

Check the exhaust valve timing control solenoid valve. Refer to

EC-198, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace exhaust valve timing control solenoid valve. Refer to

EM-76, "Exploded View"

.

3.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Check the crankshaft position sensor (POS). Refer to

EC-345, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-114, "Exploded View"

.

4.

CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR

Check the exhaust valve timing control position sensor. Refer to

EC-348, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace exhaust valve timing control position sensor. Refer to

EM-88, "Exploded View"

.

5.

CHECK CAMSHAFT (EXH)

ENG SPEED

1,700 - 2,950 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 70

°C (158°F)

Selector lever

D position (CVT)
1st or 2nd position (M/T)

Driving location uphill

Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

PBIA8559J
