Commercial Service Tools

INFOID:0000000012199496

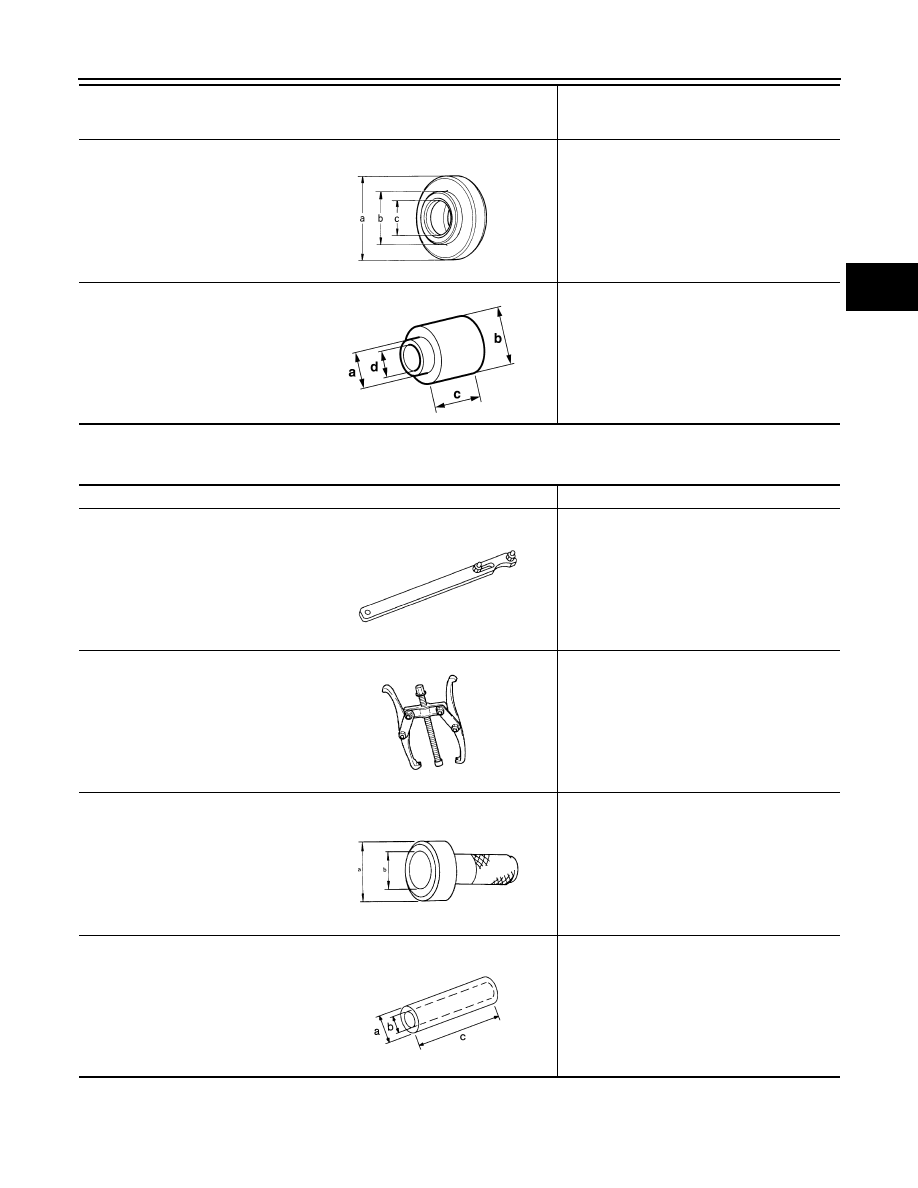

ST33032000
(

—

)

Drift
a: 80 mm (3.15 in) dia.
b: 38 mm (1.50 in) dia.
c: 31 mm (1.22 in) dia.

Installing inner race of pinion bearing (rear).

KV37710000
(

—

)

Drift
a: 38 mm (1.50 in) dia.
b: 60 mm (2.36 in) dia.
c: 77 mm (3.03 in)
d: 30 mm (1.18 in) dia.

Installing inner race of  pinion bearing (front).

Tool number
(TechMate No.)
Tool name

Description

ZZA0978D

JSDIA2284ZZ

Tool name

Description

Flange wrench

Removing and installing drive pinion lock nut.

Puller

• Removing companion flange.
• Removing inner race of side bearing (right).
• Removing inner race of side bearing (left).

Drift
a: 63 – 76 mm (2.48 – 2.99 in) dia.
b: 55 – 60 mm (2.17 – 2.36 in) dia.

Installing front oil seal.

Drift
a: 45 – 47 mm (1.77 – 1.85 in) dia.
b: 41 – 43 mm (1.57 – 1.69 in) dia.
c: 25 mm (0.98 in) or more

Installing inner race of side bearing (right).

NT035

ZZA0119D

ZZA0811D

S-NT117

DLN-134

< PREPARATION >

[REAR FINAL DRIVE: RTVS]

PREPARATION

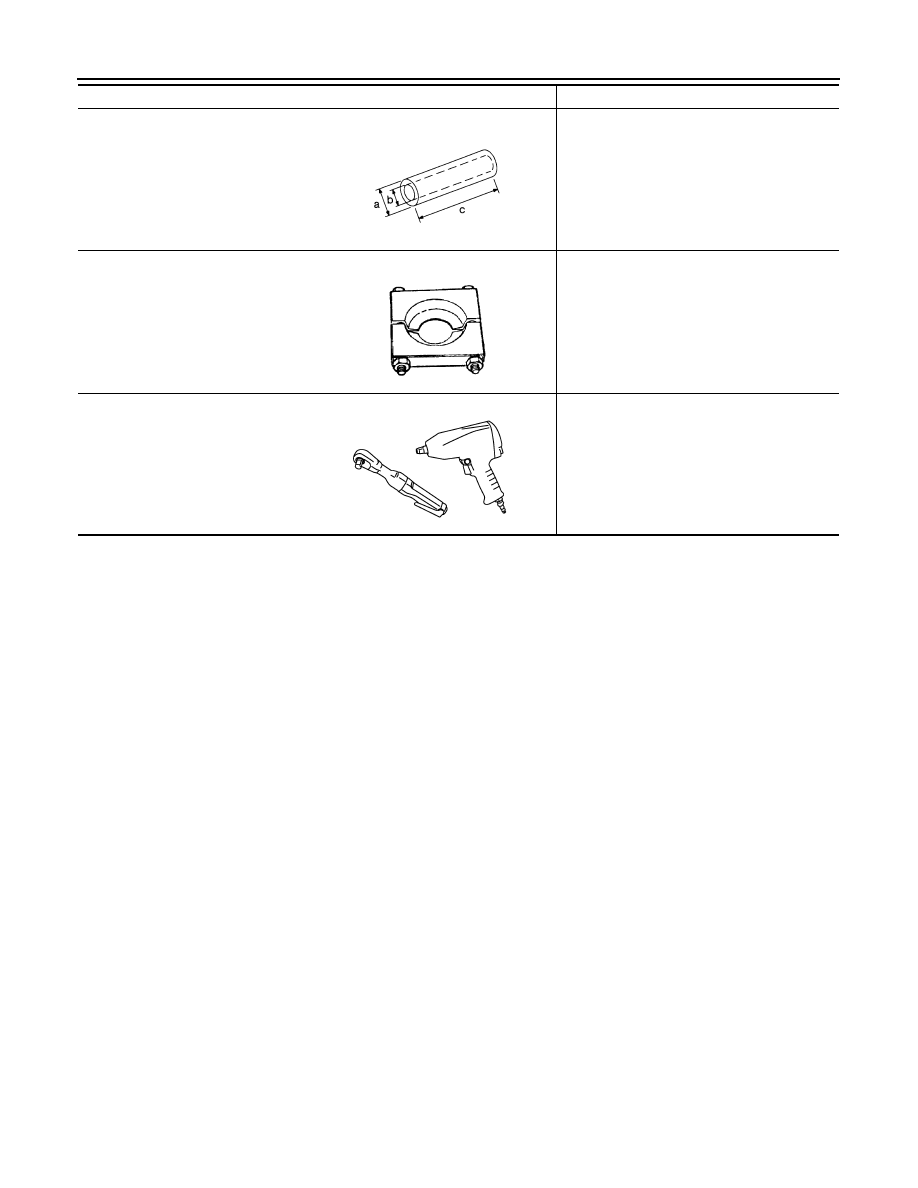

Drift
a: 60 – 62 mm (2.36 – 2.44 in) dia.
b: 56 – 58 mm (2.20 – 2.28 in) dia.
c: 25 mm (0.98 in) or more

Installing inner race of side bearing (left).

Replacer

• Removing inner race of pinion bearing

(rear).

• Removing inner race of side bearing (right).
• Removing inner race of side bearing (left).

Power tool

Loosening bolts and nuts

Tool name

Description

S-NT117

ZZA0700D

PBIC0190E

STRUCTURE AND OPERATION

DLN-135

< SYSTEM DESCRIPTION >

[REAR FINAL DRIVE: RTVS]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

STRUCTURE AND OPERATION

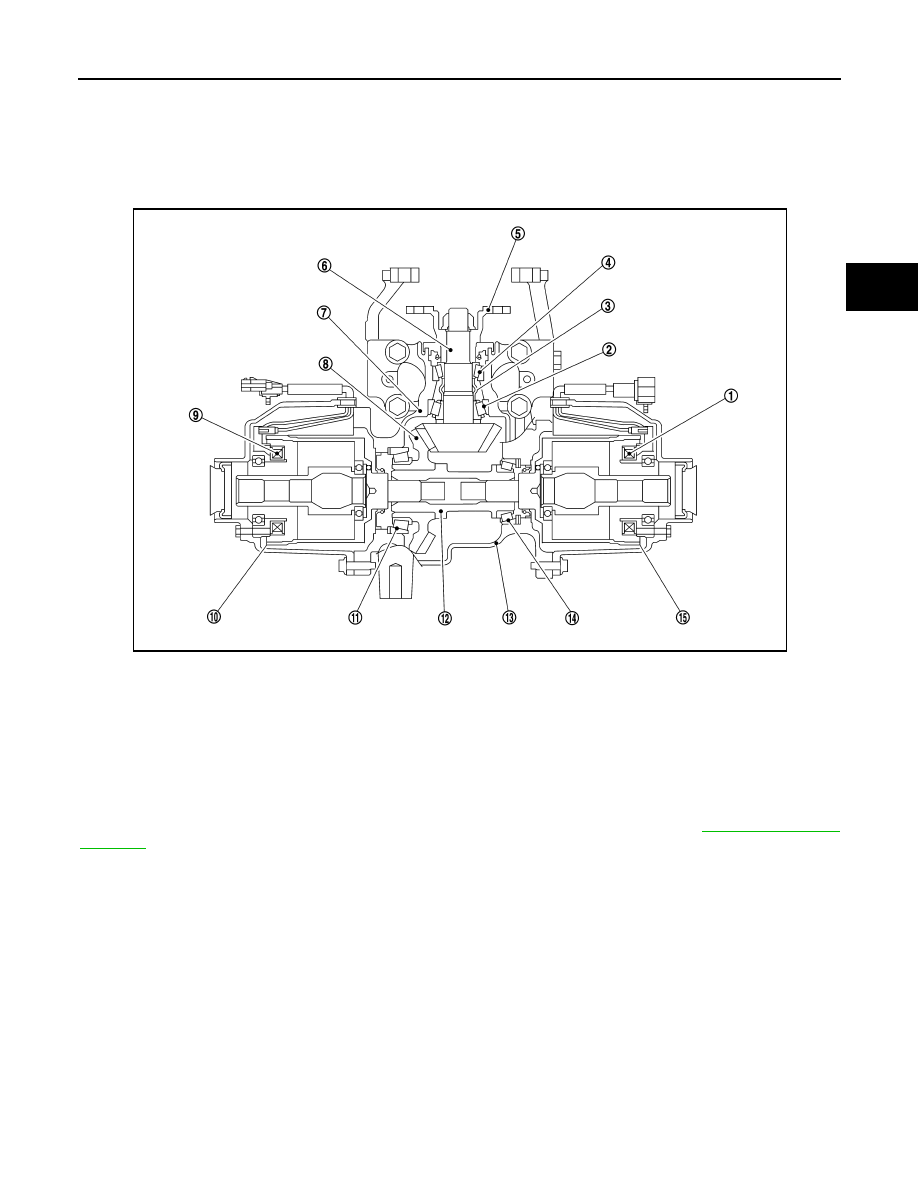

Sectional View

INFOID:0000000012199497

Electric controlled coupling

INFOID:0000000012199498

The electric controlled coupling operates as the AWD system. For the operation, refer to

DLN-14, "Operation

Principle"

.

1.

AWD solenoid (right)

2.

Pinion bearing (rear)

3.

Collapsible spacer

4.

Pinion bearing (front)

5.

Companion flange

6.

Drive pinion

7.

Gear carrier

8.

Drive gear

9.

AWD solenoid (left)

10. Electric controlled coupling (left)

11. Side bearing (left)

12. Center stem

13. Rear cover

14. Side bearing (right)

15. Electric controlled coupling (right)

JSDIA2112ZZ
