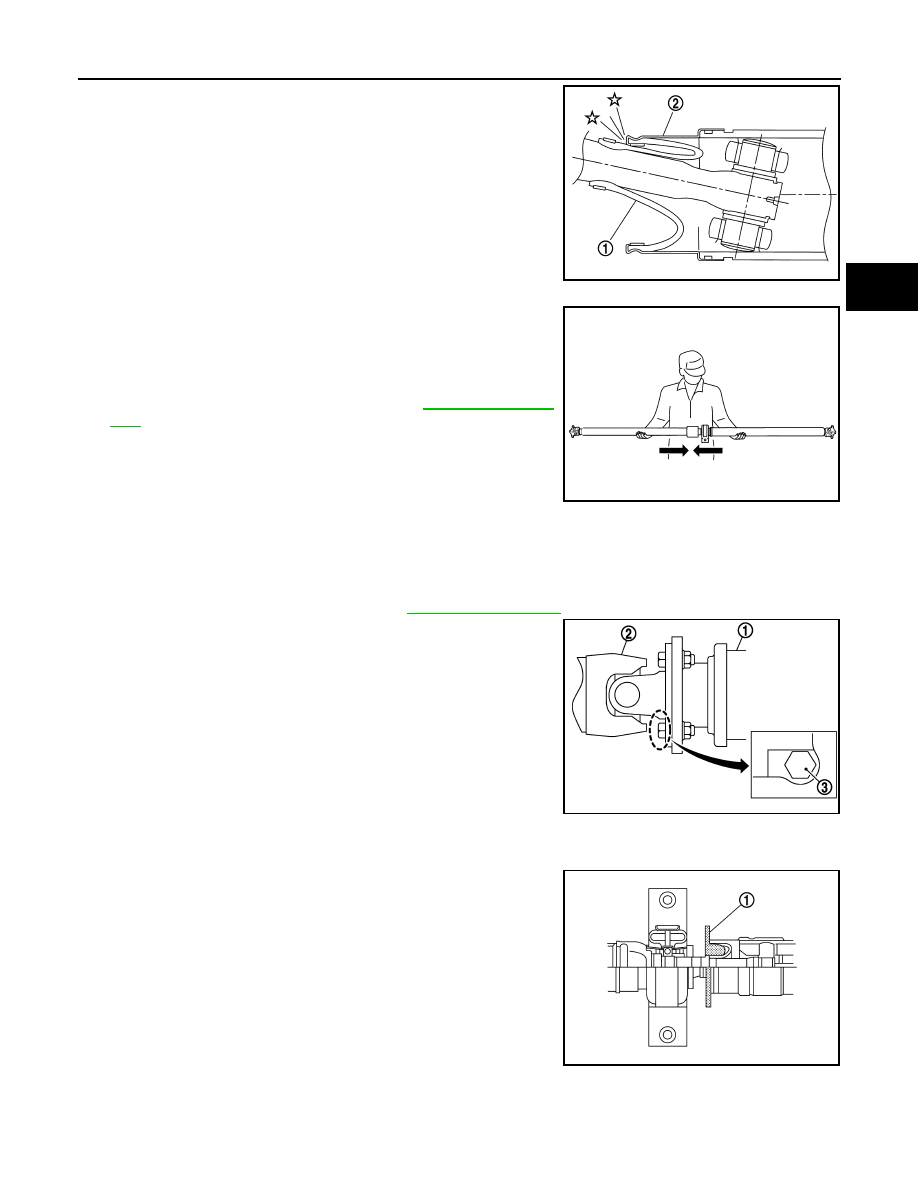

• If constant velocity joint was bent during propeller shaft

assembly removal, installation, or transportation, its boot

(1) may be damaged. Wrap boot interference area to metal

part (2) with shop cloth or rubber to protect boot from

breakage.

• Since no retaining pin is included in sliding direction, the

boot may be damaged or dropped if the constant velocity

joint is slid out 25 mm (0.98 in) or more from the original

length. Therefore, handle constant velocity joint by slid-

ing it inward.

8. Perform inspection after removal. Refer to

DLN-126, "Inspec-

tion"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Align matching marks to install propeller shaft assembly to final drive and transfer companion flanges.

• To install, adjust front and rear position of mount bracket to avoid deflection (front-rear direction of the vehi-

cle) to the center bearing insulator.

• Perform inspection after installation. Refer to

DLN-126, "Inspection"

.

• After tightening the bolts and nuts to the specification torque,

check that the bolts (3) on the flange side is tightened as shown in

the figure.

• If propeller shaft assembly or final drive assembly has been replaced, connect them as follows:

CAUTION:

Constant velocity joint of a new propeller shaft has a pre-

installed protector (1). Protector must be removed after

installing propeller shaft.

PDIA0982J

PDIA0983J

1.

Final drive assembly

2.

Propeller shaft assembly

JSDIA0196ZZ

JSDIA2289ZZ

DLN-126

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 3F

φ16-ETJ75]

REAR PROPELLER SHAFT

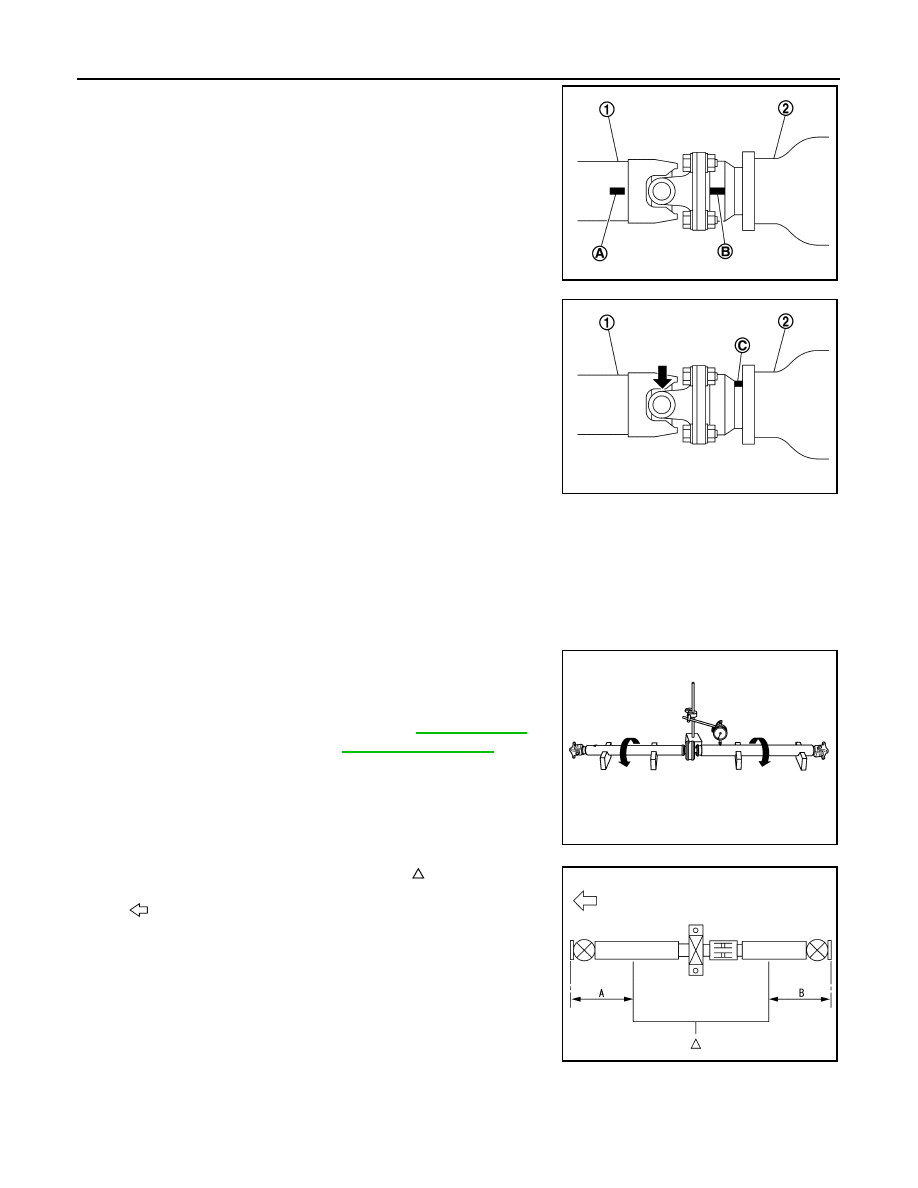

1. Install propeller shaft (1) while aligning its matching mark (A) of

propeller shaft with the matching mark (B) of final drive (2) on

the joint as close as possible.

2. Temporary tighten bolts and nuts.

3. Press down propeller shaft (1) with matching mark (C) of final

drive (2) facing upward. Then tighten fixing bolts and nuts to the

specified torque.

Inspection

INFOID:0000000012199489

INSPECTION AFTER REMOVAL

Appearance

Check the propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

Propeller Shaft Runout

Check propeller shaft runout at measuring points with a dial indica-

tor. If runout exceeds specifications, replace propeller shaft assem-

bly.

• Propeller shaft runout measuring point (Point “ ”)

Journal Axial Play

JSDIA2287ZZ

JSDIA2288ZZ

Propeller shaft runout

: Refer to

DLN-128, "Pro-

peller Shaft Runout"

.

JSDIA0193ZZ

: Front

Dimension

A: 542 mm (21.34 in)
B: 516.5 mm (20.33 in)

JSDIA2286ZZ

REAR PROPELLER SHAFT

DLN-127

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 3F

φ16-ETJ75]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

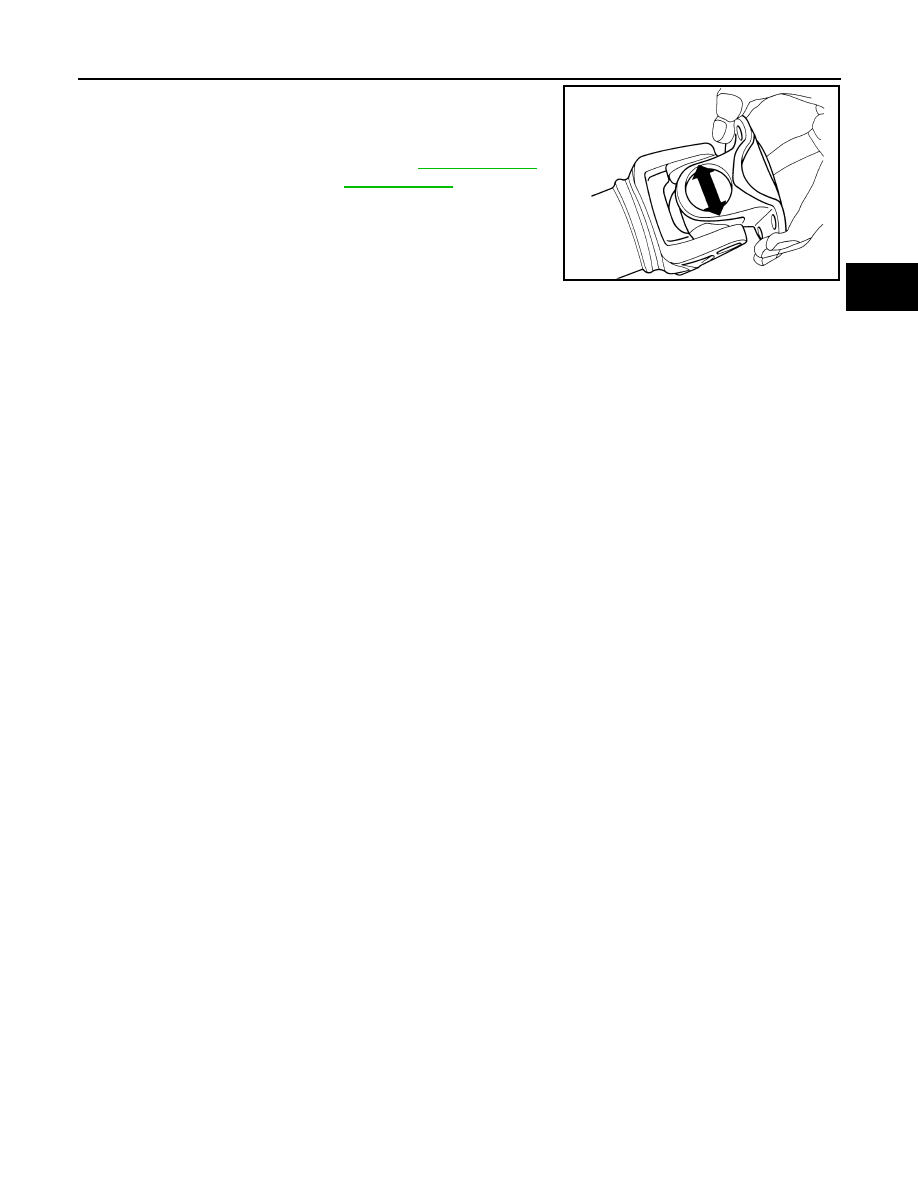

As shown in the figure, while fixing yoke on one side, check axial

play of joint. If it is outside the standard, replace propeller shaft

assembly.

CAUTION:

Never disassemble joints.

Center Bearing

Check center bearing for noise and damage. If noise or damage is detected, replace propeller shaft assembly.

CAUTION:

Never disassemble center bearing.

INSPECTION AFTER INSTALLATION

After assembly, perform a driving test to check propeller shaft vibration. If vibration occurred, separate propel-

ler shaft from final drive or transfer. Reinstall companion flange by changing the phase between companion

flange and propeller shaft by the one bolt hole at a time. Then perform driving test and check propeller shaft

vibration again at each point.

Journal axial play

: Refer to

DLN-128, "Jour-

nal Axial Play"

.

PDA0005D

DLN-128

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR PROPELLER SHAFT: 3F

φ16-ETJ75]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000012199490

Propeller Shaft Runout

INFOID:0000000012199491

Unit: mm (in)

Journal Axial Play

INFOID:0000000012199492

Unit: mm (in)

Applied model

MR16DDT

Propeller shaft model

3F

φ16-ETJ75

Number of joints

3

Shaft length

1st (Spider to CVJ joint center)

1051 mm (41.38 in)

2nd (CVJ joint center to spider)

1000 mm (39.37 in)

Shaft outer diameter

1st

57 mm (2.500 in)

2nd

75 mm (2.95 in)

Type of journal bearings
(Non-disassembly type)

1st joint

Sell type

2nd joint

CVJ type

3rd joint

Shell type

Coupling method

Transfer side

Flange type

Rear final drive side

Flange type

Item

Limit

Propeller shaft runout

1.0 (0.031)

Item

Standard

Journal axial play

0 (0)
