AWD MODE SWITCH

DLN-93

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AWD MODE SWITCH

Removal and Installation

INFOID:0000000012199461

REMOVAL

1. Remove instrument lower panel. Refer to

IP-12, "Exploded View"

.

2. Remove AWD mode switch.

INSTALLATION

Install in the reverse order of removal.

DLN-94

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21B]

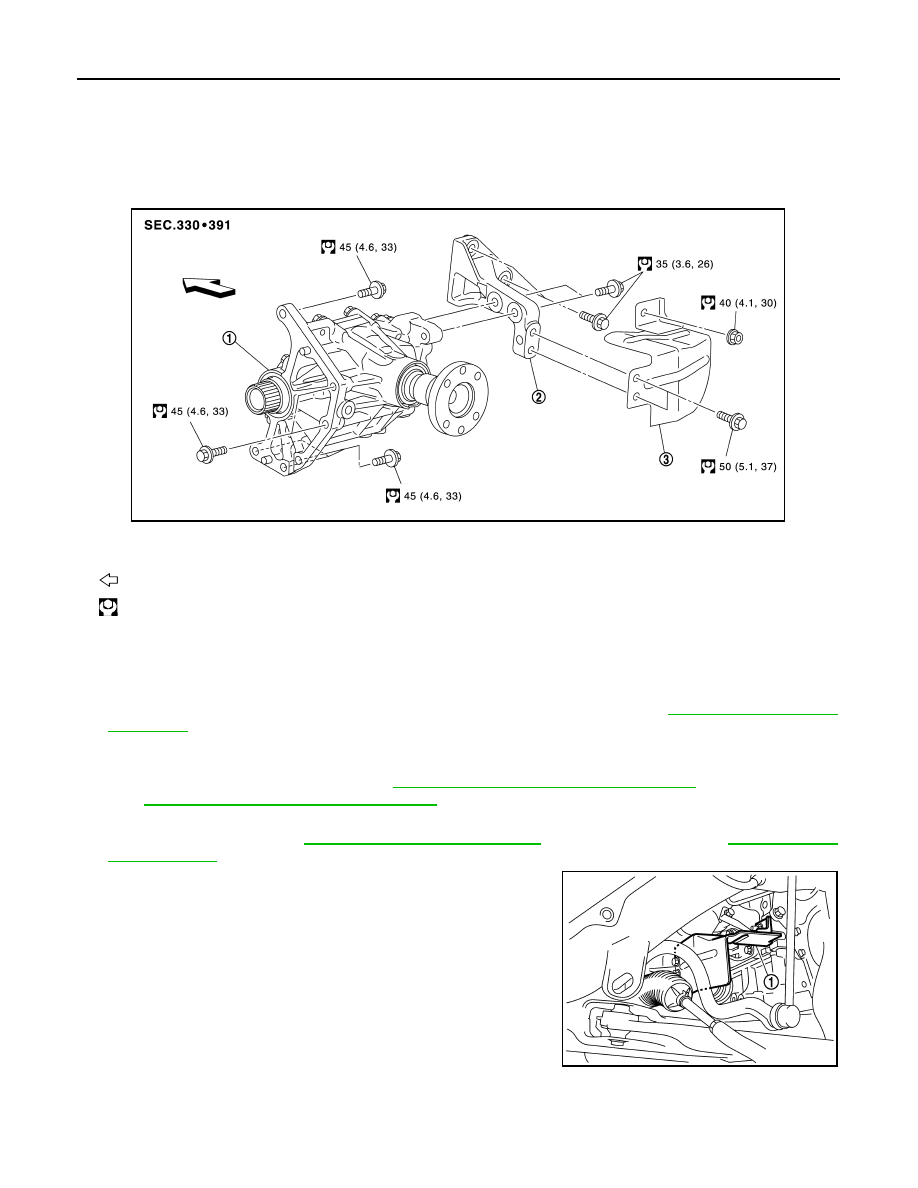

TRANSFER ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

Exploded View

INFOID:0000000012199462

Removal and Installation

INFOID:0000000012199463

REMOVAL

1. Separate the propeller shaft from transfer. Then suspend it by wire, etc. Refer to

DLN-124, "Removal and

Installation"

.

CAUTION:

Constant velocity joint must be handled with care.

2. Remove right side drive shaft. Refer to

FAX-97, "AWD : Removal and Installation"

 (Except for NISMO

RS),

FAX-45, "AWD : Removal and Installation"

 (For NISMO RS).

3. Remove catalytic converter bracket (Except for NISMO RS) or catalyst convertor support bracket (upper)

(For NISMO RS). Refer to

EM-235, "AWD : Exploded View"

 (Except for NISMO RS),

EM-37, "AWD :

Exploded View"

 (For NISMO RS).

4. Remove heat insulator (1).

1.

Transfer assembly

2.

Transfer gusset

3.

Heat insulator

: Vehicle front

: N·m (kg-m, ft-lb)

JSDIA2083GB

JSDIA2311ZZ

TRANSFER ASSEMBLY

DLN-95

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

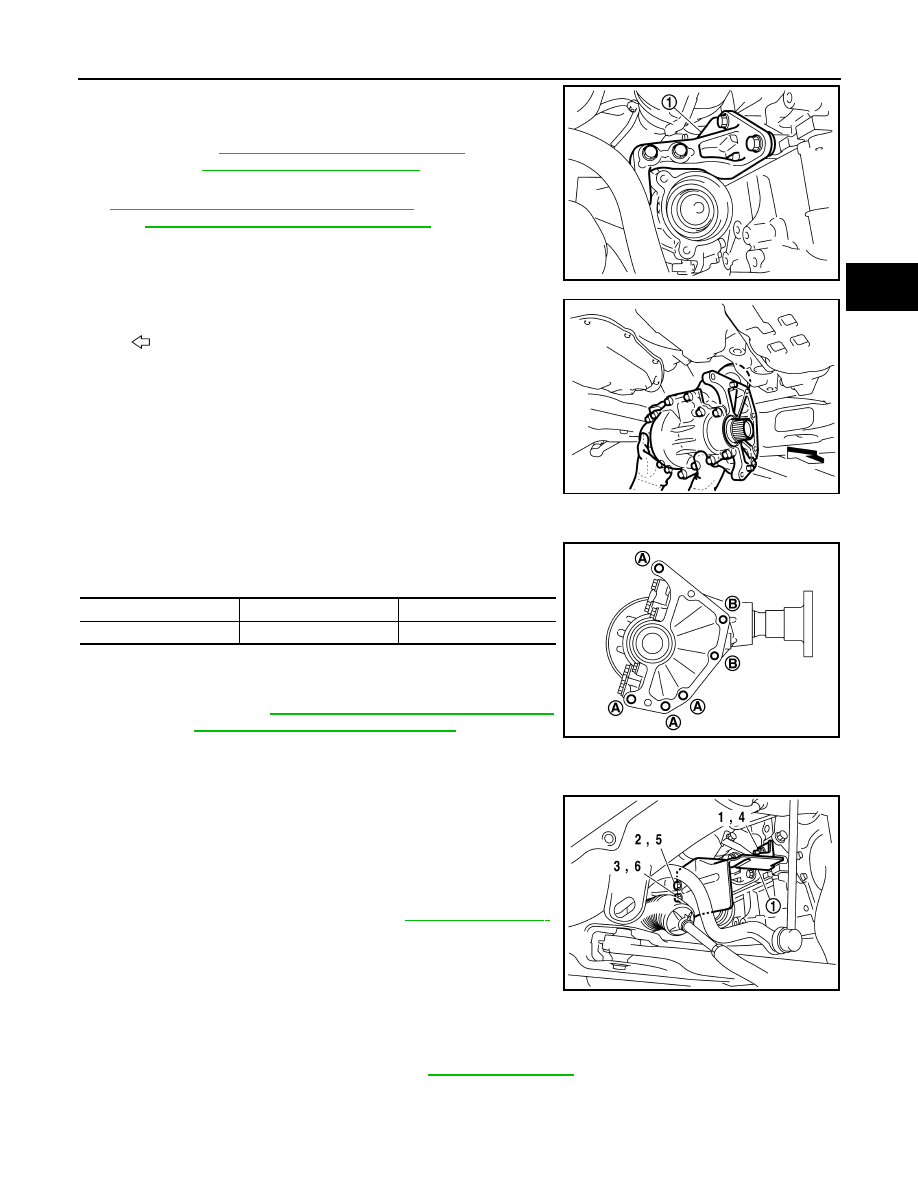

5. Remove transfer gusset (1).
6. Remove catalytic converter adapter bracket (Except for NISMO

RS) or catalyst convertor support bracket (lower) (For NISMO

RS). Refer to

EM-235, "AWD : Exploded View"

 (Except for

NISMO RS),

EM-37, "AWD : Exploded View"

 (For NISMO RS).

7. Remove rear torque rod and rear torque rod bracket. Refer to

EM-221, "AWD : Removal and Installation"

 (Except for NISMO

RS),

EM-68, "AWD : Removal and Installation"

 (For NISMO RS).

8. Remove bolts fixing transaxle assembly and transfer assembly.

9. Remove transfer assembly from the vehicle.

CAUTION:

• Never damage ring gear shaft.

• Be careful when removing transfer assembly form the

vehicle because it is heavy.

INSTALLATION

Note the following, and install in the reverse order of removal.

• When installing the transfer assembly to the transaxle assembly,

install the mounting bolts following the standard below.

CAUTION:

• When installing transfer assembly to transaxle assembly,

replace differential side oil seal (Converter housing side) of

transaxle. Refer to

TM-340, "Removal and Installation"

(RE0F10B),

TM-566, "Removal and Installation"

 (RE0F10D).

• Never damage differential side oil seal (Converter housing

side) of transaxle.

• When installing heat insulator (1), tighten the mounting bolts and

nut in numerical order.

• Perform inspection after installation. Refer to

DLN-95, "Inspection"

.

Inspection

INFOID:0000000012199464

INSPECTION AFTER INSTALLATION

Check oil level and check for oil leakage. Refer to

DLN-90, "Inspection"

.

JSDIA2084ZZ

: Vehicle front

JSDIA2085ZZ

Bolt symbol

A

B

Installation direction

Transfer

⇒ Transaxle

Transaxle

⇒ Transfer

JSDIA2086ZZ

Temporary tightening

: 1

→ 2 → 3

Final tightening
(Specified torque)

: 4

→ 5 → 6

JSDIA2515GB

DLN-96

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21B]

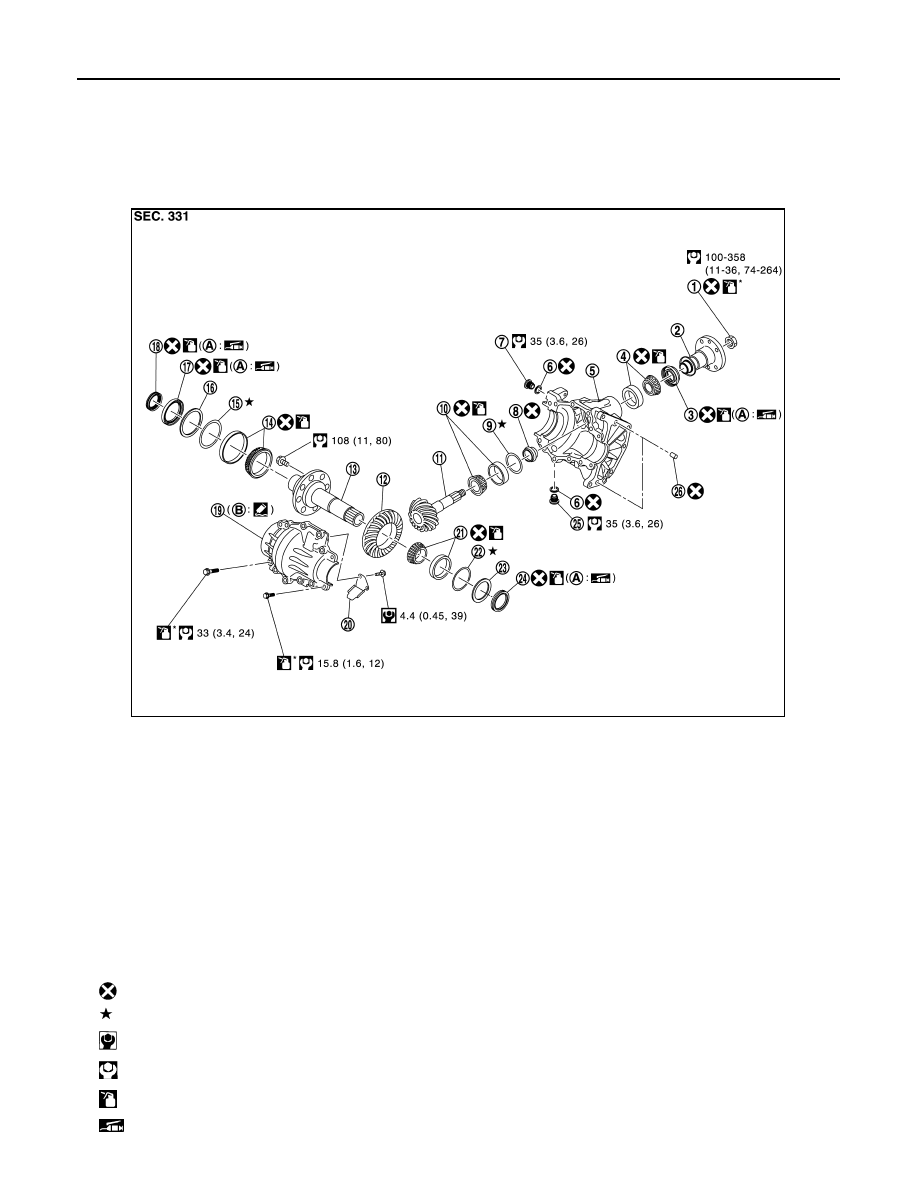

RING GEAR SHAFT

UNIT DISASSEMBLY AND ASSEMBLY

RING GEAR SHAFT

Exploded View

INFOID:0000000012199465

1.

Pinion lock nut

2.

Companion flange

3.

Drive pinion oil seal

4.

Pinion bearing (rear)

5.

Transfer case

6.

Gasket

7.

Filler plug

8.

Collapsible spacer

9.

Drive pinion adjusting shim

10. Pinion bearing (front)

11. Drive pinion

12. Ring gear

13. Ring gear shaft

14. Ring gear bearing (right)

15. Ring gear bearing adjusting shim

(right)

16. Spacer (right)

17. Transfer case oil seal (right)

18. Drive shaft oil seal

19. Transfer cover

20. Oil defense

21. Ring gear bearing (left)

22. Ring gear bearing adjusting shim

(left)

23. Spacer (left)

24. Transfer case oil seal (left)

25. Drain plug

26. Dowel pin

A.

Oil seal lip

B.

Transfer case mounting face

: Always replace after every disassembly.

: Select with proper thickness.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Apply gear oil.

: Apply multi purpose grease

JSDIA2491GB
