BACK DOOR

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000012196724

Except for NISMO/NISMO RS models

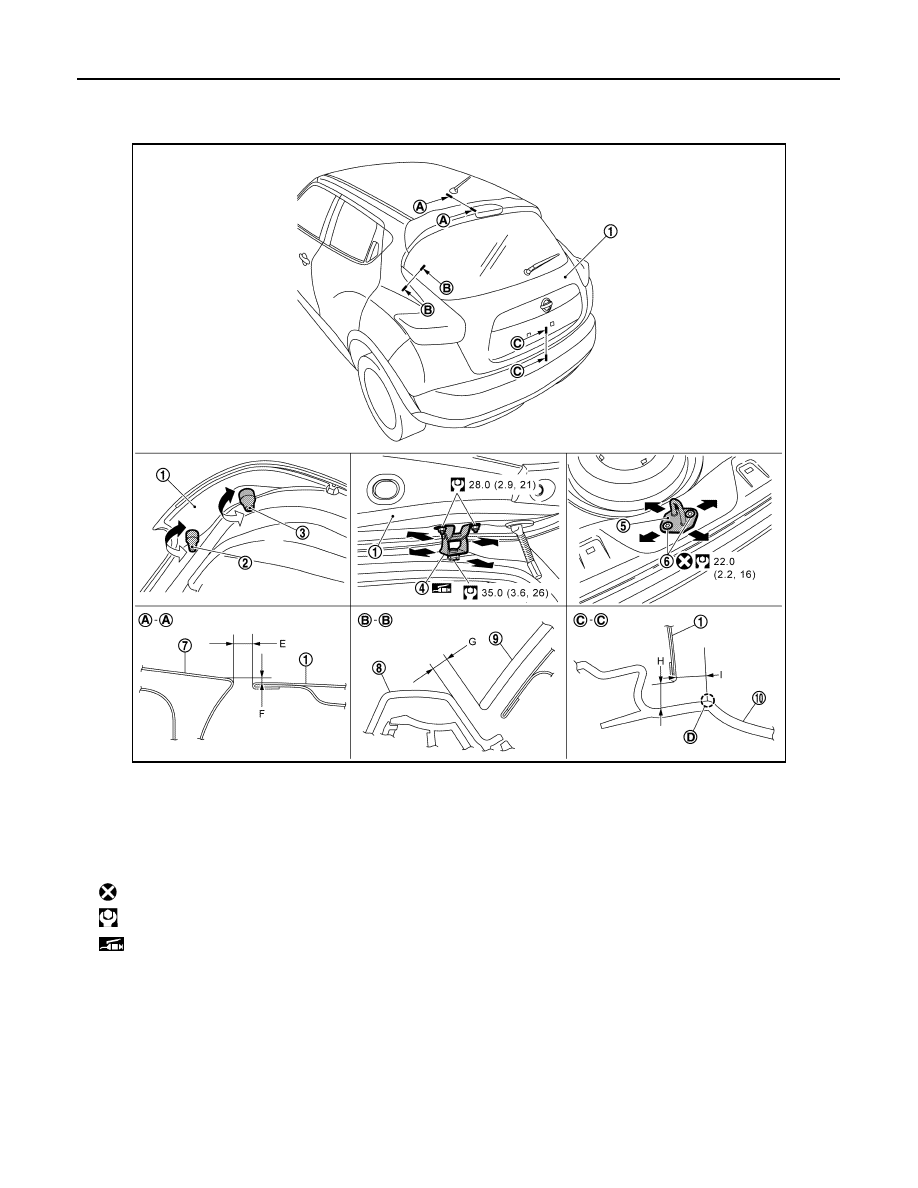

JMKIB4167GB

1.

Back door assembly

2.

Bumper rubber (upper)

3.

Bumper rubber (lower)

4.

Back door hinge

5.

Back door striker

6.

TORX bolt

7.

Roof panel

8.

Rear combination lamp

9.

Back door glass

10. Rear bumper fascia
D.

Rear bumper fascia R end

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

BACK DOOR

DLK-149

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

For NISMO/NISMO RS models

Check the clearance and the surface height between back door and each part by seeing and touching.

If the clearance and the surface height are out of specification, adjust them according to the procedures

shown below.

Except for NISMO RS models

Unit: mm (in)

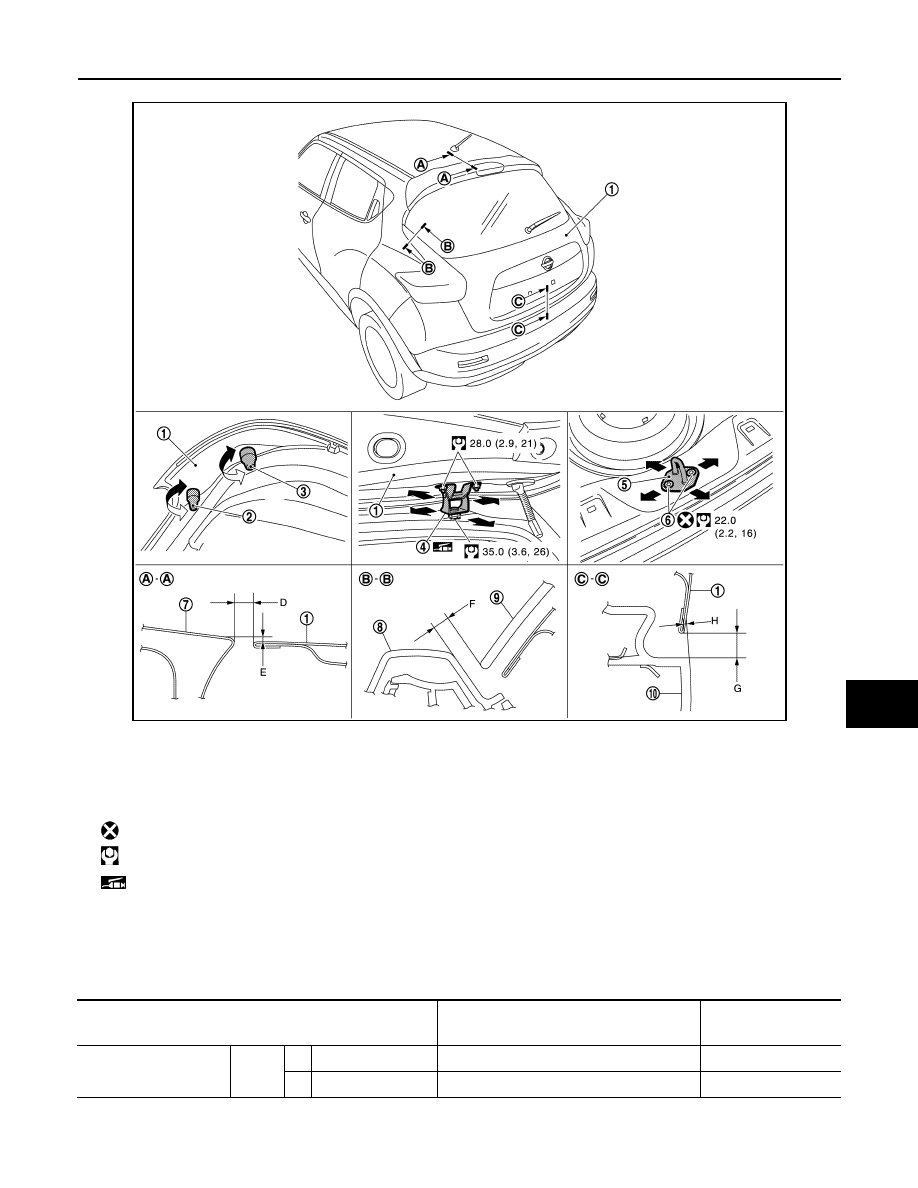

JMKIA9210GB

1.

Back door assembly

2.

Bumper rubber (upper)

3.

Bumper rubber (lower)

4.

Back door hinge

5.

Back door striker

6.

TORX bolt

7.

Roof panel

8.

Rear combination lamp

9.

Back door glass

10. Rear bumper fascia

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Difference

(LH/RH, MAX)

Roof panel – Back
door

A – A

E

Clearance

5.0 – 7.0 (0.197 – 0.276)

—

F Surface height

0.9 – 2.9 (0.035 – 0.114)

—

DLK-150

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

For NISMO RS models

Unit: mm (in)

FITTING ADJUSTMENT PROCEDURE

1. Loosen back door striker mounting bolts.
2. Loosen back door hinge mounting nuts (back door side).
3. Adjust back door using back door striker and back door hinge to the specified value, as shown in the fol-

lowing table.

4. After adjustment tighten back door striker mounting bolts and back door hinge mounting nuts (back door

side) to the specified torque.

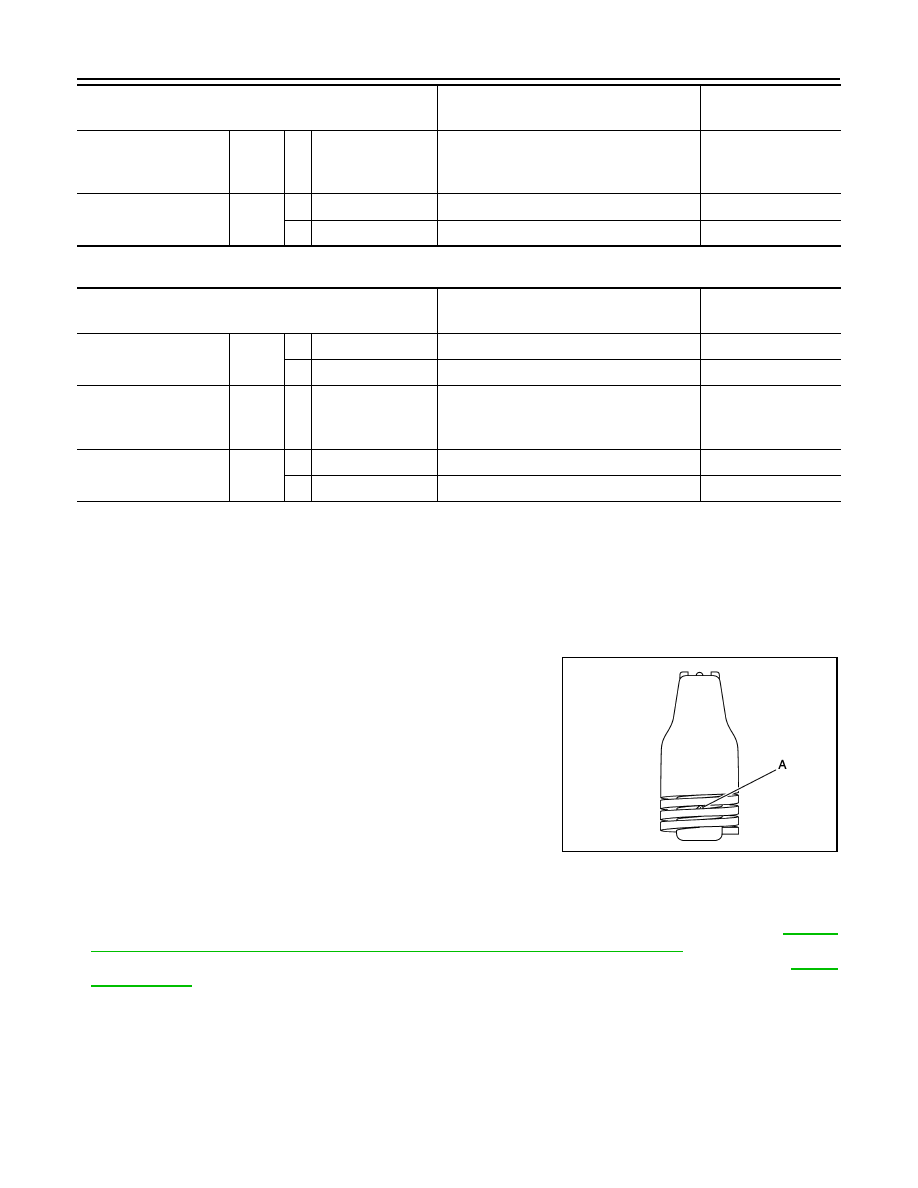

5. Screw bumper rubber (upper) into the stopper position (A), and

then loosen by a half turn.

6. Screw bumper rubber (lower) into the end position of threads.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of back door hinge mounting

nuts.

• After adjusting, perform camera image calibration (with around view monitor). Refer to

AV-116,

"CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

• After adjusting, perform rear view camera adjustment (with rear view camera). Refer to

AV-56,

"Adjustment"

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that it becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and Installation

INFOID:0000000012196725

REMOVAL

Rear combination
lamp – Back door
glass

B – B G

Clearance

2.8 – 7.2 (0.110 – 0.283)

<2.0 (0.079)

Rear bumper fas-
cia – Back door

C – C

H

Clearance

6.0 – 10.0 (0.236 – 0.394)

—

I

Surface height

9.1 – 12.6 (-0.358 – 0.496)

—

Portion

Standard

Difference

(LH/RH, MAX)

Portion

Standard

Difference

(LH/RH, MAX)

Roof panel – Back
door

A – A

D

Clearance

5.0 – 7.0 (0.197 – 0.276)

—

E Surface height

0.9 – 2.9 (0.035 – 0.114)

—

Rear combination
lamp – Back door
glass

B – B F

Clearance

2.8 – 7.2 (0.110 – 0.283)

<2.0 (0.079)

Rear bumper fas-
cia – Back door

C – C

G

Clearance

6.0 – 10.0 (0.236 – 0.394)

—

H Surface height

(-0.5) – (+3.0) [(-0.020) – (+0.118)]

—

JMKIA5843ZZ

BACK DOOR

DLK-151

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Remove luggage rear plate. Refer to

INT-35, "LUGGAGE REAR PLATE : Removal and Installation"

.

2. Remove TORX bolts, and then remove back door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, lock/unlock operation.

• After installation, perform the fitting adjustment. Refer to

DLK-148, "BACK DOOR ASSEMBLY :

Adjustment"

.

BACK DOOR HINGE
BACK DOOR HINGE : Removal and Installation

INFOID:0000000012196726

REMOVAL

1. Remove back door assembly. Refer to

DLK-145, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2. Remove back door hinge mounting nuts (body side), and then remove back door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, lock/unlock operation.

• After installation, perform the fitting adjustment. Refer to

DLK-148, "BACK DOOR ASSEMBLY :

Adjustment"

.

• Check back door hinge rotating part for poor lubrication. If

necessary, apply body grease.

BACK DOOR STAY
BACK DOOR STAY : Removal and Installation

INFOID:0000000012196727

REMOVAL

1. Remove luggage side upper finisher and rear pillar cap. Refer to

INT-36, "LUGGAGE SIDE UPPER FIN-

ISHER : Removal and Installation"

.

2. Support the back door with the suitable material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

3. Remove back door stay mounting bolts (body side).

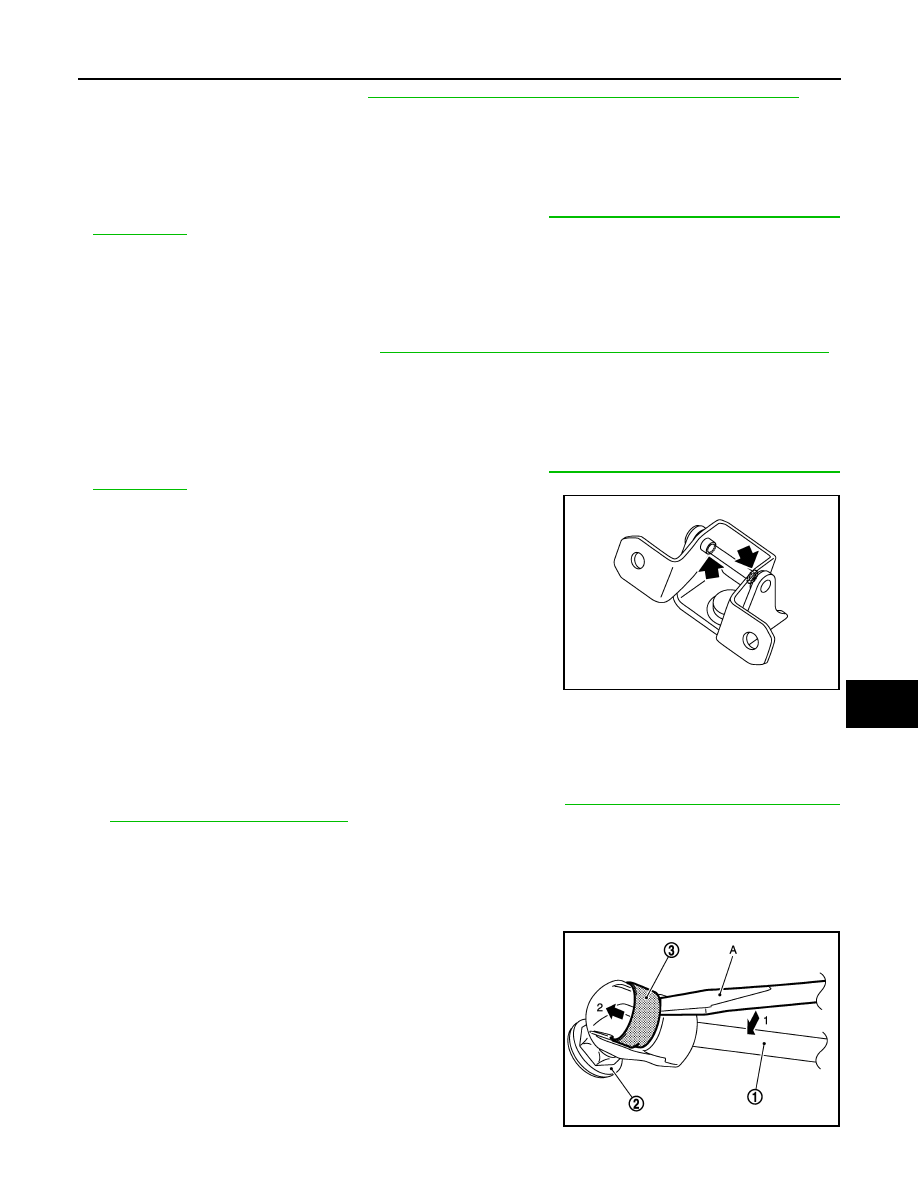

4. Remove the metal clip (3) located on the connection between

the back door stay (1) and the stud ball (2) (back door side) by

using a flat-bladed screwdriver (A).

CAUTION:

Be careful not to damage painted surface.

5. Remove back door stay (back door side).

JMKIA5659ZZ

JMKIA2255ZZ
