DLK-144

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

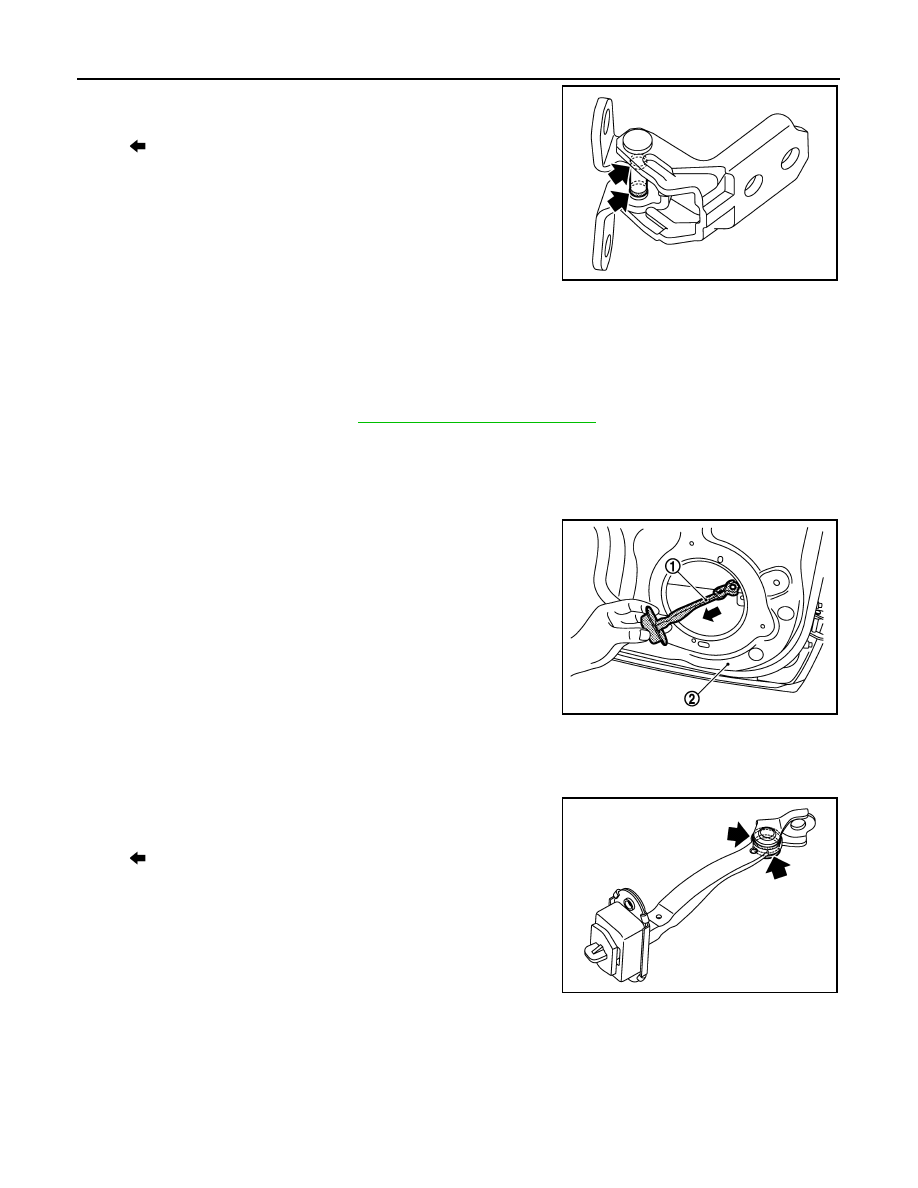

• Check door hinge rotating part for poor lubrication. If neces-

sary, apply body grease.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000012196721

REMOVAL

1. Fully close the rear door window.
2. Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

3. Remove mounting bolts of rear door speaker, and then remove rear door speaker.
4. Disconnect harness connector of rear door speaker.
5. Remove mounting bolt of the check link on the vehicle.
6. Remove mounting bolts of the check link on door panel.
7. Take door check link (1) out from the hole of door panel (2).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check rear door open/close operation after installation.

• Check door check link rotating part for poor lubrication. If

necessary, apply grease.

: Grease up point

JMKIA5641ZZ

JMKIA5879ZZ

: Grease up point

JMKIA5642ZZ

BACK DOOR

DLK-145

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR

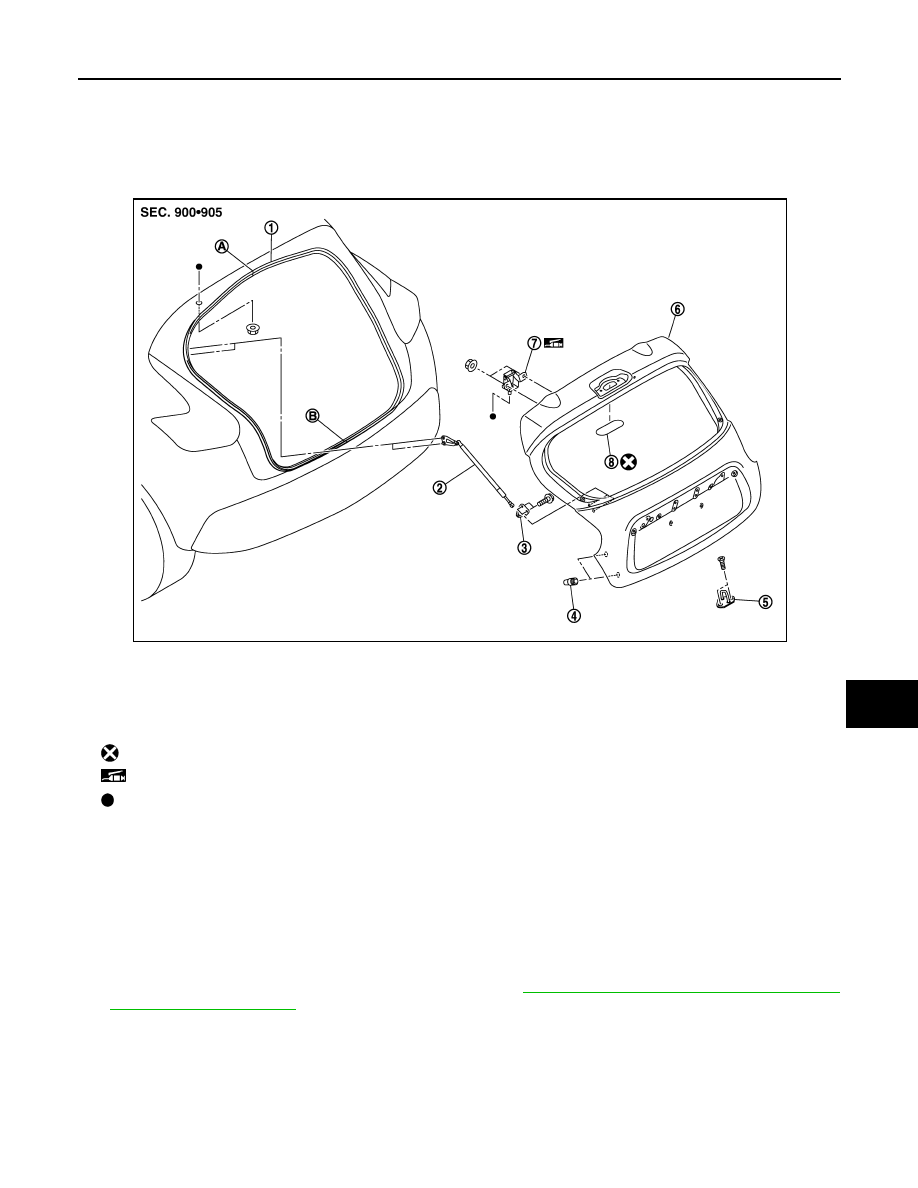

Exploded View

INFOID:0000000012196722

REMOVAL

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000012196723

CAUTION:

• Operate with two workers, because of its heavy weight.

• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1. Remove luggage side upper finisher (LH and RH). Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER

: Removal and Installation"

.

1.

Back door weather-strip

2.

Back door stay

3.

Back door stay lower bracket

4.

Bumper rubber

5.

Back door striker

6.

Back door panel

7.

Back door hinge

8.

Hole cover

A

: Center mark

B

: Seam

: Always replace after every disassembly.

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA5652ZZ

DLK-146

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

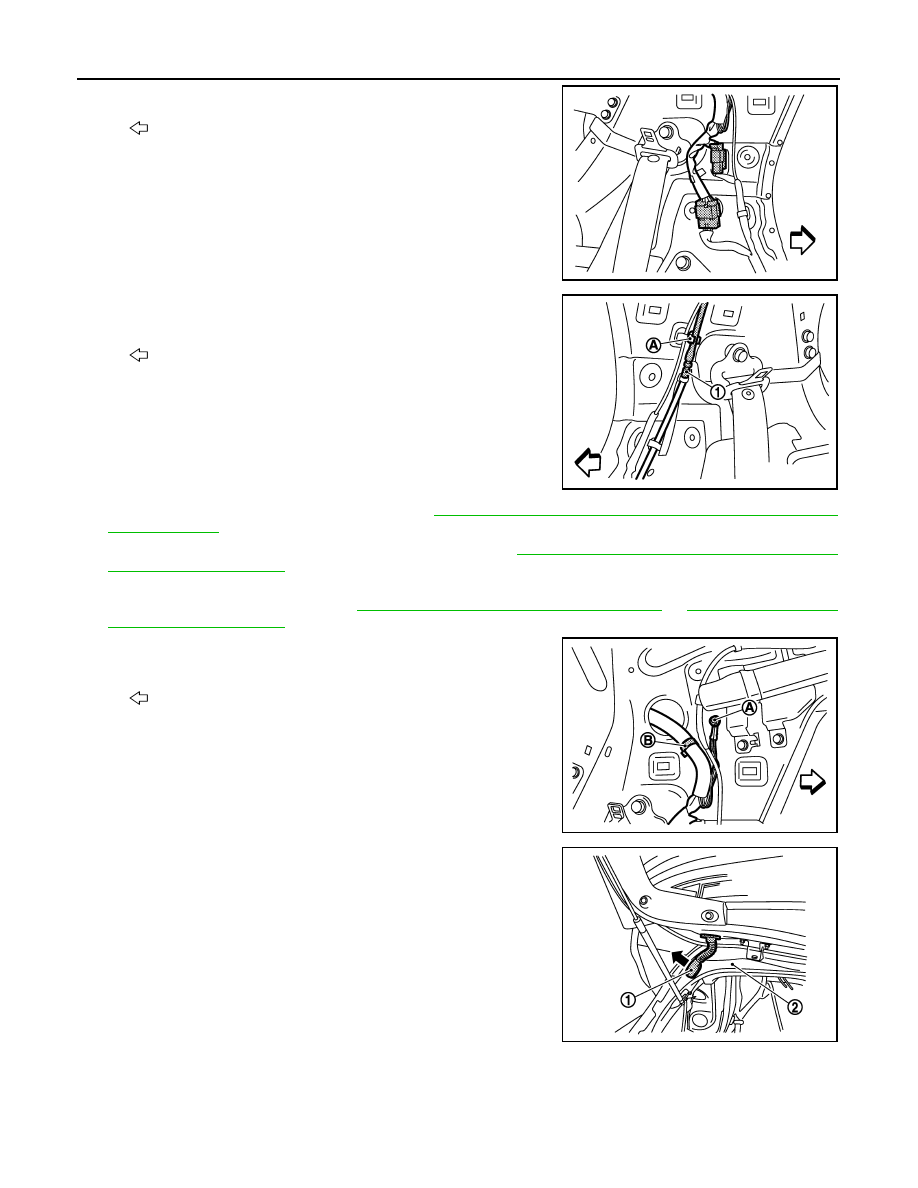

2. Disconnect harness connector.

3. Remove rear washer hose (1) from hose mounting clip (A), and

then disengage hose.

4. Remove center pillar upper garnish. Refer to

INT-22, "CENTER PILLAR UPPER GARNISH : Removal

and Installation"

.

5. Remove upper side of back door weather-strip. Refer to

DLK-152, "BACK DOOR WEATHER-STRIP :

Removal and Installation"

.

6. Remove rear assist grip (LH and RH) and mounting clips for rear portion of headlining, and then remove

rear portion of headlining. Refer to

INT-27, "NORMAL ROOF : Exploded View"

 or

INT-30, "SUNROOF :

Removal and Installation"

.

7. Remove ground harness mounting bolt (A) and harness fixing

clips (B).

8. Remove grommet (1), and then pull out harness from roof panel

(2).

: Vehicle front

JMKIA5653ZZ

: Vehicle front

JMKIA5654ZZ

: Vehicle front

JMKIA5655ZZ

JMKIA5657ZZ

BACK DOOR

DLK-147

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

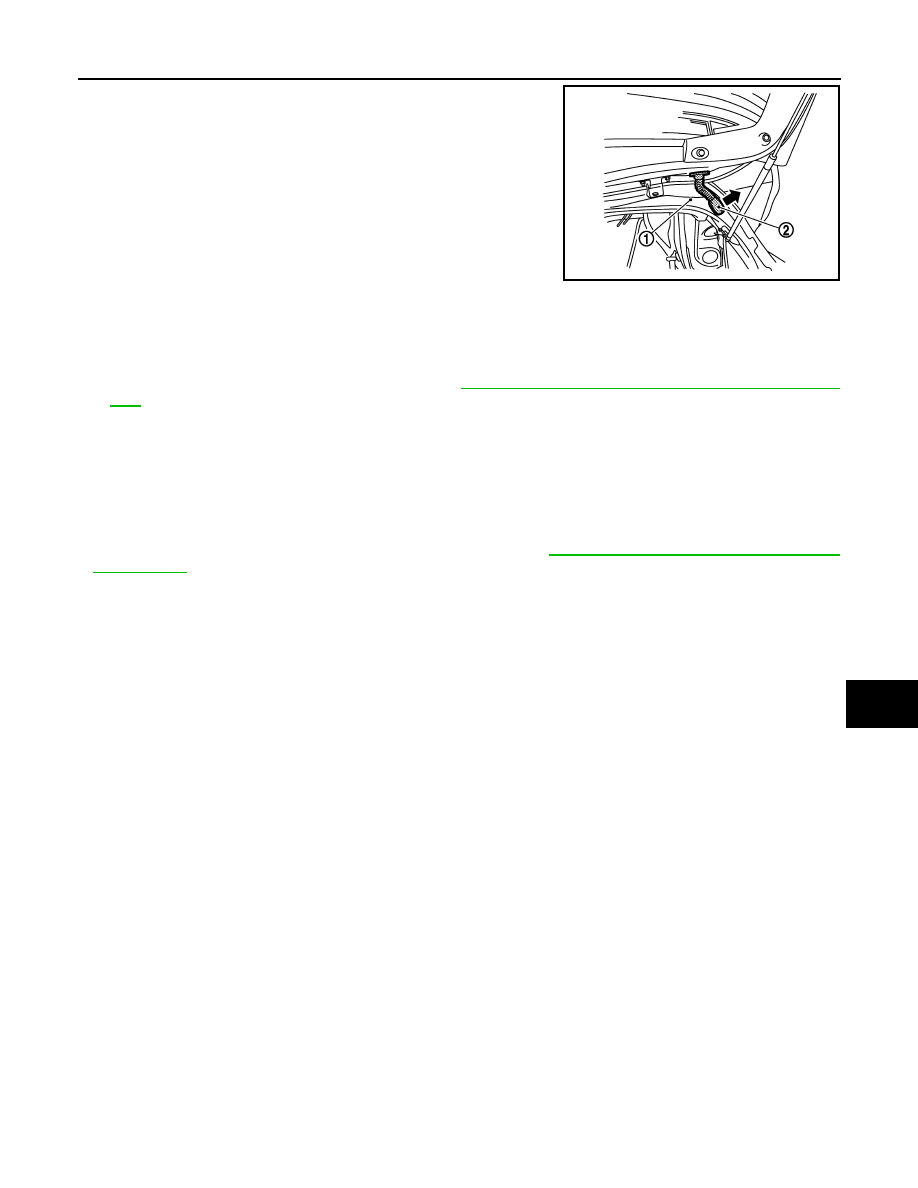

9. Remove grommet (2), and then pull out harness and washer

tube from roof panel (1).

10. Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

11. Remove back door stay (back door side). Refer to

DLK-151, "BACK DOOR STAY : Removal and Installa-

tion"

.

12. Remove back door hinge mounting nuts on back door and remove back door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.

• After installation, check back door open/close, lock/unlock operation.

• After installation, perform the fitting adjustment. Refer to

DLK-148, "BACK DOOR ASSEMBLY :

Adjustment"

.

JMKIA5658ZZ
