DLK-64

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR REQUEST SWITCH

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK BACK DOOR REQUEST SWITCH

Refer to

DLK-64, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace back door opener switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000012196621

1.

CHECK BACK DOOR REQUEST SWITCH

1. Turn ignition switch OFF.

2. Disconnect back door opener switch connector.

3. Check continuity between back door opener switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace back door opener switch.

 Back door opener switch

Condition

Continuity

Terminal

3

4

Back door request switch

Pressed

Existed

Released

Not existed

BUZZER (COMBINATION METER)

DLK-65

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BUZZER (COMBINATION METER)

Component Function Check

INFOID:0000000012196622

1.

CHECK FUNCTION

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “INSIDE BUZZER” in “ACTIVE TEST” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

Yes

>> Buzzer (combination meter) is OK.

No

>> Refer to

DLK-65, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012196623

1.

CHECK METER BUZZER CIRCUIT

Refer to

WCS-40, "Component Function Check"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Monitor item

Status

INSIDE BUZZER

Take Out

ON

Take away warning

Buzzer sounds

OFF

Buzzer does not sound

Key

ON

OFF position warning

Buzzer sounds

OFF

Buzzer does not sound

DLK-66

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR KEY CYLINDER SWITCH

DOOR KEY CYLINDER SWITCH

Component Function Check

INFOID:0000000012196624

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “KEY CYL LK SW”, “KEY CYL UN-SW” in “DATA MONITOR” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Door key cylinder switch is OK.

NO

>> Refer to

DLK-66, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012196625

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly (driver side) connector.

3. Check voltage between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR KEY CYLINDER SWITCH SIGNAL CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM harness connector and front door lock assembly (driver side) harness

connector.

3. Check continuity between BCM harness connector and ground.

Monitor item

Condition

Status

KEY CYL LK-SW

Driver side door key cylinder

Lock

ON

Neutral / Unlock

OFF

KEY CYL UN-SW

Unlock

ON

Neutral / Lock

OFF

(+)

(–)

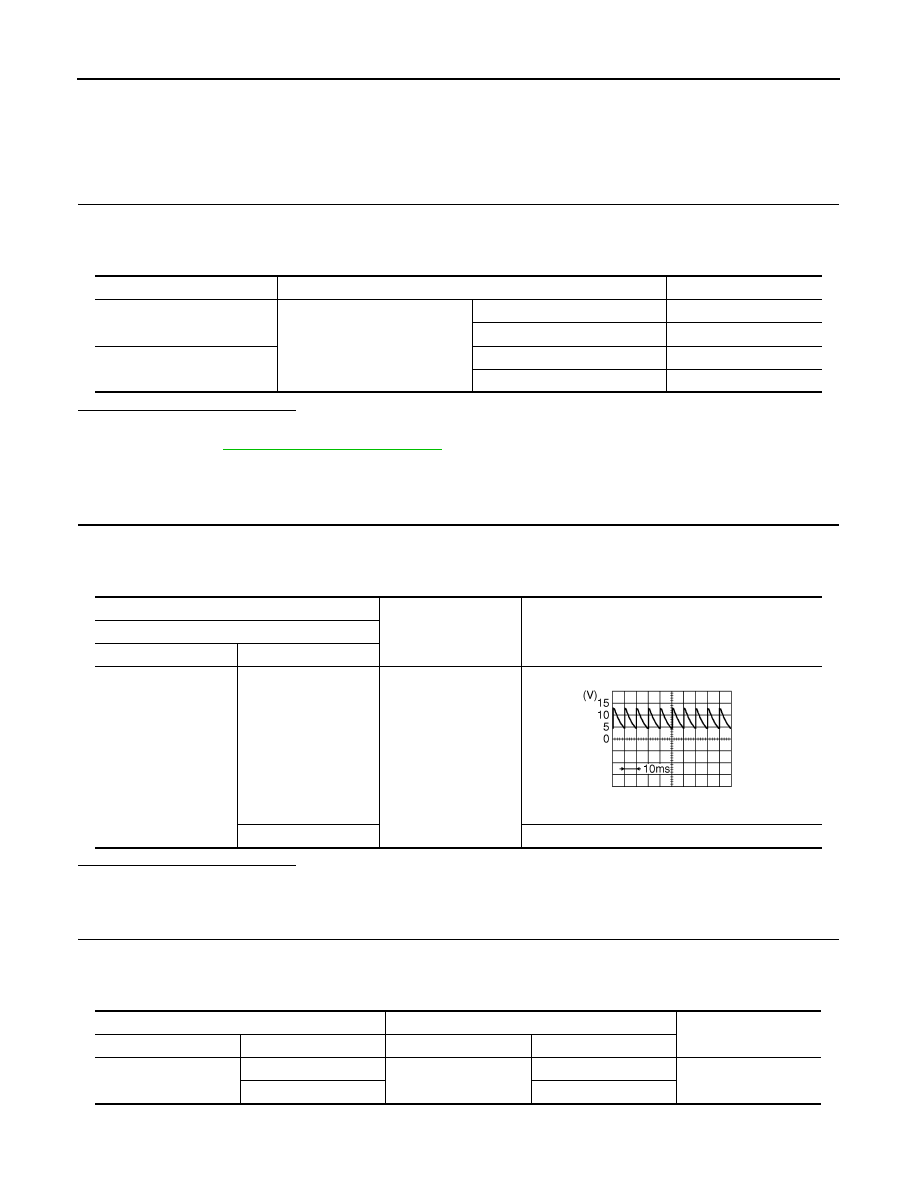

Voltage (V)

(Approx.)

Front door lock assembly (driver side)

Connector

Terminal

D38

5

Ground

8.0 - 8.5 V

6

Battery voltage

JPMIA0587GB

BCM

Front door lock assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M68

7

D38

5

Existed

8

6

DOOR KEY CYLINDER SWITCH

DLK-67

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

Check continuity between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR KEY CYLINDER SWITCH

Refer to

DLK-67, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace front door lock assembly (driver side).

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000012196626

1.

CHECK DOOR KEY CYLINDER SWITCH

1. Turn ignition switch OFF.

2. Disconnect front door lock assembly (driver side) terminal.

3. Check continuity between front door lock assembly (driver side) terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace front door lock assembly (driver side).

BCM

Ground

Continuity

Connector

Terminal

M68

7

Not existed

8

Front door lock assembly (driver side)

Ground

Continuity

Connector

Terminal

D38

4

Existed

Front door lock assembly (driver side)

Condition

Continuity

Terminal

5

4

Driver side door key cylinder

Unlock

Existed

Neutral / Lock

Not existed

6

Lock

Existed

Neutral / Unlock

Not existed
