DLK-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR OPENER SYSTEM

BACK DOOR OPENER SYSTEM

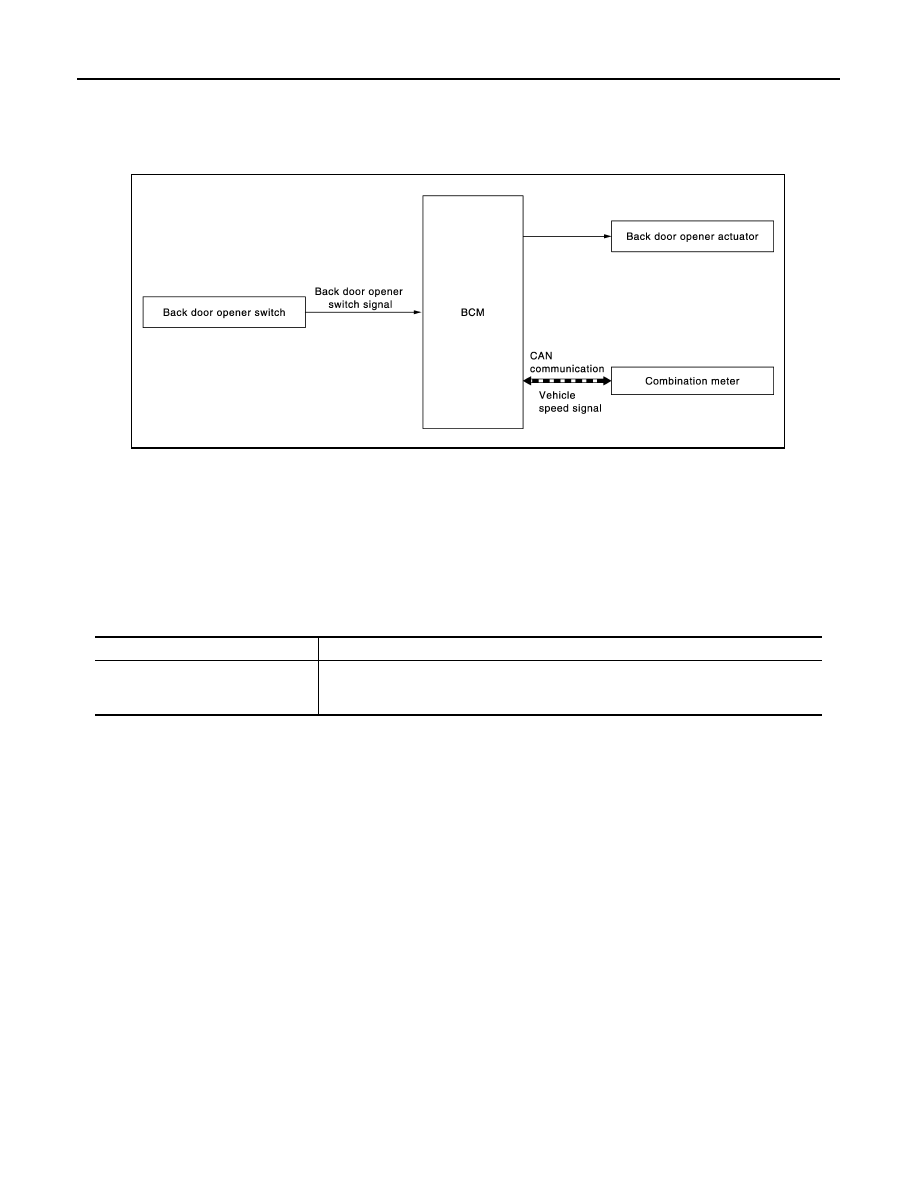

System Diagram

INFOID:0000000012196593

System Description

INFOID:0000000012196594

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.

NOTE:

Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:

• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• When back door is unlocked using back door opener request switch (selective unlock

mode), or after BCM outputs all doors unlock signal

• Vehicle speed is less than 5 km/h (3 MPH)

DIAGNOSIS SYSTEM (BCM)

DLK-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000012998445

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

×: Applicable item

NOTE:
*: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on

CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioning system

AIR CONDITONER

×

×*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

Theft warning alarm

THEFT ALM

×

×

×

RAP

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

DLK-26

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

NOTE:
*: Power position shifts to “LOCK” from “OFF”, when ignition switch is in the OFF position, selector lever is in the P position (A/T models
and CVT models), and any of the following conditions are met.
• Closing door
• Opening door
• Door is locked using door request switch
• Door is locked using Intelligent Key
The power position shifts to “ACC” when the push-button ignition switch (push switch) is pushed at “LOCK”.

DOOR LOCK
DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000012196596

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power position is “LOCK”*.)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power position is “OFF”.)

LOCK>ACC

While turning power position from “LOCK”* *to “ACC”

ACC>ON

While turning power position from “ACC” to “IGN”

RUN>ACC

While turning power position from “RUN” to “ACC” (Vehicle is
stopping and selector lever is except P position.)

CRANK>RUN

While turning power position from “CRANKING” to “RUN” (From
cranking up the engine to run it)

RUN>URGENT

While turning power position from “RUN“ to “ACC” (Emergency
stop operation)

ACC>OFF

While turning power position from “ACC” to “OFF”

OFF>LOCK

While turning power position from “OFF” to “LOCK”*

OFF>ACC

While turning power position from “OFF” to “ACC”

ON>CRANK

While turning power position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power position is
“OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power position is
“LOCK”*.) to low power consumption mode

LOCK

Power position is “LOCK”*

OFF

Power position is “OFF” (Ignition switch OFF)

ACC

Power position is “ACC” (Ignition switch ACC)

ON

Power position is “IGN” (Ignition switch ON with engine stopped)

ENGINE RUN

Power position is “RUN” (Ignition switch ON with engine running)

CRANKING

Power position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition

whenever ignition switch OFF

→ ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

DIAGNOSIS SYSTEM (BCM)

DLK-27

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not operate.

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

ACTIVE TEST

INTELLIGENT KEY

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

AUTOMATIC DOOR LOCK SE-
LECT

Automatic door lock function mode can be selected from the following in this mode
• VH SPD: All doors are locked when vehicle speed more than 24km/h (15MPH)
• P RANGE*: All doors are locked when shifting the selector lever from P position to other than

the P position

AUTOMATIC DOOR UNLOCK
SELECT

Automatic door unlock function mode can be selected from the following in the mode
• MODE 1: All doors are unlocked when the power supply position is changed from ON to OFF
• MODE 2*: All doors are unlocked when shifting the selector lever from any position other than

the P to P position

• MODE 3: Driver side door is unlocked when the power supply position is changed from ON to

OFF

• MODE 4*: Driver side door is unlocked when shifting the selector lever from any position other

than the P to P position

• MODE 5: This item is displayed, but cannot be monitored
• MODE 6: This item is displayed, but cannot be monitored

AUTOMATIC LOCK/UNLOCK
SET

Automatic door lock/unlock function mode can be selected from the following in this mode
• Off: Non-operational
• Unlock Only: Door unlock operation only
• Lock Only: Door lock operation only
• Lock/Unlock: Lock and unlock operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

Indicated [On/Off] condition of lock signal from door key cylinder

KEY CYL UN-SW

Indicated [On/Off] condition of unlock signal from door key cylinder

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• The door lock actuator (passenger side) is unlocked when “AS UNLK” on CONSULT screen is

touched

• The door lock actuator (other) is unlocked when “OTR ULK” on CONSULT screen is touched
