Setting change of Automatic Door Lock/Unlock Function

The lock operation setting of the automatic door lock/unlock function can be changed.

NOTE:

P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not

operate.

 With CONSULT

The ON/OFF switching of the automatic door lock function and the type selection of the automatic door lock/

unlock function can be performed at the WORK SUPPORT setting of CONSULT.

 Without CONSULT

The automatic door lock function ON/OFF can be switched by performing the following operation.
1. Close all doors (door switch OFF)
2. Ignition switch: OFF

→ON

3. Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-

onds after turning the ignition switch ON.

4. The switching complete when the hazard lamp blinks.

*: This function does not operate on M/T models.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the key position or

shift position. It has 2 types as per the following items.

IGN OFF Interlock Door Unlock*

1

All doors are unlocked when the power supply position is changed from ON to OFF.

BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is

changed from ignition switch ON to OFF.

P Range Interlock Door Unlock*

2

All doors are unlocked when shifting the selector lever from any position other than the P to P position.

BCM outputs the unlock signal to all door lock actuators when it detects that the ignition switch is in the ON

position and the shift signal received from TCM via CAN communication is shifted from any position other than

the P to P position.

Setting change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.

NOTE:

P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not

operate.

 With CONSULT

The ON/OFF switching of the automatic door lock/unlock function and the type selection of the automatic door

lock/unlock function can be performed at the WORK SUPPORT setting of CONSULT. Refer to

DLK-26,

"DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

 Without CONSULT

The automatic door lock/unlock function ON/OFF can be switched by performing the following operation.
1. Close all doors below (door switch OFF)
2. Ignition switch: OFF

→ON

3. Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20

seconds after turning the power supply position ON.

4. The switching is complete when the hazard lamp blinks.

*

1

: This function is set to ON before delivery.

*

2

: This function does not operate on M/T models.

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-13

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

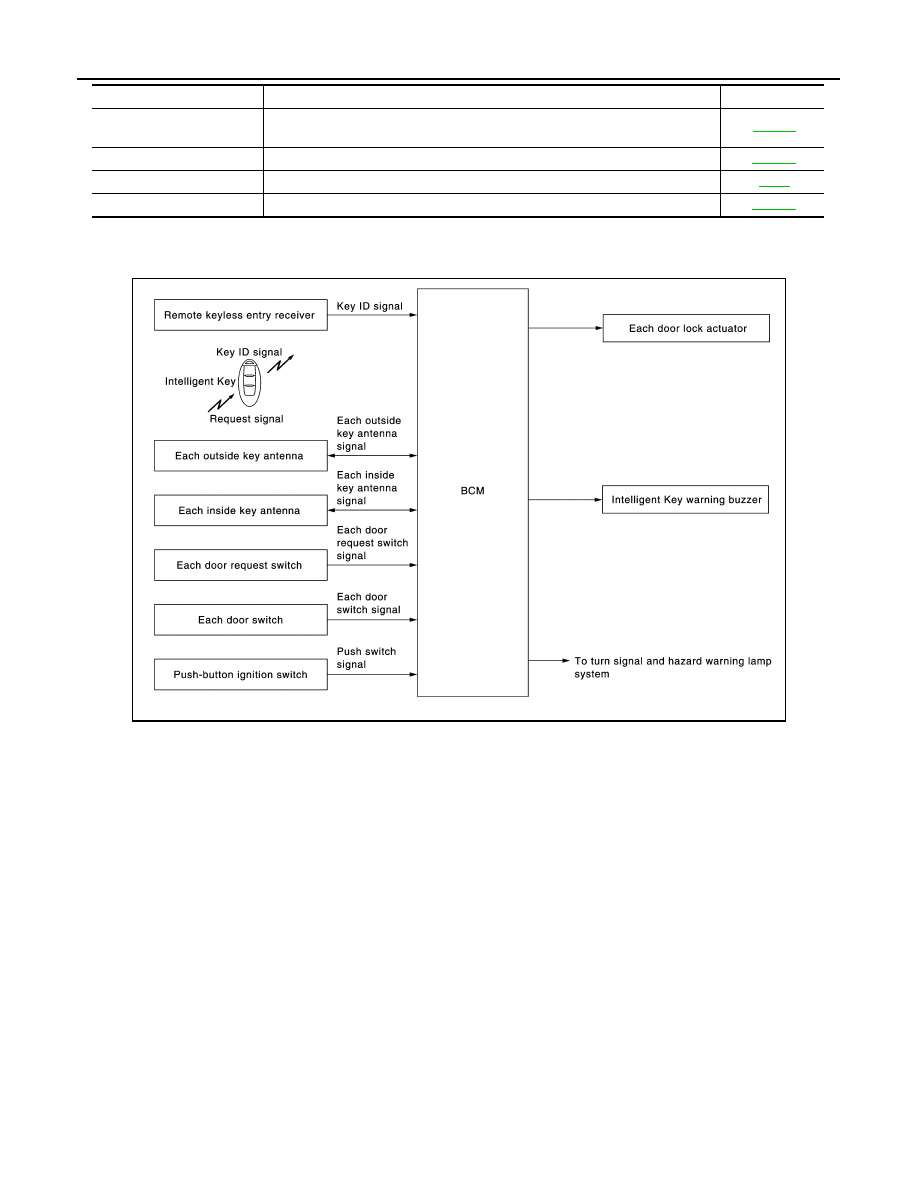

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000012196582

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000012196583

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIA6118GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-14

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-18

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-20

DLK-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

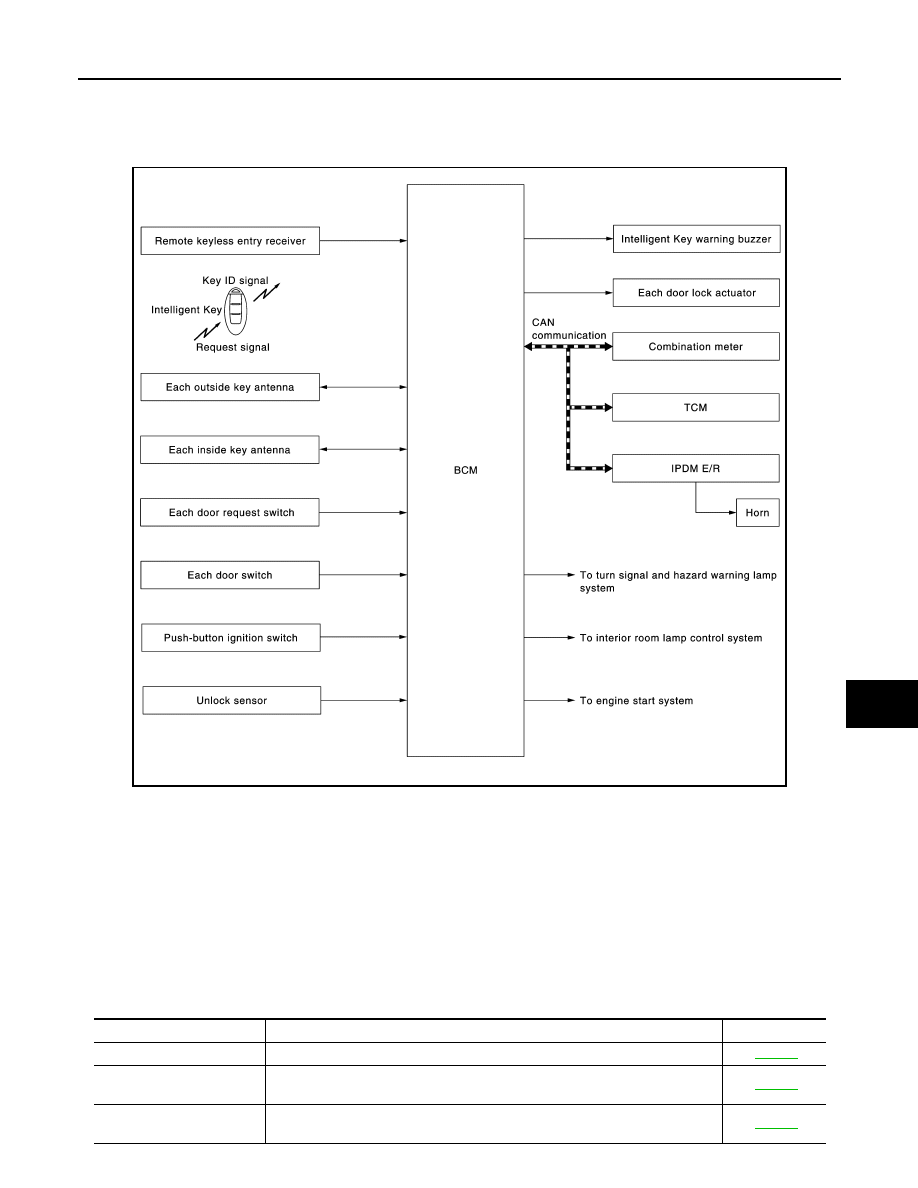

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000012196584

DOOR LOCK FUNCTION : System Description

INFOID:0000000012196585

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent

Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the

Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM transmits door lock/unlock signal and operates each door lock actuator. At the same time, BCM blinks

hazard warning lamp (lock: 2 times, unlock: 1 time) and sounds Intelligent Key buzzer (lock: 2 times, unlock:

1 time) as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is

operated.

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-21

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-10

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-6

Panic alarm

When Intelligent Key panic alarm button is pressed, horn sounds

SEC-16

Function

Description

Refer

JMKIA6137GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

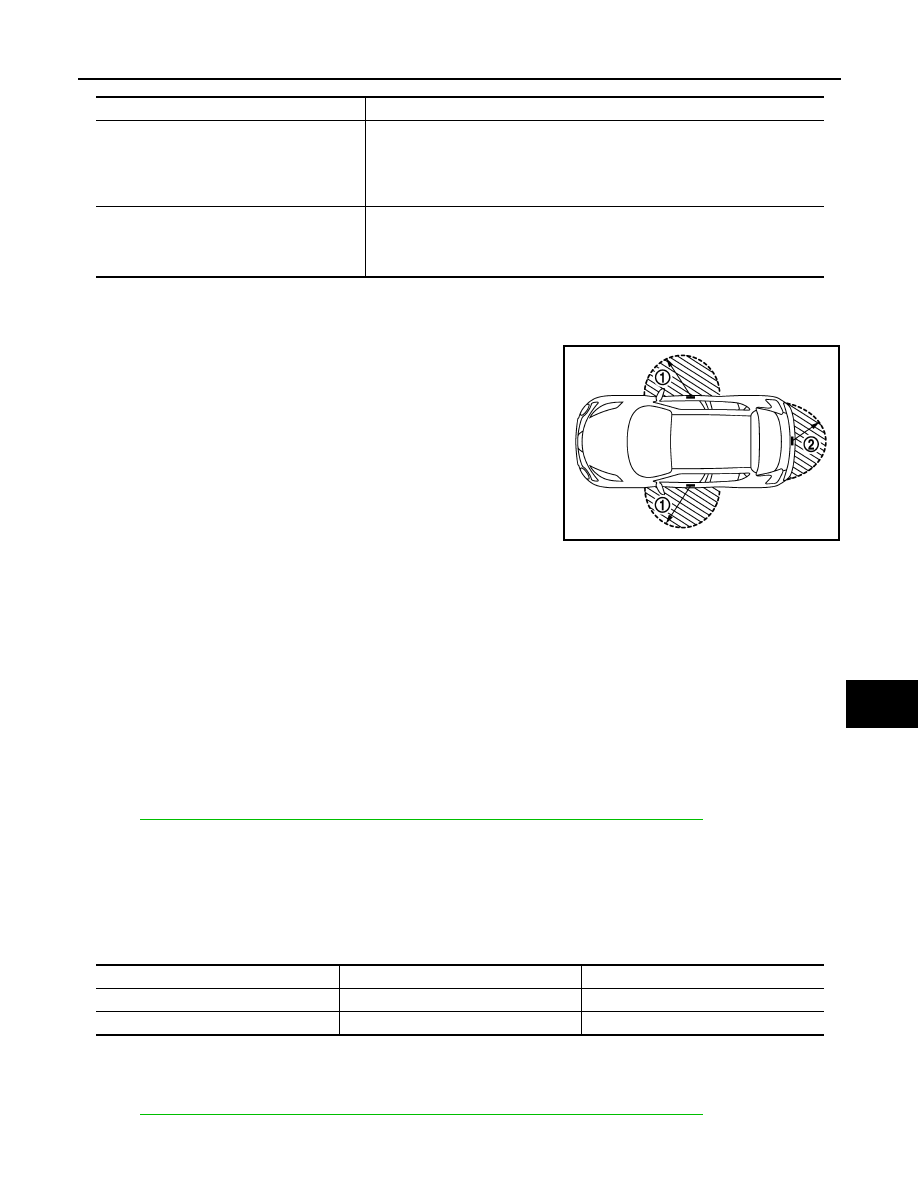

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver, passenger door handles (1) and back door handle (2). How-

ever, this operating range depends on the ambient conditions.

SELECTIVE UNLOCK FUNCTION

Lock Operation

When an LOCK signal is sent from door request switch (driver side, passenger side or back door), all doors

are locked.

Unlock Operation

• When an UNLOCK signal from front door request switch (driver side) is transmitted, driver side door

unlocks. When another UNLOCK signal is transmitted within 60 seconds, all door unlocks.

• When an UNLOCK signal from front door request switch (passenger side) is transmitted, passenger side

door unlocks. When another UNLOCK signal is transmitted within 60 seconds, all door unlocks.

• When an UNLOCK signal from back door request switch is transmitted, back door unlocks. When another

UNLOCK signal is transmitted within 60 seconds, all door unlocks.

How to Change Selective Unlock Operation Mode

Selective unlock operation mode can be changed using CONSULT.

Refer to

DLK-28, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

HAZARD AND BUZZER REMINDER FUNCTION

During lock, unlock, operation by each request switch, the hazard warning lamps and Intelligent Key warning

buzzer will blink or honk as a reminder.

When doors are locked, unlocked by each request switch, BCM honks Intelligent Key warning buzzer as a

reminder and blinks.

Operating Function of Hazard and Buzzer Reminder

Hazard and buzzer reminder does not operate if ignition switch ON position.

How to Change Hazard and Buzzer Reminder Operation Mode

Hazard and buzzer reminder operation mode can be changed using CONSULT.

Refer to

DLK-28, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

AUTO DOOR LOCK FUNCTION

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Panic alarm is not activated
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Panic alarm is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA5569ZZ

Operation

Hazard warning lamp blinks

Intelligent Key warning buzzer honk

Unlock

Once

Once

Lock

Twice

Twice
