Nissan Juke F15. Manual - part 207

DLK-8

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

PREPARATION

PREPARATION

PREPARATION

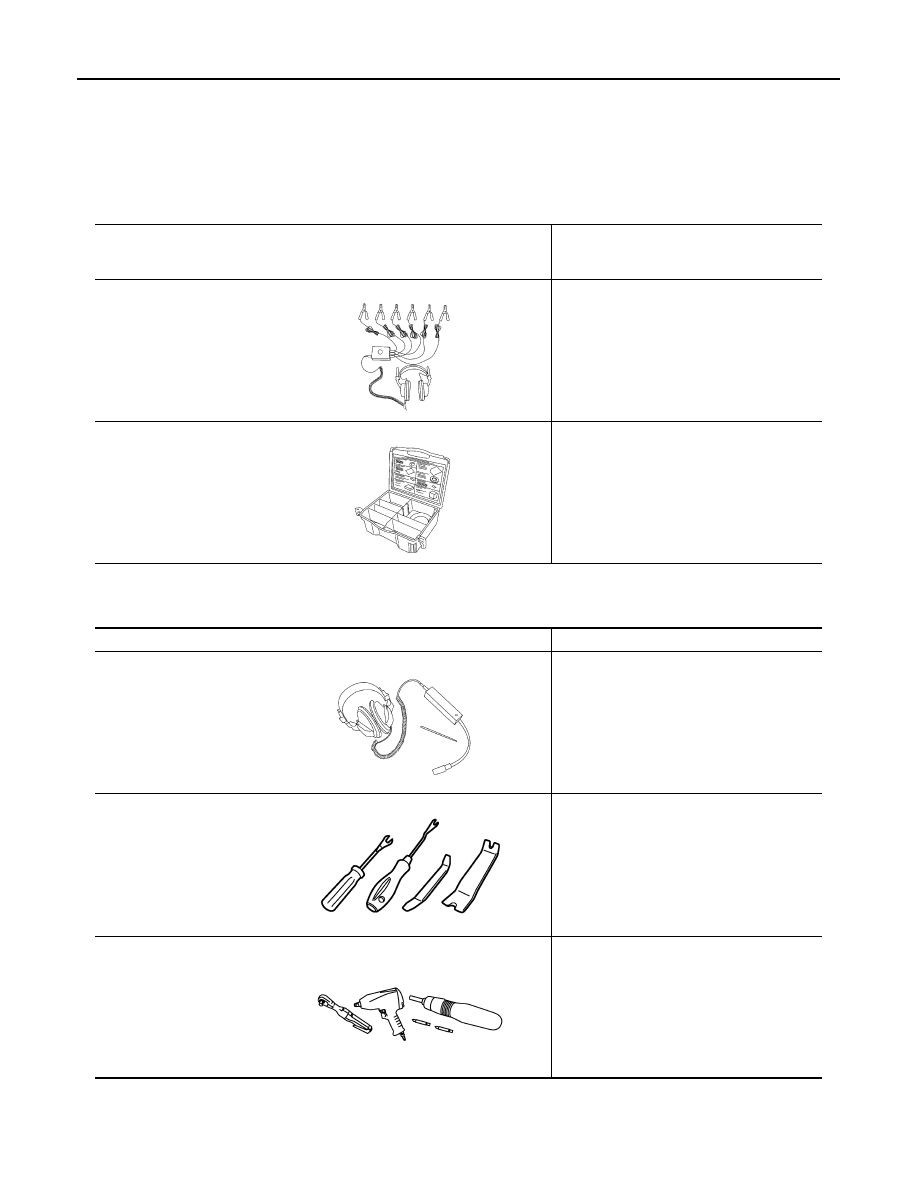

Special Service Tools

INFOID:0000000012196576

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000012196577

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-50397)
NISSAN Squeak and Rat-
tle Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips, pawls and metal clips

Power tool

Loosening bolts, nuts and screws

SIIA0995E

JMKIA3050ZZ

PIIB1407E

COMPONENT PARTS

DLK-9

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

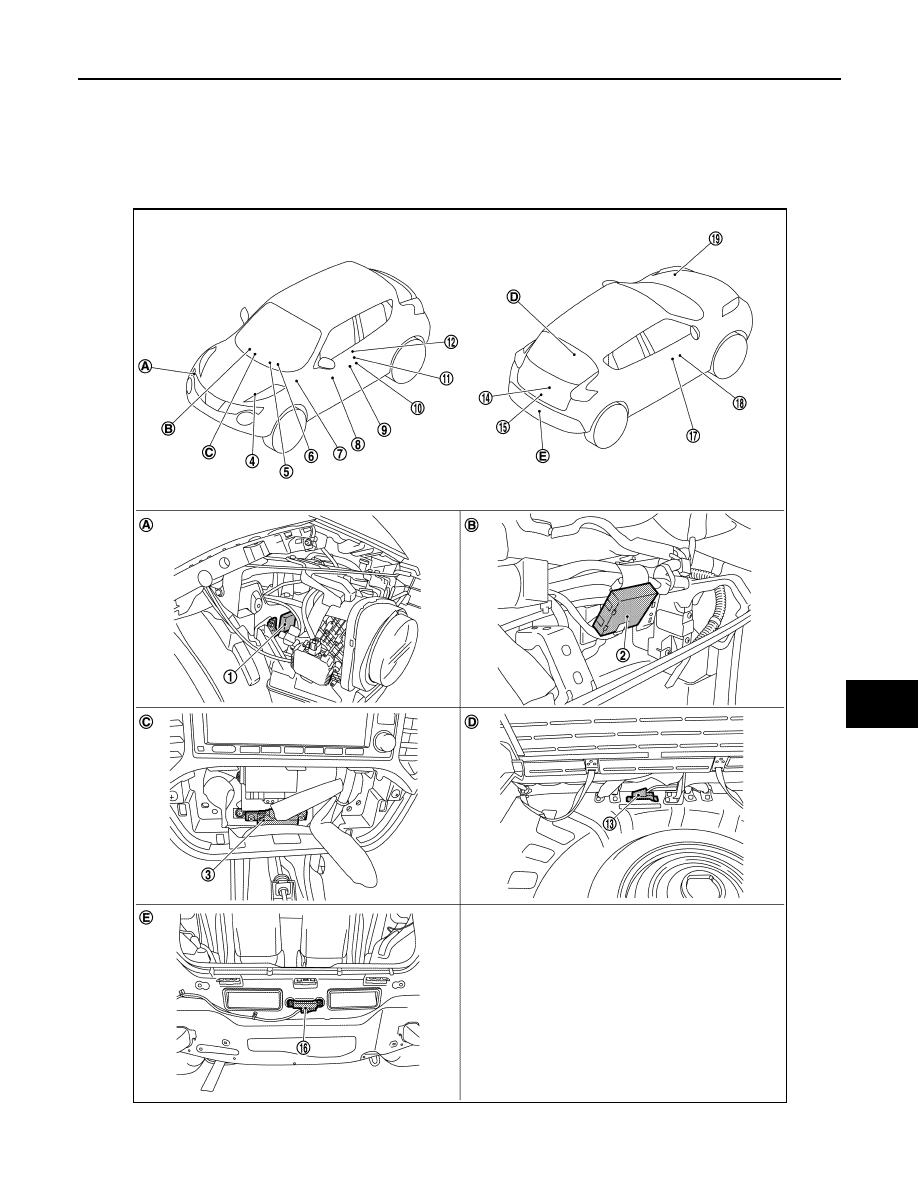

Component Parts Location

INFOID:0000000012196578

JMKIB5827ZZ

DLK-10

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Component Description

INFOID:0000000012196579

1.

Intelligent Key warning buzzer

2.

Remote keyless entry receiver

3.

Inside key antenna (instrument cen-
ter)

4.

TCM
Refer to

TM-156, "CVT CONTROL

SYSTEM : Component Parts Location"

5.

Push-button ignition switch

6.

Combination meter

7.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Location"

8.

Power window main switch

9.

Outside key antenna (driver side)

10. Front door switch (driver side)

11. Front door lock assembly (driver side) 12. Front door request switch (driver side)

13. Inside key antenna (luggage room)

14. Back door request switch

15. Back door lock assembly

16. Outside antenna (rear bumper)

17. Front door request switch (passenger

side)

18. Outside key antenna (passenger side)

19. IPDM E/R

Refer to

PCS-5, "Component Parts Lo-

cation"

A.

View with front bumper removed

B.

View with instrument panel assembly
removed

C.

View with multi display unit removed

D.

View with luggage room finisher re-
moved

E.

View with rear bumper removed

Item

Function

BCM

Controls the door lock system.

Back door opener actuator

Opens the back door with the back door open signal from BCM.

Back door opener switch

Inputs back door opener switch operation signal to BCM.

Combination meter

• Displays each operation method guide and warning for system malfunction.
• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door lock and unlock switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the power window main switch and front power window switch (passenger side).

Door request switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the outside handle (driver side, passenger side and back door).

Door switch

Detects door open/close condition.

Inside key antenna

• Detects whether Intelligent Key is inside the vehicle.
• Installed in the instrument center and luggage room.

Intelligent Key

The following functions are available when having and carrying electronic ID.
• Door lock/unlock
• Engine start
• Remote control entry function is available when operating on button.

Intelligent Key warning buzzer

Warns for an inappropriate operation.

IPDM E/R

Sounds horn via CAN communication between BCM.

Outside key antenna

• Detects whether Intelligent Key is outside the vehicle.
• Integrated in the outside handle (driver side, passenger side and back door).

Push-button ignition switch

• BCM transmits the change in the power supply position with the push-button ignition switch to

IPDM E/R via CAN communication line. IPDM E/R transmits the power supply position status
via CAN communication line to BCM.

• Immobilizer antenna amp checks Intelligent Key transponder.

Remote keyless entry receiver

Receives Intelligent Key operation and transmits to BCM.

TCM

Transmits shift position signal to BCM via CAN communication line

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-11

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (POWER DOOR LOCK SYSTEM)

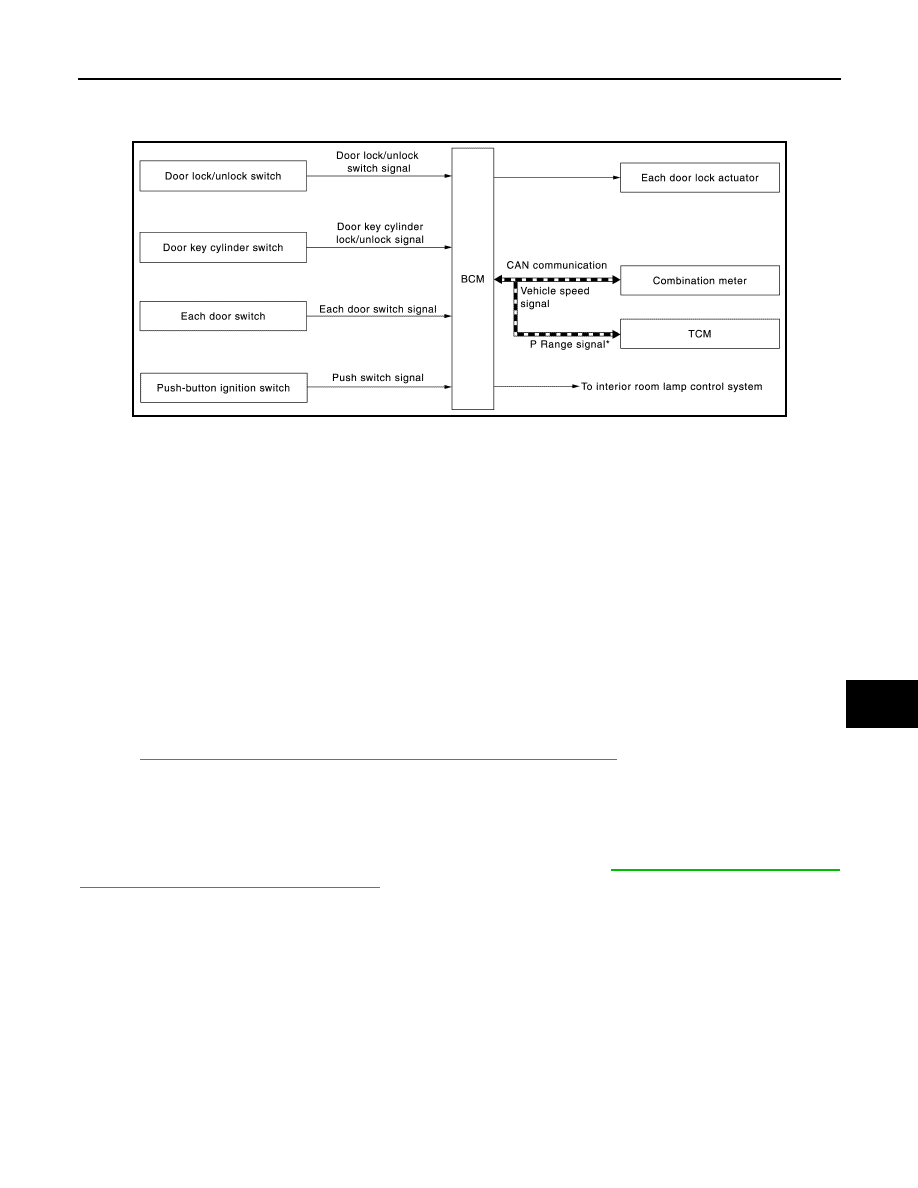

System Diagram

INFOID:0000000012196580

System Description

INFOID:0000000012196581

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is build into power window main switch.

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Door Key Cylinder Switch

• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position once

unlocks the driver side door, turning it to unlock position again within 5 seconds after the first unlock opera-

tion unlocks all of the other doors actuator. (SELECTIVE UNLOCK OPERATION)

Selective unlock operation mode can be changed using CONSULT.

Refer to

DLK-26, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

IGNITION POSITION WARNING FUNCTION

When door lock and unlock switch are operated while driver side door is open and ignition position is ACC or

ON, door locks once but immediately unlocks.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-6, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-

tion. It has 2 types as per the following items.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all

doors are closed and the vehicle speed received from the combination meter via CAN communication

becomes 24 km/h (15 MPH) or more.

P Range Interlock Door Lock*

All doors are locked when shifting the selector lever from the P position to any position other than P.

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is in the ON posi-

tion and the shift signal received from the TCM via CAN communication is shifted from the P position to any

position other than P.

JMKIA6117GB
