WW-56

< REMOVAL AND INSTALLATION >

WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000012197087

Wiper and washer switch is integrated in the combination switch. Refer to

BCS-95, "Exploded View"

.

REAR WIPER ARM

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

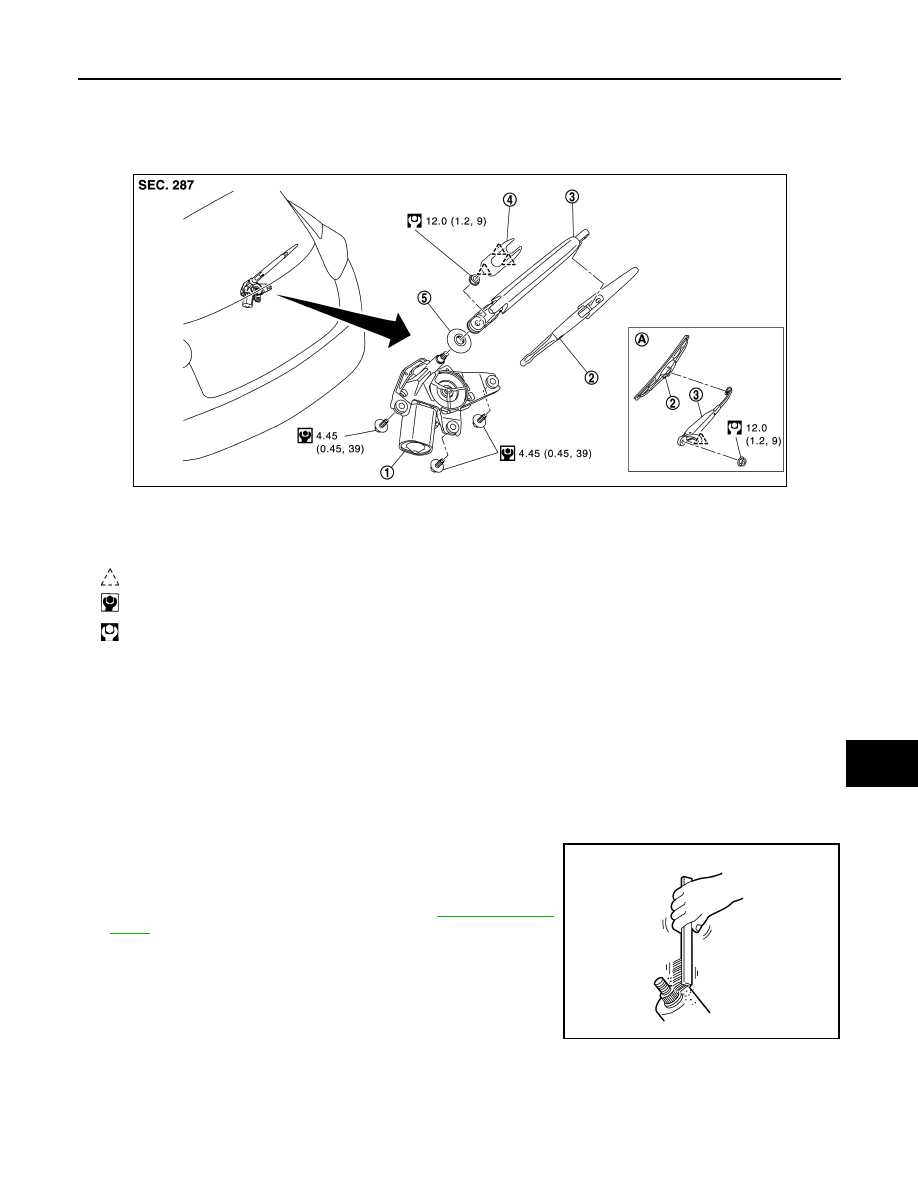

REAR WIPER ARM

Exploded View

INFOID:0000000012197088

Removal and Installation

INFOID:0000000012197089

REMOVAL

1. Operate rear wiper to the auto stop position.
2. Remove rear wiper arm cover.
3. Remove rear wiper arm mounting nut.
4. Remove wiper arm from the vehicle.

INSTALLATION

1. Clean wiper arm mount as shown in the figure to prevent nut

from being loosened.

2. Operate the rear wiper motor to the auto stop position.
3. Adjust the rear wiper blade position. Refer to

WW-57, "Adjust-

ment"

.

4. Install the rear wiper arm by tightening the mounting nut.
5. Inject the washer fluid.
6. Operate the rear wiper to the auto stop position.
7. Check that the rear wiper blades stop at the specified position.
8. Install the rear wiper arm cover.

Adjustment

INFOID:0000000012197090

REAR WIPER BLADE POSITION ADJUSTMENT

1.

Rear wiper motor

2.

Rear wiper blade

3.

Rear wiper arm

4.

Rear wiper arm cover

5.

Rear wiper pivot seal

A

: Canada models only

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA1503GB

SKIA0082J

WW-58

< REMOVAL AND INSTALLATION >

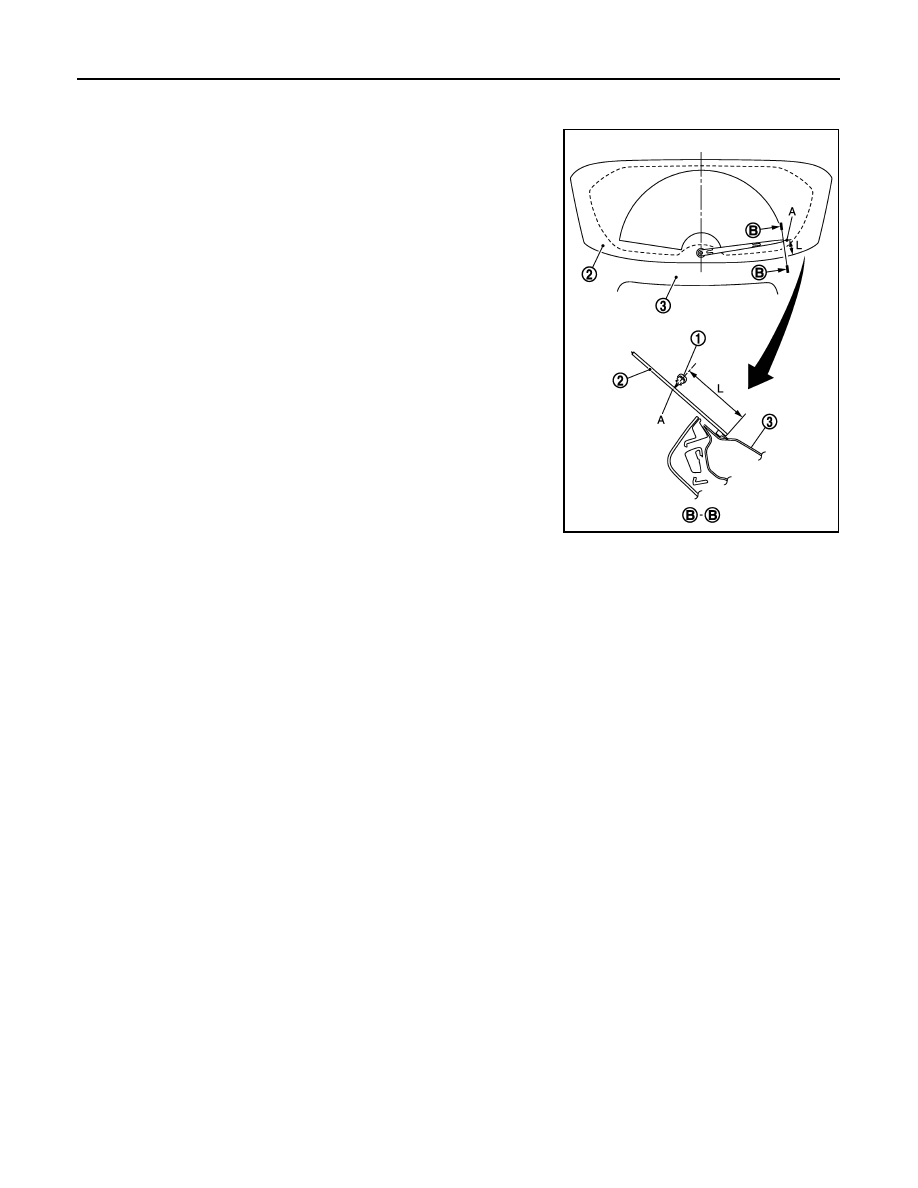

REAR WIPER ARM

Set the wiper blade top on the defrosting wire (A) (clearance between the end of back door glass and the top

of wiper blade center).

Standard clearance

1. Rear wiper blade
2. Back door window glass
3. Back door panel
A : Rear defogger wire print
L

: 67.5

± 7.5 mm (2.657 ± 0.295in)

JMLIA1170ZZ

REAR WIPER MOTOR

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

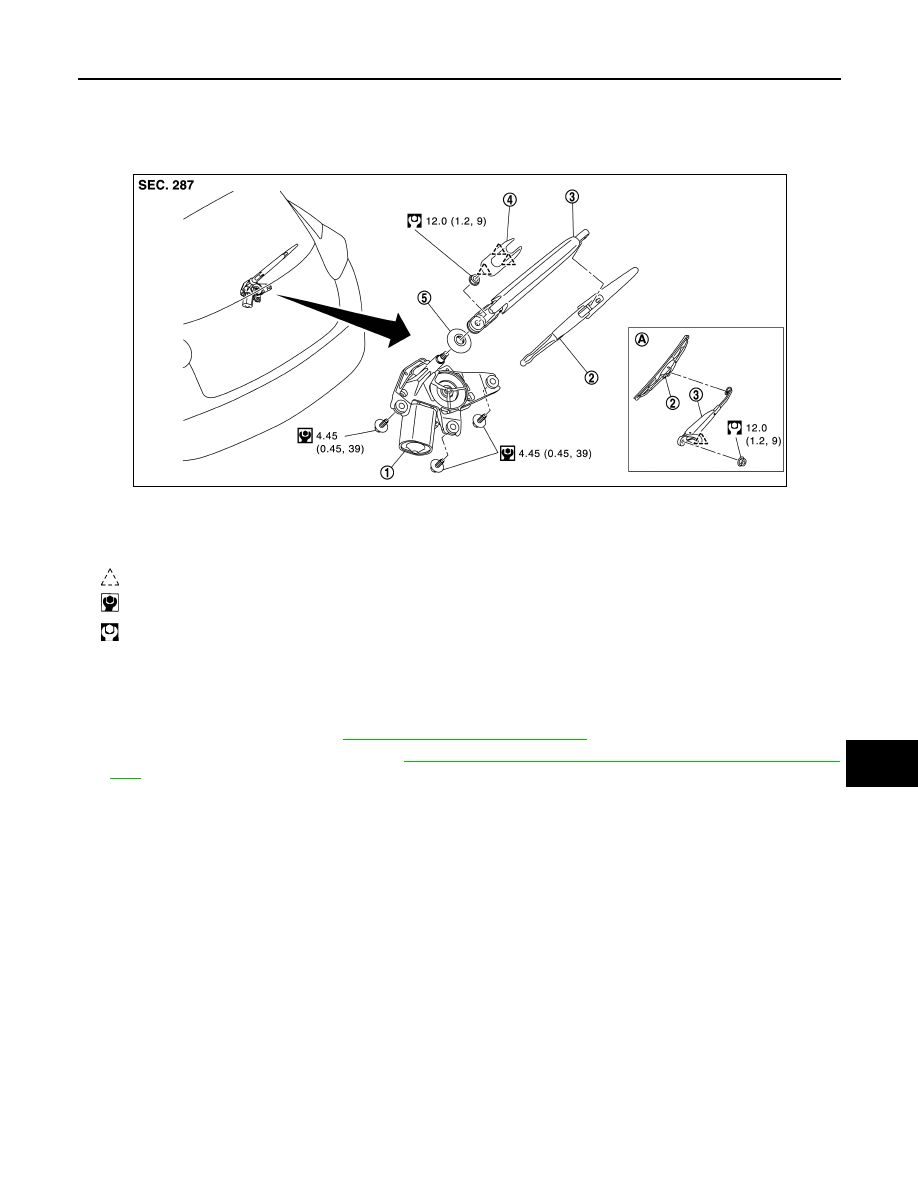

REAR WIPER MOTOR

Exploded View

INFOID:0000000012197091

Removal and Installation

INFOID:0000000012197092

REMOVAL

1. Remove rear wiper arm. Refer to

WW-57, "Removal and Installation"

.

2. Remove back door lower finisher. Refer to

INT-39, "BACK DOOR SIDE FINISHER : Removal and Installa-

tion"

.

3. Disconnect rear wiper motor connector.
4. Remove rear wiper motor mounting bolts.
5. Remove rear wiper motor from the vehicle.
6. Remove the pivot seal.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wiper motor

2.

Rear wiper blade

3.

Rear wiper arm

4.

Rear wiper arm cover

5.

Rear wiper pivot seal

A

: Canada models only

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA1503GB
