FRONT WIPER BLADE

FRONT WIPER BLADE

Exploded View

INFOID:0000000012197081

Removal and Installation

INFOID:0000000012197082

REMOVAL

Push up the lever (A) of wiper blade (1), while sliding wiper blade

toward the direction of the arrow to remove it from wiper arm (2).

CAUTION:

Be careful not to drop the wiper blade onto the windshield

glass.

INSTALLATION

1. Install wiper blade into wiper arm.
2. Install wiper arm.

Replacement

INFOID:0000000012197083

1. Remove the wiper blade from the wiper arm. Refer to

WW-52, "Removal and Installation"

.

1.

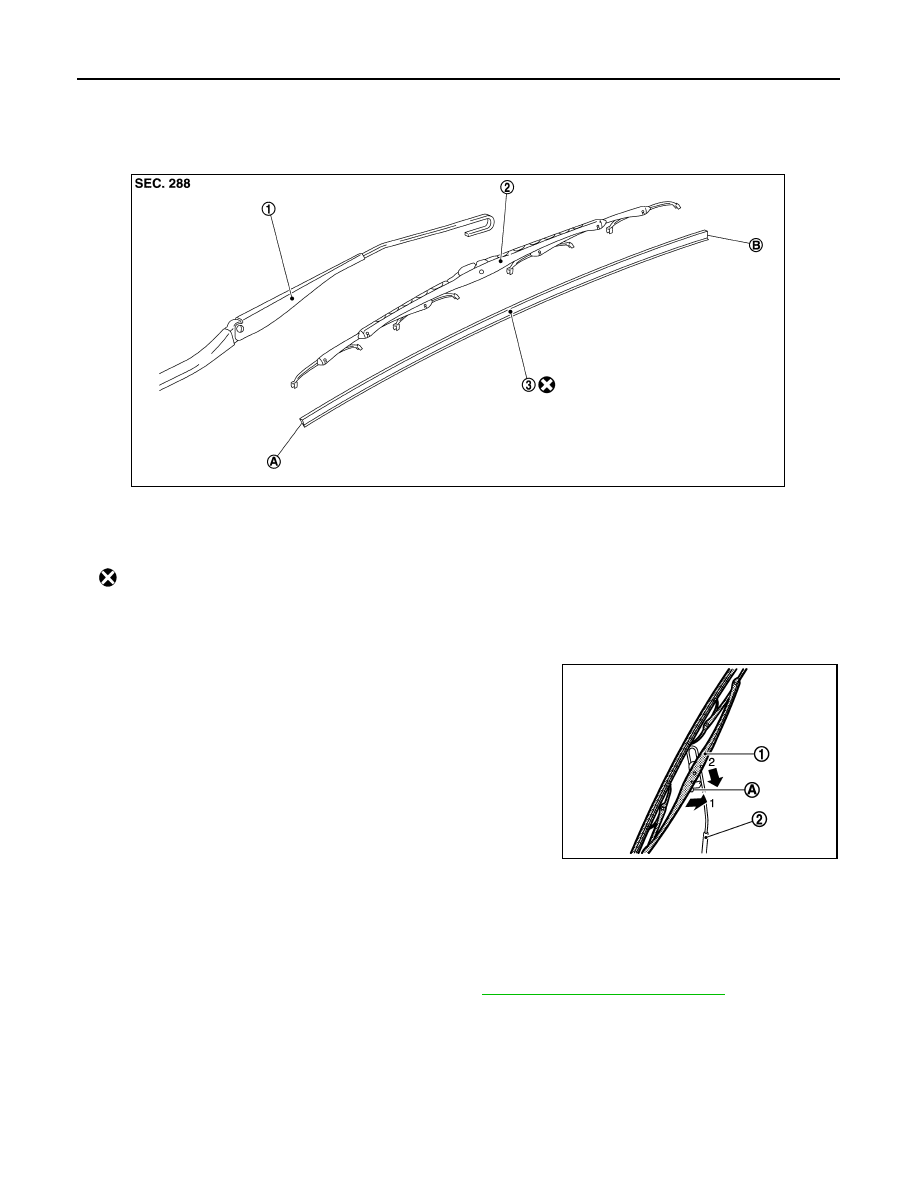

Wiper arm

2.

Wiper blade

3.

Wiper refill

A

: Wiper refill end

B:

: Wiper refill tip

: Always replace after every disassembly.

JMLIA1733ZZ

JMLIA1166ZZ

FRONT WIPER BLADE

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

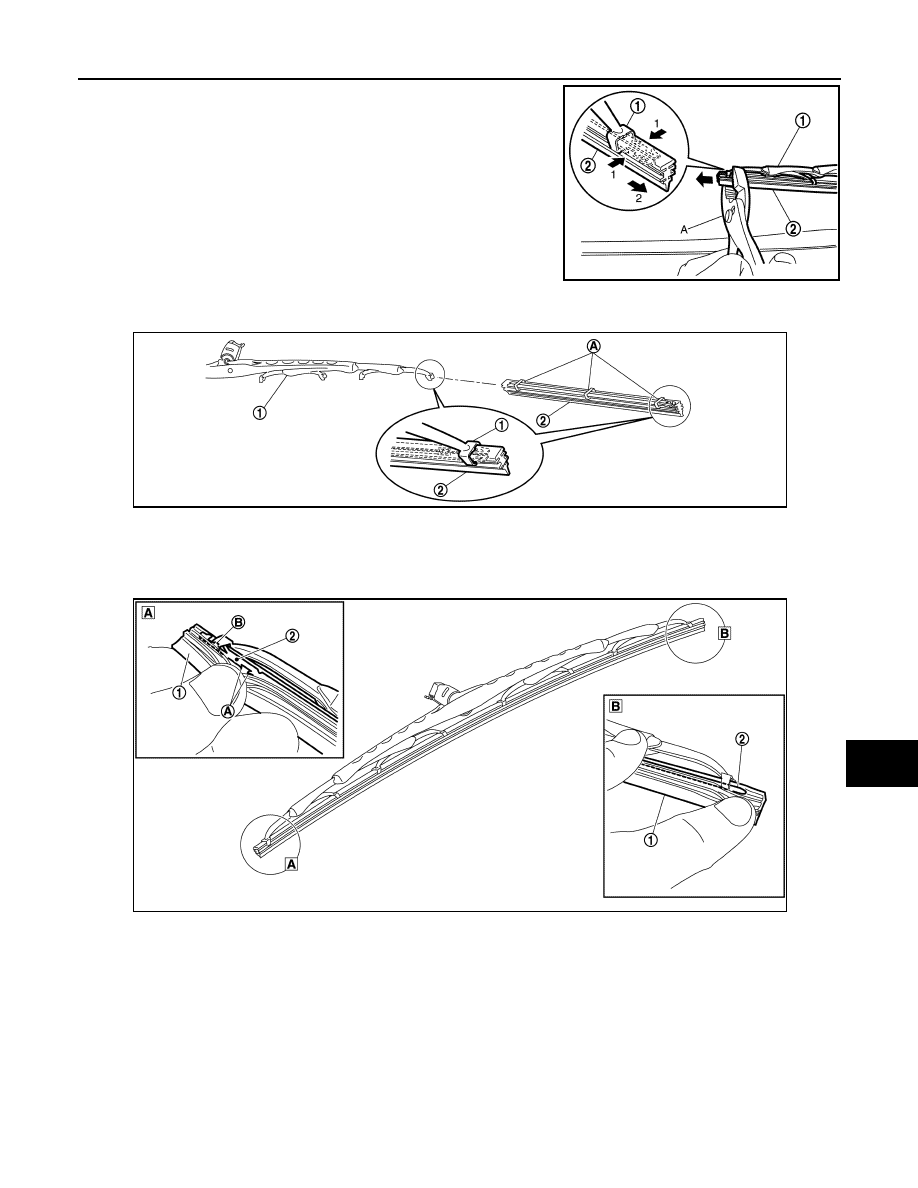

2. Pinch the vertebra with tenailles (A) and slide the wiper refill (2)

toward the direction of the arrow 2 to remove.

NOTE:

Be careful not to damage the wiper blade (1).

3. Insert the new wiper refill kit (2) as shown in the figure to the wiper blade (1) until the stopper at the wiper

refill end fits into the tab on wiper blade.

NOTE:

• Insert the wiper refill to be held securely by tab of wiper blade.

• After the wiper refill is fully inserted, remove the holder (A).

• The refill kit is provided as a set attached to service parts.

4. After installing the new wiper refill (1) check that the vertebra (2) is well inserted into the wiper refill (1).

NOTE:

Check the following items after replacing wiper refill.

• Wiper refill is not twisted at all.

• Wiper refill thoroughly fits in the tab (B) on wiper blade.

• Wiper refill is inserted from the proper direction.

• The stopper (A) is inserted into the wiper refill.

JMLIA1737ZZ

JMLIA1738ZZ

JMLIA1734ZZ

WW-54

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

Exploded View

INFOID:0000000012197084

REMOVAL

DISASSEMBLY

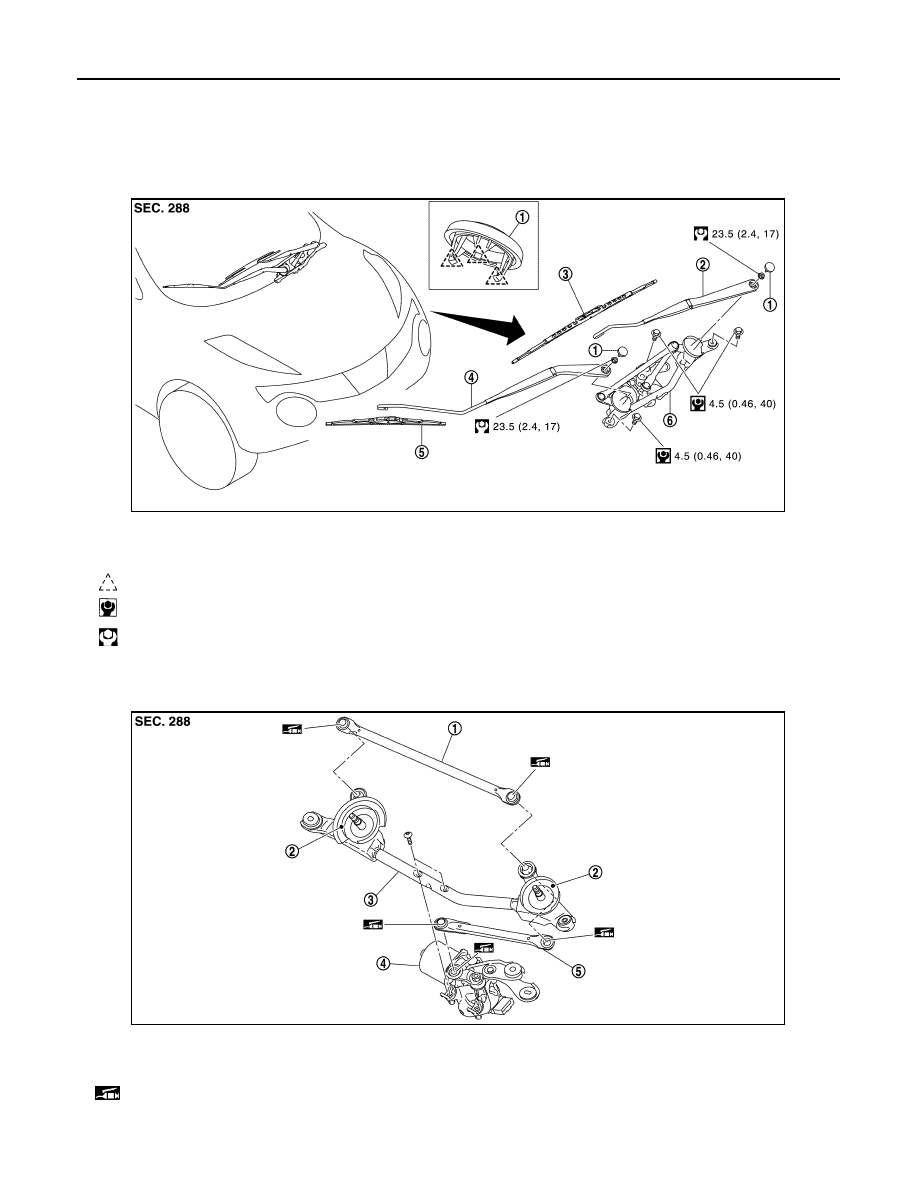

1.

Front wiper arm cap

2.

Front wiper arm LH

3.

Front wiper blade LH

4.

Front wiper arm RH

5.

Front wiper blade RH

6.

Front wiper drive assembly

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA1732GB

1.

Front wiper linkage 1

2.

Shaft seal

3.

Front wiper frame

4.

Front wiper motor

5.

Front wiper linkage 2

: Nissan MP special grease No.2

JMLIA1498ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Removal and Installation

INFOID:0000000012197085

REMOVAL

1. Remove front wiper arms (LH and RH). Refer to

WW-50, "Removal and Installation"

.

2. Remove cowl top cover. Refer to

EXT-30, "Removal and Installation"

.

3. Disconnect the front wiper motor connector.
4. Remove the mounting bolts from front wiper drive assembly.
5. Remove the front wiper drive assembly from the vehicle.

INSTALLATION

1. Install the front wiper drive assembly to the vehicle.
2. Connect front wiper motor connector.
3. Operate front wiper to move it to the auto stop position.
4. Install cowl top cover. Refer to

EXT-30, "Removal and Installation"

.

5. Install front wiper arms. Refer to

WW-50, "Removal and Installation"

.

Disassembly and Assembly

INFOID:0000000012197086

DISASSEMBLY

1. Remove the front wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Never bend the linkage or damage the plastic part of the ball joint when removing the wiper link-

age.

2. Remove the front wiper motor mounting screws, and then remove the front wiper motor from the front

wiper frame.

ASSEMBLY

1. Connect the front wiper motor connector.
2. Operate the front wiper to move it to the auto stop position.
3. Disconnect the front wiper motor connector.
4. Install the front wiper motor to the front wiper frame.
5. Install the front wiper linkage 2 to the front wiper motor and the front wiper frame.
6. Install the front wiper linkage 1 to the front wiper frame.

CAUTION:

• Never drop front wiper motor or cause it to come into contact with other parts.

• Be careful for the grease condition at the front wiper motor and front wiper linkage joint

(retainer). Apply Multi

−purpose grease or an equivalent if necessary.
