WW-48

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

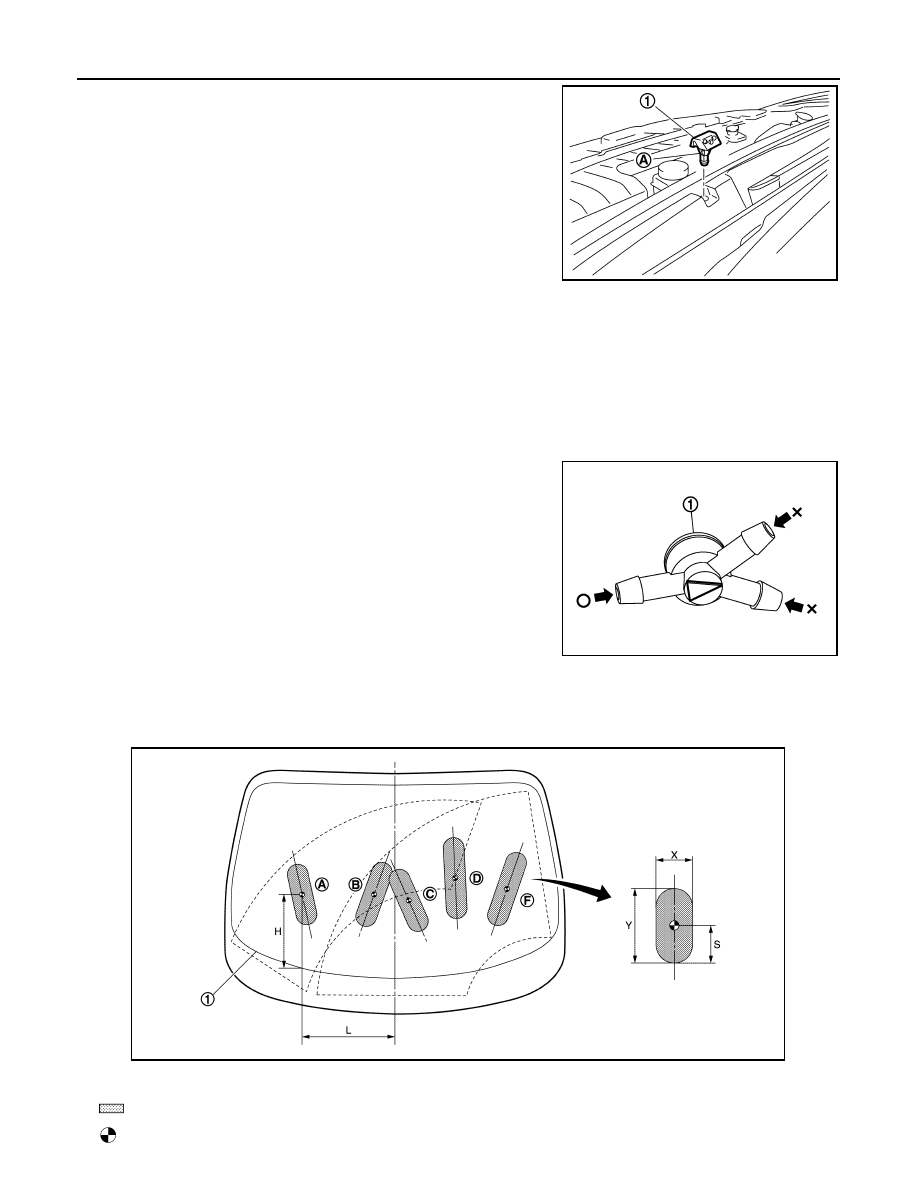

3. While pressing pawl (A) on the cowl top cover front side of front

washer nozzle (1), remove front washer nozzle from cowl top

cover.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

The spray positions differ, check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000012197077

INSPECTION

Check valve Inspection

Check that air can pass through the hose by blowing forward (toward

the nozzle (1)), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

JPLIA0871ZZ

JMLIA1326ZZ

1.

Black printed frame line
: Spray area

: Target spray position

JMLIA1497ZZ

FRONT WASHER NOZZLE AND TUBE

WW-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Unit: mm (in)

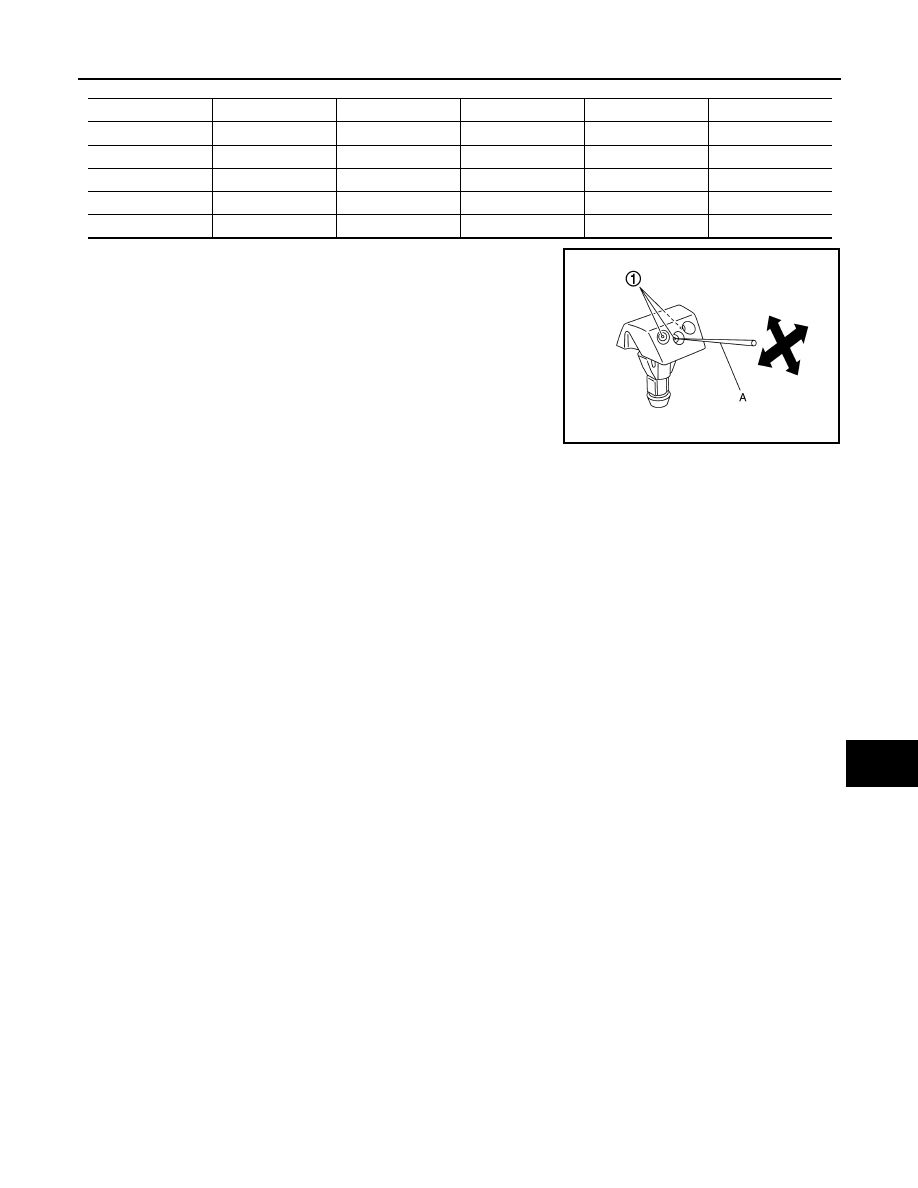

Insert a needle or similar object (A) into the spray opening (1) and

move up/down and left/right to adjust the spray position.

NOTE:

If wax or dust gets into the nozzle, remove wax or dust with a needle

or small pin.

Spray position

H

L

X

Y

S

A

244 (9.61)

350 (13.78)

80 (3.15)

 238 (9.37)

 78 (3.07)

B

284 (11.18)

 93 (3.66)

80 (3.15)

 257 (10.12)

 89 (3.50)

C

258 (10.16)

 70.5 (2.78)

80 (3.15)

 255 (10.04)

 82 (3.23)

D

309 (12.17)

 234 (9.21)

80 (3.15)

 312 (12.28)

 95 (3.74)

E

235 (9.25)

413 (16.26)

80 (3.15)

295 (11.61)

90 (3.54)

JPLIA0873ZZ

WW-50

< REMOVAL AND INSTALLATION >

FRONT WIPER ARM

FRONT WIPER ARM

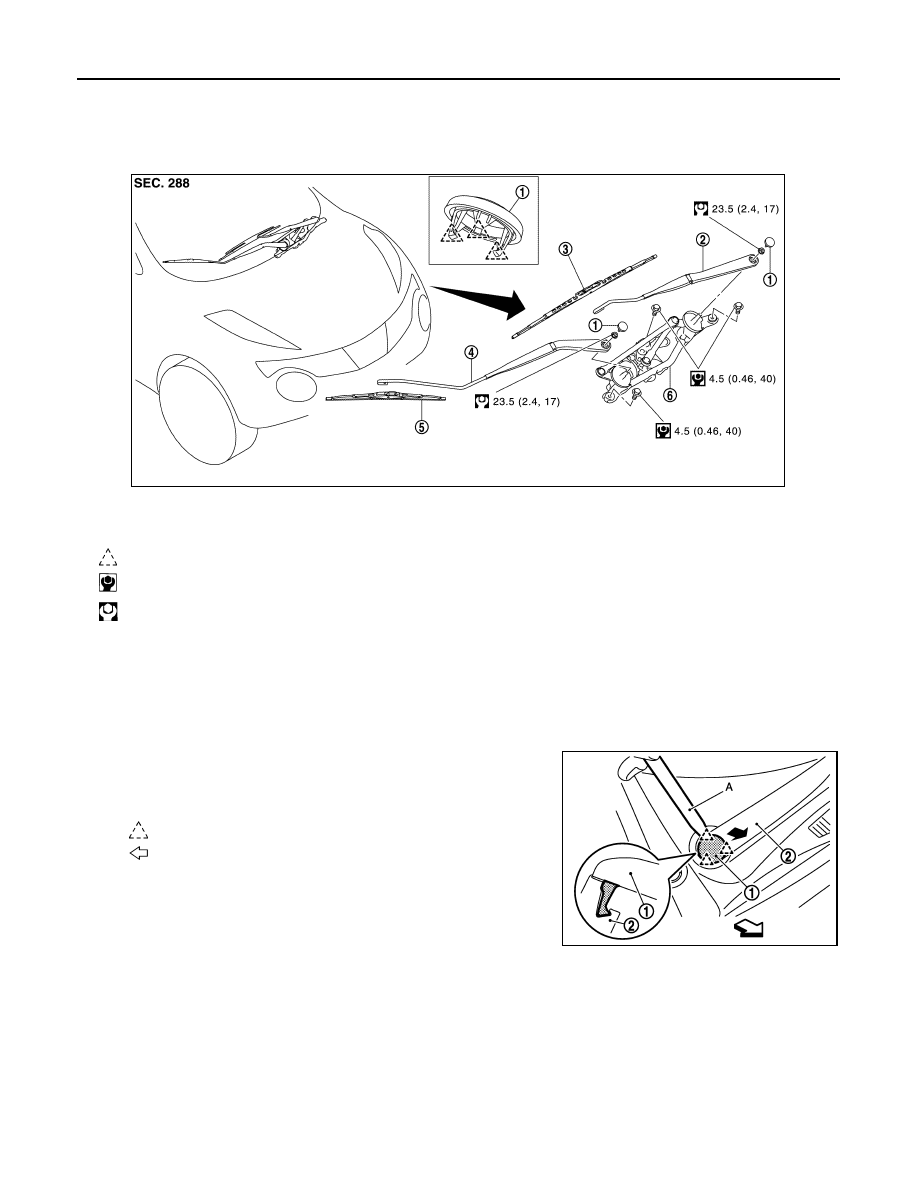

Exploded View

INFOID:0000000012197078

Removal and Installation

INFOID:0000000012197079

REMOVAL

1. Operate front wiper to move it to the auto stop position.
2. Open the hood.
3. Disengage front wiper arm cap (1) fixing pawls with a remover

tool (A), and then remove front wiper arm cap from the wiper

arm (2).

4. Remove front wiper arm mounting nuts.
5. Raise front wiper arm, and then remove front wiper arm from the vehicle.

INSTALLATION

1.

Front wiper arm cap

2.

Front wiper arm LH

3.

Front wiper blade LH

4.

Front wiper arm RH

5.

Front wiper blade RH

6.

Front wiper drive assembly

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA1732GB

: Pawl

: Vehicle front

JMLIA1164ZZ

FRONT WIPER ARM

WW-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

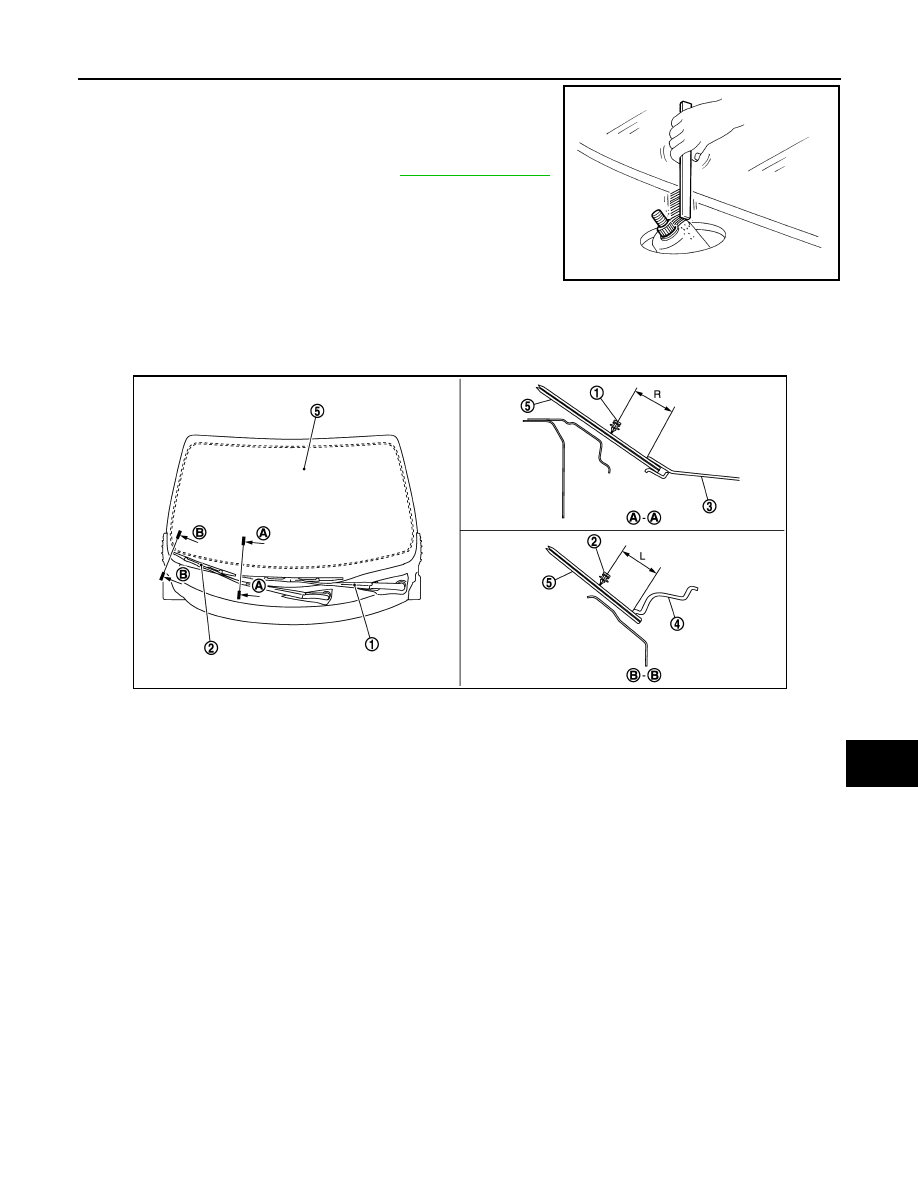

1. Clean wiper arm mount as shown in the figure to prevent nuts

from being loosened.

2. Operate front wiper motor to move the front wiper to the auto

stop position.

3. Adjust front wiper blade position. Refer to

WW-51, "Adjustment"

.

4. Install front wiper arm by tightening the mounting nuts.
5. Inject the washer fluid.
6. Operate front wiper to move it to the auto stop position.
7. Check that the front wiper blades stop at the specified position.
8. Install front wiper arm caps.

Adjustment

INFOID:0000000012197080

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover/ front fender protector and the top of wiper blade center

Standard clearance

ELH0717D

1.

Front wiper arm LH

2.

Front wiper arm RH

3.

Cowl top cover

4.

Front fender cover

5.

Windshield glass assembly

JMLIA1334ZZ

R

: 37.7

± 7.5 mm (1.484 ± 0.295 in)

L

: 46.8

± 7.5 mm (1.843 ± 0.295 in)
