Nissan Juke F15. Manual - part 1374

ROAD WHEEL TIRE ASSEMBLY

WT-39

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

REMOVAL AND INSTALLATION

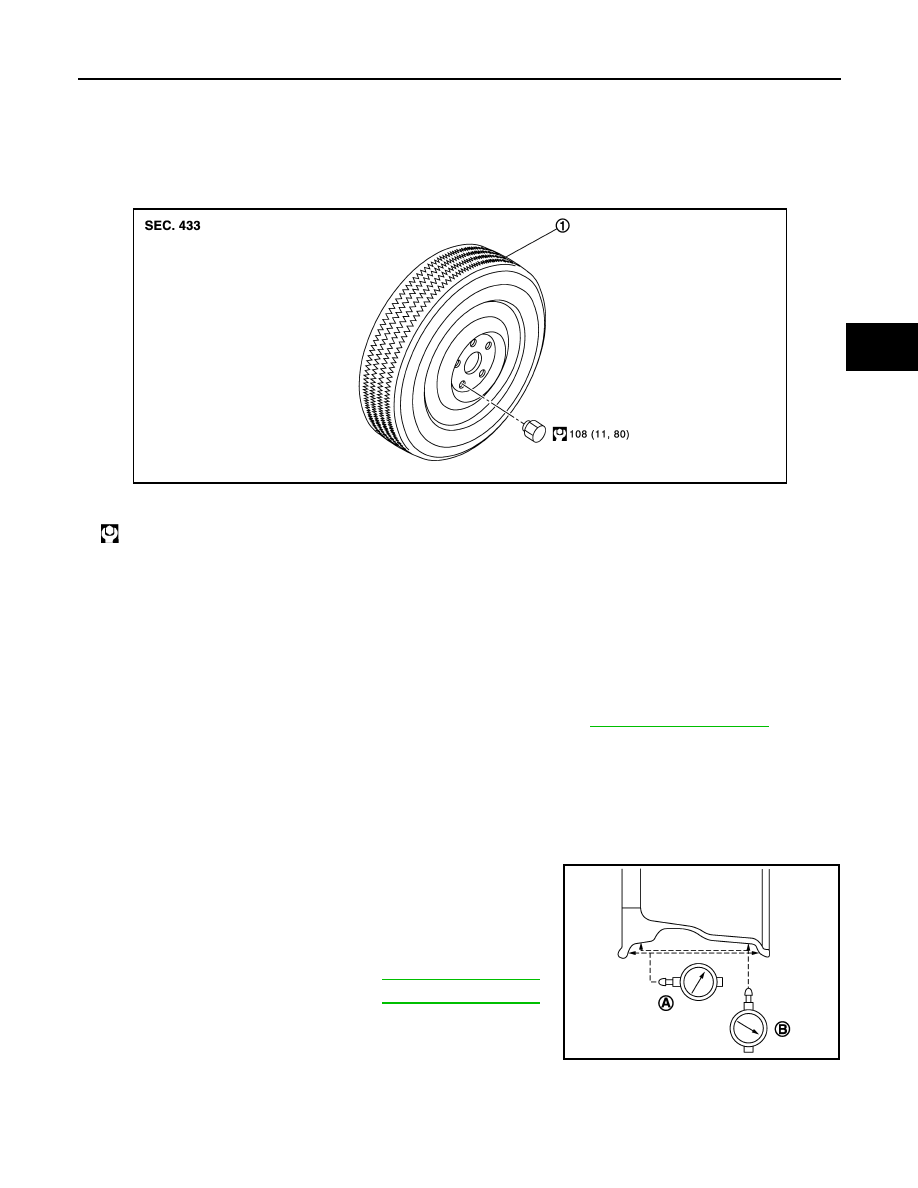

ROAD WHEEL TIRE ASSEMBLY

Exploded View

INFOID:0000000012201871

Removal and Installation

INFOID:0000000012201872

REMOVAL

1. Remove wheel nuts.
2. Remove tire assembly.

INSTALLATION

Note the following, install in the reverse order of removal.

• When replacing or rotating wheels, perform the ID registration. Refer to

WT-20, "Work Procedure"

.

Inspection

INFOID:0000000012201873

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from aluminum wheel and mount on a tire balance machine.
b. Set dial indicator as shown in the figure.
c. Check runout, if the axial runout (A) or radial runout (B) exceeds

the limit, replace aluminum wheel.

1.

Tire assembly

: N·m (kg-m, ft-lb)

JSGIA0639GB

Limit
Axial runout (A)

: Refer to

WT-47, "Road Wheel"

.

Radial runout (B)

: Refer to

WT-47, "Road Wheel"

.

SEIA0737E

WT-40

< REMOVAL AND INSTALLATION >

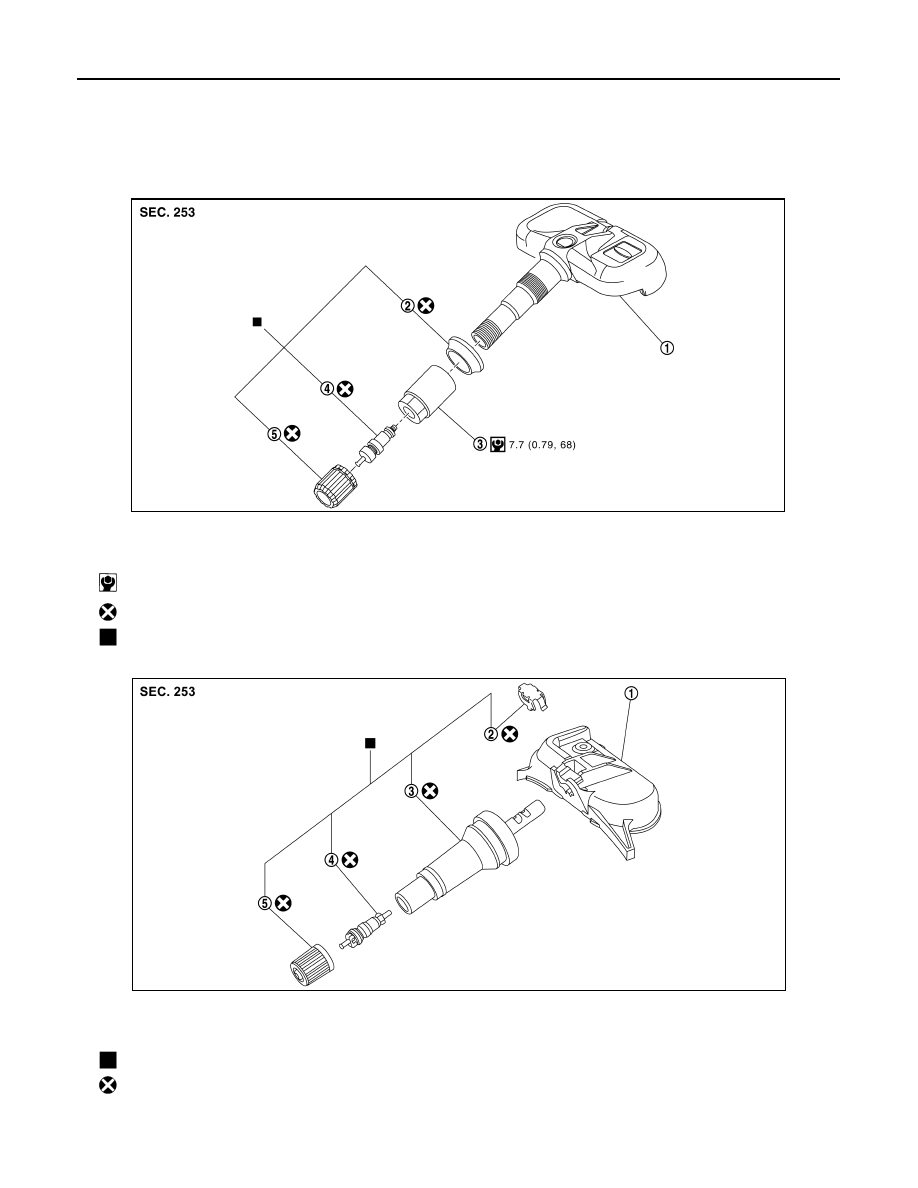

TIRE PRESSURE SENSOR

TIRE PRESSURE SENSOR

Exploded View

INFOID:0000000012201874

CLAMP-IN TYPE

SNAP-IN TYPE

1.

Tire pressure sensor

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Valve cap

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Parts that are replaced as a set when the tire is replaced.

JSEIA0572GB

JSEIA1400ZZ

1. Tire pressure sensor

2. Stopper

3. Valve

4. Valve core

5. Valve cap

       : Parts that are replaced as a set when the tire is replaced.

: Always replace after every disassembly.

TIRE PRESSURE SENSOR

WT-41

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

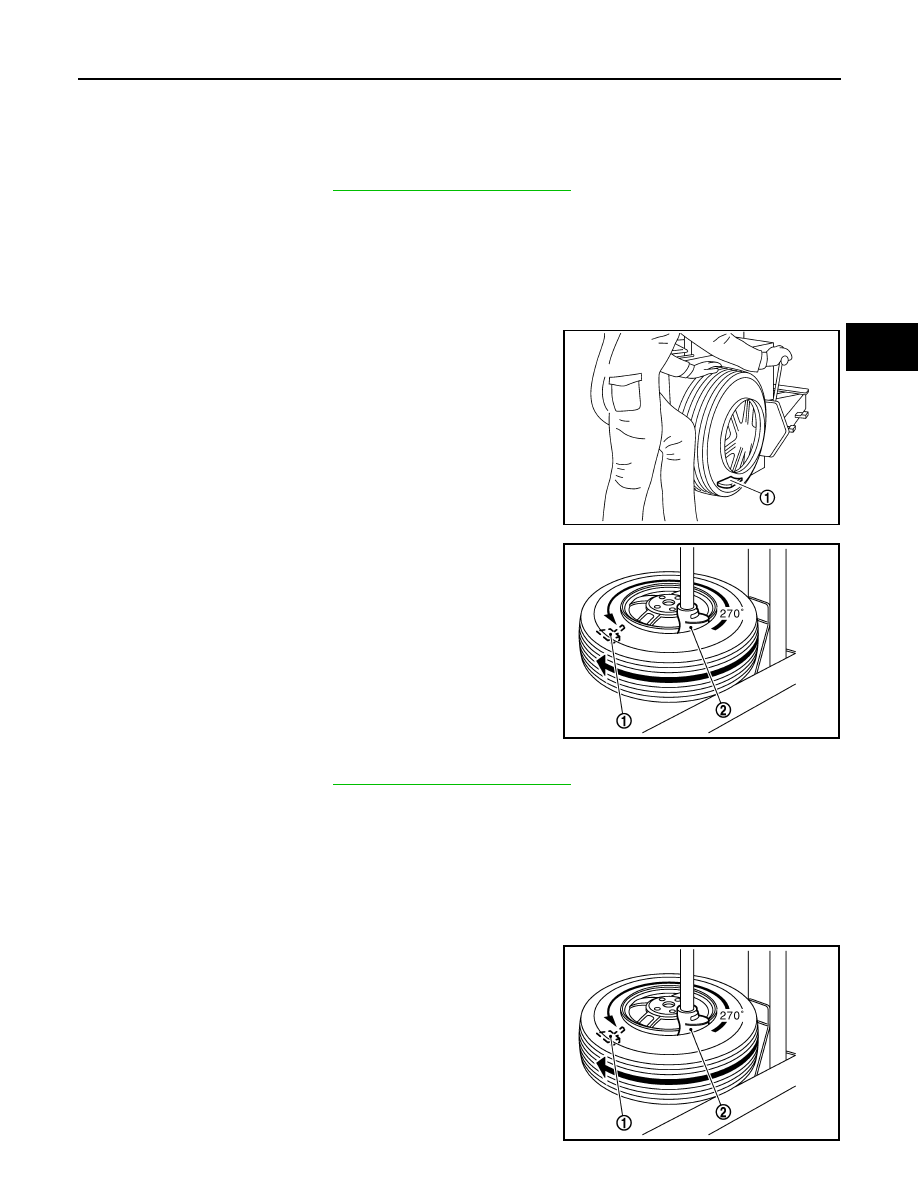

Removal and Installation

INFOID:0000000012201875

REMOVAL

Clamp-in type

1. Remove tire assembly. Refer to

WT-39, "Removal and Installation"

.

2. Remove valve cap, valve core and then deflate tire.

NOTE:

If the tire is reused, apply a matching mark to the position of the tire road wheel valve hole for the purpose

of wheel balance adjustment after installation.

3. Remove valve nut retaining tire pressure sensor and allow tire pressure sensor to fall into tire.
4. Use the tire changer and disengage the tire beads.

CAUTION:

• Verify that the tire pressure sensor (1) is at the bottom of

the tire while performing the above.

• Be sure not to damage the road wheel or tire pressure

sensor.

5. Apply bead cream or an equivalent to the tire beads.
6. Set tire onto the tire changer turntable so that the tire pressure

sensor inside the tire is located close to the road wheel valve

hole.

7. Turn tire so that valve hole is at bottom and bounce so that tire

pressure sensor (1) is near valve hole. Carefully lift tire onto

turntable and position valve hole (and tire pressure sensor) 270

degree from mounting/dismounting head (2).

CAUTION:

Be sure not to damage the road wheel and tire pressure

sensor.

8. Remove tire pressure sensor from tire.
9. Remove the grommet seal.

Snap-in Type

1. Remove tire assembly. Refer to

WT-39, "Removal and Installation"

.

2. Remove valve cap, valve core and then deflate tire.

NOTE:

If the tire is reused, apply a matching mark to the position of the tire road wheel valve hole for the purpose

of wheel balance adjustment after installation.

3. Use the tire changer and disengage the tire beads.

CAUTION:

Be sure not to damage the road wheel or tire pressure sensor.

4. Apply bead cream or an equivalent to the tire beads.
5. Turn tire so that valve hole is at bottom and bounce so that tire

pressure sensor (1) is near valve hole. Carefully lift tire onto

turntable and position valve hole (and tire pressure sensor) 270

degree from mounting/dismounting head (2).

CAUTION:

Be sure not to damage the road wheel and tire pressure

sensor.

JPEIC0104ZZ

JPEIC0014GB

JPEIC0014GB

WT-42

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

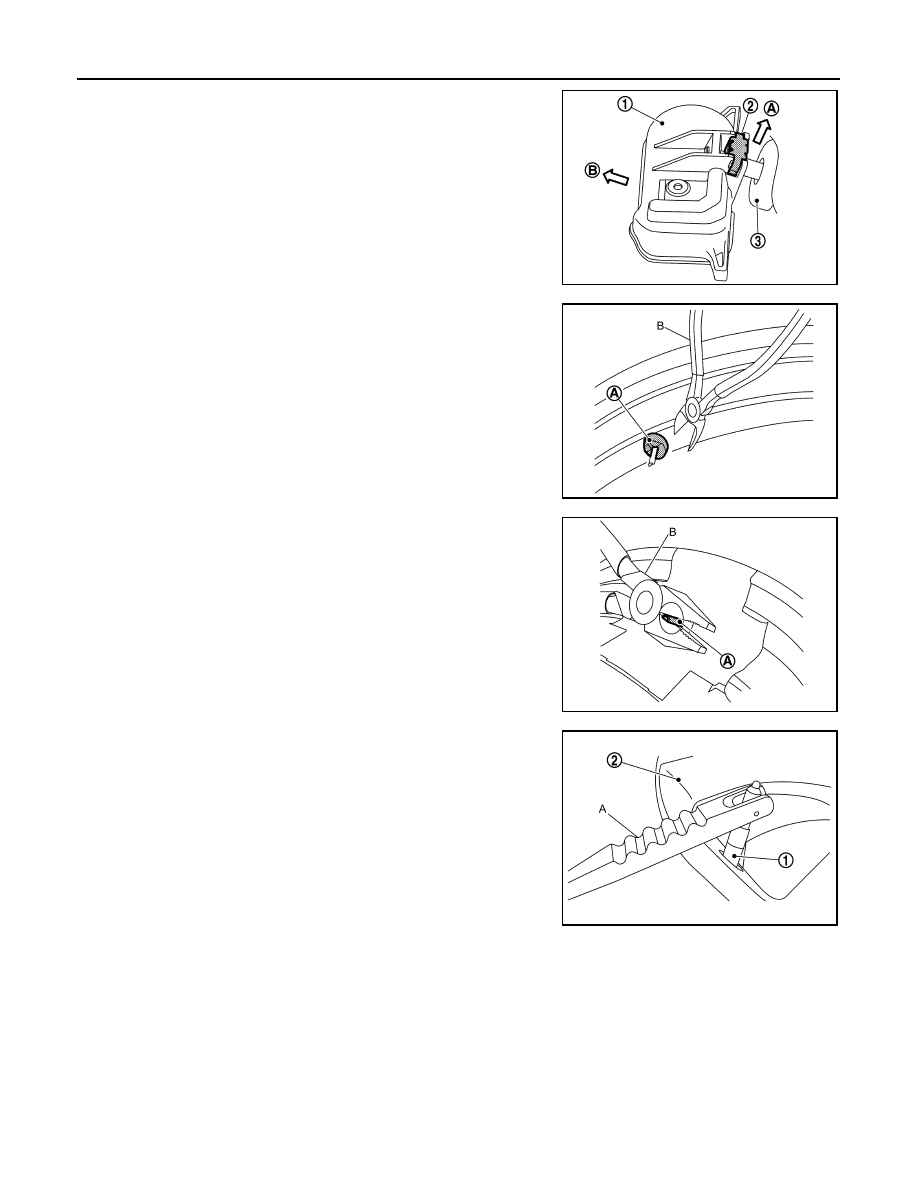

6. Remove tire pressure sensor (1), follow the procedure below.
a. Remove the stopper (2) in the direction (A), using a pliers.

CAUTION:

Be sure not to damage the tire pressure sensor.

b. Remove the tire pressure sensor from valve (3) in the direction

(B).

7. Cut the part (A) of valve, using a pliers cutters (B).

CAUTION:

Be sure not to damage the road wheel.

8. Turn the valve of 180 degrees using a valve inserter.

NOTE:

In order to ensure safely removing the valve, it is mandatory

before pulling out the valve to either.

9. Cut the roll pin (A) of valve, using a pliers (B).

CAUTION:

Be sure not to damage the road wheel.

10. Remove the valve (1), using a valve inserter (A).

CAUTION:

Be sure not to damage the road wheel.

INSTALLATION

Clamp-in type

1. Apply bead cream or an equivalent to the tire beads.

JSEIA1401ZZ

JSEIA1392ZZ

JSEIA1393ZZ

JSEIA1394ZZ
