Nissan Juke F15. Manual - part 1372

TPMS

WT-31

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

NOTE:

If tire pressure sensor wake-up operation is not completed for two or more tire pressure sensors, the applica-

ble low tire pressure warning lamp blinking patterns are displayed continuously.

(Example: Blinks once/OFF/blinks 3 times = Wake-up operation is not completed at the front left wheel and

rear right wheel tire pressure sensors.)

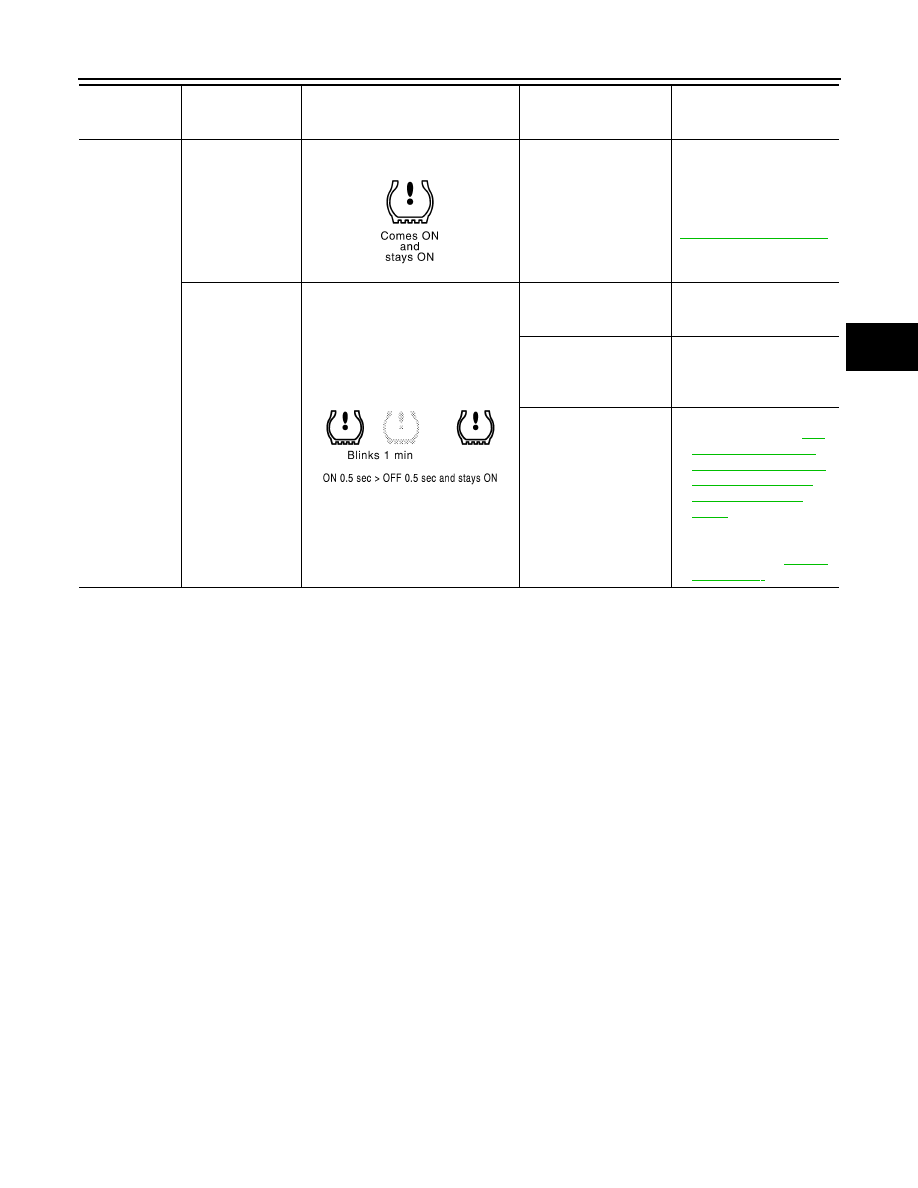

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
turns ON and stays
illuminated.

Low tire pressure

Check the tire pressure for
all wheels and adjust to the
specified value. Refer to

WT-47, "Tire Air Pressure"

.

The low tire pres-
sure warning lamp
repeats blinking at
0.5-second inter-
vals for 1 minute,
and then stays illu-
minated.

The combination meter
fuse is open or removed
(or pulled out).

Check and install the com-
bination meter fuse. If nec-
essary, replace the fuse.

The BCM harness con-
nector is removed.

Check the connection con-
ditions of the BCM harness
connector, and repair if nec-
essary.

Tire Pressure Monitoring
System (TPMS) mal-
function.

• Perform CONSULT self-

diagnosis. Refer to

WT-

10, "AIR PRESSURE
MONITOR : CONSULT
Function (BCM - AIR
PRESSURE MONI-
TOR)"

.

• If necessary, perform tire

pressure sensor ID regis-
tration. Refer to

WT-20,

"Description"

.

Diagnosis items

Symptom

(Ignition switch

ON)

Low tire pressure warning lamp

Cause

Action

SEIA0598E

SEIA0788E

WT-32

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000012201859

The low tire pressure warning lamp does not illuminate when the ignition switch is turned ON.

NOTE:

The low tire pressure warning lamp illuminates for approximately 1 second and then turns OFF when the igni-

tion switch is turned ON. This is to check that no abnormal condition is present in the tire pressure monitoring

system.

The lamp bulb may be burnt out or the tire pressure monitoring system may be malfunctioning if the low tire

pressure warning lamp does not illuminate when the ignition switch is turned ON.

Diagnosis Procedure

INFOID:0000000012201860

1.

CHECK LOW TIRE PRESSURE WARNING LAMP SIGNAL

With CONSULT

1. Turn the ignition switch ON.

CAUTION:

Never start the engine.

2. Select “ACTIVE TEST” in “AIR PRESSURE MONITOR” of “BCM”.

3. Touch “WARNING LAMP” to turn ON the low tire pressure warning lamp.
When “ACTIVE TEST” is performed, does the low tire pressure warning lamp in the combination meter turn

ON?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK LOW TIRE PRESSURE WARNING LAMP OPERATION

Check that the low tire pressure warning lamp is turned OFF after turns ON for approximately 1 second, when

the ignition switch is turned ON.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace the BCM. Refer to

BCS-94, "Removal and Installation"

.

3.

CHECK COMBINATION METER POWER SUPPLY CIRCUIT

Perform the trouble diagnosis for combination meter power supply circuit. Refer to

MWI-53, "COMBINATION

METER : Diagnosis Procedure"

.

Is the inspection result normal?

YES-1 >> INSPECTION END

NO

>> Repair or replace error-detected parts.

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN OFF

WT-33

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN OFF

Description

INFOID:0000000012201861

The low tire pressure warning lamp does not turn OFF after several seconds is passed after engine starts.

Diagnosis Procedure

INFOID:0000000012201862

1.

CHECK TIRE PRESSURE

1. Turn the ignition switch ON.

CAUTION:

Never start the engine.

2. Check the tire pressure for all wheels and adjust to the specified value. Refer to

WT-47, "Tire Air Pres-

sure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Inspect or repair the tires or wheels.

2.

CHECK LOW TIRE PRESSURE WARNING LAMP

Check low tire pressure warning lamp display.
Does not low tire pressure warning lamp turn OFF?

YES

>> GO TO 3.

NO

>> INSPECTION END

3.

CHECK BCM

With CONSULT

Perform “SELF-DIAG RESULTS” in “AIR PRESSURE MONITOR” of “BCM”.
Is any DTC detected?

YES

>> Check the DTC. Refer to

BCS-62, "DTC Index"

.

NO

>> GO TO 4.

4.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis for power supply and ground circuit. Refer to

BCS-87, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

WT-34

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP BLINKS

LOW TIRE PRESSURE WARNING LAMP BLINKS

Description

INFOID:0000000012201863

The low tire pressure warning lamp blinks when the ignition switch is turned ON.

NOTE:

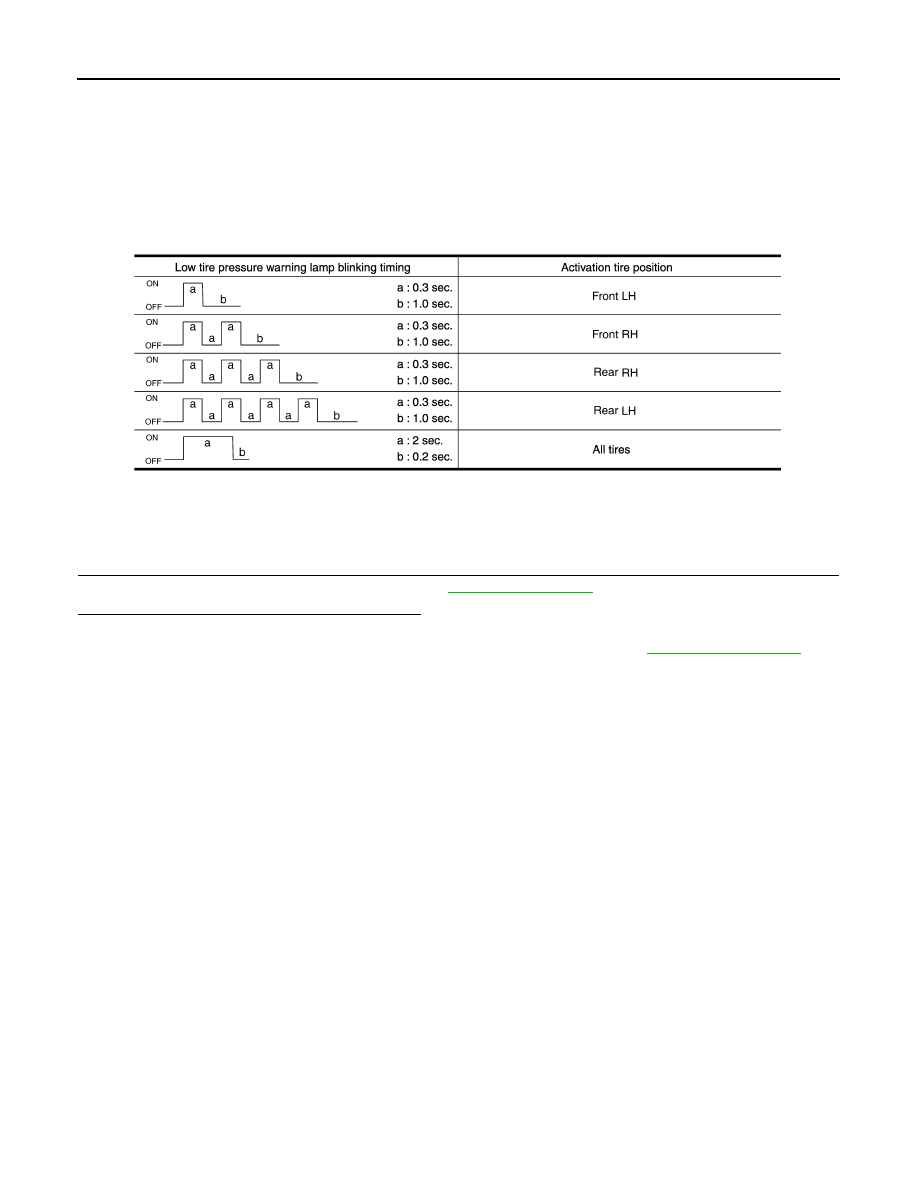

The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire

pressure warning lamp.

Diagnosis Procedure

INFOID:0000000012201864

1.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to

WT-20, "Description"

.

Is tire pressure sensor ID registration completed?

YES

>> INSPECTION END

NO

>> Perform the self-diagnosis for “AIR PRESSURE MONITOR”. Refer to

BCS-62, "DTC Index"

.
