C1716, C1717, C1718, C1719 TIRE PRESSURE SENSOR

WT-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

YES

>> Replace tire pressure sensor the tire pressure as 438.60 kPa (4.47 kg/cm

2

, 63.60 psi) displayed.

Refer to

WT-41, "Removal and Installation"

.

NO

>> Perform “DTC CONFIRMATION PROCEDURE” (self-diagnosis) again. Refer to

WT-26, "DTC

Logic"

.

WT-28

< DTC/CIRCUIT DIAGNOSIS >

C1729 VEHICLE SPEED SIGNAL

C1729 VEHICLE SPEED SIGNAL

DTC Logic

INFOID:0000000012201855

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

With CONSULT

1. Drive the vehicle.

2. Stop the vehicle.

3. Perform self-diagnosis in “AIR PRESSURE MONITOR” of “BCM”.
Is DTC “C1729” detected?

YES

>> Proceed to

WT-28, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012201856

1.

PERFORM ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “ABS”.
Is any DTCs detected?

YES

>> Check the DTCs.

NO

>> GO TO 2.

2.

CHECK BCM INPUT/OUTPUT SIGNAL

Check BCM input/output signal values. Refer to

BCS-39, "Reference Value"

.

Is the inspection result normal?

YES

>> Check pin terminal and connection of each harness connector for malfunctioning conditions.

NO

>> Replace the BCM. Refer to

BCS-94, "Removal and Installation"

.

DTC

Display Item

Malfunction detected condition

Possible causes

C1729

VHCL SPEED SIG ERR

Vehicle speed signal not detected.

• CAN communication
• BCM
• ABS actuator and electric unit (control unit) malfunction

POWER SUPPLY AND GROUND CIRCUIT

WT-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000012201857

1.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Check BCM power supply and ground. Refer to

BCS-87, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

WT-30

< SYMPTOM DIAGNOSIS >

TPMS

SYMPTOM DIAGNOSIS

TPMS

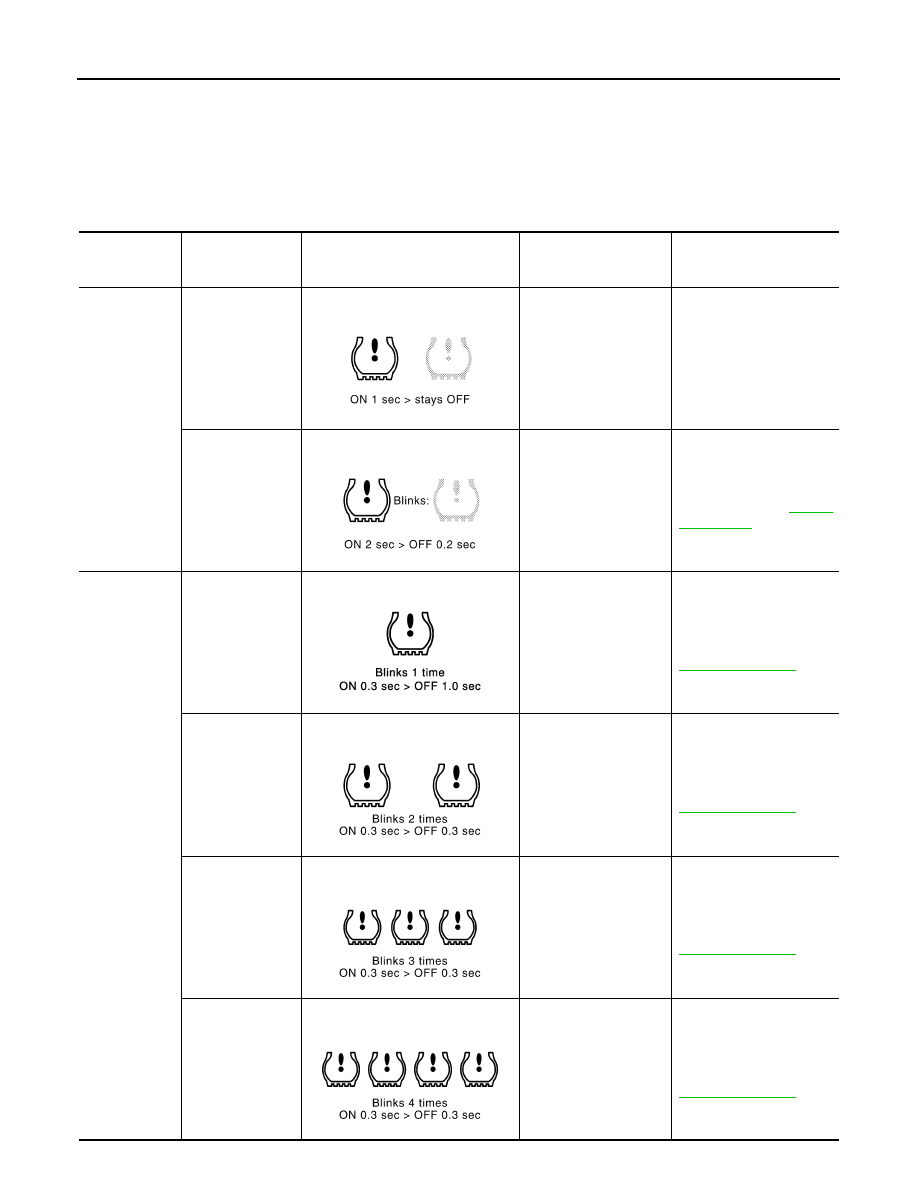

Symptom Table

INFOID:0000000012201858

LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

Diagnosis items

Symptom

(Ignition switch

ON)

Low tire pressure warning lamp

Cause

Action

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
illuminates for 1
second, then turns
OFF.

Wake-up operation for all
tire pressure sensors at
wheels is completed.

No system malfunctions

The low tire pres-
sure warning lamp
repeats blinking
ON for 2 seconds
and OFF for 0.2
seconds.

Wake-up operation for all
tire pressure sensors at
wheels is not completed.

Perform the ID registration
for all tire pressure sensors
at wheels. Refer to

WT-20,

"Description"

.

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
blinks once.

The front left tire pres-
sure sensor is not acti-
vated.

Perform the ID registration
for the tire pressure sensor
at front left wheel. Refer to

WT-20, "Description"

.

The low tire pres-
sure warning lamp
repeats blinking
twice.

The front right tire pres-
sure sensor is not acti-
vated.

Perform the ID registration
for the tire pressure sensor
at front right wheel. Refer to

WT-20, "Description"

.

The low tire pres-
sure warning lamp
repeats blinking for
3 times.

The rear right tire pres-
sure sensor is not acti-
vated.

Perform the ID registration
for the tire pressure sensor
at rear right wheel. Refer to

WT-20, "Description"

.

The low tire pres-
sure warning lamp
repeats blinking for
4 times.

The rear left tire pressure
sensor is not activated.

Perform the ID registration
for the tire pressure sensor
at rear left wheel. Refer to

WT-20, "Description"

.

SEIA0592E

SEIA0593E

JPEIC0090GB

SEIA0595E

SEIA0596E

SEIA0597E
