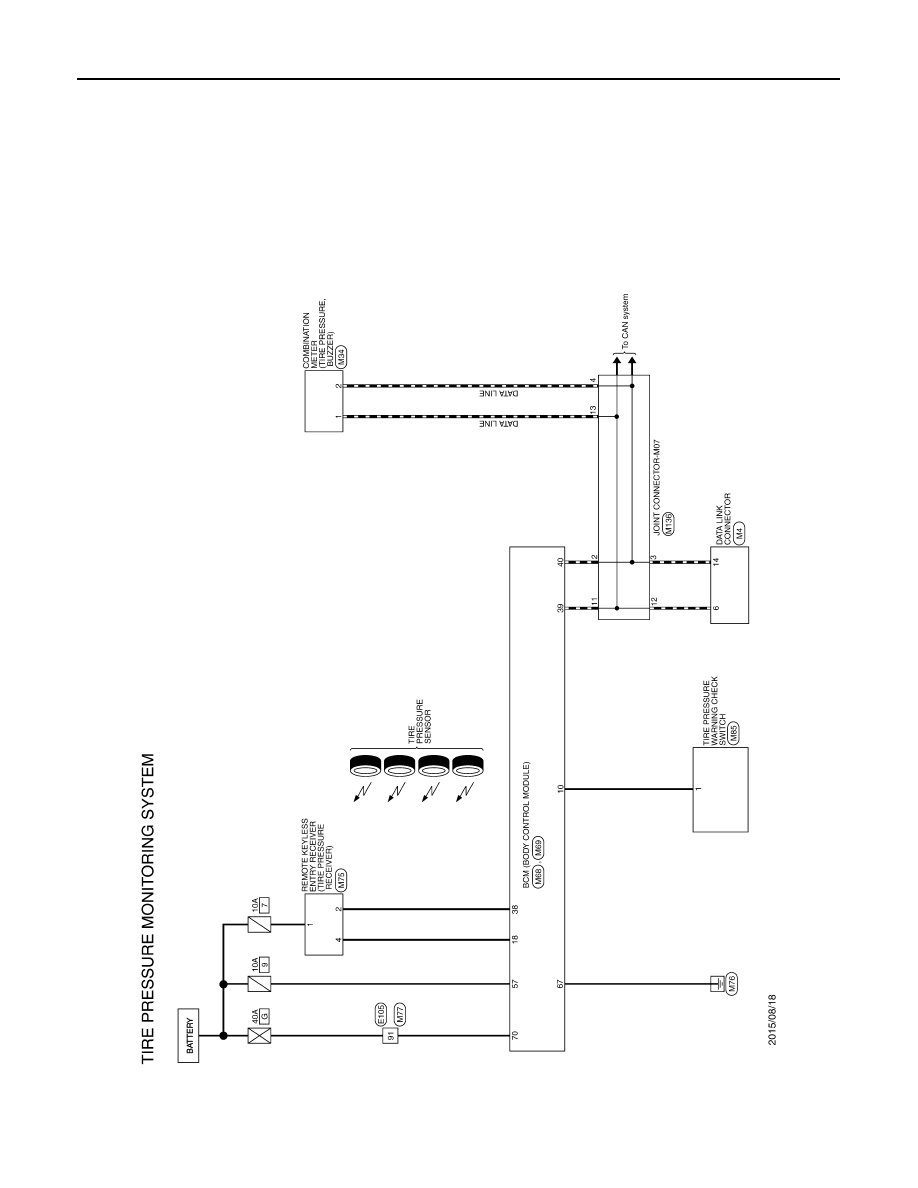

DIAGNOSIS SYSTEM (BCM)
WT-11
< SYSTEM DESCRIPTION >
C
D
F
G
H
I
J
K
L
M
A
B
WT
N
O
P
SELF DIAGNOSTIC RESULT
DATA MONITOR MODE
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.
ACTIVE TEST MODE
NOTE:
After completing the work below, perform an active test.
1. Check ID registration state and perform self-diagnosis.
2. Erase the self-diagnosis result history.
WORK SUPPORT
Diagnosis mode
Function Description
Self Diagnostic Result
Displays the diagnosis results judged by BCM.
Data Monitor
The BCM input/output signals are displayed.
Active Test
The signals used to activate each device are forcibly supplied from BCM.
Work Support
Components can be quickly and accurately adjusted.
Monitor item (Unit)
Remarks
AIR PRESS FL
(kPa, kg/cm2 or Psi)
Tire pressure
AIR PRESS FR
(kPa, kg/cm2 or Psi)
AIR PRESS RR
(kPa, kg/cm2 or Psi)
AIR PRESS RL
(kPa, kg/cm2 or Psi)
ID REGST FL1
(Yet, Done)
Registration ID
ID REGST FR1
(Yet, Done)
ID REGST RR1
(Yet, Done)
ID REGST RL1
(Yet, Done)
WARNING LAMP
(On/Off)
Low tire pressure warning lamp
BUZZER
(On/Off)
NOTE:
This item is displayed, but cannot be use this item.
Item
Description
WARNING LAMP
Low tire pressure warning lamp can be turned ON arbitrarily.
ID REGIST WARNING
NOTE:
Displayed but not used in TPMS.
RUN FLAT TIRE W/L
NOTE:
Displayed but not used in TPMS.
RUN FLAT/T WARN BUZZER
NOTE:
Displayed but not used in TPMS.
FLASHER
Turn signal lamps can be turned ON arbitrarily.
HORN
This test is able to check to check that the horn sounds.
