COMPONENT PARTS

WT-7

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BCM

INFOID:0000000012201835

The BCM reads the air pressure signal received by the tire pressure receiver, and controls the low tire pres-

sure warning lamp operation. It also has a judgment function to detect a system malfunction.

Tire Pressure Sensor

INFOID:0000000012201836

The tire pressure sensor integrated with a valve is installed on a wheel, and transmits a detected air pressure

signal by radio wave.

Tire Pressure Receiver

INFOID:0000000012201837

• The tire pressure receiver is incorporated into remote keyless entry receiver.

• The tire pressure receiver receives the air pressure signal transmitted by the tire pressure sensor in each

wheel.

Information Display

INFOID:0000000012201838

The vehicle information display is shown when a low tire pressure warning lamp signal is transmitted from

BCM to combination meter via CAN communication.

Condition

Vehicle information display

Ignition switch OFF

Not indicated

Ignition switch ON

Low tire pressure warning lamp remains ON after blinking for one
minute. [Tire Pressure Monitoring System (TPMS) malfunction.]

Not indicated

Ignition switch ON

Low tire pressure warning lamp remains ON. (low tire pressure)

Indicated

WT-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000012201839

• During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from tire pres-

sure sensor installed in each wheel. The BCM (Body Control Module) of this system has pressure judgment

and trouble diagnosis functions. When the tire pressure monitoring system detects low inflation pressure or

another unusual symptom, the low tire pressure warning lamps in the combination meter comes on.

• If the tire pressure is less than the specified value, the low tire pressure warning lamp illuminates that the tire

pressure is less than the specified value.

• Activates the TPMS (Tire Pressure Monitoring System) when the vehicle speed is 40 km/h (25 MPH) or

more.

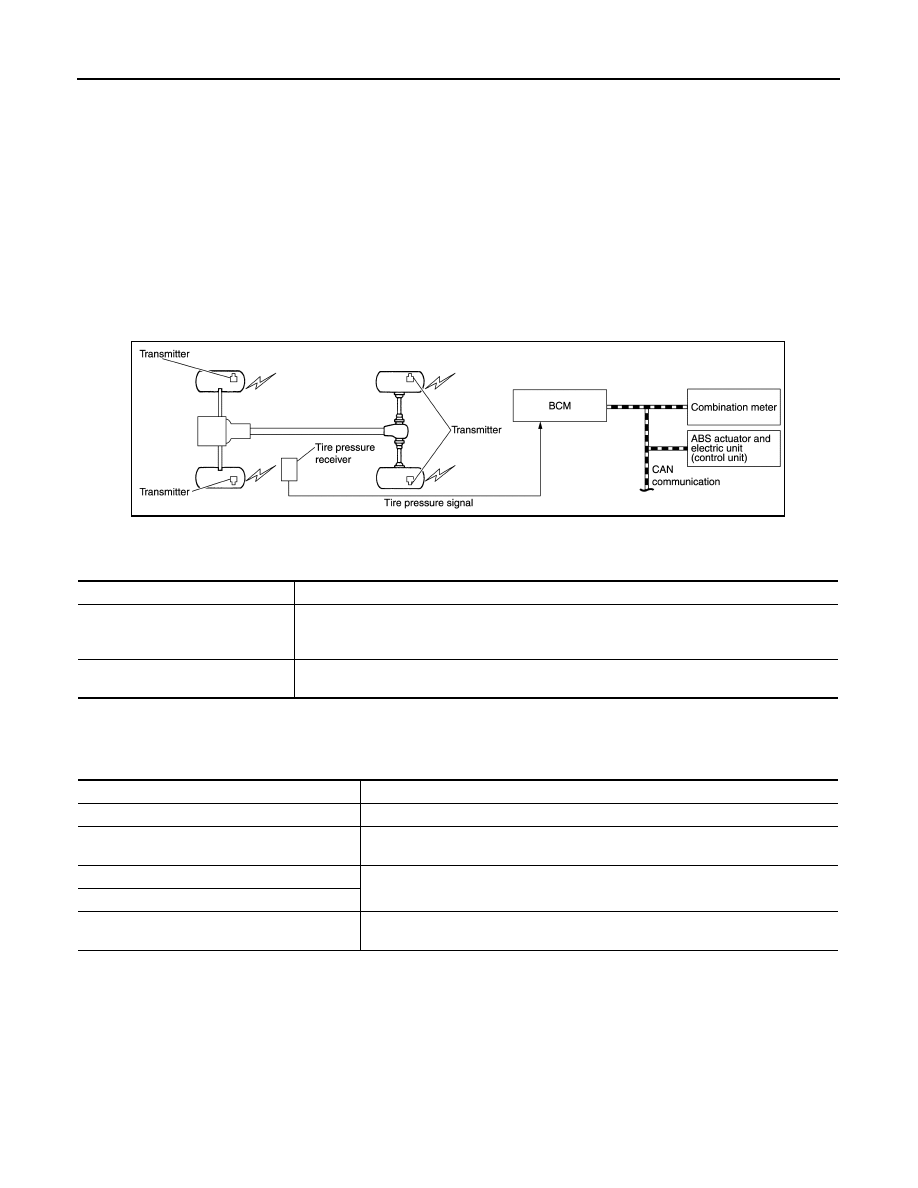

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

LOW TIRE PRESSURE WARNING LAMP INDICATION CONDITION

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination

meter.

JSEIA0323GB

Component parts

Signal item

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• TPMS malfunction warning lamp signal

ABS actuator and electric unit (con-
trol unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal (ABS)

Condition

Low tire pressure warning lamp

Ignition switch OFF

OFF

Ignition switch ON
(system normal)

Warning lamp turns on for 1second, then turns off.

Low tire pressure

ON

Tire pressure sensor ID not registered in BCM

Tire pressure monitoring system malfunction
(Other diagnostic item)

Warning lamp blinks 1 min, then turns on.

DIAGNOSIS SYSTEM (BCM)

WT-9

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000013002476

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

×: Applicable item

NOTE:
*: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on

CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioning system

AIR CONDITONER

×

×*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

Theft warning alarm

THEFT ALM

×

×

×

RAP

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

WT-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

NOTE:
*: Power position shifts to “LOCK” from “OFF”, when ignition switch is in the OFF position, selector lever is in the P position (A/T models
and CVT models), and any of the following conditions are met.
• Closing door
• Opening door
• Door is locked using door request switch
• Door is locked using Intelligent Key
The power position shifts to “ACC” when the push-button ignition switch (push switch) is pushed at “LOCK”.

AIR PRESSURE MONITOR
AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRESSURE MONI-
TOR)

INFOID:0000000012201841

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power position is “LOCK”*.)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power position is “OFF”.)

LOCK>ACC

While turning power position from “LOCK”* *to “ACC”

ACC>ON

While turning power position from “ACC” to “IGN”

RUN>ACC

While turning power position from “RUN” to “ACC” (Vehicle is
stopping and selector lever is except P position.)

CRANK>RUN

While turning power position from “CRANKING” to “RUN” (From
cranking up the engine to run it)

RUN>URGENT

While turning power position from “RUN“ to “ACC” (Emergency
stop operation)

ACC>OFF

While turning power position from “ACC” to “OFF”

OFF>LOCK

While turning power position from “OFF” to “LOCK”*

OFF>ACC

While turning power position from “OFF” to “ACC”

ON>CRANK

While turning power position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power position is
“OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power position is
“LOCK”*.) to low power consumption mode

LOCK

Power position is “LOCK”*

OFF

Power position is “OFF” (Ignition switch OFF)

ACC

Power position is “ACC” (Ignition switch ACC)

ON

Power position is “IGN” (Ignition switch ON with engine stopped)

ENGINE RUN

Power position is “RUN” (Ignition switch ON with engine running)

CRANKING

Power position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition

whenever ignition switch OFF

→ ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
