< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

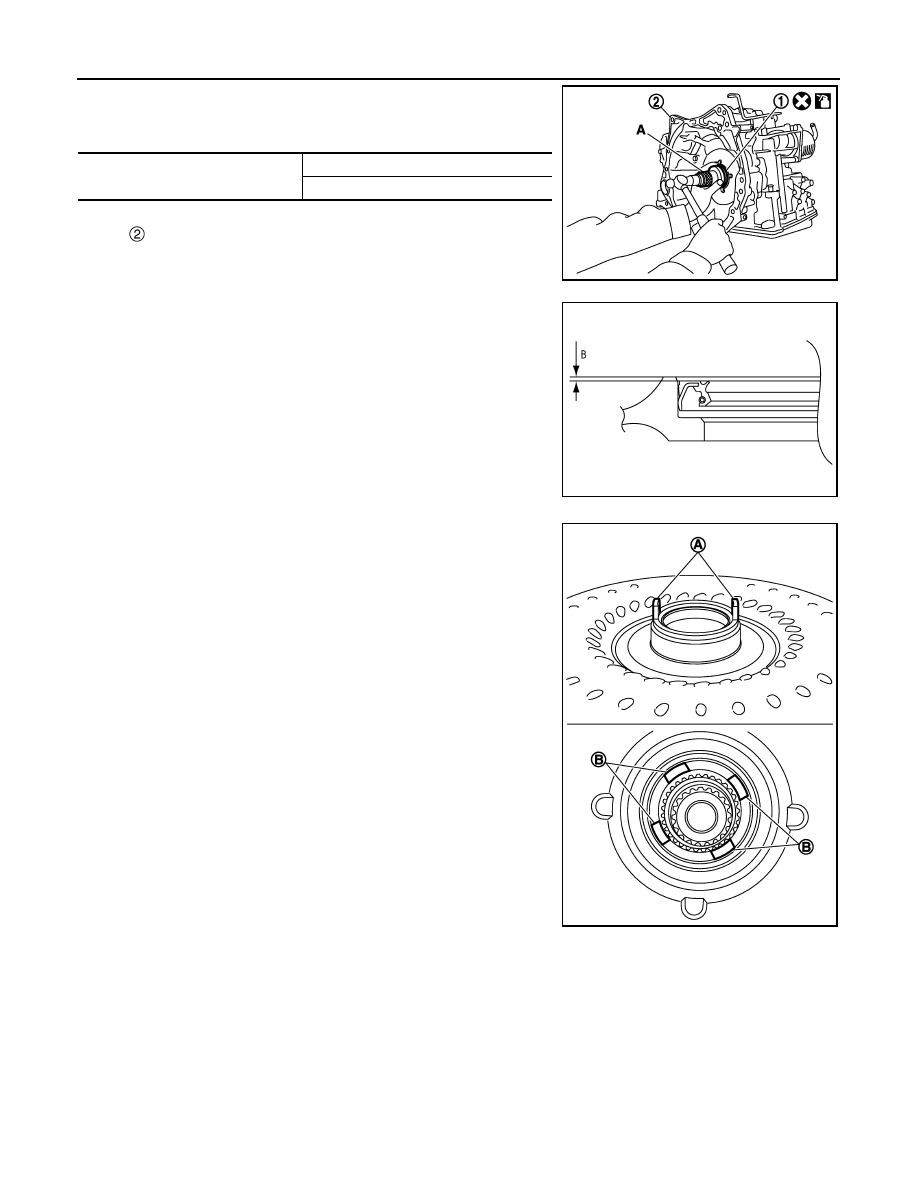

• Drive converter housing oil seal (1) evenly using a drift (A) (com-

mercial service tool) so that converter housing oil seal protrudes by

the dimension (B) respectively.

Unit: mm (in)

NOTE:

Converter housing oil seal pulling direction is used as the refer-

ence.

• Attach the pawl (A) of the torque converter to the drive sprocket

hole (B) on the transaxle assembly side.

CAUTION:

• Rotate the torque converter for installing torque converter.

• Never damage the bushing inside the torque converter

sleeve when installing the converter housing oil seal.

Inspection

INFOID:0000000012201285

INSPECTION AFTER INSTALLATION

Commercial service tool: (A)

Outer diameter: 65 (2.56)

Inner diameter: 60 (2.36)

: Transaxle assembly

SCIA7908J

Dimension (B)

: 1.0

± 0.5 mm (0.039 ± 0.020 in)

SCIA7909J

SCIA7907J

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-583

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

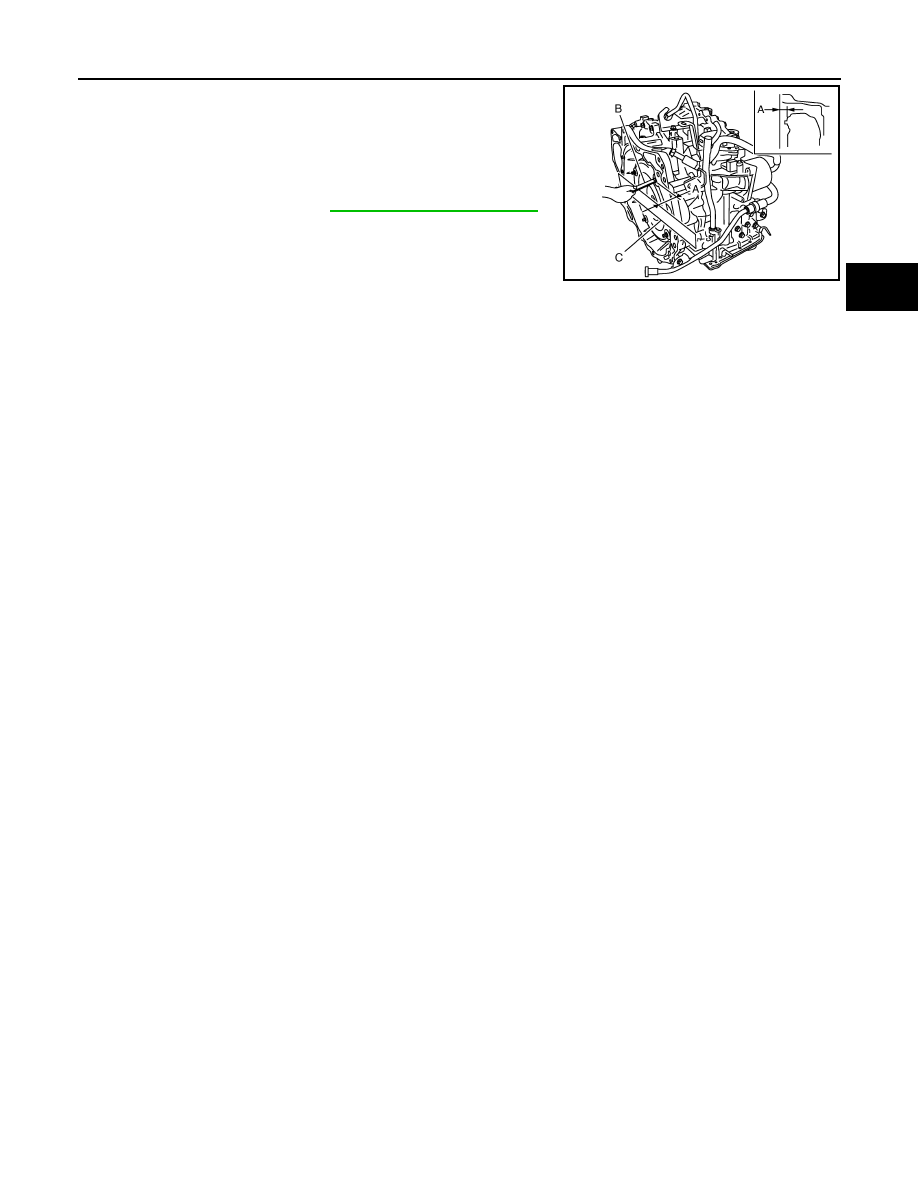

• After inserting a torque converter to the CVT, check dimension (A)

with in the reference value limit.

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-584, "Torque Converter"

.

JPDIA0115ZZ

TM-584

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F10D]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000012201286

Shift Characteristics

INFOID:0000000012201287

Unit: rpm

NOTE:

Lock-up is engaged at the vehicle speed of approximately 18 km/h (11 MPH) to 130 km/h (81 MPH).

Stall Speed

INFOID:0000000012201288

Unit: rpm

Torque Converter

INFOID:0000000012201289

Unit: mm (in)

Applied model

Engine

MR16DDT

Axle

2WD/AWD

Transaxle model

RE0F10D

Transaxle gear ratio

D position

2.631 – 0.378

R position

1.960

Final drive

5.694

Recommended fluid and fluid capacity

MA-11, "Fluids and Lubricants"

 Throttle position

Shift pattern

CVT input speed

At 40 km/h (25 MPH)

At 60 km/h (37 MPH)

2/8

“D” position

1,500 – 3,200

1,600 – 3,500

ECO mode

1,500 – 3,200

1,600 – 3,500

8/8

“D” position

4,000 – 4,800

4,600 – 5,400

ECO mode

4,000 – 4,800

4,600 – 5,400

Stall speed

2,600 – 3,040

Dimension “A” between the converter housing and torque converter

14.4 (0.567)
