< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

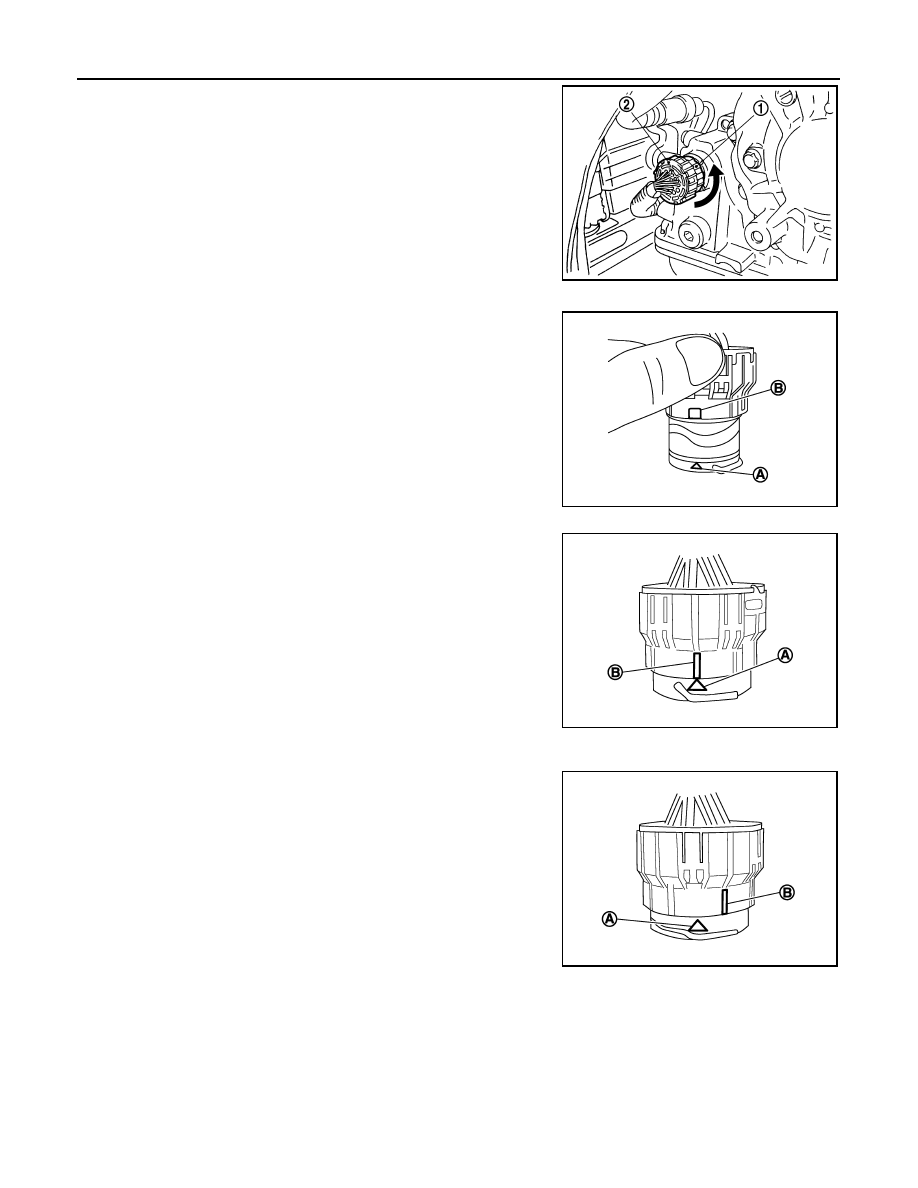

• Rotate bayonet ring (1) counterclockwise. Pull out CVT unit har-

ness connector (2) upward and remove it.

INSTALLATION

1. Align marking (A) on CVT unit harness connector terminal with

marking (B) on bayonet ring. Insert CVT unit harness connector.

2. Rotate bayonet ring clockwise.

3. Rotate bayonet ring clockwise until marking (A) on CVT unit har-

ness connector terminal body is aligned with the slit (B) on bayo-

net ring as shown in the figure (correctly fitting condition).

CAUTION:

• Securely align marking (A) on CVT unit harness connec-

tor terminal body with bayonet ring slit (B). Then, be care-

ful not to make a half fit condition as shown in the figure.

• Never mistake the slit of bayonet ring for other dent por-

tion.

SCIA6685J

JPDIA0294ZZ

JPDIA0295ZZ

JPDIA0296ZZ

PREPARATION

TM-359

< PREPARATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

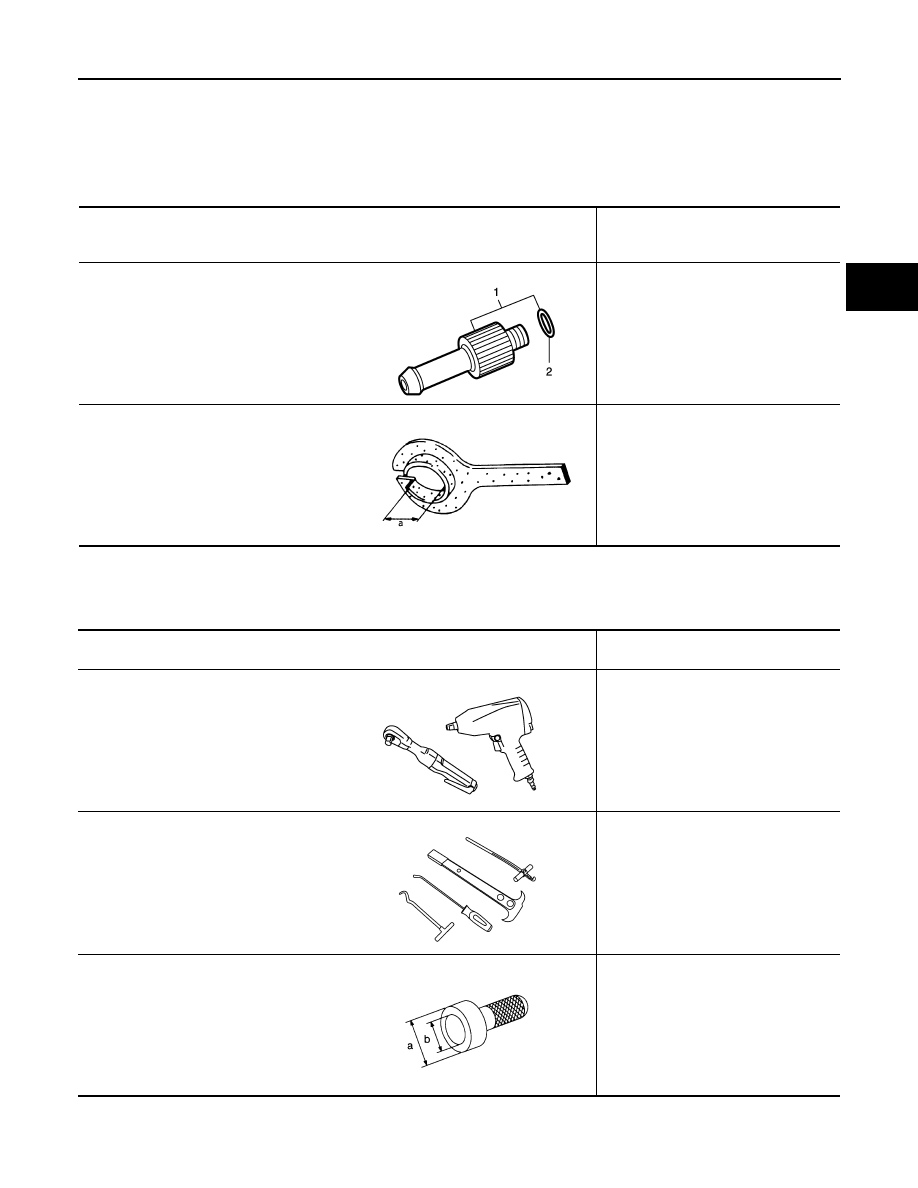

Special Service Tools

INFOID:0000000012201067

The actual shape of the tools may differ from those illustrated here.

*: The O-ring as a unit part is set as a SST.

Commercial Service Tools

INFOID:0000000012201068

Tool number
(TechMate No.)
Tool name

Description

1.

KV311039S0
(

—

)

Charging pipe set

2.

KV31103920*
(

—

)

O-ring

CVT fluid changing and adjustment

KV38107900
(

—

)

Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

JSDIA1844ZZ

PDIA1183J

Tool number
Tool name

Description

Power tool

Loosening nuts and bolts

Oil seal remover

Removing each oil seal

Drift
a: 53 mm (2.09 in) dia.
b: 50 mm (1.97 in) dia.

Installing differential side oil seal [tran-
saxle case side, and converter housing
side (2WD models)]

PBIC0190E

JSDIA4998ZZ

NT115

TM-360

< PREPARATION >

[CVT: RE0F10D]

PREPARATION

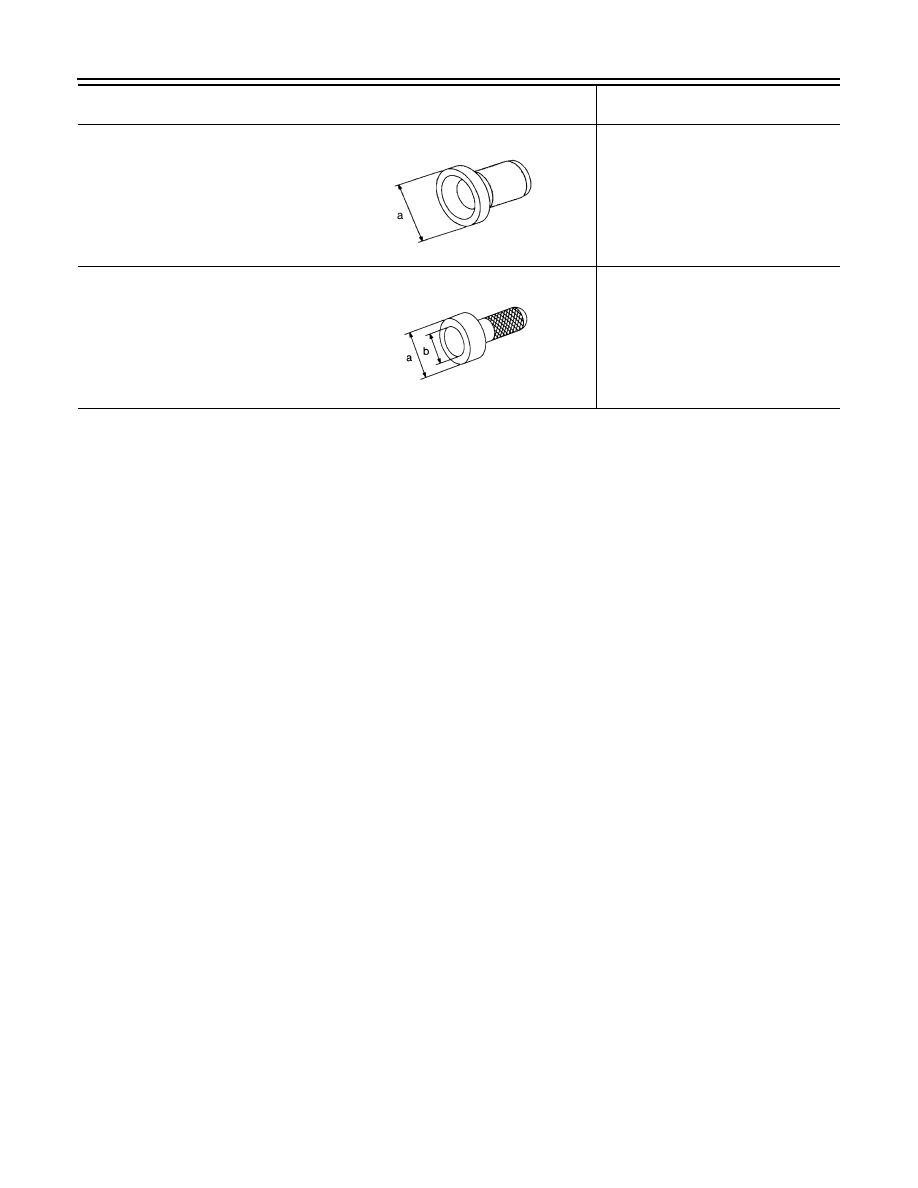

Drift
a: 60 mm (2.36 in) dia.

Installing differential side oil seal [con-
verter housing side (AWD models)]

Drift
a: 65 mm (2.56 in) dia.
b: 60 mm (2.36 in) dia.

Installing converter housing oil seal

Tool number
Tool name

Description

SCIA5338E

NT115

COMPONENT PARTS

TM-361

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM
CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000012201069

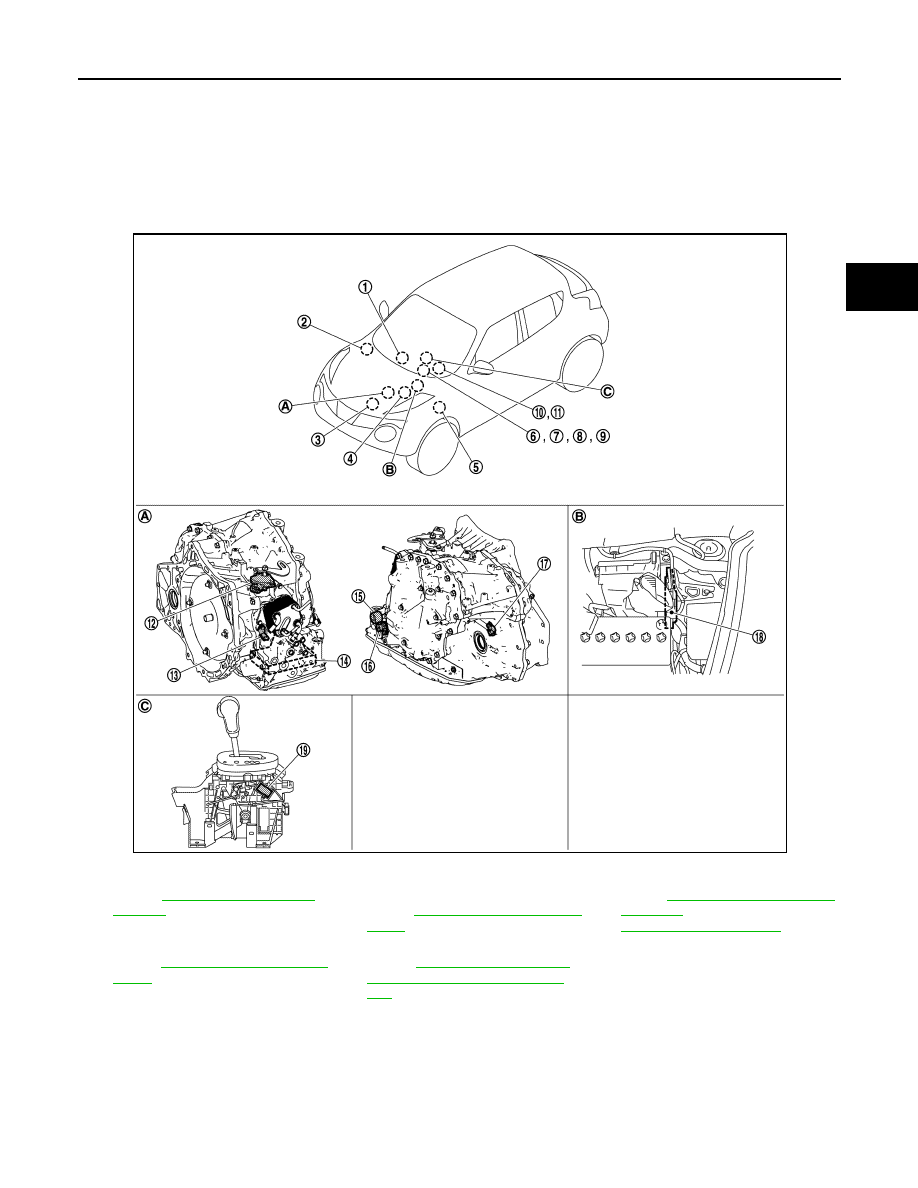

JSDIA7184GB

1.

Multi display unit (MDU)
Refer to

DMS-4, "Component Parts

Location"

.

2.

ABS actuator and electric unit (control
unit)
Refer to

BRC-9, "Component Parts Lo-

cation"

.

3.

ECM
Refer to

EC-600, "ENGINE CONTROL

SYSTEM :
Component Parts Location"

.

4.

IPDM E/R
Refer to

PCS-5, "Component Parts Lo-

cation"

.

5.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

6.

Combination meter

7.

Manual mode indicator
(On the combination meter)

8.

Shift position indicator
(On the combination meter)

9.

CVT indicator
(On the combination meter)

10. Paddle shifter (shift-down switch)

11. Paddle shifter (shift-up switch)

12. Transmission range sensor

13. Input speed sensor

14. Control valve

15. CVT unit connector

16. Primary speed sensor

17. Output speed sensor

18. TCM

19. Manual mode switch
A.

Transaxle assembly

B.

Engine room

C.

CVT shift selector assembly
