TM-318

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

CVT SHIFT SELECTOR

• The key can be removed only when the selector lever is in the “P” position. (With key interlock)

• It must not be possible to turn the ignition switch to LOCK when the selector lever is not in the “P” position.

(With key interlock)

CONTROL CABLE

TM-319

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL CABLE

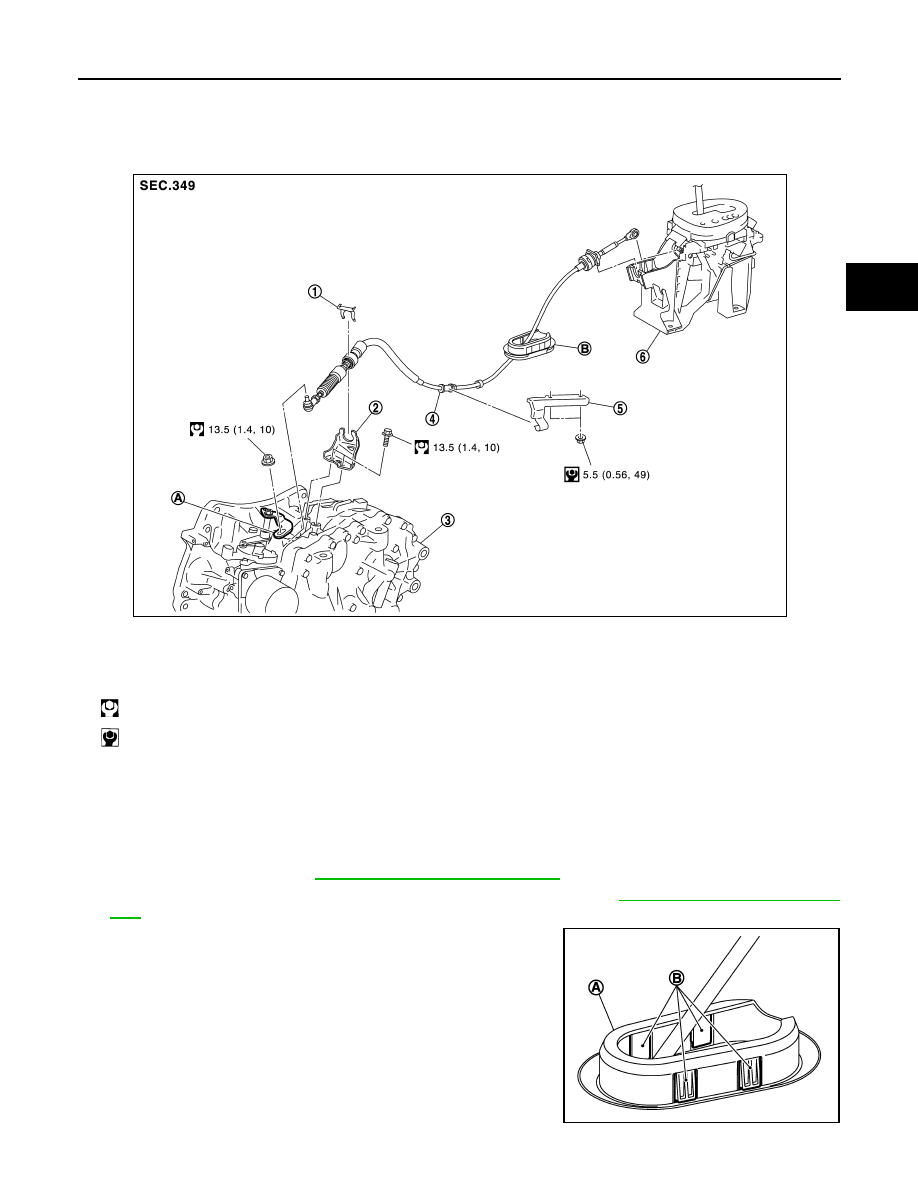

Exploded View

INFOID:0000000012201013

Removal and Installation

INFOID:0000000012201014

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove the control cable from the CVT shift selector assembly. Refer to

TM-316, "Removal and Installa-

tion"

.

3. Disengage the pawls (B) of the grommet (A), and pull down-

wards to remove.

4. Remove the control cable installation nut from the manual lever.

1.

Lock plate

2.

Bracket A

3.

Transaxle assembly

4.

Control cable

5.

Bracket B

6.

CVT shift selector assembly

A: Manual lever

B: Grommet

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSDIA2353GB

JSDIA1809ZZ

TM-320

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

CONTROL CABLE

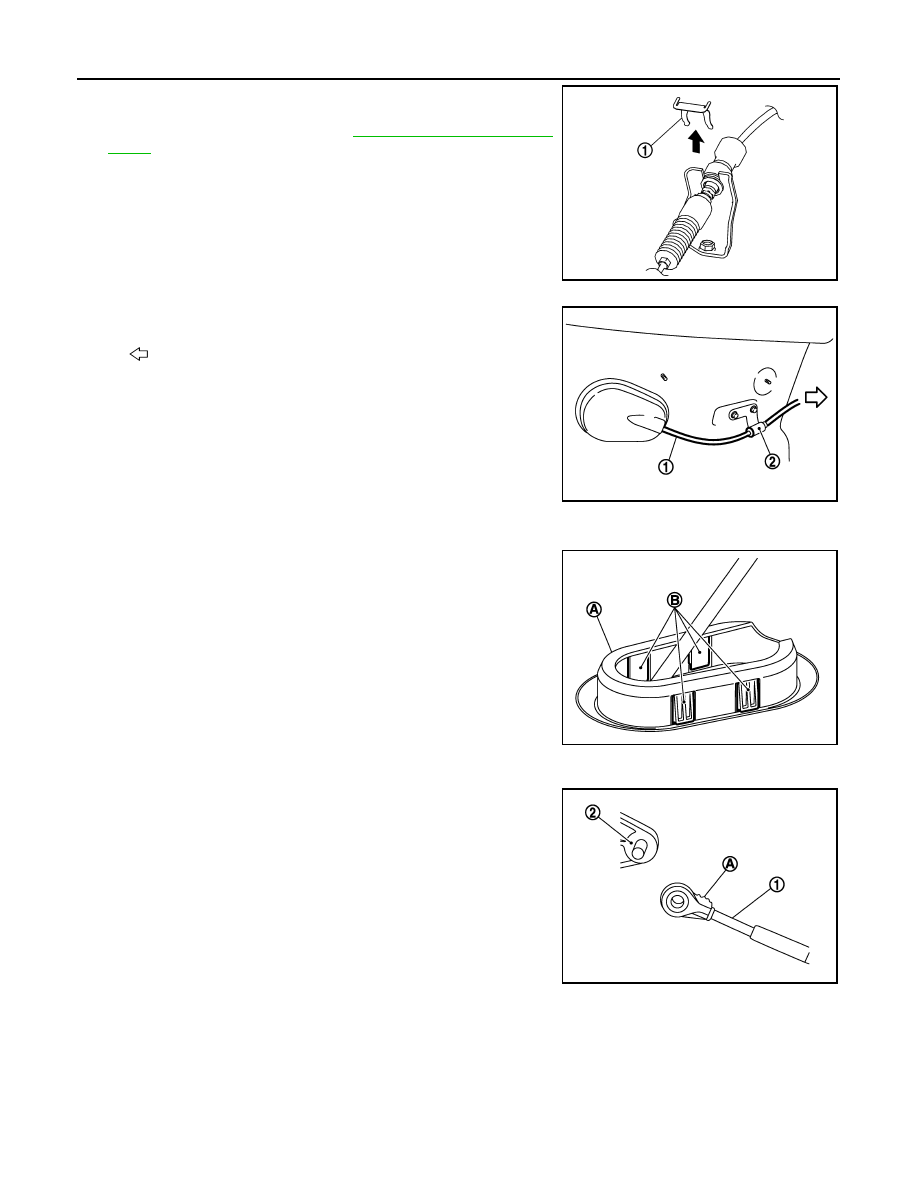

5. Remove the lock plate (1).
6. Remove center muffler from the mounting rubber and lower the

center muffler downward. Refer to

EX-10, "Removal and Instal-

lation"

.

7. Lift up the heat plate.

8. Remove the control cable (1) from the bracket (2).

9. Remove the control cable from the vehicle.
10. Remove bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.

• From below the vehicle, press the grommet (A) into place until the

pawls (B) make a click sound.

CAUTION:

• Place the grommet on the floor, then fasten it in place from

below the vehicle.

• Check that pulling down on the grommet does not discon-

nect it.

• Pay attention to the following when connecting the control cable to the CVT shift selector.

1. When connecting the control cable (1) to the CVT shift selector

assembly (2), face the grooved surface of the rib (A) up and

insert the control cable until it stops.

JSDIA2643ZZ

:Vehicle front

JPDIA0107ZZ

JSDIA1809ZZ

JSDIA1624ZZ

CONTROL CABLE

TM-321

< REMOVAL AND INSTALLATION >

[CVT: RE0F10B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

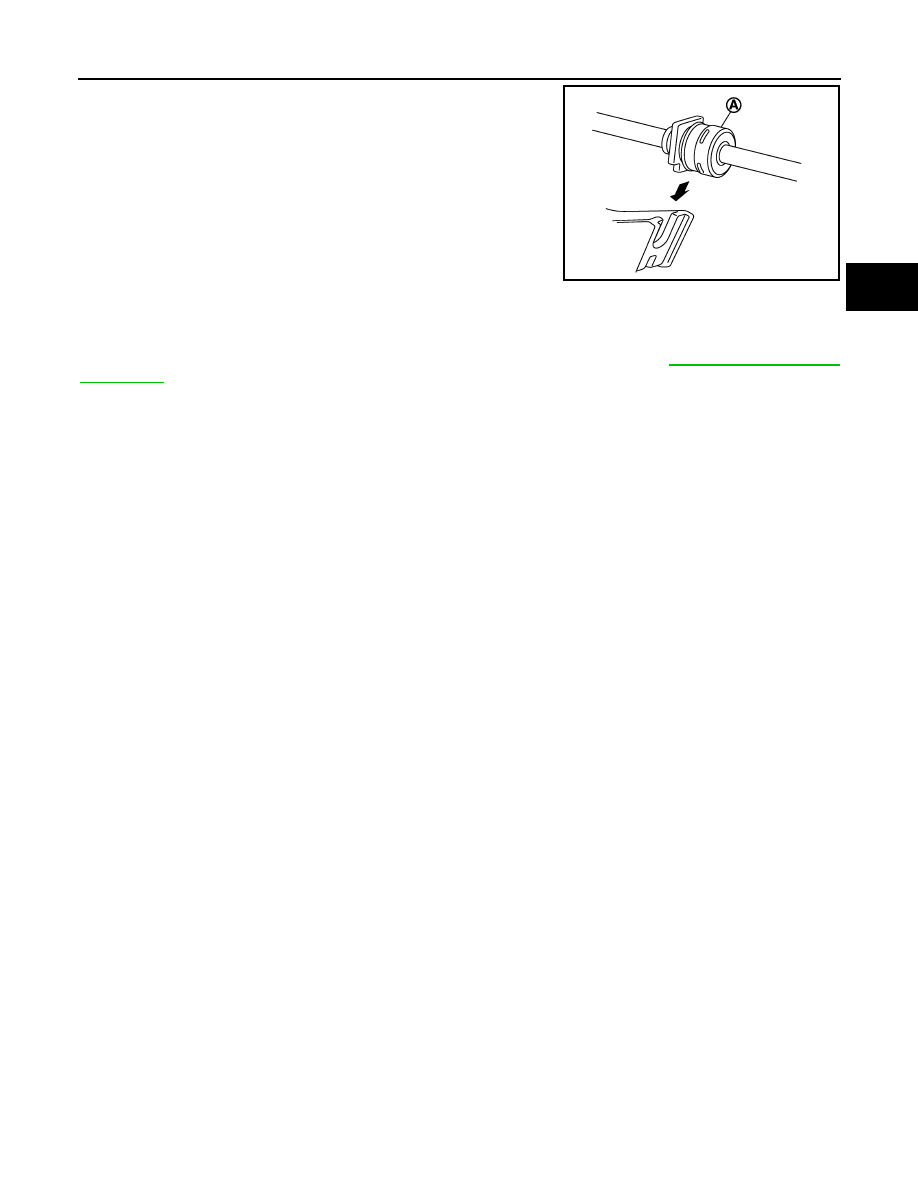

2. Install the socket (A) onto the CVT shift selector.

CAUTION:

• Place the socket onto the CVT shift lever, then fasten it in

place from above.

• Check that the pulling on the socket does not disconnect

it.

Inspection

INFOID:0000000012201015

INSPECTION AFTER INSTALLATION

 Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-233, "Inspection and

Adjustment"

.
