Nissan Juke F15. Manual - part 1209





TM-26

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

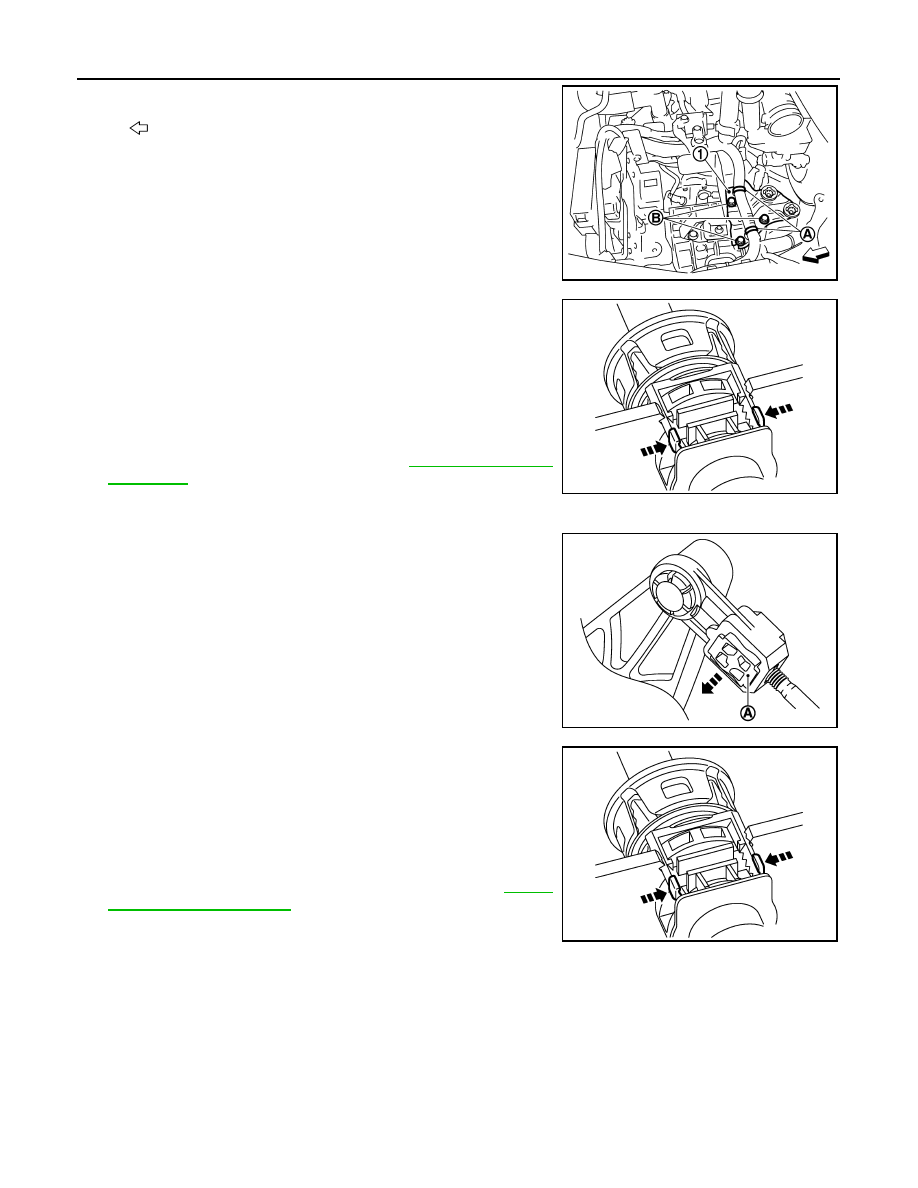

3. Remove bracket (1), as per the following procedure.

a. Disconnect clips (A) from bracket.
b. Remove bolts (B) from bracket.
c.

Remove bracket.

4. Pull out and disconnect the each cable from the shifter lever A

and the selector lever, using a suitable remover.

5. While pressing the lock of the selector cable in the direction of

the arrow shown in the figure, remove the selector cable from

the cable mounting bracket.

6. While pressing the lock of the shifter cable in the direction of the

arrow shown in the figure, remove the shifter cable from the

cable mounting bracket.

7. Remove cable mounting bracket from transaxle case.
8. Pull the shifter lever knob upward to remove.
9. Remove center console assembly. Refer to

IP-24, "Removal and

Installation"

.

10. Pull out and disconnect the shifter cable from the pin of the M/T

shift selector assembly, using a suitable remover.

11. Pull up the stopper (A) of the selector cable in the direction of

the arrow as shown in the figure.

12. Pull out and disconnect the selector cable from the pin of the M/

T shift selector assembly, using a suitable remover.

13. While pressing the lock of the selector cable in the direction of

the arrow shown in the figure, remove the selector cable from

the M/T shift selector assembly.

14. While pressing the lock of the shifter cable in the direction of the

arrow shown in the figure, remove the shifter cable from the M/T

shift selector assembly.

15. Remove the M/T shift selector assembly.
16. Remove three way catalyst and heat plate. Refer to

EX-10,

"Removal and Installation"

.

17. Remove the bracket from the vehicle.

: Vehicle front

JPDIC0845ZZ

JPDIC0793ZZ

JPDIC0833ZZ

JPDIC0793ZZ

CONTROL LINKAGE

TM-27

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

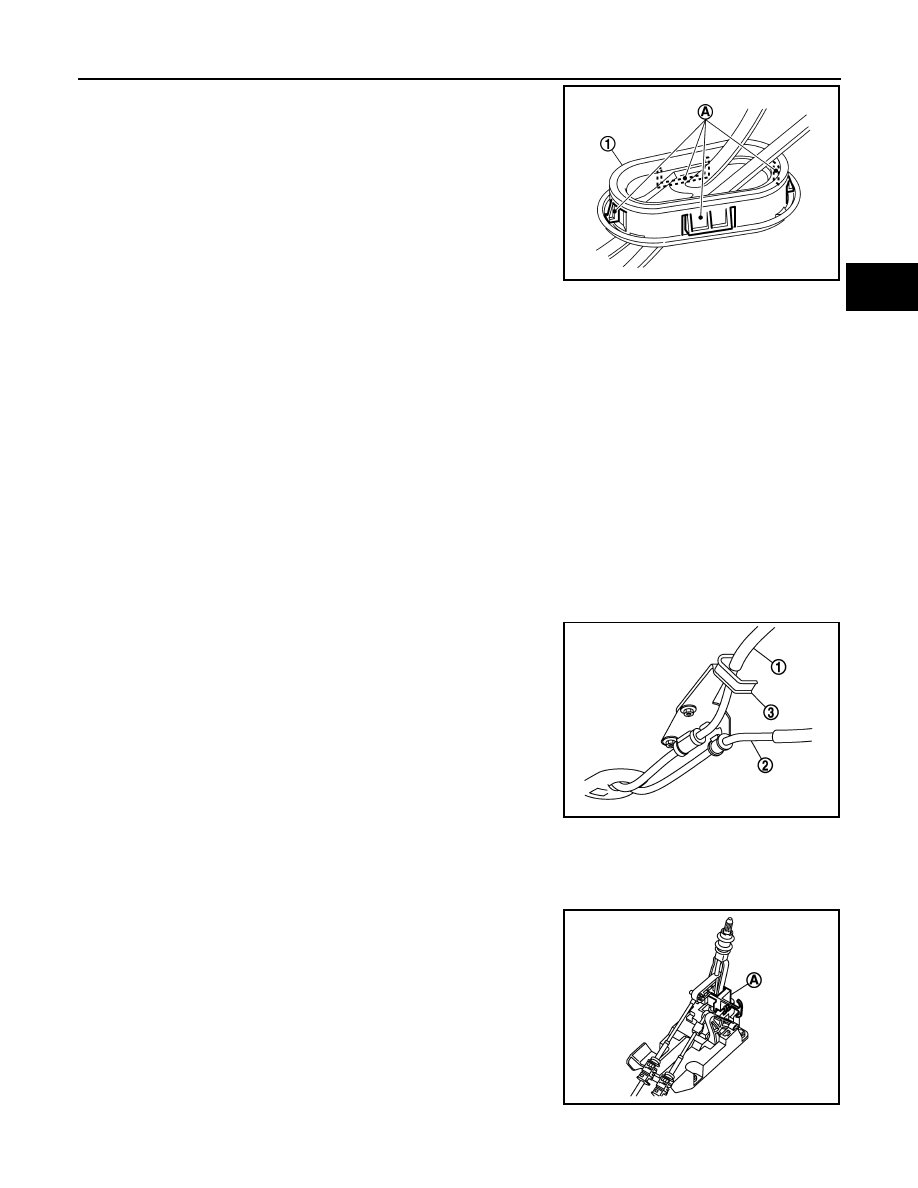

18. Disengage the pawls (A) of the grommet (1), and pull down-

wards to remove.

19. Remove the shifter cable and selector cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Install each cable without causing interference with other parts, a 120 mm (4.72 in)-or-less bend, and

a 180-degrees-or-more twist.

• Install boot of each cable without causing interference with other parts and a 90-degrees-or-more

twist.

• Fit boot of to center console assembly the groove on shifter lever knob.

• To install the shifter lever knob, press it into the shifter lever.

CAUTION:

• Never reuse shifter lever knob.

• Be careful with orientation of shifter lever knob.

• Tapping work for tapping bolts is not applied to new transaxle case. Do not perform tapping by other than

screwing tapping bolts because tapping is formed by screwing tapping bolts into transaxle case.

CAUTION:

Never reuse tapping bolt.

• Insert the each cable until it reaches the cable mounting bracket and M/T shift selector assembly.

• Insert the each cable until it reaches the shifter lever A and the selector lever.

• Shift the shifter lever to the neutral position.

• Install the shifter cable (1) and the selector cable (2) to the bracket

(3) as shown in the figure.

Install the selector cable (the M/T shift selector assembly side), as per the following procedure.

When M/T shift selector assembly is replaced:

1. Install the selector cable to the M/T shift selector assembly.

2. Shift the shifter lever to the neutral position.

3. Install the lever stopper (A) to the M/T shift selector assembly as

shown in the figure.

CAUTION:

Selector cable cannot be adjusted accurately without using

the lever stopper.

4. Check that the shifter lever does not move in the direction of the

select. If it moves, repeat step 3.

JPDIC0844ZZ

JPDIC0836ZZ

JPDIC0831ZZ

TM-28

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

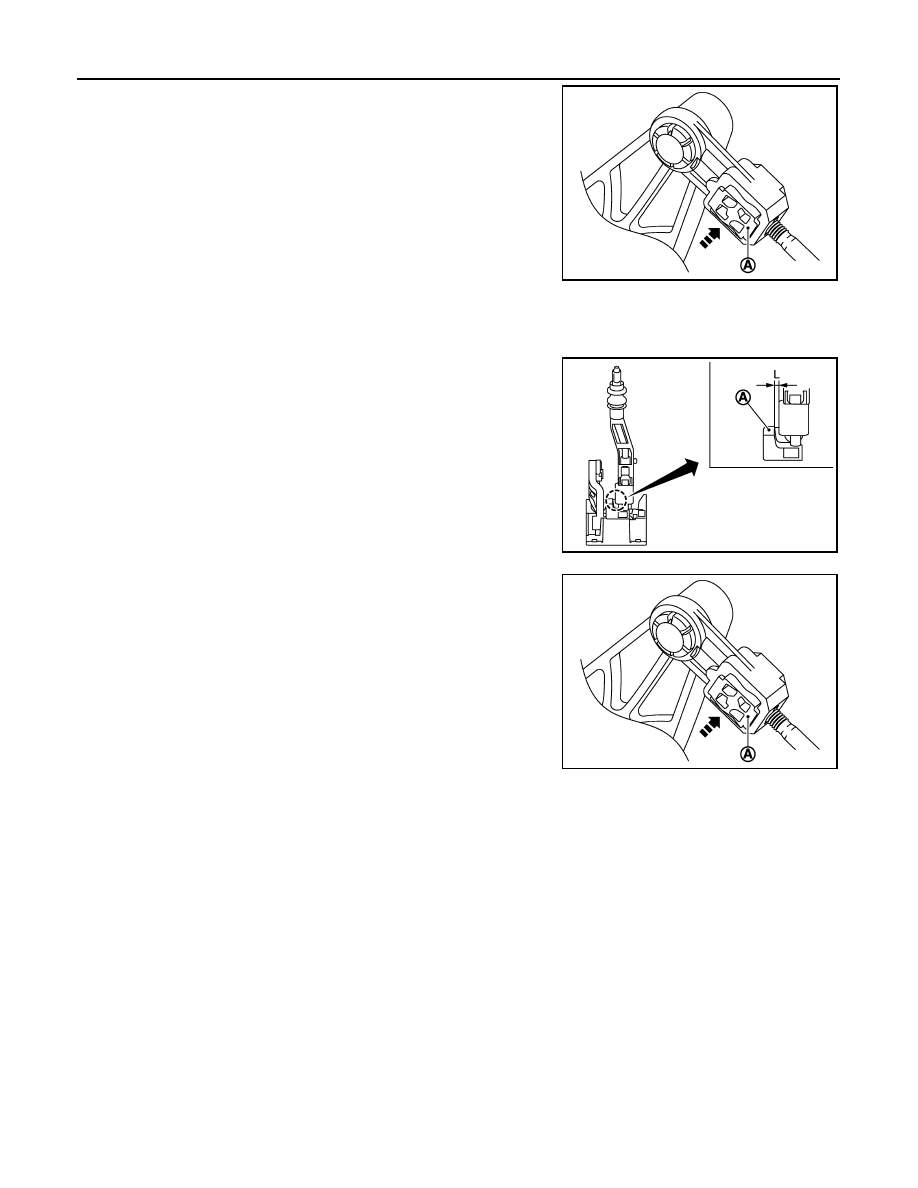

5. Insert the stopper (A) until it reaches the selector cable.

6. Remove the lever stopper from the M/T shift selector assembly.

7. Shift the shifter lever to each gear position to check that there

are no bindings. If any, repeat step 3.

When M/T shift selector assembly is not replaced:

1. Install the selector cable to the M/T shift selector assembly.

2. Shift the shifter lever to the 4th gear position.

3. Adjust the length “L” between the stopper (A) and the lever to

the standard value.

4. Insert the stopper (A) until it reaches the selector cable.

5. Shift the shifter lever to each gear position to check that there

are no bindings. If any, repeat step 3.

Inspection

INFOID:0000000012200769

INSPECTION AFTER INSTALLATION

Shifter Lever Knob

Check that the shifter lever knob is installed in the right position.

Shifter Cable and Selector Cable

• Pull each cable in the removal direction to check that it dose not disconnect from the cable mounting

bracket.

• Pull each cable in the removal direction to check that it dose not disconnect from the M/T shift selector

assembly.

• Pull grommet in the removal direction to check that it dose not disconnect from the vehicle.

M/T Shift Selector Assembly and Shifter Lever

• Check that there is no tangle, hook, abnormal sound, looseness, and interference when the shifter lever is

moved to each position. If there is a malfunction, then repair or replace the malfunctioning part.

• Check that the shifter lever smoothly returns to the neutral position after moving the lever from 1st to 2nd

gear and moving hands off the lever. If there is a malfunction, then repair or replace the malfunctioning part.

• Check that the shifter lever smoothly returns to the neutral position after moving the lever from 5th to 6th

gear and moving hands off the lever. If there is a malfunction, then repair or replace the malfunctioning part.

JPDIC0832ZZ

Length “L”

: 3.51 – 4.11 mm (0.1382 – 0.1618 in)

JPDIC0834ZZ

JPDIC0832ZZ

AIR BREATHER HOSE

TM-29

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

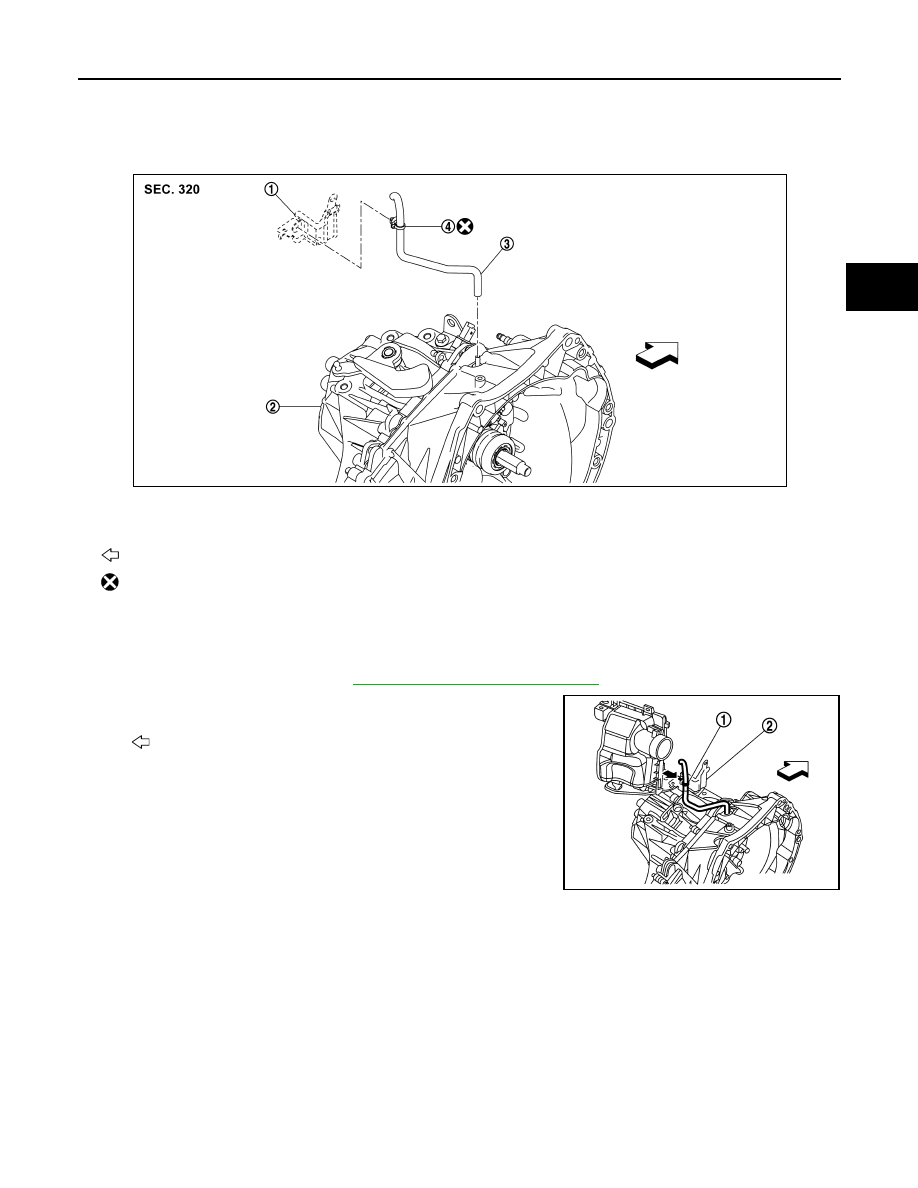

AIR BREATHER HOSE

Exploded View

INFOID:0000000012200770

Removal and Installation

INFOID:0000000012200771

REMOVAL

1. Remove air cleaner case. Refer to

EM-192, "Removal and Installation"

.

2. Remove clip (1) from harness bracket (2).

3. Remove air breather hose from the 2 way connector of transaxle

assembly.

CAUTION:

When removing air breather hose, be sure to hold 2 way

connector securely.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Install air breather hose, preventing crush and clogging caused by bending.

• Insert the allowance of air breather hose to the spool of the 2 way connector.

• Install air breather hose to the 2 way connector with the paint mark faced forward of the vehicle.

• Securely engage the clip in the mounting hole of harness bracket.

• Never reuse clip.

1.

Harness bracket

2.

Transaxle assembly

3.

Air breather hose

4.

Clip

: Vehicle front

: Always replace after every disassembly.

JSDIA7172ZZ

: Vehicle front

JSDIA7173ZZ
