Nissan Juke F15. Manual - part 1207

TM-18

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

STRUCTURE AND OPERATION

STRUCTURE AND OPERATION

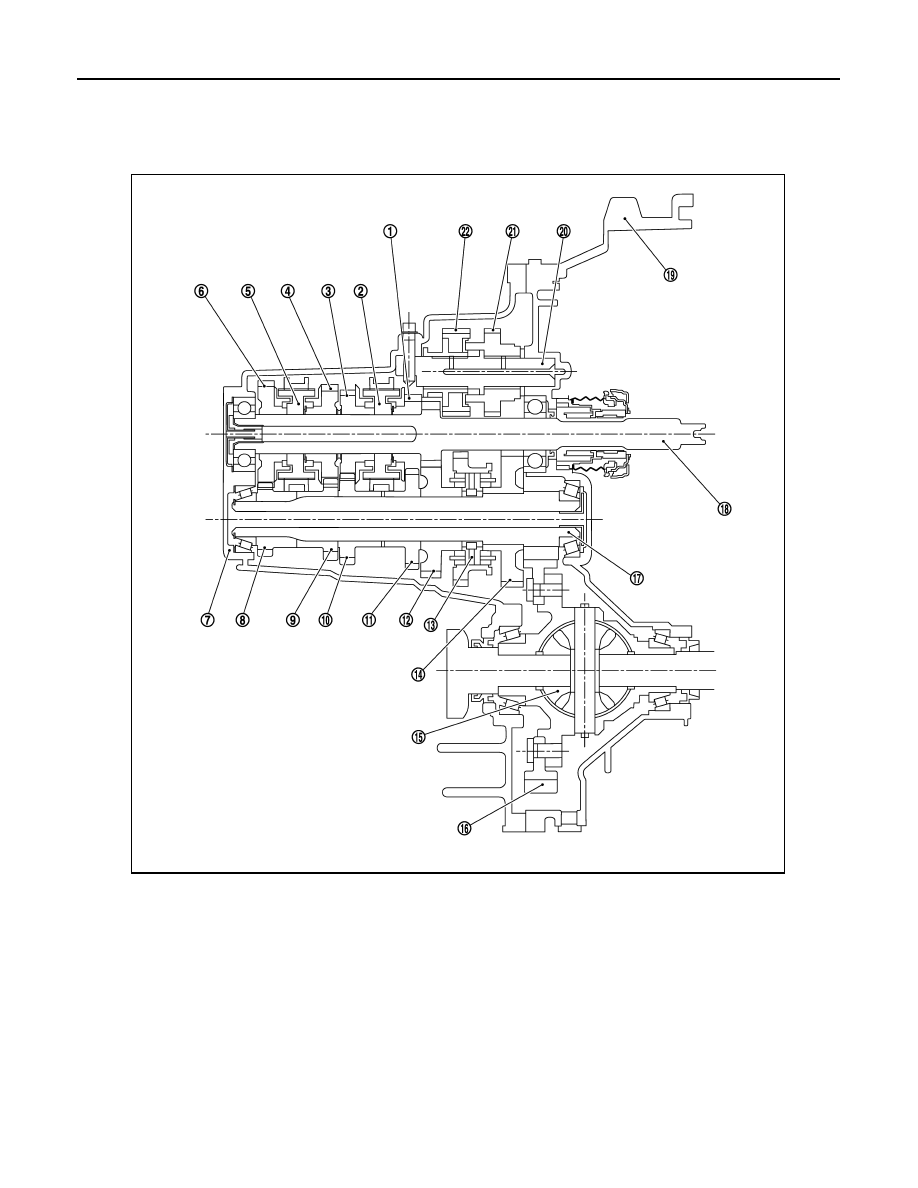

Sectional View

INFOID:0000000012200755

System Description

INFOID:0000000012200756

TRIPLE-CONE SYNCHRONIZER

1.

3rd input gear

2.

3rd-4th synchronizer hub assembly

3.

4th input gear

4.

5th input gear

5.

5th-6th synchronizer hub assembly

6.

6th input gear

7.

Transaxle case

8.

6th main gear

9.

5th main gear

10. 4th main gear

11. 3rd main gear

12. 2nd main gear

13. 1st-2nd synchronizer hub assembly 14. 1st main gear

15. Differential

16. Final gear

17. Mainshaft

18. Input shaft

19. Clutch housing

20. Reverse idler shaft

21. Reverse input gear

22. Reverse output gear

JPDIC0631ZZ

STRUCTURE AND OPERATION

TM-19

< SYSTEM DESCRIPTION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

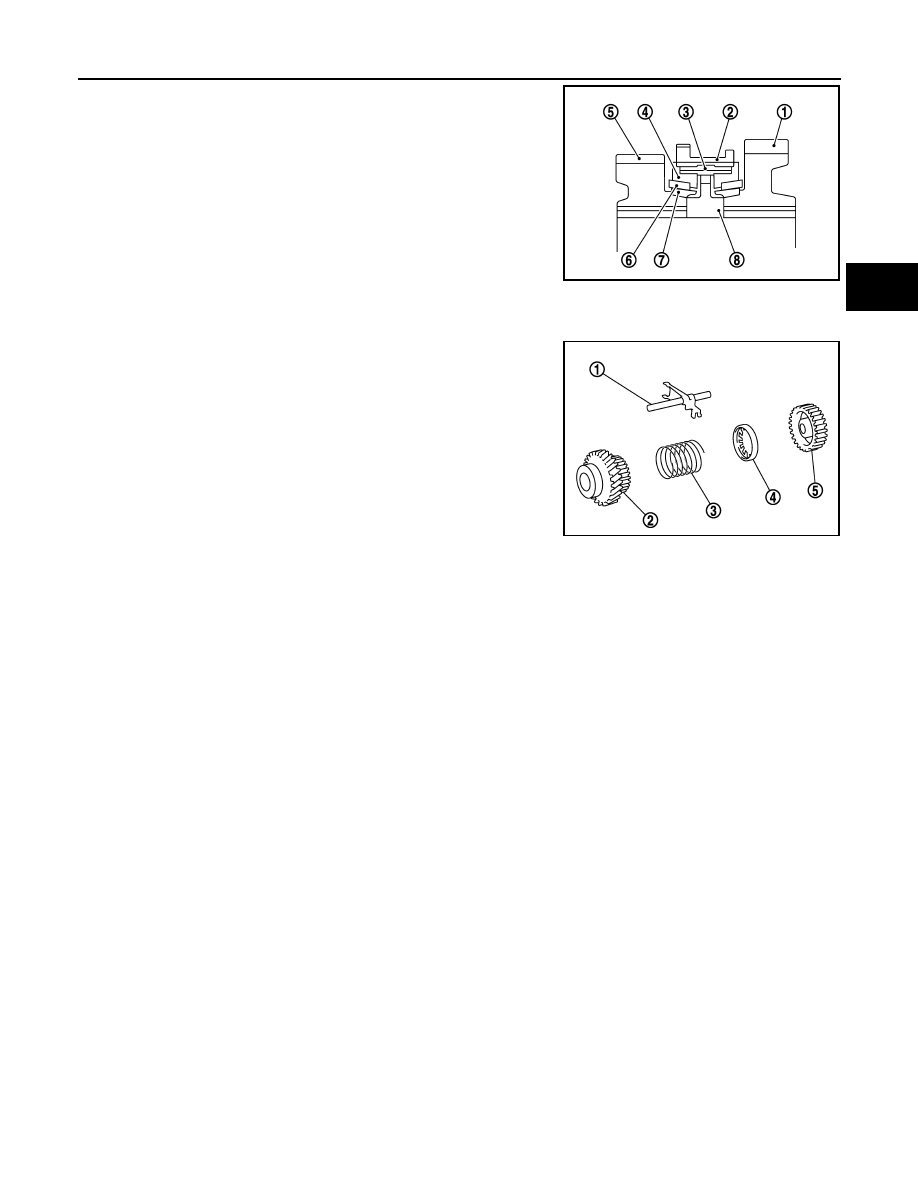

Triple-cone synchronizers are adopted for the 1st and the 2nd gears

to reduce operating force of the shifter lever.

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

Reverse gear assembly consists of reverse input gear, return spring,

reverse baulk ring, and reverse output gear. When the shifter lever is

shifted to the reverse position, the construction allows smooth shift

operation by stopping the reverse idler shaft rotation by frictional

force of synchronizer.

1

: 1st main gear

2

: 1st-2nd coupling sleeve

3

: Insert key

4

: Outer baulk ring

5

: 2nd main gear

6

: Synchronizer cone

7

: Inner baulk ring

8

: 1st-2nd synchronizer hub

SCIA7636E

1

: Reverse fork rod

2

: Reverse output gear

3

: Return spring

4

: Reverse baulk ring

5

: Reverse input gear

SCIA7621E

TM-20

< DTC/CIRCUIT DIAGNOSIS >

[6MT: RS6F94R]

POSITION SWITCH

DTC/CIRCUIT DIAGNOSIS

POSITION SWITCH

BACK-UP LAMP SWITCH

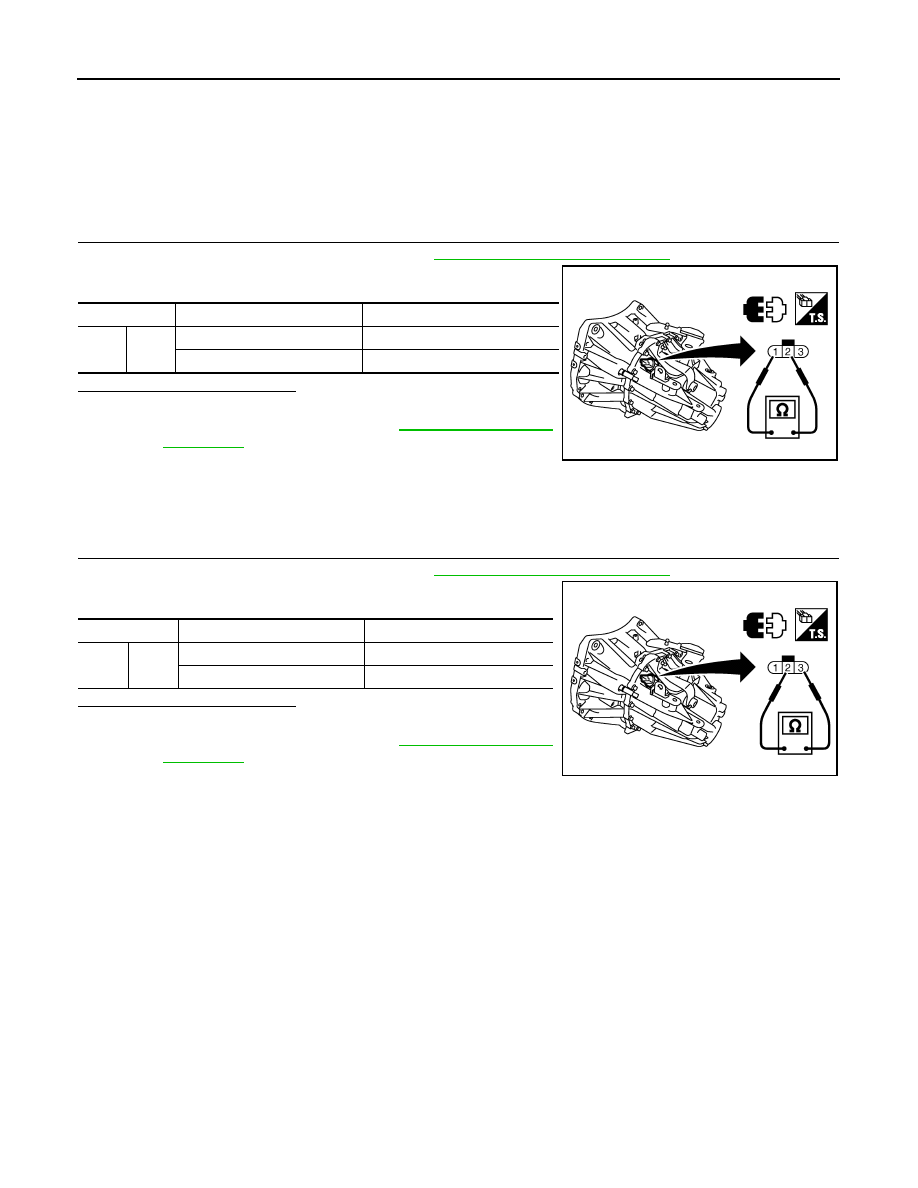

BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000012200757

1.

CHECK BACK-UP LAMP SWITCH

1. Disconnect position switch connector. Refer to

TM-24, "Removal and Installation"

.

2. Check continuity between position switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-24, "Removal and

Installation"

.

PARK/NEUTRAL POSITION (PNP) SWITCH
PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000012200758

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

1. Disconnect position switch connector. Refer to

TM-24, "Removal and Installation"

.

2. Check continuity between position switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-24, "Removal and

Installation"

.

Terminals

Condition

Continuity

1

2

Reverse gear position

Existed

Except reverse gear position

Not existed

PCIB1781E

Terminals

Condition

Continuity

2

3

Neutral gear position

Existed

Except neutral gear position

Not existed

JPDIC0091ZZ

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

TM-21

< SYMPTOM DIAGNOSIS >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000012200759

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If nec-

essary, repair or replace these parts.

SUSPECTED PARTS
(Possible cause)

OIL

 (Oil

lev

el

 is

 lo

w)

OI

L (W

ro

ng

 oi

l)

OIL

 (Oil

lev

el

 is

 h

igh

)

GASKE

T (Damaged)

OIL SEAL (W

orn or

damaged)

O

-RING

 (W

orn

 or

da

ma

ge

d)

SHIF

T CONTROL L

INKAGE

(W

o

rn)





















SHIF

T FORK (W

orn)

G

EAR (W

o

rn o

r da

m

age

d)

BEAR

ING

 (W

orn

 o

r

da

ma

ge

d)

BAUL

K

 RING

 (W

orn

 o

r da

ma

ge

d)

INSE

R

T S

P

RING

 (Dam

ag

ed

)

Reference

TM

-2

2

TM

-3

2

TM

-2

8

TM

-3

2

TM

-3

2

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

2

Hard to shift or will not shift

1

1

2

3

3

Jumps out of gear

1

2

2
