Nissan Juke F15. Manual - part 1159





SRC-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SRC

A

B

SRC

N

O

P

CONTENTS

SRS AIRBAG CONTROL SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

Service ......................................................................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Component Description .............................................

6

SYSTEM ..............................................................

8

System Diagram ........................................................

8

System Description  ...................................................

8

DIAGNOSIS SYSTEM (AIR BAG)  .....................

10

Description ..............................................................

10

On Board Diagnosis Function  .................................

10

CONSULT Function  ................................................

15

DIAGNOSIS SYSTEM (OCCUPANT DETEC-
TION SYSTEM)  ..................................................

16

CONSULT Function  ................................................

16

ECU DIAGNOSIS INFORMATION  ..............

17

DIAGNOSIS SENSOR UNIT  ..............................

17

DTC Index ..............................................................

17

WIRING DIAGRAM ......................................

21

SRS AIR BAG SYSTEM .....................................

21

Wiring Diagram  .......................................................

21

BASIC INSPECTION  ...................................

29

DIAGNOSIS AND REPAIR WORK FLOW  ........

29

Work Flow  ...............................................................

29

INSPECTION AND ADJUSTMENT  ..................

32

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

32

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description .................................

32

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement ......

32

ZERO POINT RESET .................................................

32

ZERO POINT RESET : Description .........................

32

ZERO POINT RESET : Special Repair Require-
ment .........................................................................

32

DTC/CIRCUIT DIAGNOSIS  .........................

34

U1000 CAN COMM CIRCUIT  ...........................

34

DTC Description  ......................................................

34

Diagnosis Procedure  ...............................................

34

U1010 CONTROL UNIT (CAN) .........................

35

DTC Description  ......................................................

35

Diagnosis Procedure  ...............................................

35

B0001 DRIVER AIR BAG MODULE .................

36

DTC Description  ......................................................

36

Diagnosis Procedure  ...............................................

37

B0002 DRIVER AIR BAG MODULE .................

39

DTC Description  ......................................................

39

Diagnosis Procedure  ...............................................

40

B0010 PASSENGER AIR BAG MODULE ........

42

DTC Description  ......................................................

42

Diagnosis Procedure  ...............................................

42

B0011 PASSENGER AIR BAG MODULE ........

44

DTC Description  ......................................................

44

Diagnosis Procedure  ...............................................

44

B0020 SIDE AIR BAG MODULE  ......................

46

DTC Description  ......................................................

46

Diagnosis Procedure  ...............................................

46

SRC-2

B0021 CURTAIN AIR BAG MODULE ...............

48

DTC Description  .....................................................

48

Diagnosis Procedure  ..............................................

48

B0028 SIDE AIR BAG MODULE .......................

50

DTC Description  .....................................................

50

Diagnosis Procedure  ..............................................

50

B0029 CURTAIN AIR BAG MODULE ...............

52

DTC Description  .....................................................

52

Diagnosis Procedure  ..............................................

52

B0091 B-PILLAR SATELLITE SENSOR  ..........

54

DTC Description  .....................................................

54

Diagnosis Procedure  ..............................................

55

B0093 FRONT DOOR SATELLITE SENSOR
LH .......................................................................

56

DTC Description  .....................................................

56

Diagnosis Procedure  ..............................................

57

B0094 CRASH ZONE SENSOR ........................

58

DTC Description  .....................................................

58

Diagnosis Procedure  ..............................................

59

B0096 B-PILLAR SATELLITE SENSOR  ..........

60

DTC Description  .....................................................

60

Diagnosis Procedure  ..............................................

61

B0098 FRONT DOOR SATELLITE SENSOR
RH ......................................................................

62

DTC Description  .....................................................

62

Diagnosis Procedure  ..............................................

63

B00A0 OCCUPANT DETECTION SYSTEM
CONTROL UNIT  ................................................

64

DTC Description  .....................................................

64

Diagnosis Procedure  ..............................................

65

B00D5 PASSENGER AIR BAG OFF INDICA-
TOR ....................................................................

66

DTC Description  .....................................................

66

Diagnosis Procedure  ..............................................

67

B1400, B1401, B1402, B1403, B1404, B1405
AIR BAG DIAGNOSIS SENSOR UNIT  .............

68

DTC Description  .....................................................

68

Diagnosis Procedure  ..............................................

68

B1406, B1407, B1408, B1409, B1410 AIR
BAG DIAGNOSIS SENSOR UNIT .....................

70

DTC Description ......................................................

70

Diagnosis Procedure ...............................................

70

B1411, B1412, B1413, B1414, B1415 AIR
BAG DIAGNOSIS SENSOR UNIT  ....................

72

DTC Description ......................................................

72

Diagnosis Procedure ...............................................

72

B1416, B1417, B1418, B1419, B1420 AIR
BAG DIAGNOSIS SENSOR UNIT  ....................

74

DTC Description ......................................................

74

Diagnosis Procedure ...............................................

74

B1421 FRONTAL COLLISION DETECTION  ....

76

DTC Description ......................................................

76

Diagnosis Procedure ...............................................

76

B1422 SIDE COLLISION DETECTION .............

77

DTC Description ......................................................

77

Diagnosis Procedure ...............................................

77

B1425 REAR COLLISION DETECTION  ...........

78

DTC Description ......................................................

78

Diagnosis Procedure ...............................................

78

B142A IGN VOLTAGE  ......................................

79

DTC Description ......................................................

79

Diagnosis Procedure ...............................................

79

B1430 SEAT BELT PRE-TENSIONER  .............

81

DTC Description ......................................................

81

Diagnosis Procedure ...............................................

82

B1431 SEAT BELT PRE-TENSIONER  .............

83

DTC Description ......................................................

83

Diagnosis Procedure ...............................................

84

B1500 DOOR SATELLITE SENSOR  ................

85

DTC Description ......................................................

85

Diagnosis Procedure ...............................................

85

SYMPTOM DIAGNOSIS  ............................

87

SRS AIR BAG WARNING LAMP DOES NOT
TURN OFF  .........................................................

87

Diagnosis Procedure ...............................................

87

SRS AIR BAG WARNING LAMP DOES NOT
TURN ON ...........................................................

88

Diagnosis Procedure ...............................................

88

PRECAUTIONS

SRC-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012199568

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

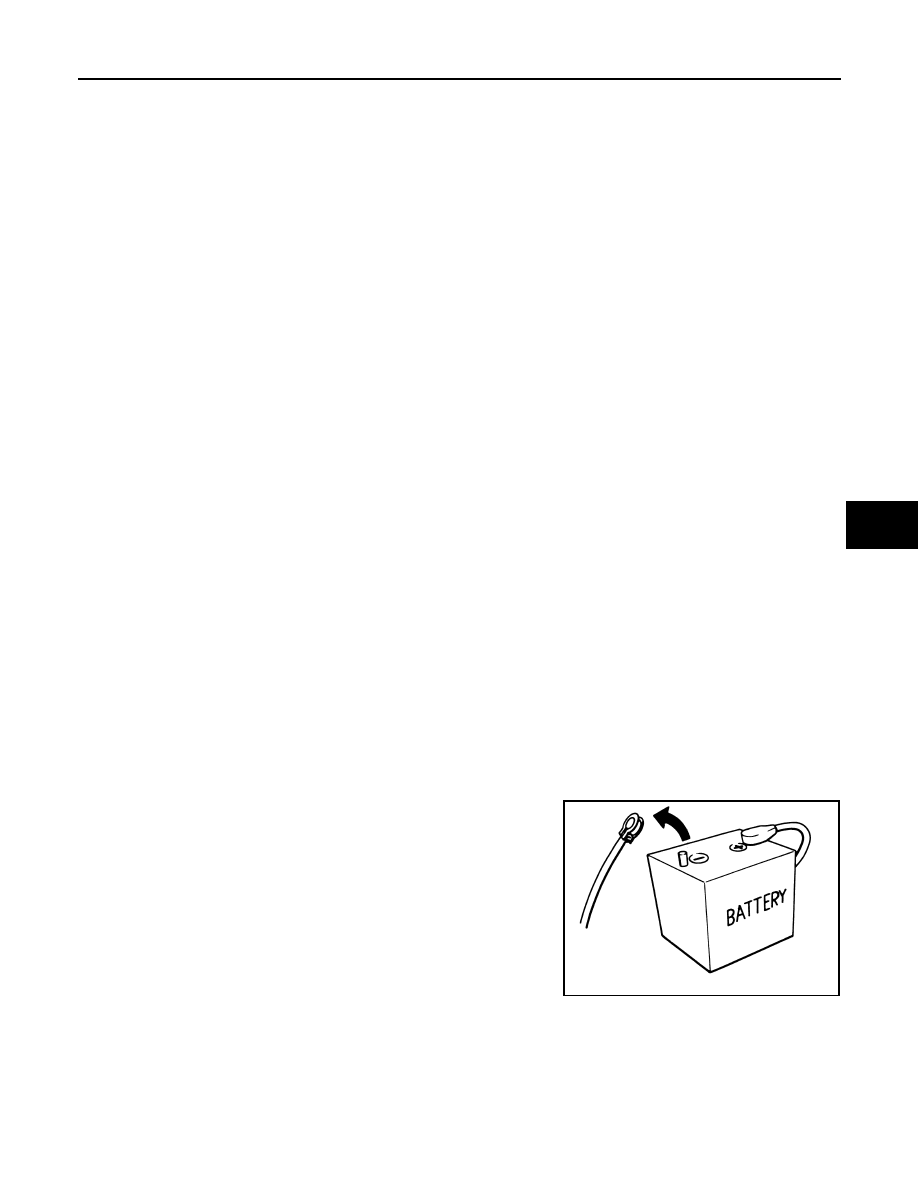

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000012938963

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

SRC-4

< PRECAUTION >

PRECAUTIONS

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

Service

INFOID:0000000012199570

• Never use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

• Before servicing the SRS, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-

tensioner to deploy. Therefore, never work on any SRS connectors or wires until at least 3 minutes have

passed.

• Diagnosis sensor unit must always be installed with their arrow marks “

⇐” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-

tion and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Never turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

• After air bag inflates, the front instrument panel assembly should be replaced if damaged.

• Always replace instrument panel pad following front passenger air bag deployment.
