Nissan Juke F15. Manual - part 1120





SEC-4

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012855978

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000012855979

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precautions For Xenon Headlamp Service

INFOID:0000000012855980

WARNING:

Comply with the following warnings to prevent any serious accident.

• Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-

ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage

generated parts.

• Never work with wet hands.

• Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon

headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.

PIIB3706J

PRECAUTIONS

SEC-5

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

(Turning it ON outside the lamp case may cause fire or visual impairments.)

• Never touch the bulb glass immediately after turning it OFF. It is extremely hot.

CAUTION:

Comply with the following cautions to prevent any error and malfunction.

• Install the xenon bulb securely. (Insufficient bulb socket installation may melt the bulb, the connec-

tor, the housing, etc. by high-voltage leakage or corona discharge.)

• Never perform HID circuit inspection with a tester.

• Never touch the xenon bulb glass with hands. Never put oil and grease on it.

• Dispose of the used xenon bulb after packing it in thick vinyl without breaking it.

• Never wipe out dirt and contamination with organic solvent (thinner, gasoline, etc.).

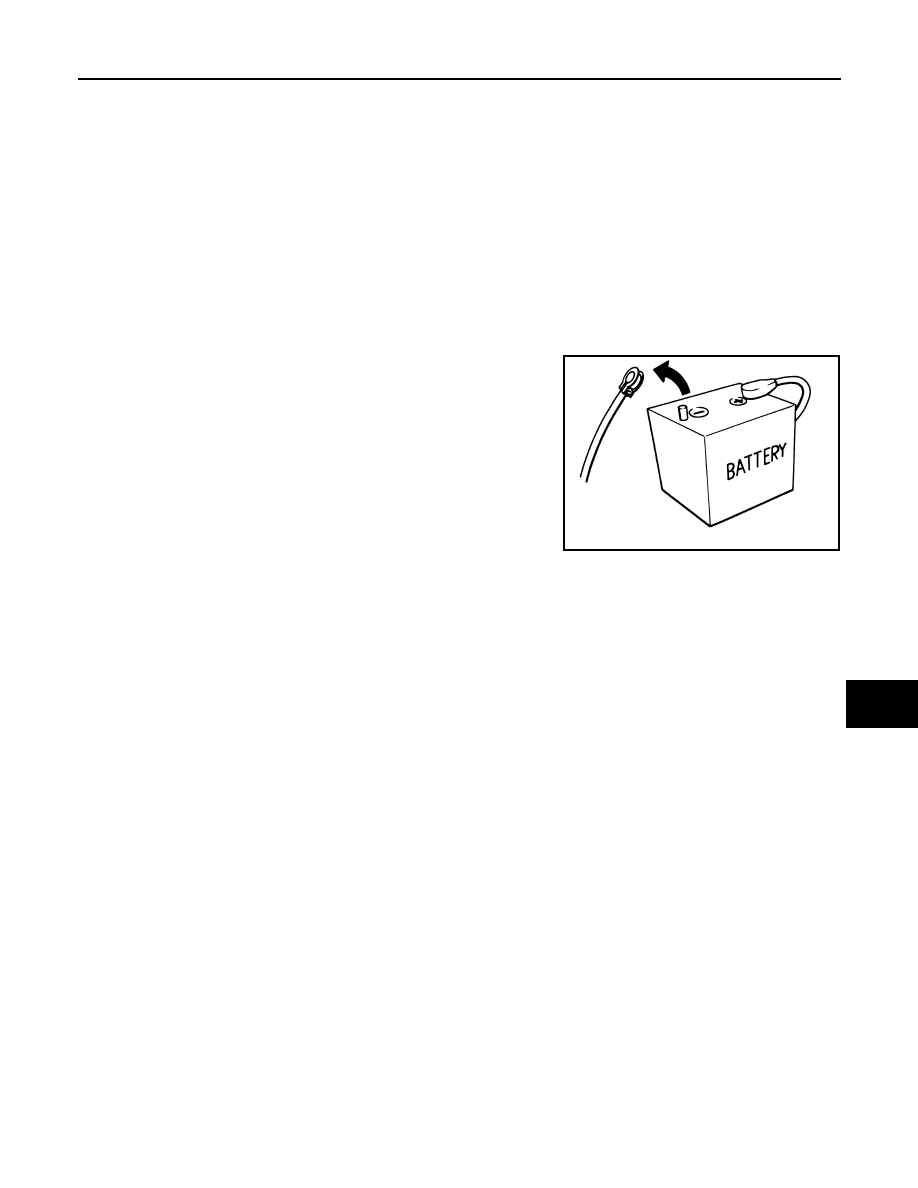

Precautions for Removing Battery Terminal

INFOID:0000000012855981

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

SEF289H

SEC-6

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

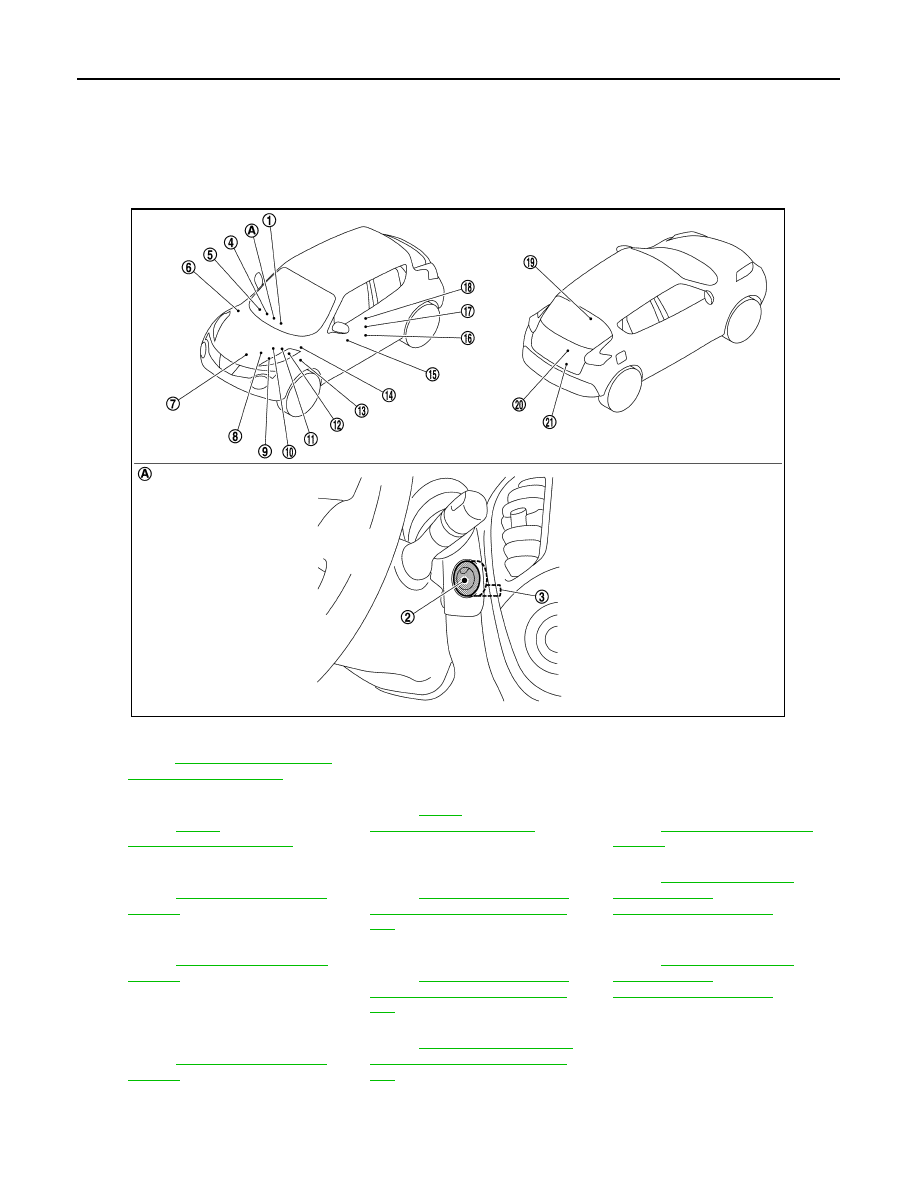

Component Parts Location

INFOID:0000000012202092

1.

Combination meter
Refer to

MWI-6, "METER SYSTEM :

Component Parts Location"

.

2.

Push-button ignition switch

3.

 NATS antenna amp.

4.

Inside key antenna (instrument cen-
ter)
Refer to

DLK-9,

"Component Parts Location"

.

5.

Remote keyless entry receiver
Refer to

DLK-9,

"Component Parts Location"

.

6.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-9, "Component Parts

Location"

.

7.

Park/neutral position switch
(M/T models)
Refer to

TM-17, "Component Parts

Location"

.

8.

Transmission range switch
(CVT models)
Refer to

TM-156, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

.

9.

ECM
Refer to

EC-27, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

.

10. IPDM E/R

Refer to

PCS-5, "Component Parts

Location"

.

11. TCM

(CVT models)
Refer to

TM-156, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

.

12. Stop lamp switch

Refer to

EC-27, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

.

13. Clutch interlock switch

(M/T models)
Refer to

STR-5, "Component Parts

Location"

.

14. BCM

Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

15. Power window main switch (door

lock and unlock switch)

16. Front door switch (driver side)

17. Front door lock assembly (door key

cylinder switch)

18. Front door request switch (driver

side)

JMKIB5683ZZ

COMPONENT PARTS

SEC-7

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000012202093

BCM

INFOID:0000000012202094

BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBI-

LIZER SYSTEM-NATS [NVIS (NATS)], and VEHICLE SECURITY SYSTEM.

BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the

detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is

OK, push-button ignition switch operation is available.

Then, when the power supply position is turned ON, BCM performs ID verification between BCM and ECM. If

the ID verification result is OK, ECM can start engine.

CVT Shift Selector (Detention Switch)

INFOID:0000000012202095

Detention switch detects that CVT shift selector is in the P position, and then transmits the signal to BCM and

IPDM E/R.

BCM confirms the CVT shift selector position with the following 5 signals.

• P position signal from CVT shift selector (detention switch)

• P/N position signal from transmission range switch

• P position signal from IPDM E/R (CAN)

• P/N position signal from IPDM E/R (CAN)

• P/N position signal from TCM (CAN)

IPDM E/R confirms the CVT shift selector position with the following 3 signals.

• P position signal from CVT shift selector (detention switch)

• P/N position signal from transmission range switch

• P/N position signal from BCM (CAN)

19. Inside key antenna (luggage room)

Refer to

DLK-9,

"Component Parts Location"

.

20. Back door request switch

21. Back door opener assembly (back

door switch)

A.

Behind push-button ignition switch

Component Reference

BCM

SEC-7

CVT shift selector (detention switch) (CVT models)

SEC-7

ECM

SEC-8

IPDM E/R

SEC-8

NATS antenna amp.

SEC-8

TCM (CVT models)

SEC-8

Clutch interlock switch (M/T models)

SEC-8

Combination meter

SEC-8

Door switch

SEC-8

Inside key antenna

SEC-8

Intelligent Key

SEC-8

Park/neutral position switch (M/T models)

SEC-9

Push-button ignition switch

SEC-9

Remote keyless entry receiver

SEC-9

Security indicator lamp

SEC-9

Starter control relay

SEC-9

Starter relay

SEC-9

Stop lamp switch

SEC-9

Transmission range switch (CVT models)

SEC-9

Vehicle information display

SEC-9
