SE-1

BODY INTERIOR

SECTION

CONTENTS

SEAT

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precautions for Removing Battery Terminal .............

Service Notice ...........................................................

Precaution for Work ..................................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

Commercial Service Tool ..........................................

CLIP LIST ............................................................

Clip List .....................................................................

SYSTEM DESCRIPTION ..............................

COMPONENT PARTS ........................................

HEATED SEAT SYSTEM ............................................

HEATED SEAT SYSTEM : Component Parts Lo-
cation .........................................................................

HEATED SEAT SYSTEM : Component Descrip-
tion ............................................................................

SYSTEM ..............................................................

HEATED SEAT SYSTEM ............................................

HEATED SEAT SYSTEM : System Description .......

WIRING DIAGRAM .......................................

HEATED SEAT SYSTEM ....................................

Wiring Diagram .........................................................

SYMPTOM DIAGNOSIS ..............................

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

Work Flow ................................................................

Inspection Procedure ...............................................

Diagnostic Worksheet ..............................................

REMOVAL AND INSTALLATION ...............

FRONT SEAT ....................................................

Exploded View .........................................................

Removal and Installation .........................................

SEATBACK ................................................................

SEATBACK : Disassembly and Assembly ..............

SEAT CUSHION ........................................................

SEAT CUSHION : Disassembly and Assembly .......

REAR SEAT ......................................................

Exploded View .........................................................

SEAT CUSHION ........................................................

SEAT CUSHION : Removal and Installation ...........

SEAT CUSHION : Disassembly and Assembly .......

SEATBACK ................................................................

SEATBACK : Removal and Installation ...................

SEATBACK : Disassembly and Assembly ..............

SEATBACK HINGE ...................................................

SEATBACK HINGE : Removal and Installation .......

SEATBACK STRIKER ...............................................

SEATBACK STRIKER : Removal and Installation ....

HEATED SEAT SWITCH ..................................

Exploded View .........................................................

Removal and Installation .........................................

SE-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000012196865

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this

Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, it is recommended that all maintenance

and repair be performed by an authorized NISSAN/INFINITI dealer.

• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury

caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,

see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000012965055

When disconnecting the battery terminal, pay attention to the following.

• Always use a 12V battery as power source.

• Never disconnect battery terminal while engine is running.

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.

• For vehicles with the engine listed below, remove the battery termi-

nal after a lapse of the specified time:

NOTE:

ECU may be active for several tens of seconds after the ignition switch is turned OFF. If the battery terminal

is removed before ECU stops, then a DTC detection error or ECU data corruption may occur.

• After high-load driving, if the vehicle is equipped with the V9X engine, turn the ignition switch OFF and wait

for at least 15 minutes to remove the battery terminal.

NOTE:

D4D engine

: 20 minutes

YS23DDT

: 4 minutes

HRA2DDT

: 12 minutes

YS23DDTT

: 4 minutes

K9K engine

: 4 minutes

ZD30DDTi

: 60 seconds

M9R engine

: 4 minutes

ZD30DDTT

: 60 seconds

R9M engine

: 4 minutes

V9X engine

: 4 minutes

YD25DDTi

: 2 minutes

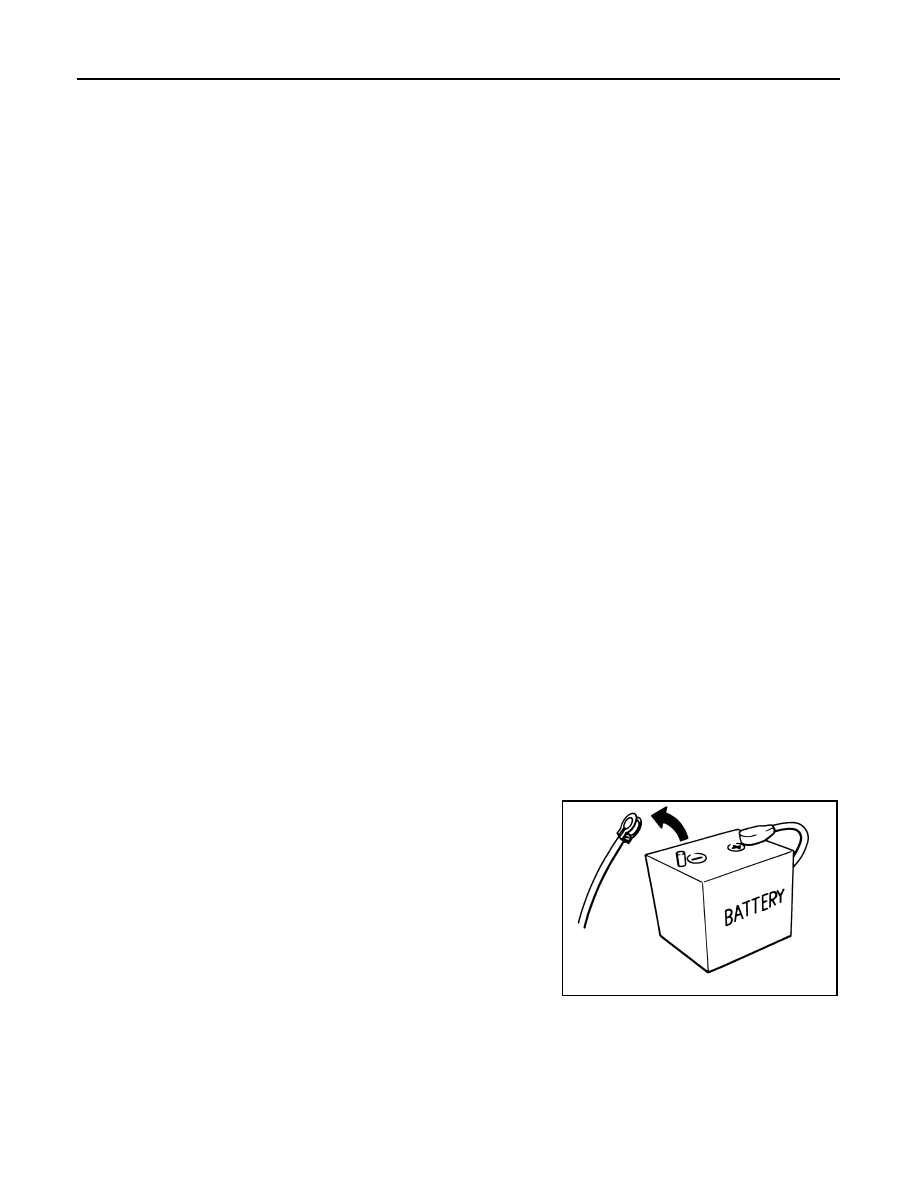

SEF289H

PRECAUTIONS

SE-3

< PRECAUTION >

• Turbocharger cooling pump may operate in a few minutes after the ignition switch is turned OFF.

• Example of high-load driving

- Driving for 30 minutes or more at 140 km/h (86 MPH) or more.

- Driving for 30 minutes or more on a steep slope.

• For vehicles with the 2-batteries, be sure to connect the main battery and the sub battery before turning ON

the ignition switch.

NOTE:

If the ignition switch is turned ON with any one of the terminals of main battery and sub battery discon-

nected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:

The removal of 12V battery may cause a DTC detection error.

Service Notice

INFOID:0000000012196867

• When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or

damage them.

• Apply sealing compound where necessary when installing parts.

• When applying sealing compound, be careful that the sealing compound does not protrude from parts.

• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

Precaution for Work

INFOID:0000000012196868

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and keep them.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After re-installation is completed, be sure to check that each part works normally.

• Follow the steps below to clean components.

- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the

fouled area.

Then rub with a soft and dry cloth.

- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the fouled area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Never use organic solvent such as thinner, benzene, alcohol, and gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

SE-4

< PREPARATION >

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000012196869

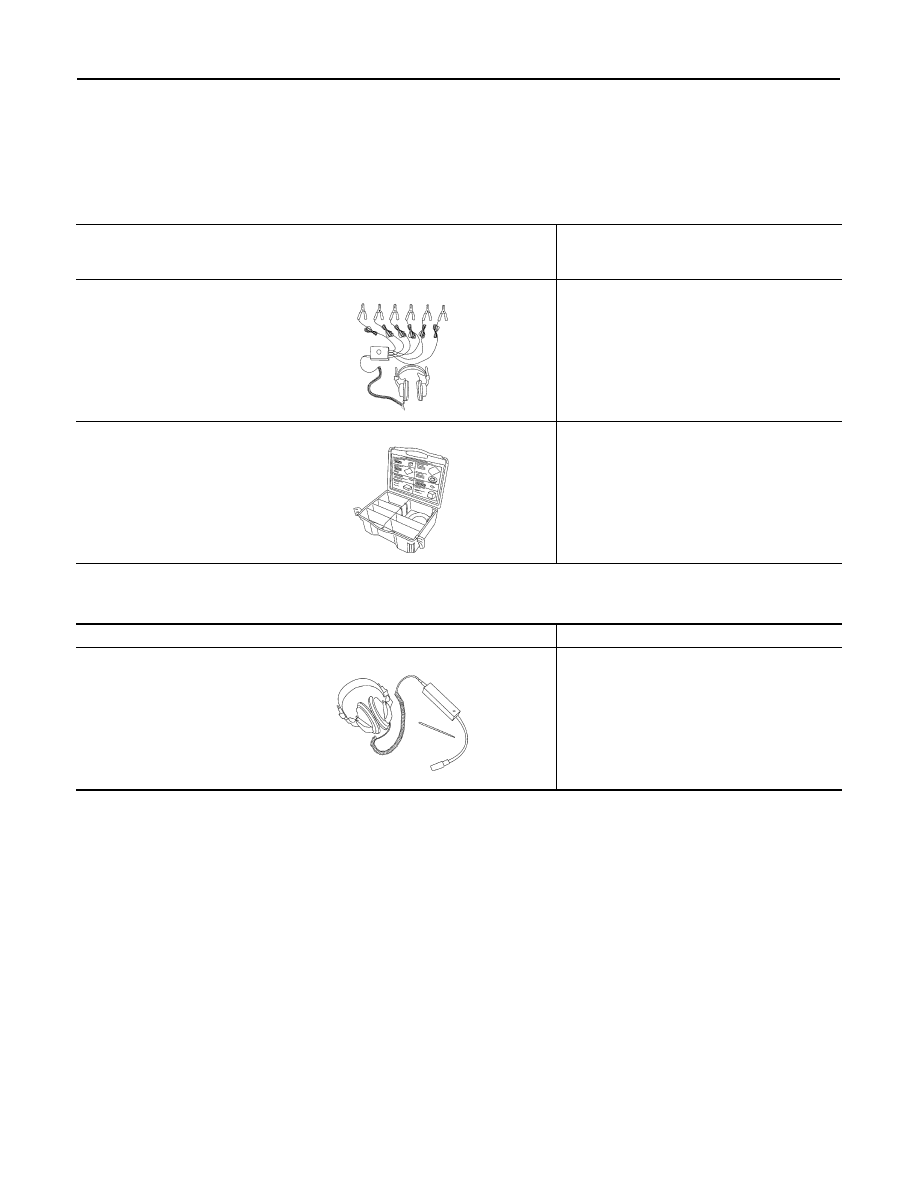

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000012196870

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

SIIA0995E
