Nissan Juke F15. Manual - part 1108





SB-14

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

4. Remove seatback trim and seatback pad from seatback frame.

Refer to

SE-34, "SEATBACK : Disassembly and Assembly"

.

5. Remove seatback silencer from seatback frame.

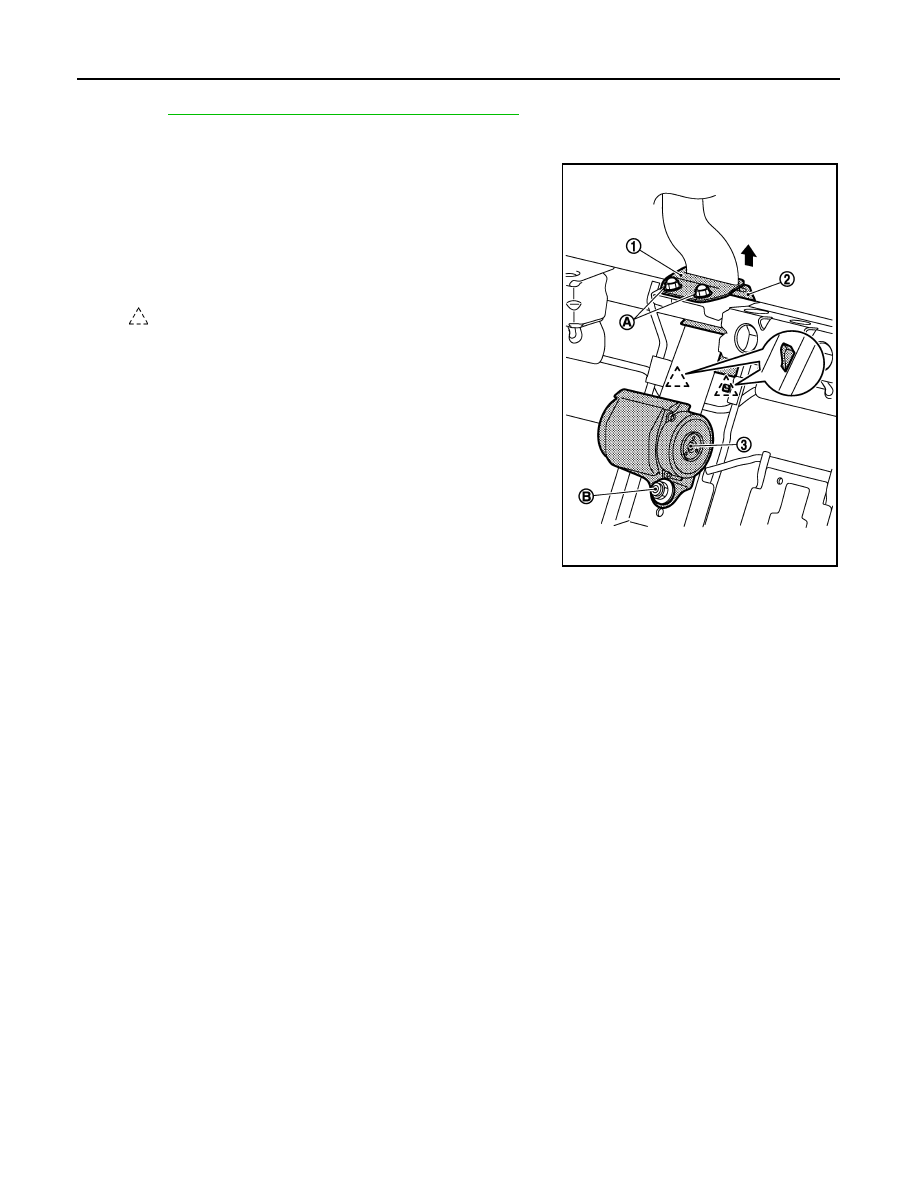

6. Remove center seat belt retractor.

1. Remove mounting nuts (A) of upper webbing guide (1).

Remove upper webbing guide (1) from seatback frame.

2. Disengage pawls of lower webbing guide (2). Remove lower

webbing guide (2) in direction indicated by arrow as shown

in the figure.

3. Remove mounting anchor nut (B) of center seat belt retrac-

tor (3) from seatback frame.

INATALLATION

Install in the reverse order of removal.

SEAT BELT RETRACTOR : Inspection

INFOID:0000000012200326

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced

unless the collision was minor and the belts show no damage and continue to operate properly. Fail-

ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-

ing a collision should also be replaced if either damage or improper operation was noted. Seat belt

pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in

which the air bags were deployed.

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.
2. Check retractor operation:
a. Fully extend the seat belt webbing and check for twists, tears or other damage.
b. Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the

seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the

loops of that upper anchors can cause the seat belts to retract slowly.

: Pawl

JMHIA1636ZZ

REAR SEAT BELT

SB-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

c. Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing

does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE

SET” and perform the following steps.

3. Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:

All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the

retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors

except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also

called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt

is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt

in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat

belt to fully wind back into the retractor.

Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-

erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from

extending further.

ALR Function Stationary Check

1. Pull out the entire length of seat belt from retractor until a click is heard.
2. Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the

retractor is in the Automatic Locking Retractors (ALR) mode.

3. Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it

does not operate normally, replace the retractor assembly.

4. Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a

large, empty parking lot). Road surface must be paved and dry. Never perform the following test on

wet or gravel roads or on public streets and highways. This could result in an accident and serious

personal injury. The driver and passenger must be prepared to brace themselves in the event that the

retractor does not lock.
1. Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.
2. Proceed to the designated safe area.
3. Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop

and the driver and passenger must be prepared to brace themselves in the event that the retractor does

not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,

perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1. Remove the rear seat belt retractor. Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

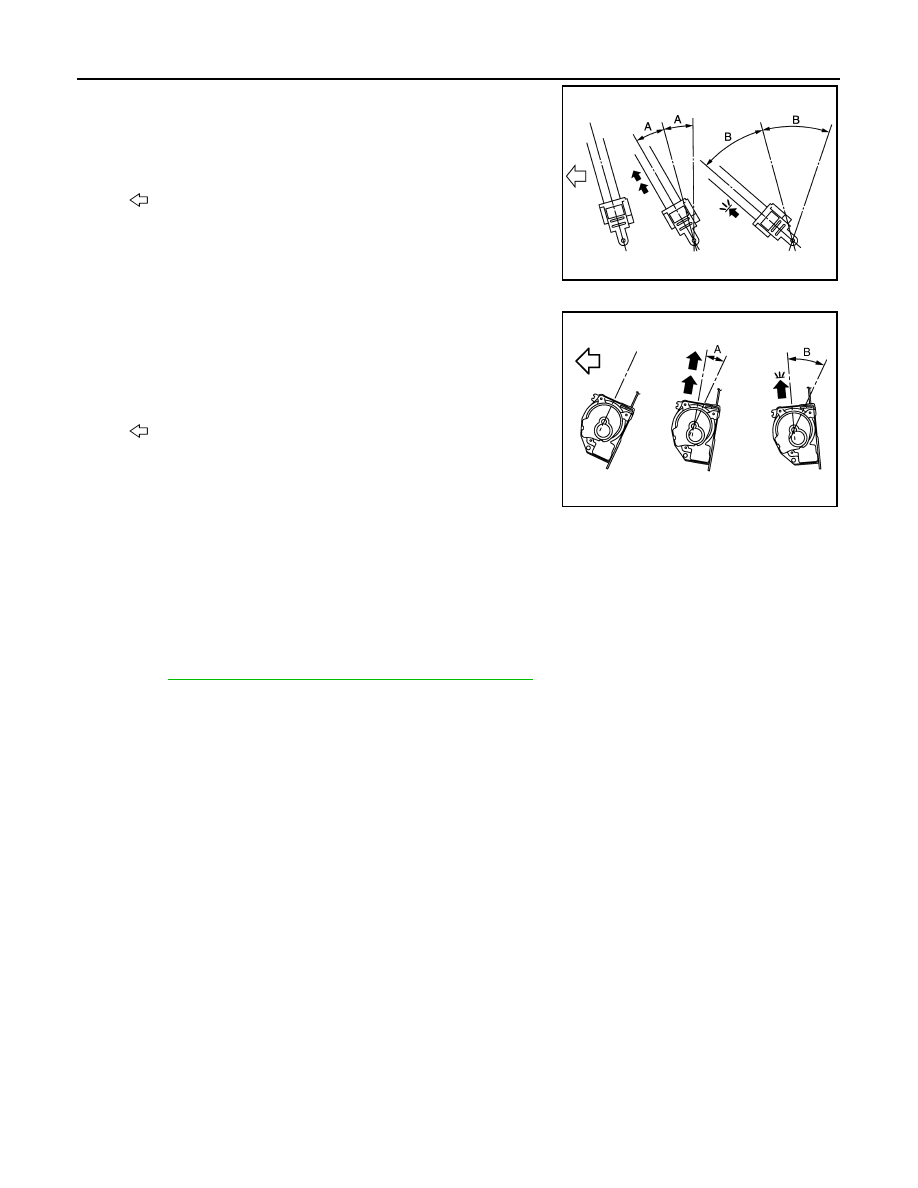

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without

twisting the retractor assembly as shown in the figure.

a. Outer seat belt retractor

SB-16

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 13

degrees or more.

b. Center seat belt retractor

• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 13

degrees or more.

3. Replace the seat belt assembly if it does not operate normally.

SEAT BELT BUCKLE
SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000012200327

REMOVAL

1. Remove rear seat cushion from the vehicle.

Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

2. Remove seat belt buckle mounting anchor bolt, and then remove seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE : Inspection

INFOID:0000000012200328

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced

unless the collision was minor and the belts show no damage and continue to operate properly. Fail-

ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-

ing a collision should also be replaced if either damage or improper operation was noted. Seat belt

pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in

which the air bags were deployed.

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

A and B

: Tilting angles

: Vehicle front

JMHIA1064ZZ

A and B

: Tilting angles

: Vehicle front

JMHIA0561ZZ

REAR SEAT BELT

SB-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

1. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.
2. Repeat step above if necessary to check the other seat belts.

SEAT BELT HOOK
SEAT BELT HOOK : Removal and Installation

INFOID:0000000012200329

REMOVAL

1. Remove rear seatback from the vehicle.

Refer to

SE-33, "SEATBACK : Removal and Installation"

.

2. Remove rear seat cushion from the vehicle.

Refer to

SE-32, "SEAT CUSHION : Removal and Installation"

.

3. Remove luggage side lower finisher.

Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation"

.

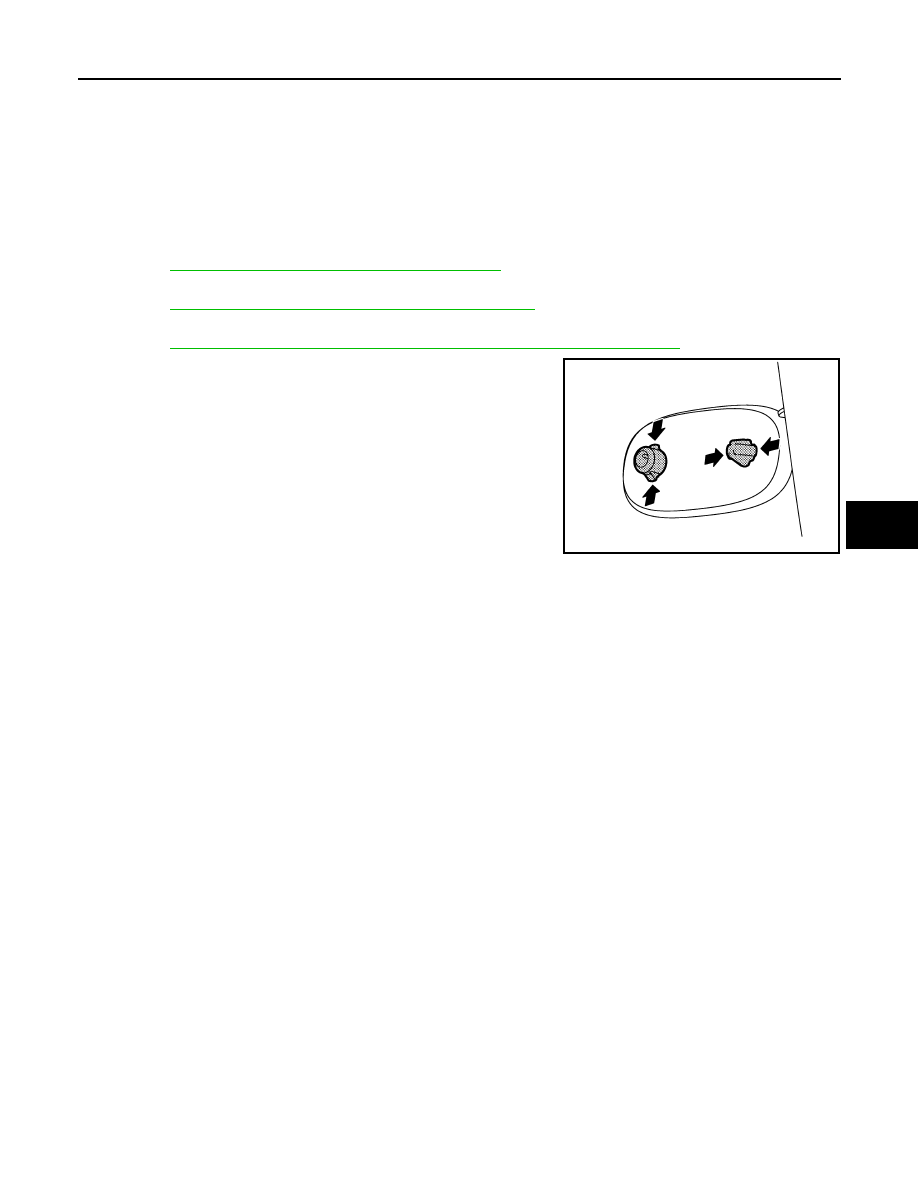

4. From back of luggage side lower finisher, press pawls indicated

by arrows as shown in the figure and remove seat belt hook

from luggage side lower finisher.

INSTALLATION

Install in the reverse order of removal.

JMHIA1638ZZ
