REAR SUSPENSION ASSEMBLY

RSU-37

< REMOVAL AND INSTALLATION >

[AWD]

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

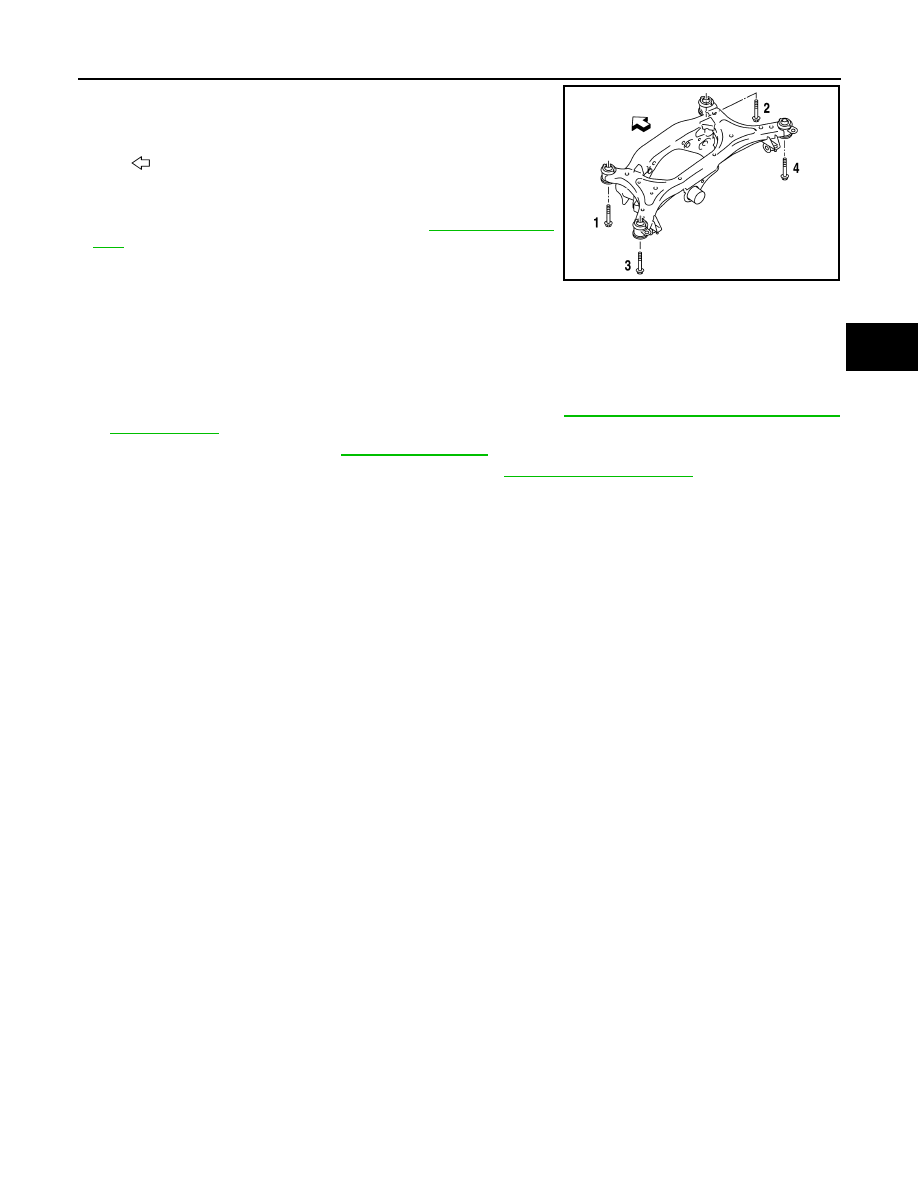

• To install mounting bolts of the suspension member, temporarily

tighten them in numerical order shown in the figure and tighten

them to the specified torque.

• Perform the final tightening of each parts removed when removing

rear suspension assembly under unladen conditions.

• Perform inspection after installation. Refer to

RSU-37, "Inspec-

tion"

.

Inspection

INFOID:0000000012200433

INSPECTION AFTER REMOVAL

Check rear suspension member for deformation, cracks, or any other damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connection. Refer to

BRC-148, "REAR WHEEL SENSOR :

Exploded View"

.

2. Check wheel alignment. Refer to

RSU-22, "Inspection"

.

3. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

: Vehicle front

JPEIB0265ZZ

RSU-38

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AWD]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000012200434

FOR USA MODELS

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

FOR CANADA MODELS

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

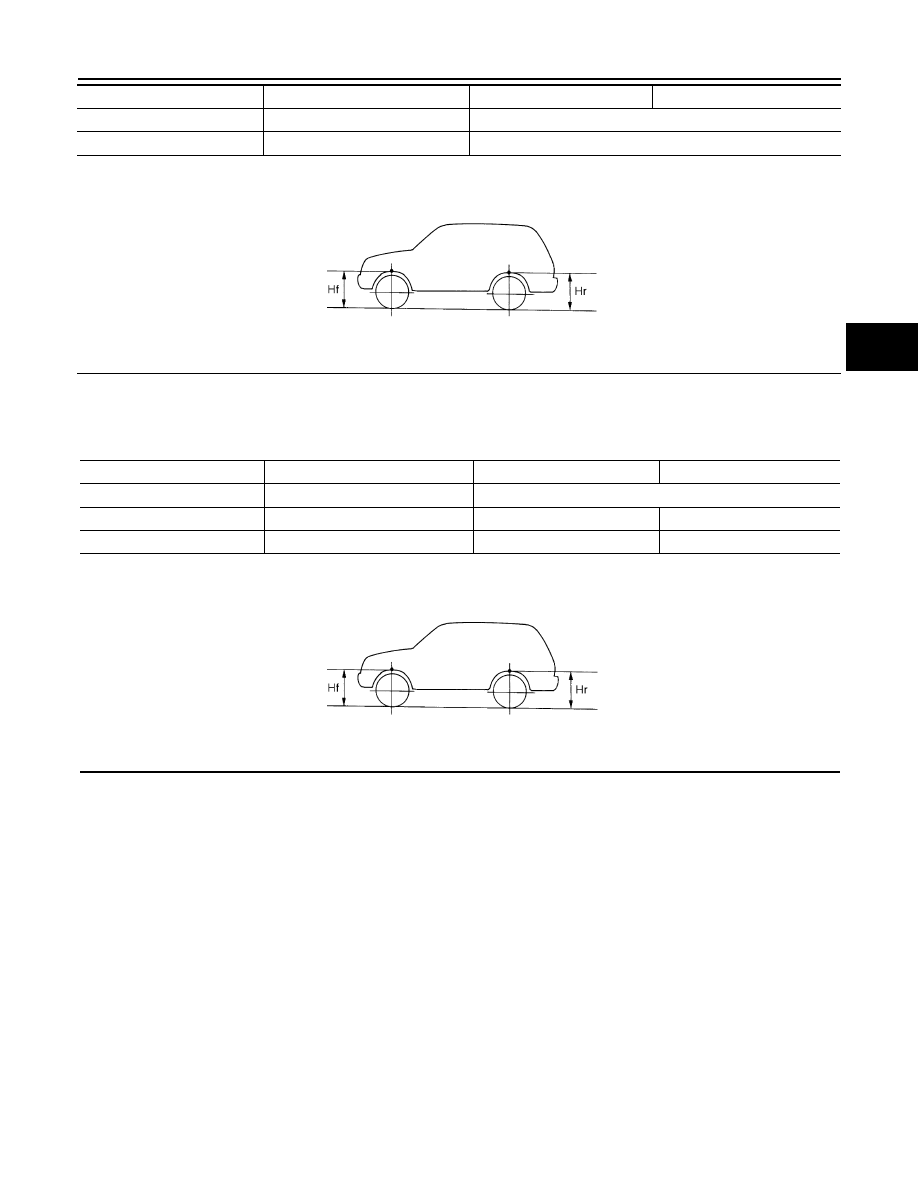

Wheelarch Height

INFOID:0000000012200435

FOR USA MODELS

Item

Standard

NISMO

NISMO RS

Tire Size

17 inch

18 inch

Camber
Degree minute (Decimal degree)

Minimum

–0

° 45′ (–0.75°)

–0

° 41′ (–0.68°)

Nominal

0

° 00′ (0.00°)

0

° 4′ (0.07°)

Maximum

0

° 45′ (0.75°)

0

° 49′ (0.81°)

Toe-in

Total toe-in
Distance

Minimum

In 1.0 mm (In 0.04 in)

Nominal

In 3.0 mm (In 0.12 in)

Maximum

In 5.0 mm (In 0.20 in)

Total toe-angle
Degree minute (Decimal degree)

Minimum

In 0

° 06′ 00″ (In 0.10°)

In  0

° 11′ 00″ (In 0.18°)

Nominal

In 0

° 16′ 00″ (In 0.27°)

In  0

° 21′ 00″ (In 0.35°)

Maximum

In 0

° 26′ 00″ (In 0.43°)

In  0

° 31′ 00″ (In 0.52°)

Item

Standard

NISMO

NISMO RS

Tire Size

17 inch

18 inch

Camber
Degree minute (Decimal degree)

Minimum

–0

° 43′ (–0.71°)

Nominal

0

° 02′ (0.03°)

Maximum

0

° 47′ (0.78°)

Toe-in

Total toe-in
Distance

Minimum

In 1.0 mm (In 0.04 in)

Nominal

In 3.0 mm (In 0.12 in)

Maximum

In 5.0 mm (In 0.20 in)

Total toe-angle
Degree minute (Decimal degree)

Minimum

In 0

° 05′ 00″ (In 0.08°)

In  0

° 07′ 00″ (In 0.12°)

Nominal

In 0

° 15′ 00″ (In 0.25°)

In  0

° 17′ 00″ (In 0.28°)

Maximum

In 0

° 25′ 00″ (In 0.42°)

In  0

° 27′ 00″ (In 0.45°)

Item

Standard

NISMO

NISMO RS

Tire Size

17 inch

18 inch

Front (Hf)

734 mm (28.90 in)

724 mm (28.50 in)

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-39

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AWD]

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

FOR CANADA MODELS

Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Rear (Hr)

741 mm (29.17 in)

735 mm (28.94 in)

Item

Standard

NISMO

NISMO RS

Tire Size

17 inch

18 inch

SFA746B

Item

Standard

NISMO

NISMO RS

Tire Size

17 inch

18 inch

Front (Hf)

735 mm (28.94 in)

726 mm (28.58 in)

724 mm (28.50 in)

Rear (Hr)

741 mm (29.17 in)

735 mm (28.94 in)

735 mm (28.94 in)

SFA746B

SB-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SB

A

B

SB

N

O

P

CONTENTS

SEAT BELT

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precautions for Removing Battery Terminal  .............

2

Precaution for Procedure without Cowl Top Cover

......

3

Precautions For Xenon Headlamp Service  ...............

3

Precaution for Seat Belt Service  ...............................

3

REMOVAL AND INSTALLATION ................

5

FRONT SEAT BELT ............................................

5

Exploded View  ..........................................................

5

SEAT BELT RETRACTOR ..........................................

5

SEAT BELT RETRACTOR : Removal and Instal-
lation ..........................................................................

6

SEAT BELT RETRACTOR : Inspection  ....................

7

SEAT BELT BUCKLE .................................................

9

SEAT BELT BUCKLE : Removal and Installation .....

9

SEAT BELT BUCKLE : Inspection  ..........................

10

REAR SEAT BELT ............................................

11

Exploded View .........................................................

11

SEAT BELT RETRACTOR  ........................................

13

SEAT BELT RETRACTOR : Removal and Instal-
lation ........................................................................

13

SEAT BELT RETRACTOR : Inspection  ..................

14

SEAT BELT BUCKLE ................................................

16

SEAT BELT BUCKLE : Removal and Installation ....

16

SEAT BELT BUCKLE : Inspection  ..........................

16

SEAT BELT HOOK ....................................................

17

SEAT BELT HOOK : Removal and Installation  .......

17
