SUSPENSION ARM

RSU-29

< REMOVAL AND INSTALLATION >

[AWD]

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

SUSPENSION ARM

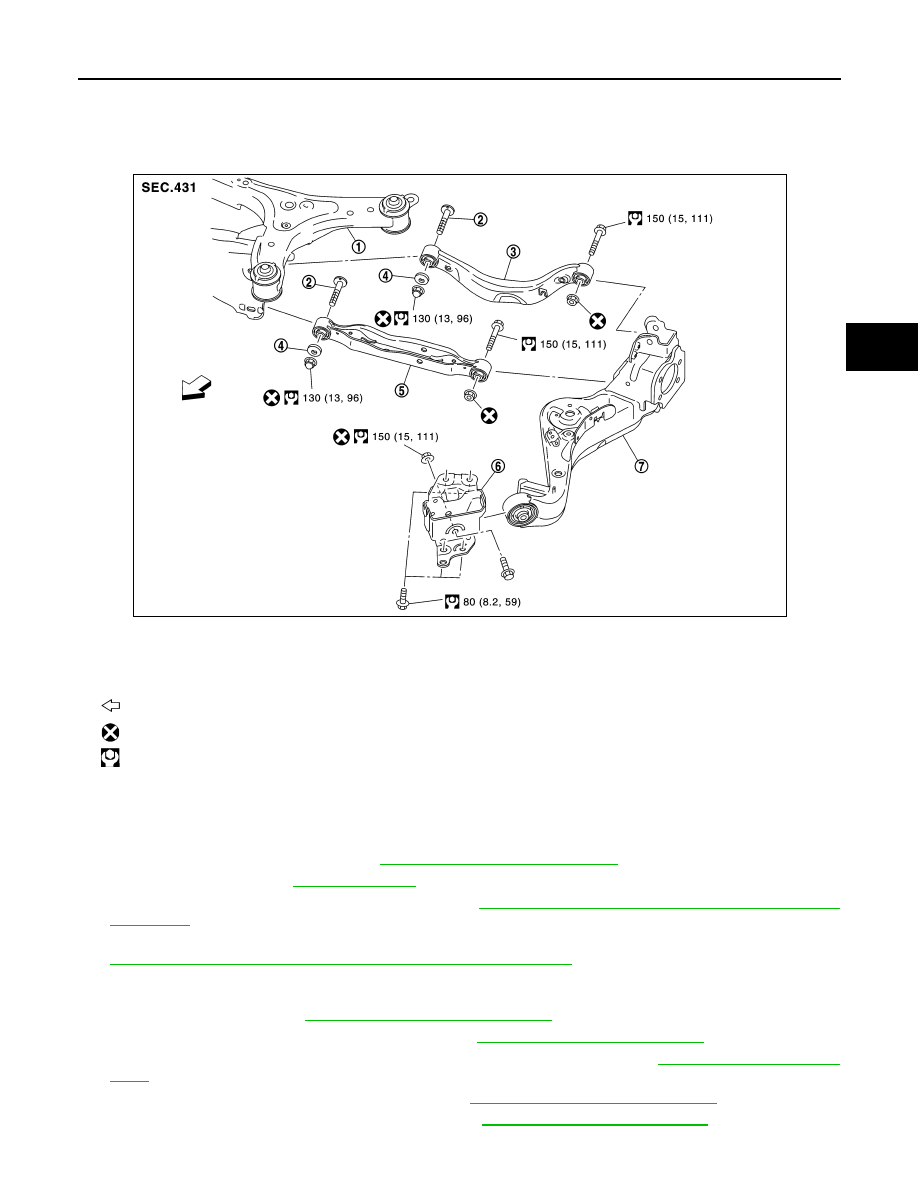

Exploded View

INFOID:0000000012200419

Removal and Installation

INFOID:0000000012200420

REMOVAL

1. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

2. Drain brake fluid. Refer to

BR-12, "Draining"

.

3. Remove wheel sensor and sensor harness. Refer to

BRC-150, "REAR WHEEL SENSOR : Removal and

Installation"

.

4. Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work. Refer to

BR-64, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

5. Remove disc rotor. Refer to

RAX-16, "Removal and Installation"

.

6. Remove parking brake cable mounting bolt. Refer to

PB-7, "Removal and Installation"

.

7. Separate the brake tube from the brake hose, and remove lock plate. Refer to

BR-27, "REAR : Exploded

View"

.

8. Remove wheel hub and bearing assembly. Refer to

RAX-16, "Removal and Installation"

.

9. Remove parking brake shoe and back plate. Refer to

PB-9, "Removal and Installation"

.

1.

Rear suspension member

2.

Adjusting bolt

3.

Upper link

4.

Eccentric disk

5.

Lower link

6.

Suspension arm bracket

7.

Suspension arm

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPEIB0262GB

RSU-30

< REMOVAL AND INSTALLATION >

[AWD]

SUSPENSION ARM

10. Set jack under suspension arm.

CAUTION:

• Never damage the suspension arm with a jack.

• Check the stable condition when using a jack.

11. Remove stabilizer link. Refer to

RSU-35, "Removal and Installation"

.

12. Remove upper link from suspension arm. Refer to

RSU-33, "Removal and Installation"

.

13. Remove lower link from suspension arm. Refer to

RSU-31, "Removal and Installation"

.

14. Remove coil spring from suspension arm. Refer to

RSU-27, "Removal and Installation"

.

15. Remove suspension arm bracket from vehicle.
16. Remove suspension arm from suspension arm bracket.
17. Perform inspection after removal. Refer to

RSU-30, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Perform final tightening of rear suspension member installation position (rubber bushing), under unladen

conditions with tires on level ground.

• Never reuse suspension arm mounting nut.

• Perform inspection after installation. Refer to

RSU-30, "Inspection"

.

Inspection

INFOID:0000000012200421

INSPECTION AFTER REMOVAL

Check suspension arm and bushing for deformation, cracks or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connection. Refer to

BRC-148, "REAR WHEEL SENSOR :

Exploded View"

.

2. Adjust parking brake operation (stroke). Refer to

PB-4, "Inspection and Adjustment"

.

3. Check wheel alignment. Refer to

RSU-22, "Inspection"

.

4. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

LOWER LINK

RSU-31

< REMOVAL AND INSTALLATION >

[AWD]

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

LOWER LINK

Exploded View

INFOID:0000000012200422

Removal and Installation

INFOID:0000000012200423

REMOVAL

1. Remove tires with power tool. Refer to

WT-39, "Removal and Installation"

.

2. Set jack under suspension arm.

CAUTION:

• Never damage the suspension arm with a jack.

• Check the stable condition when using a jack.

3. Remove stabilizer link. Refer to

RSU-35, "Removal and Installation"

.

4. Remove eccentric disc, adjusting bolt, mounting bolt, and nut, then remove lower link.
5. Perform inspection after removal. Refer to

RSU-32, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

• Never reuse lower link mounting nut.

• Perform inspection after installation. Refer to

RSU-32, "Inspection"

.

1.

Rear suspension member

2.

Adjusting bolt

3.

Upper link

4.

Eccentric disk

5.

Lower link

6.

Suspension arm bracket

7.

Suspension arm

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPEIB0262GB

RSU-32

< REMOVAL AND INSTALLATION >

[AWD]

LOWER LINK

Inspection

INFOID:0000000012200424

INSPECTION AFTER REMOVAL

Check lower link and bushing for any deformation, cracks, or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel alignment. Refer to

RSU-22, "Inspection"

.

2. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.
