Nissan Juke F15. Manual - part 1083





RAX-24

< REMOVAL AND INSTALLATION >

[AWD]

REAR DRIVE SHAFT

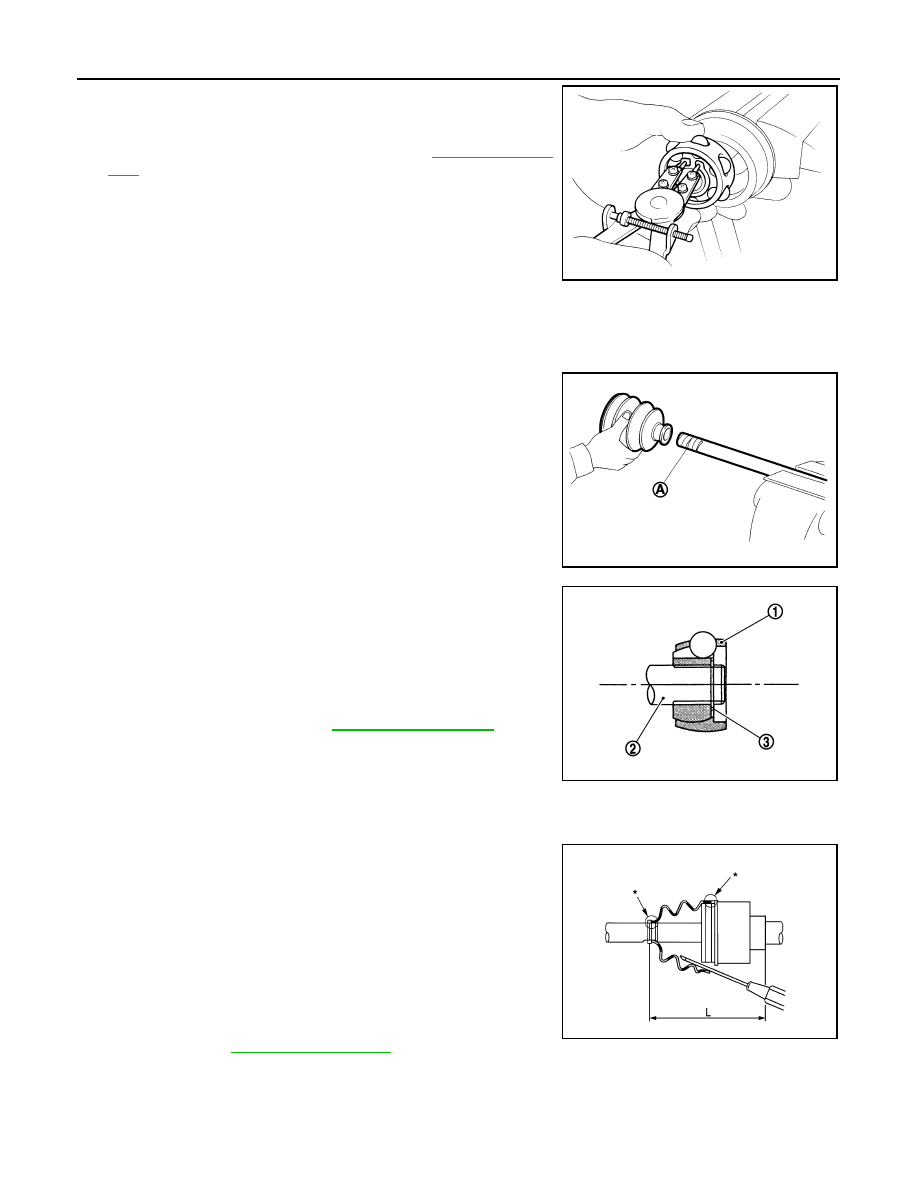

8. Remove snap ring, then remove ball cage/steel ball/inner race

assembly from shaft.

9. Remove boot from shaft.
10. Perform inspection after disassembly. Refer to

RAX-25, "Inspec-

tion"

.

ASSEMBLY

1. Clean the old grease on housing with paper waste.
2. Install boot and boot bands to shaft.

CAUTION:

• Wrap serration on shaft with tape (A) to protect boot from

damage.

• Never reuse boot and boot bands.

3. Remove the tape wrapped around the serration on shaft.

4. Install ball cage/steel ball/inner race assembly (1) to shaft (2),

and secure them tightly with a snap ring (3).

CAUTION:

Never reuse snap ring.

5. Apply the appropriate amount of grease onto housing and slid

surface.

6. Install housing.
7. Install stopper ring to housing.

CAUTION:

Never reuse stopper ring.

8. After installed, pull shaft to check engagement between housing and stopper ring.
9. Install boot securely into grooves (indicated by “*” marks) shown

in the figure.

CAUTION:

If grease adheres to the boot mounting surface (with “*”

mark) on shaft or housing, boot may be removed. Remove

all grease from the surface.

10. To prevent the deformation of the boot, adjust the boot installa-

tion length to the value shown below (L) by inserting the suitable

tool into the inside of boot from the large diameter side of boot

and discharging inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage of the boot.

• Be careful not to touch the inside of the boot with the tip of tool.

SFA514A

JPDIF0009ZZ

Grease amount : Refer to

RAX-26, "Drive Shaft"

.

L

: Refer to

RAX-26, "Drive Shaft"

.

JPDIG0004ZZ

JPDIF0230ZZ

REAR DRIVE SHAFT

RAX-25

< REMOVAL AND INSTALLATION >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

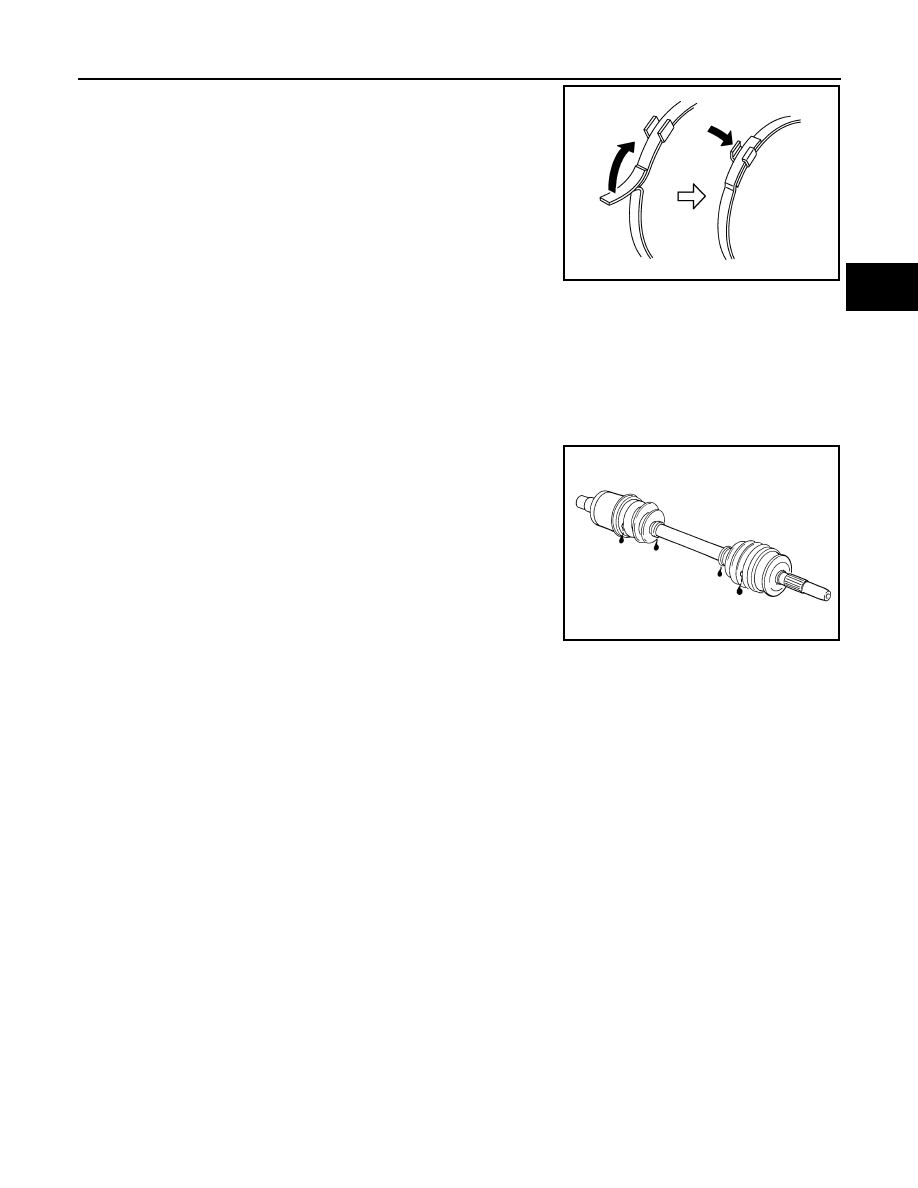

11. Install boot bands securely as shown in the figure.

CAUTION:

Never reuse boot band.

12. Secure housing and shaft, and then make sure that they are in

the correct position when rotating boot. Reinstall them using

boot bands when boot installation positions become incorrect.

CAUTION:

Never reuse boot band.

13. Install dust shield to housing.

CAUTION:

Never reuse dust shield.

14. Install circular clip to housing.

CAUTION:

Never reuse circular clip.

Inspection

INFOID:0000000012196568

INSPECTION AFTER REMOVAL

• Move joint up/down, left/right, and in the axial directions. Check for motion that is not smooth and for signifi-

cant looseness.

• Check boot for cracks, damage, and leakage of grease.

INSPECTION AFTER DISASSEMBLY

Check the following items, and replace the part if necessary.

Shaft

Check shaft for runout, cracks, or other damage.

Joint Sub-Assembly (Wheel Side)

Check the following:

• Joint sub-assembly for rough rotation and excessive axial looseness.

• The inside of the joint sub-assembly for entry of foreign material.

• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly.

Replace joint sub-assembly if there are any non-standard conditions of components.

Housing and Ball Cage/Steel Ball/Inner Race Assembly (Final Drive Side)

Replace housing and ball cage/steel ball/inner race assembly if there is scratching or wear of housing ball

contact surface.

NOTE:

Housing and ball cage/steel ball/inner race assembly are used in a set.

PDIA1188J

SFA108A

RAX-26

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AWD]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000012196569

Drive Shaft

INFOID:0000000012196570

*: For measuring position, refer to

RAX-23, "FINAL DRIVE SIDE : Disassembly and Assembly"

.

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Item

Standard

Grease quantity

Wheel side

55 – 75 g (1.94 – 2.64 oz)

Final drive side

65 – 85 g (2.30 – 2.99 oz)

Boots installed length

*

Wheel side

123.5 mm (4.86 in)

Final drive side

160.8 mm (6.33 in)
